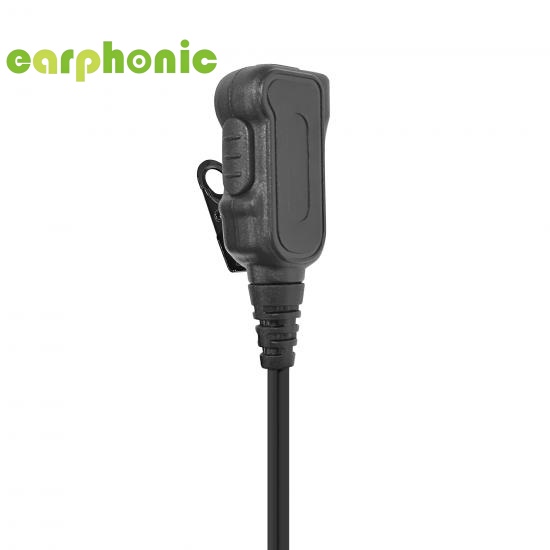

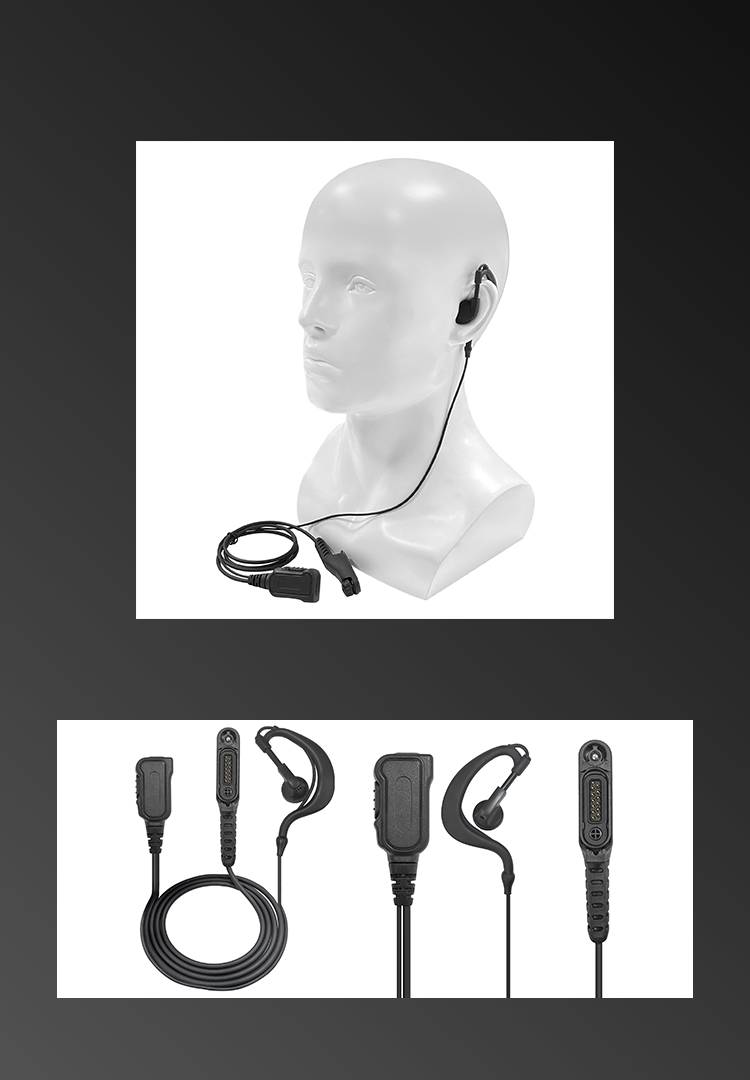

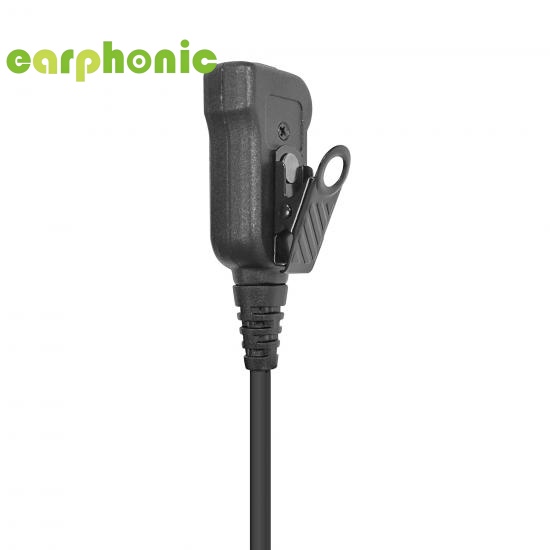

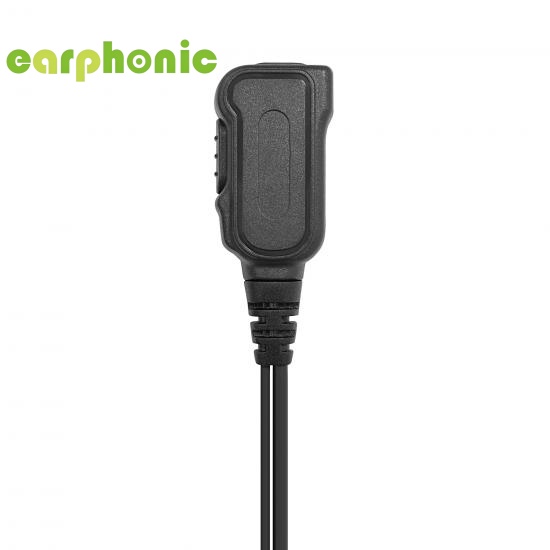

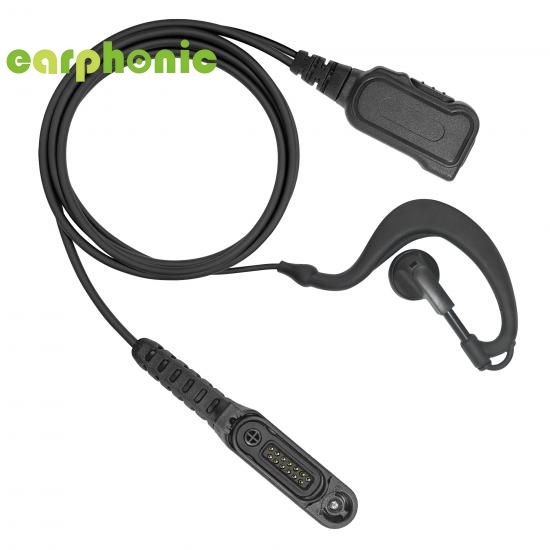

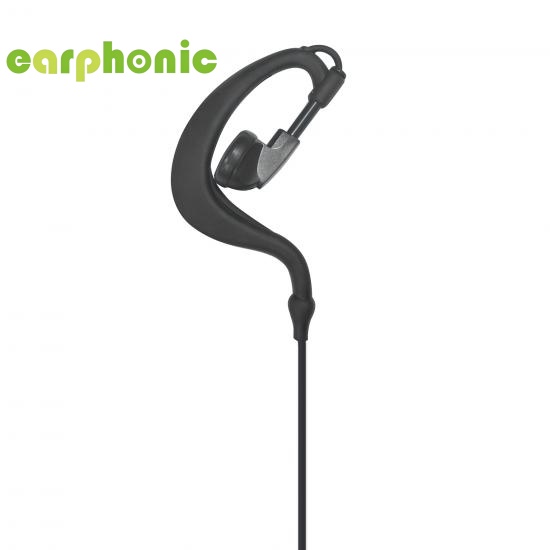

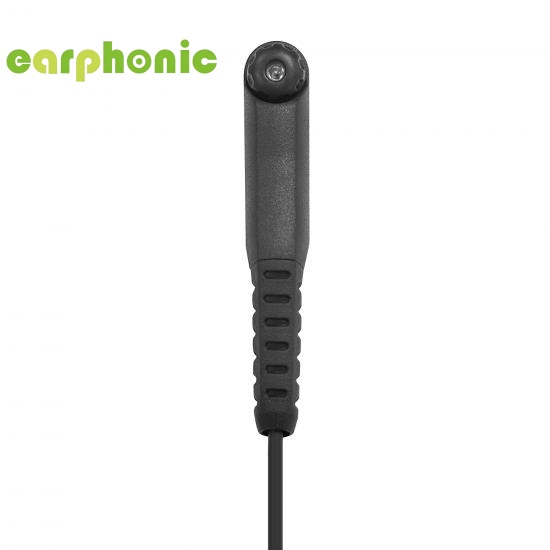

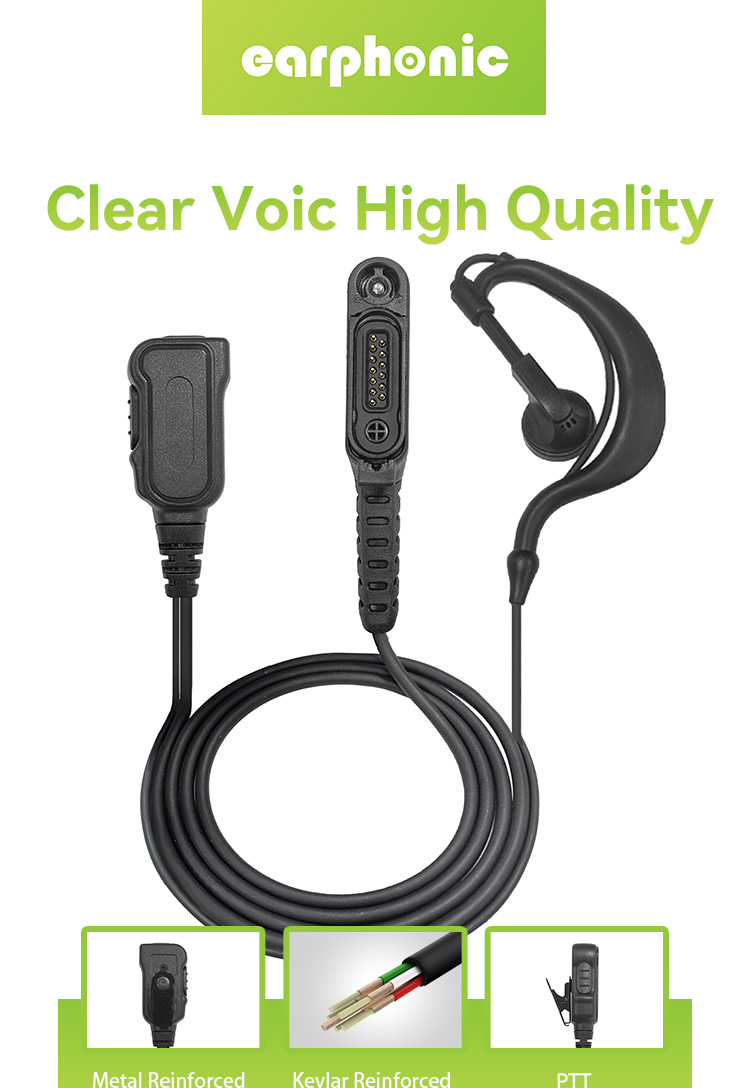

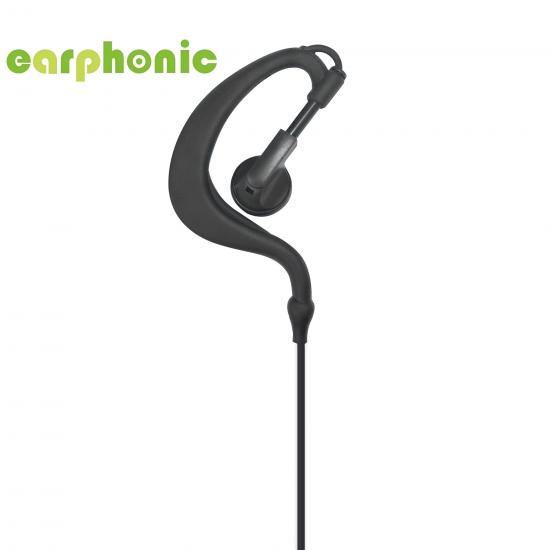

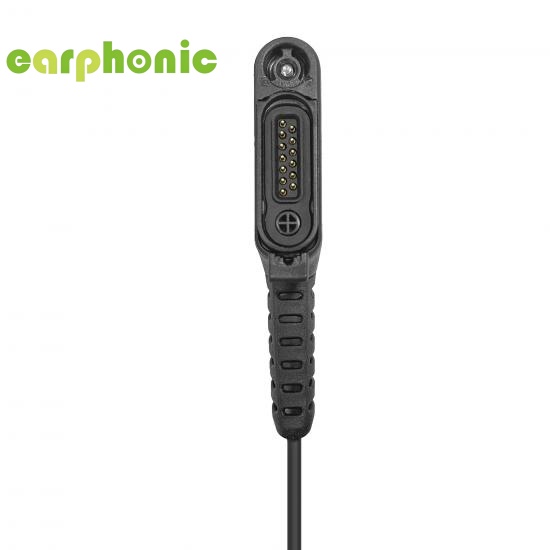

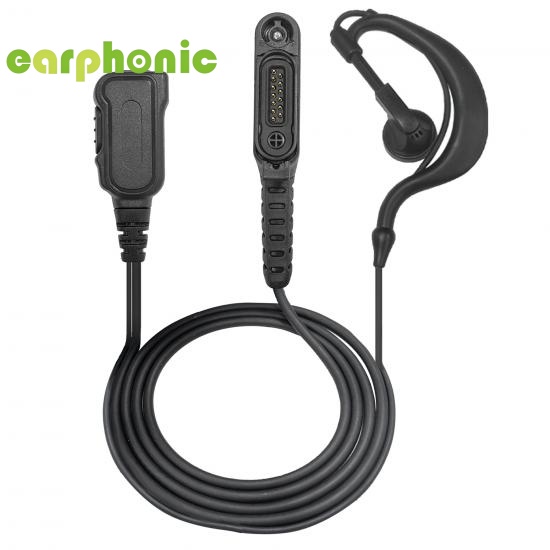

EARPHONIC G-Type Earhook PTT Headset R7 Connector For Motorola Two-Way Radios

Electrical Parameters of Speaker

Impedance

150Ω±3Ω

Resonance Frequency

350Hz ±20%

Intelligent degree

 111±5dB  At 1000 Hz At 0.179V;

Rated Power

Rated Power Input 2mW, Max Power Input 3mW;

Frequency scope

20HZ—20KHZ At 0.179 V

Ruzzes&Rattles

Clear sound, no noise At 0.25V(50HZ-3KHZ)

Distortion

Less Than 5% at 1500Hz

Polarity

Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole

Flux Density

±15% Guass (Surface)

Air Tube Shell Diameter

Φ16mm±0.01mm;

Brand

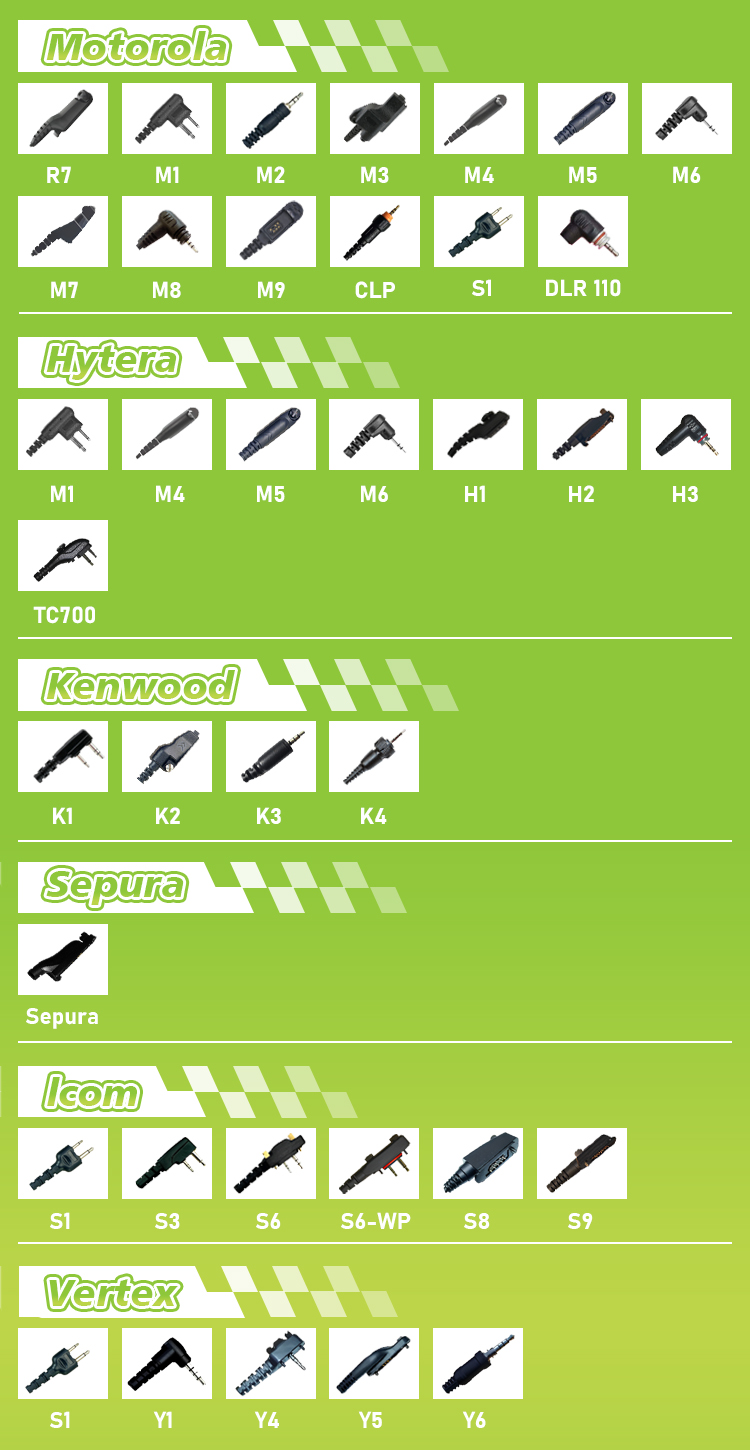

Connectors

Motorola

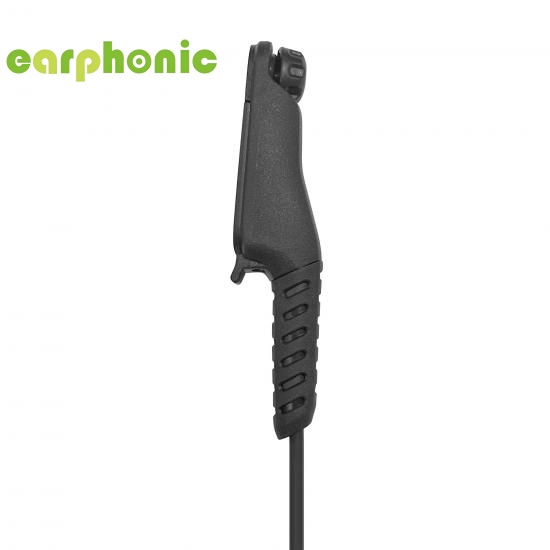

R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110

Hytera

M1, M4, M5, M6, H1, H2, H3, TC700

Kenwood

K1, K2, K3, K4

Speura

Speura

Icom

S1, S3, S6, S6-WP, S8, S9

Vertex

S1, Y1, Y4, Y5, Y6
