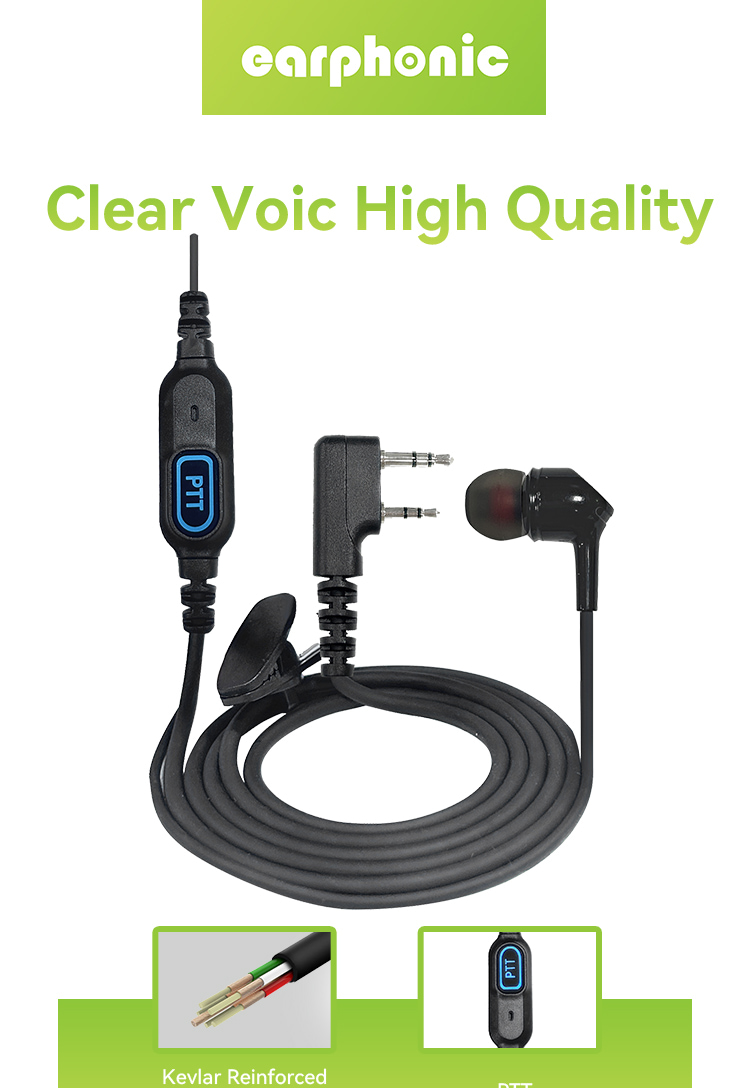

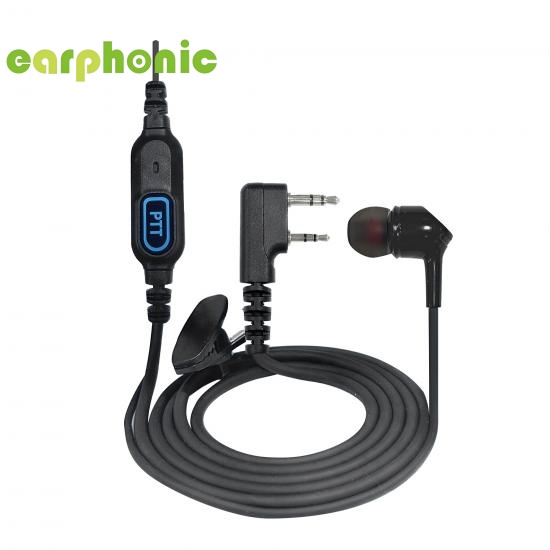

Product Name: EARPHONIC K Plug Walkie Talkie Earpiece with Mic Customizable Logo Headset In Ear Two Way Radio Earphone
Brand: Earphonic
MOQ: 5 PCS
OEM/ODM: Yes
Warranty: 3-6 months.
Product Features:

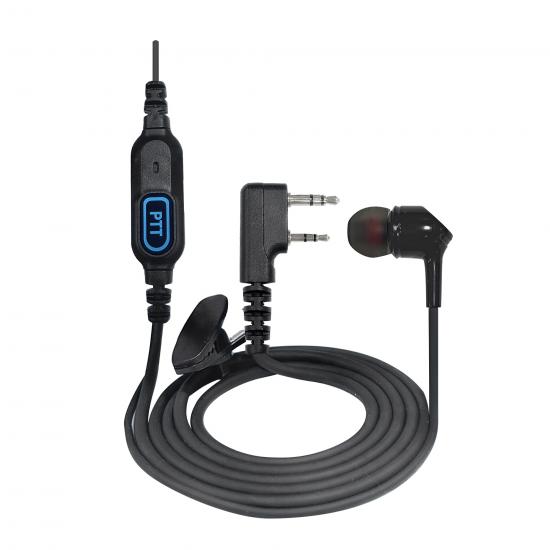

Single-wire in-ear Earhook PTT Headset for Two-Way Radios

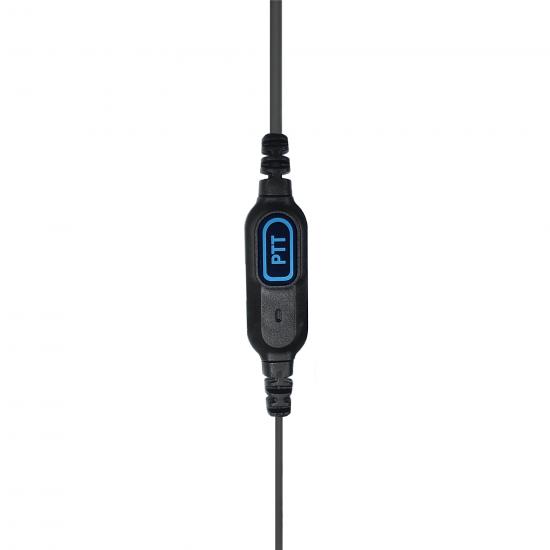

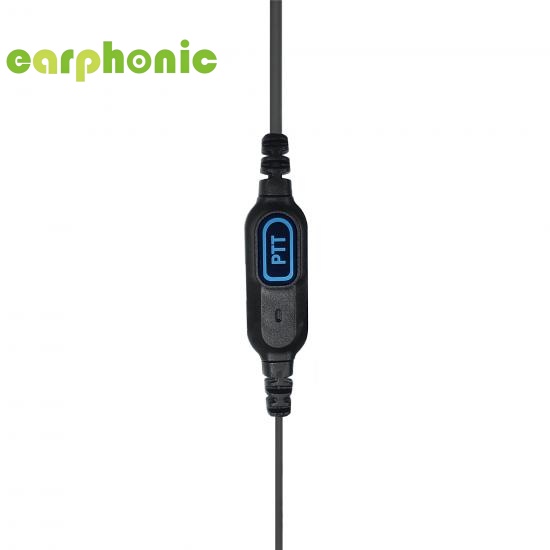

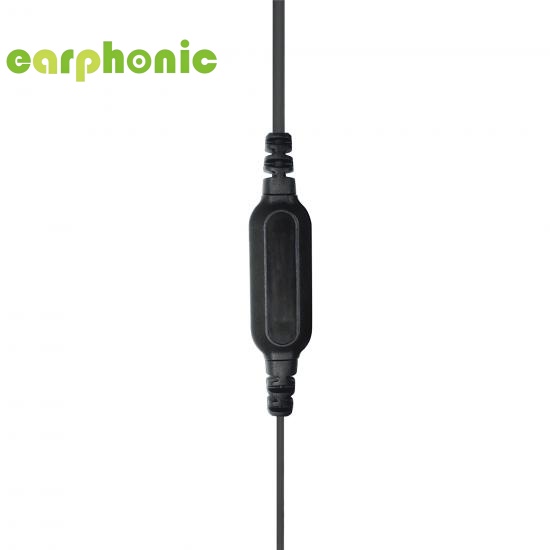

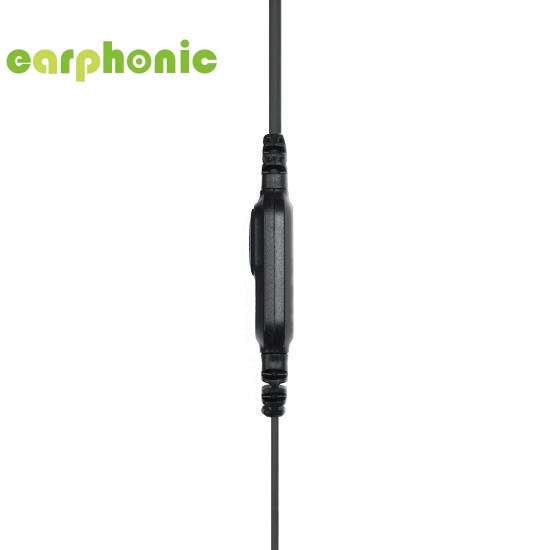

1. Inline PTT control is convenient for one-handed operation ;

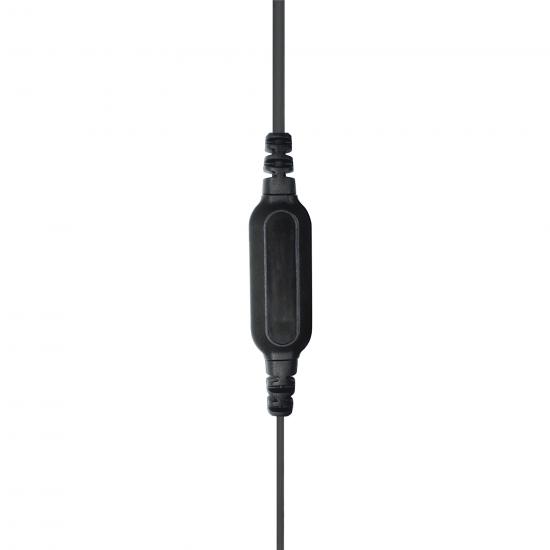

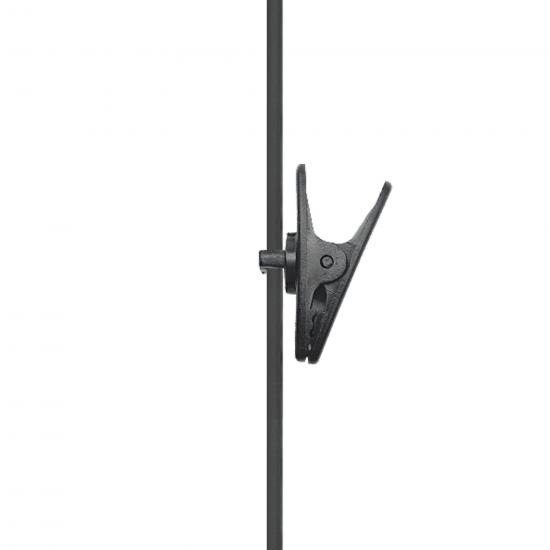

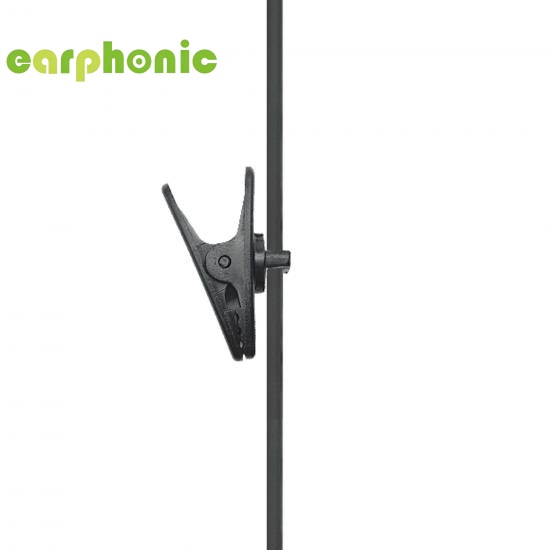

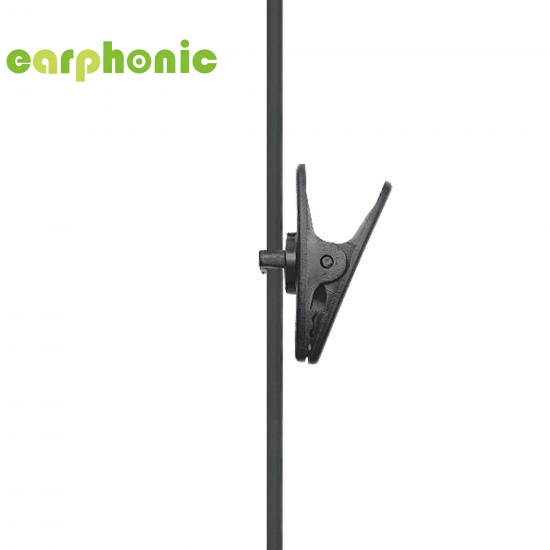

2. Stylish PTT design with metal clamps;
3. The blue PTT button is highly visible;

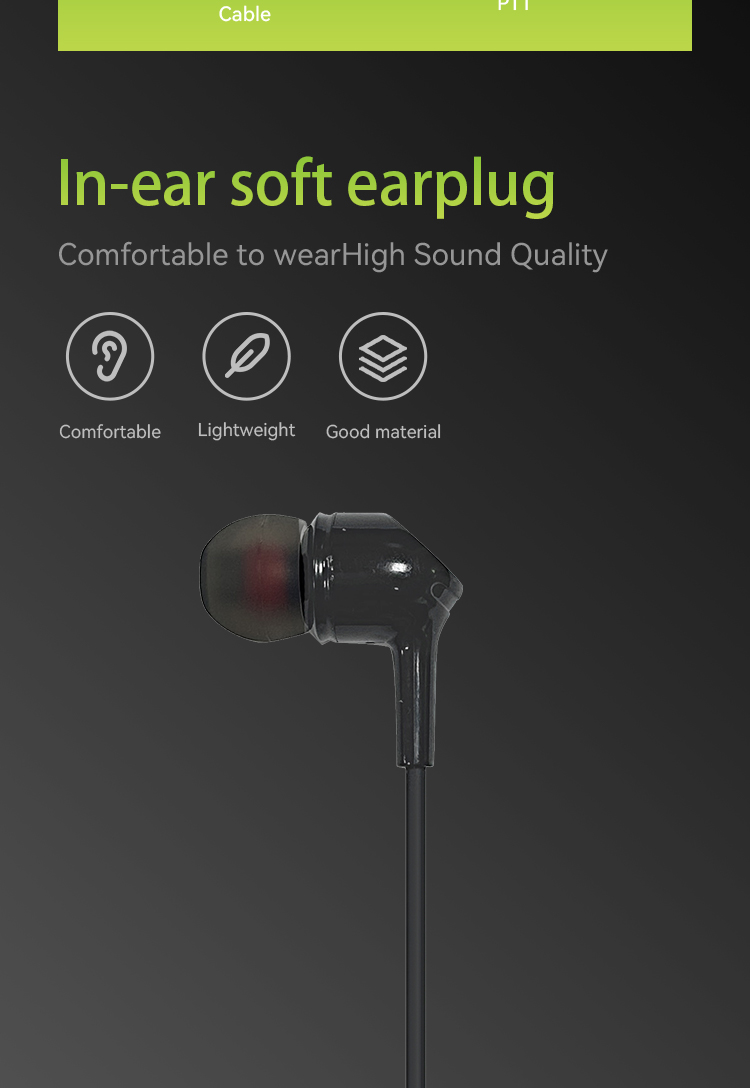

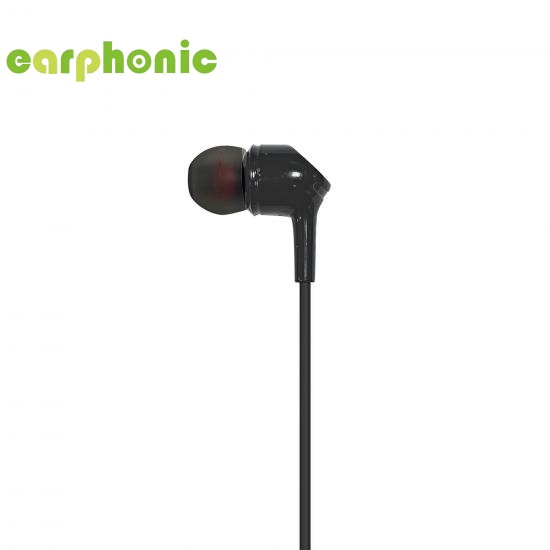

4. The in-ear earhook design offers excellent concealment and ensures clear voice transmission;

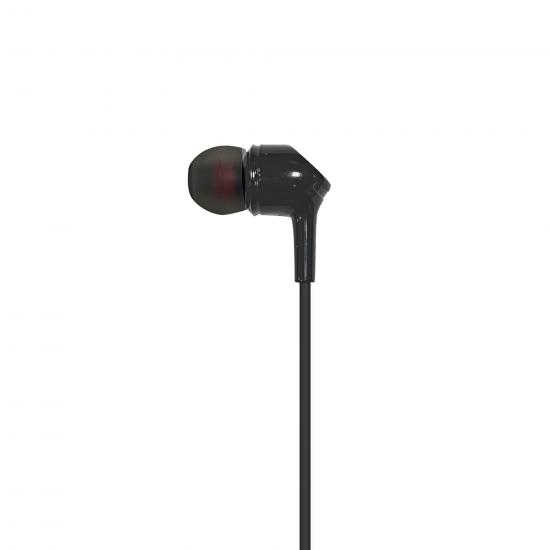

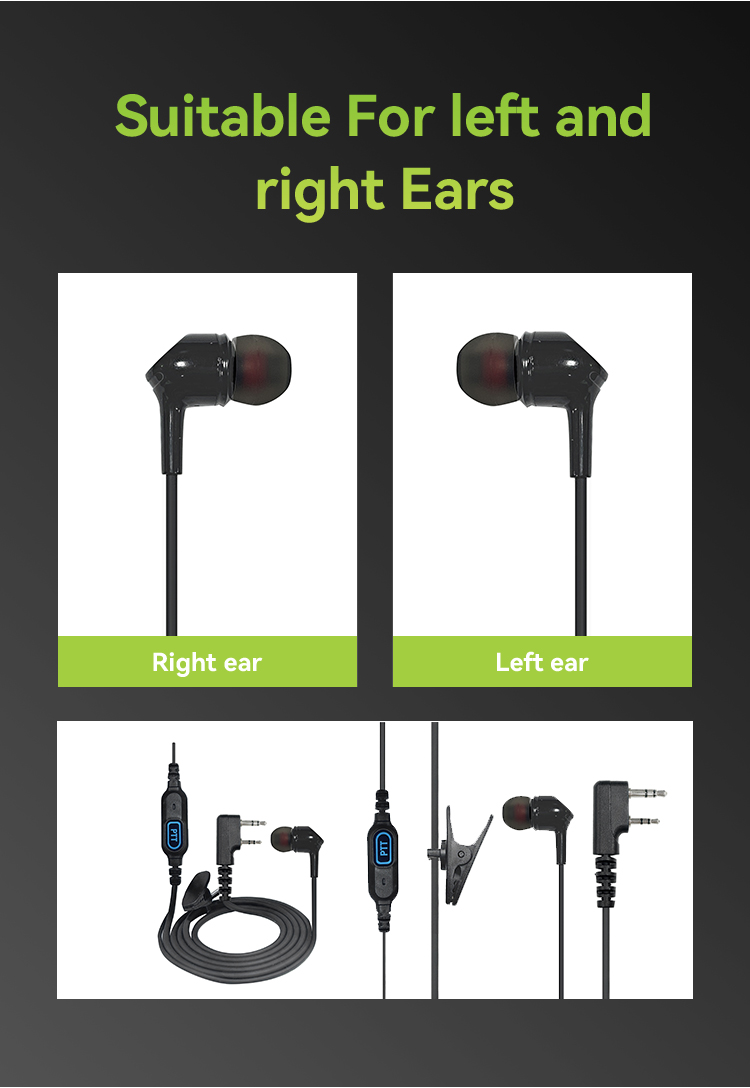

5.Rotatable earpiece design, compatible with both left and right ears;
6. Small pickup microphone ensures clear voice transmission;

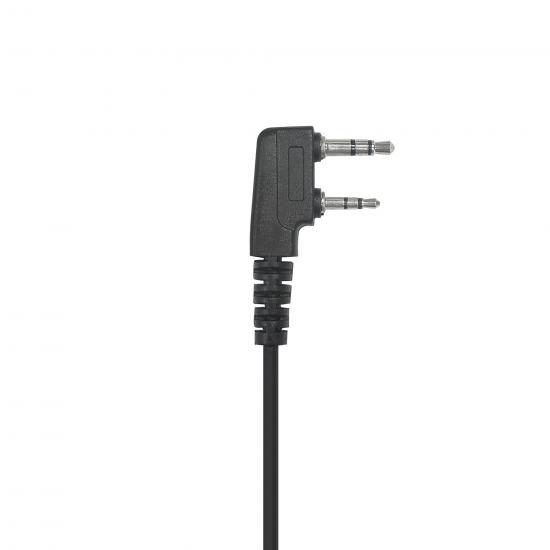

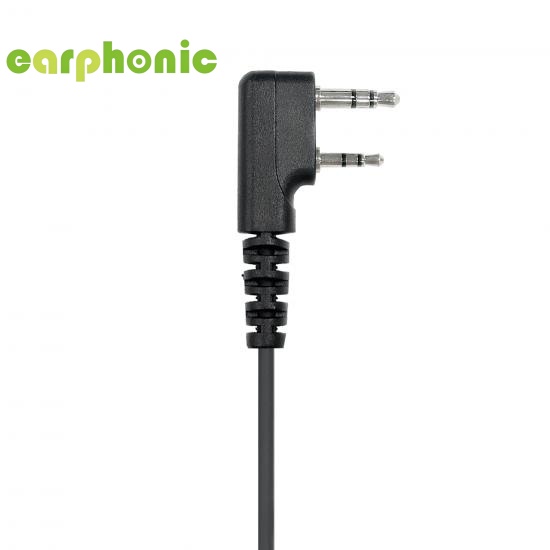

7. Plug can be customized according to customer requirements;
9. Mic Cable Length：95CM
10. Earphone Cable Length：35CM
Microphone Parameters:
| Electrical Parameters of The microphone | |
| Sensitivity | -36dB≦S≦-32dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10; |
| Maximum input S.P.L | 110dB,At f=1kHz,THD＜1% |
Speaker Paramters:
| Electrical Parameters of Speaker | |
| Impedance | 150Ω±3Ω |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 111±5dB At 1000 Hz At 0.179V; |
| Rated Power | Rated Power Input 2mW, Max Power Input 3mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Speaker Shell Diameter | Φ12mm±0.01mm |

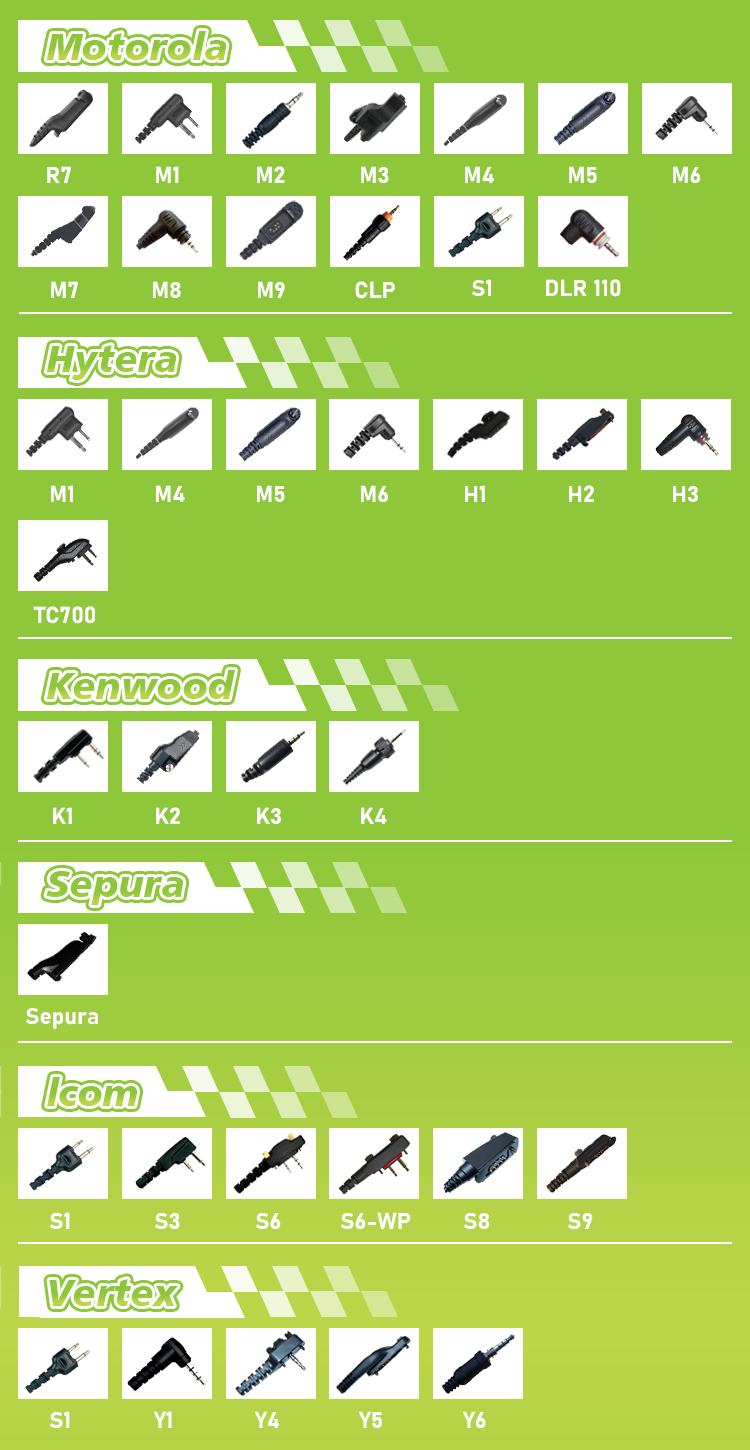

Compatible Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
