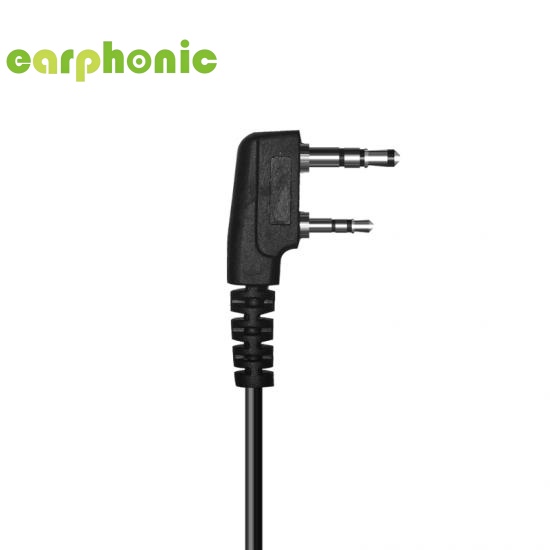

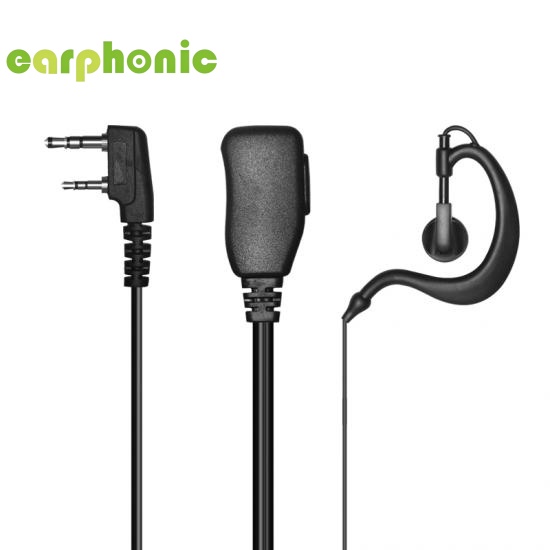

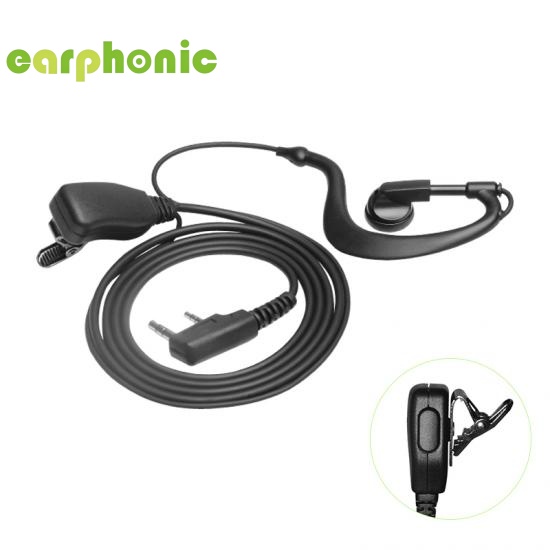

Product name: Two-way Radio 2 Pin Earpiece with Mic for Radio walkie talkie earpiece
Brand: Earphonic
MOQ: 5 PCS
OEM/ODM: Yes
Warranty: 3-6 months
Product Features:

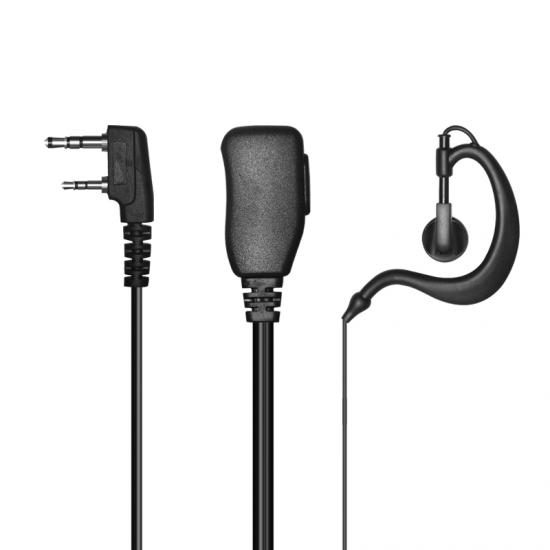

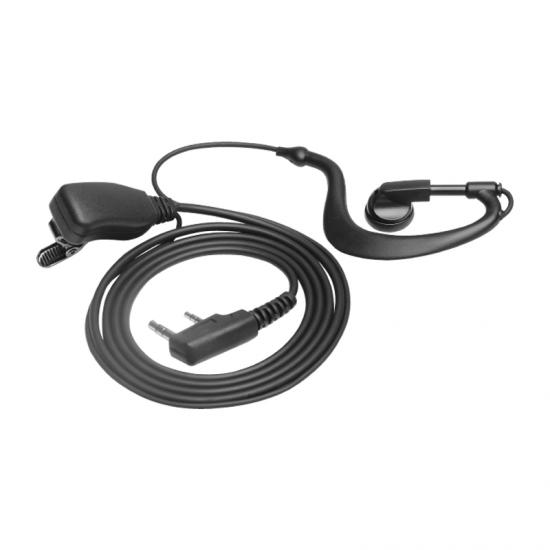

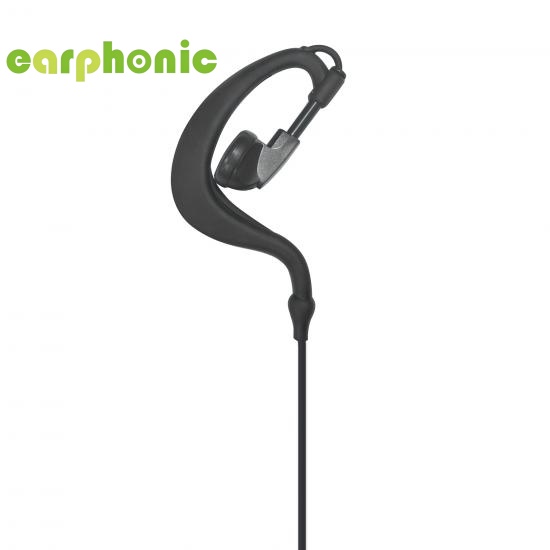

G-Type Earhook PTT Headset for Two-Way Radios

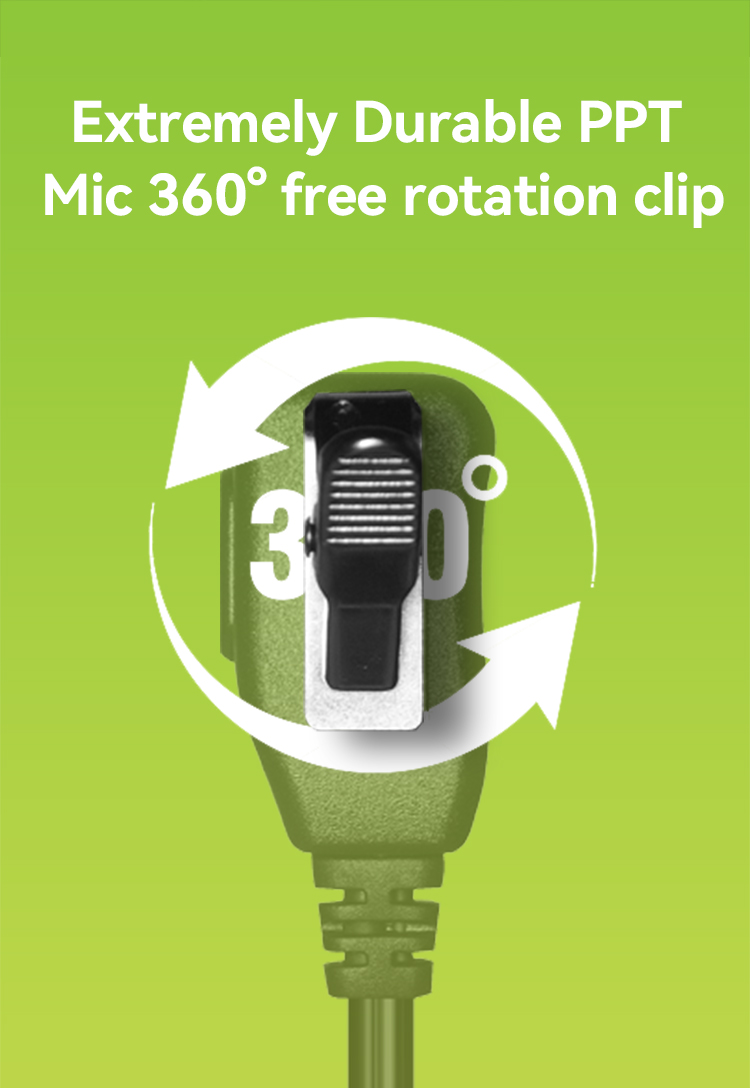

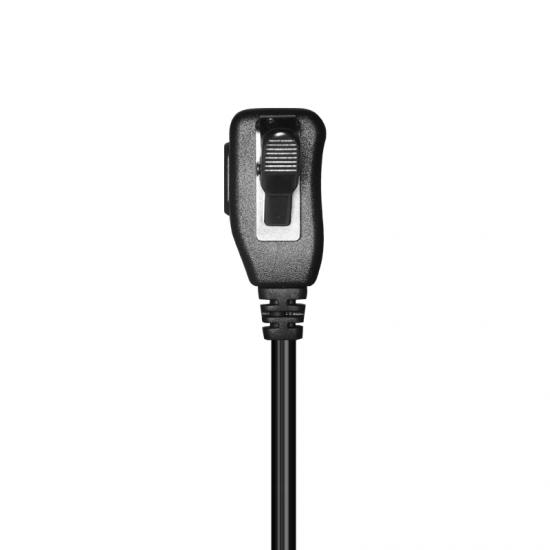

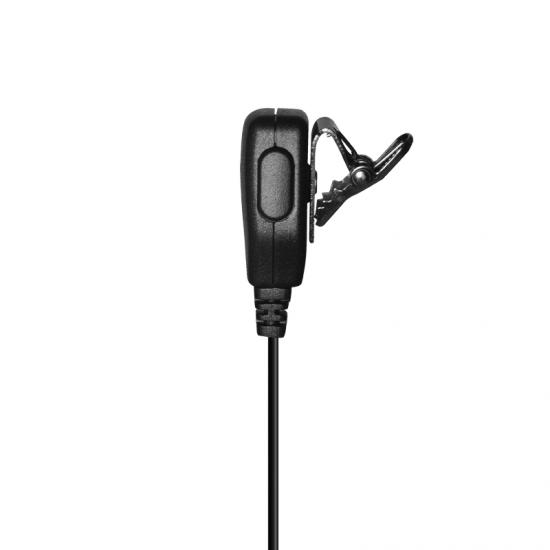

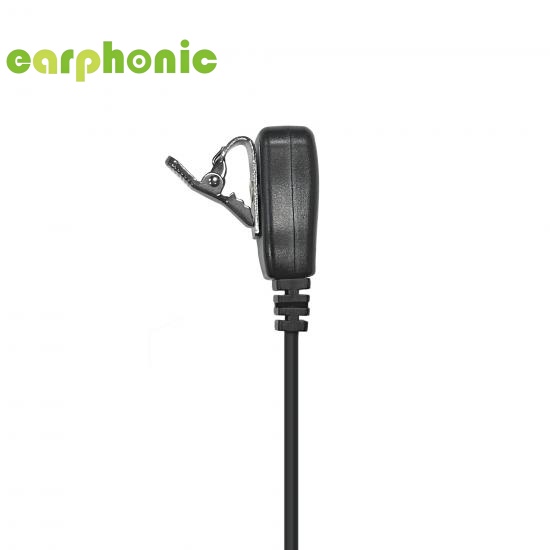

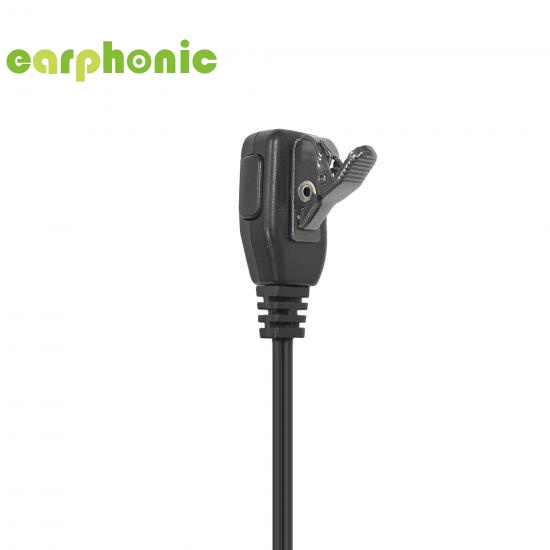

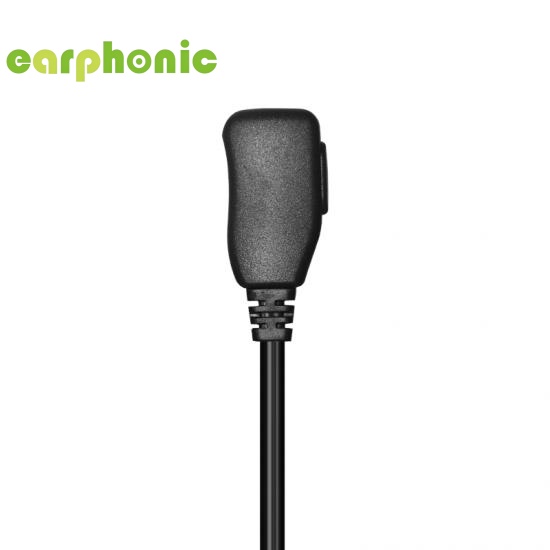

1. Fashion PTT design with metal clamps;

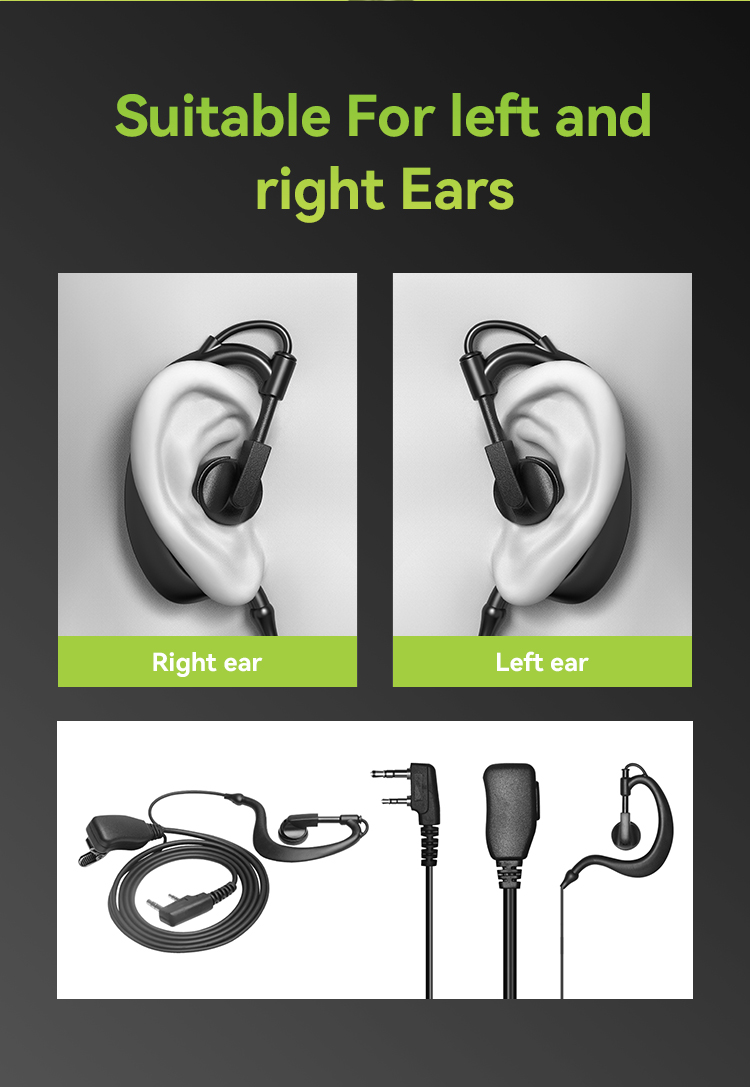

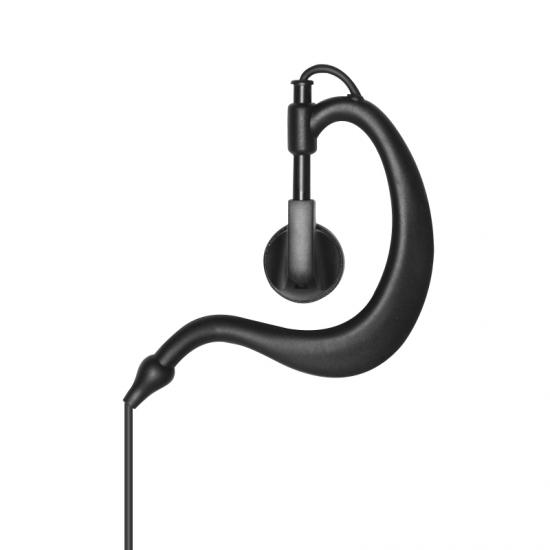

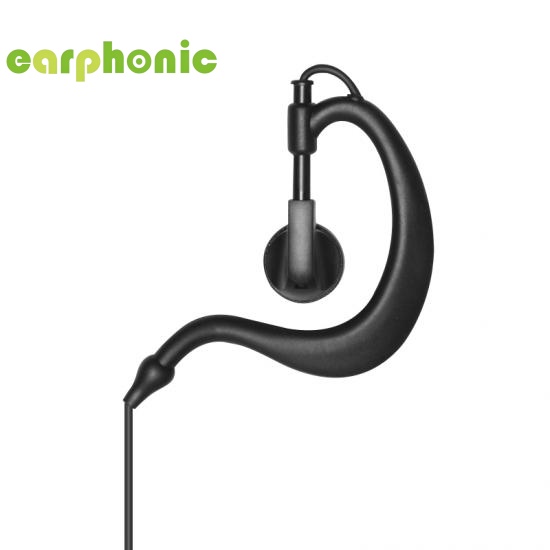

2. Wear comfortable soft rubber ear hooks;

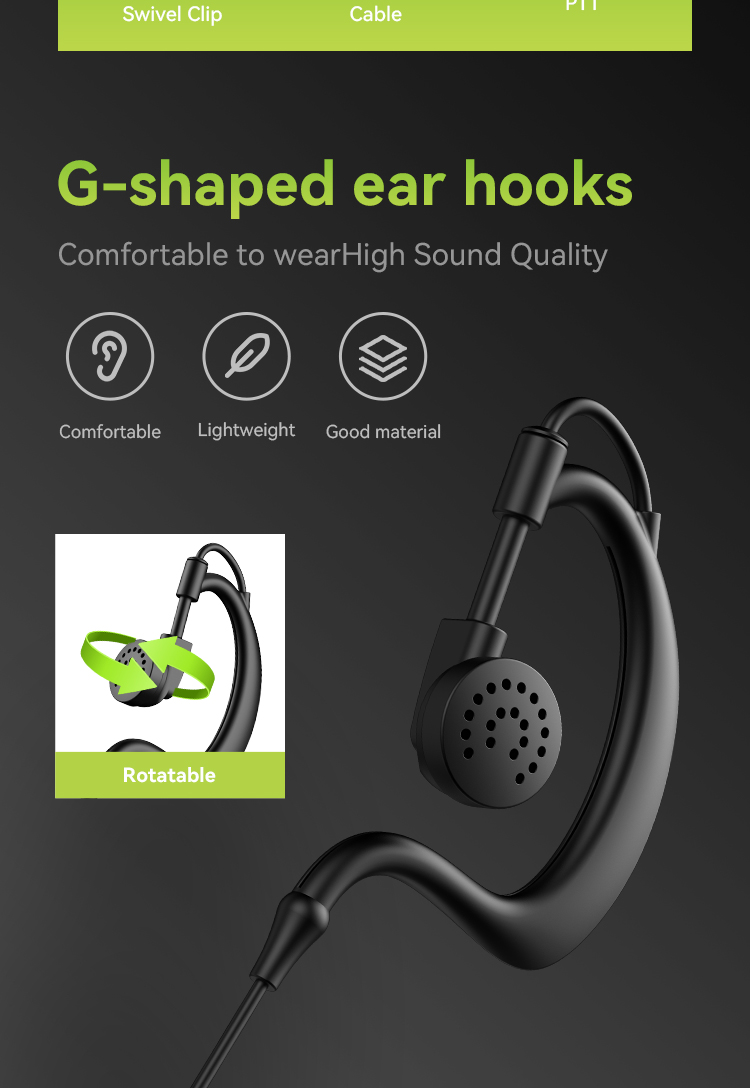

3. Rotating the speaker can reduce the pressure on the wire;
4. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD;

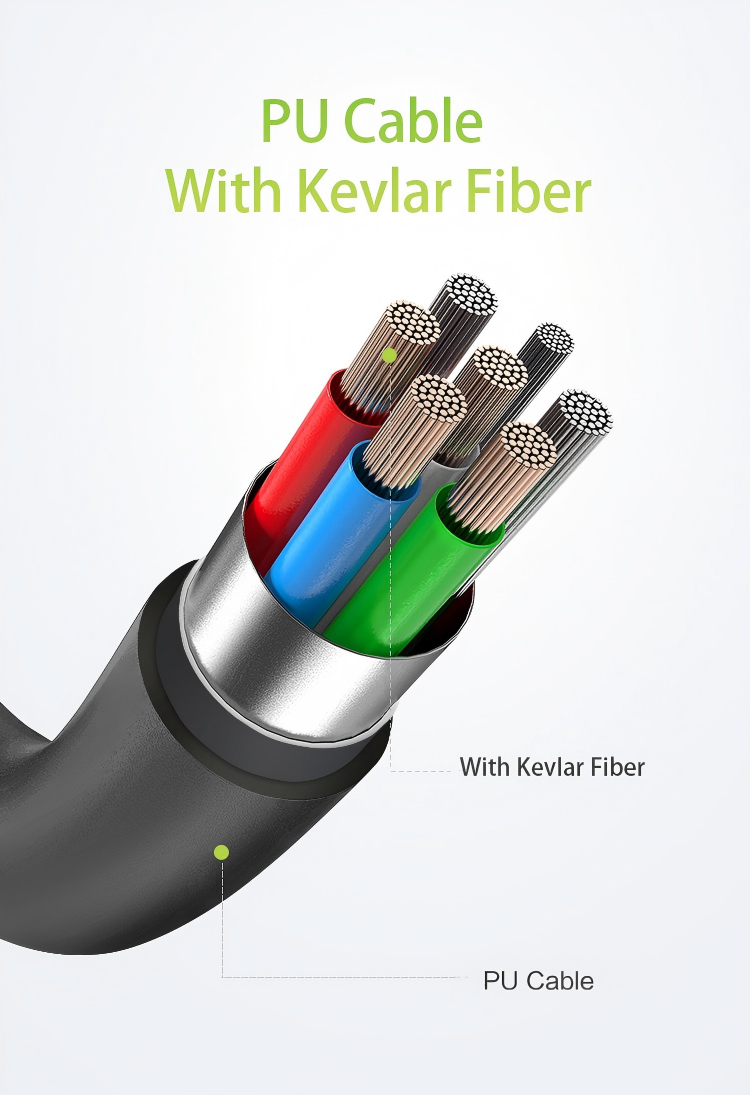

5. Cable Length:95/45CM
Speaker Parameters:
| Electrical Parameters of Speaker | |
| Impedance | 150Ω±3Ω |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 111±5dB At 1000 Hz At 0.179V; |
| Rated Power | Rated Power Input 2mW, Max Power Input 3mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Speaker Shell Diameter | Φ16mm±0.01mm |
Microphone Parameters:
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10; |
| Maximum input S.P.L | 110dB,At f=1kHz,THD<1% |

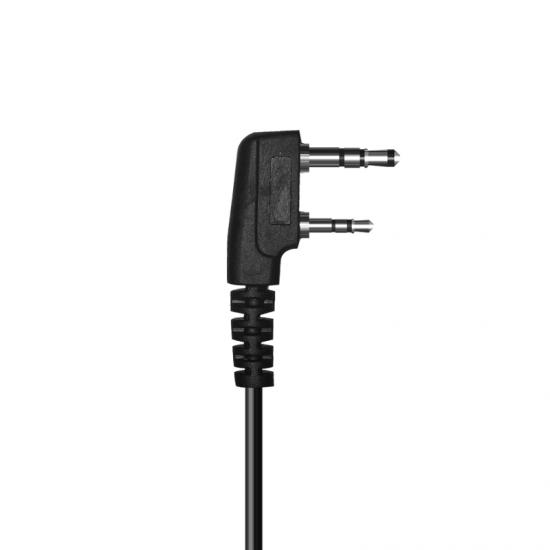

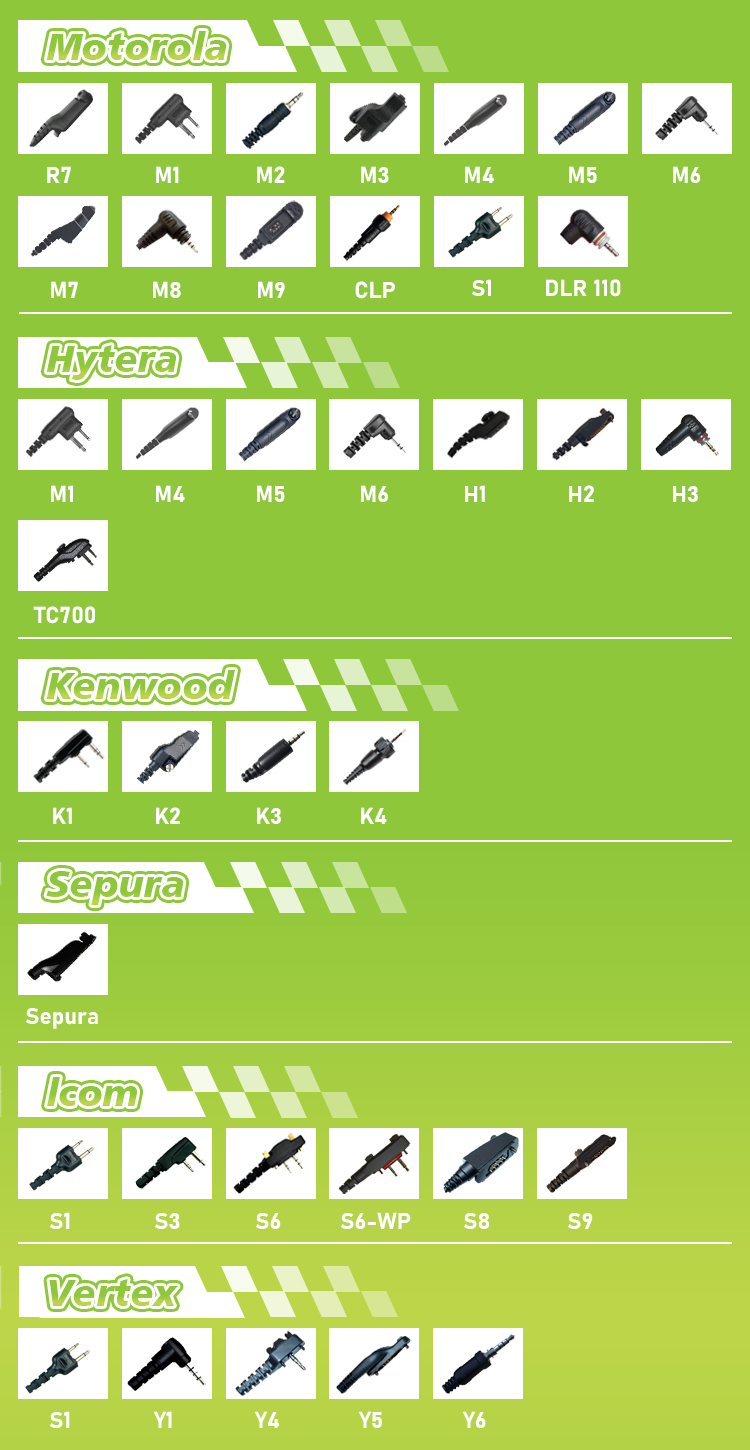

Compatible Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |









FAQ
Q1: When can you arrange the shipment after payment?
A:When the order is 200 pieces and below, it takes 2 days; when the order is 201 to 500 pieces, it takes 5 days; when the order is 501-2000 pieces, it takes 7 days; when the order is 2001 pieces and above, it takes 15 days.
Q2:Can you provide samples for me to test first?
A:Yes, samples can be provided, but the shipping cost charged on customer.
Q3:What's your usual payment term for orders?
A:We accept terms of T/T,L/C,Western Union,MmoneyGram,PAYPAL.

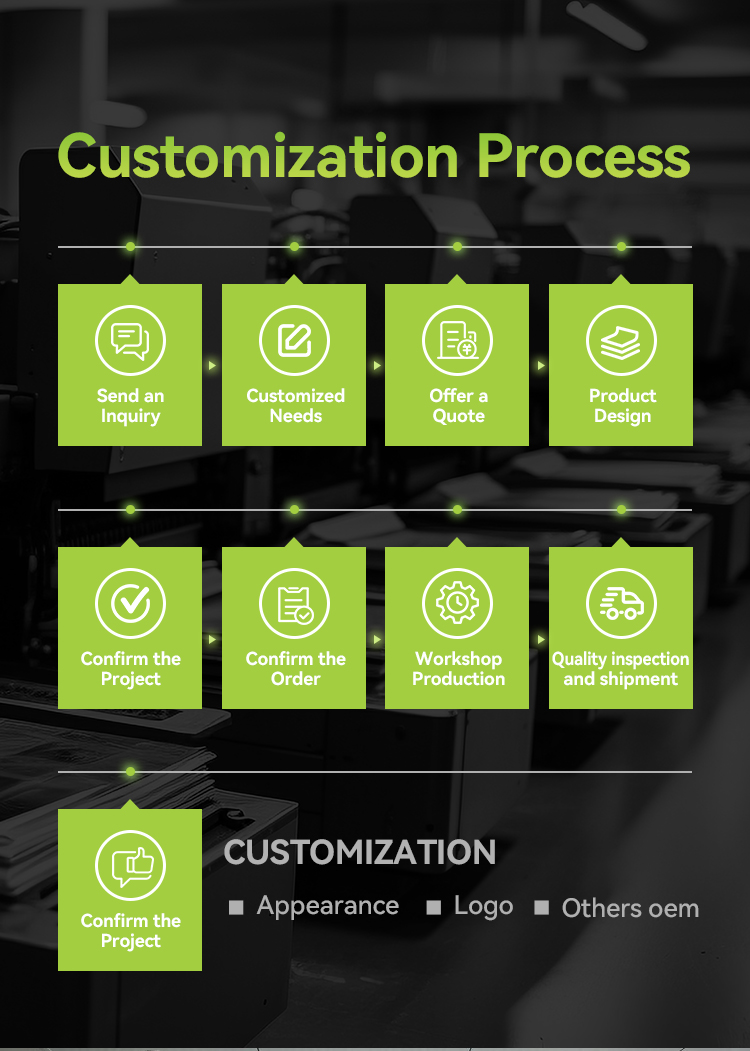

Q4: What about customized service?
A:OEM and ODM services are provided, for OEM, we can design the packaging box and logo according to your requirements.
Q5:What is the MOQ of your products?.
A:Usually, it is serious requirement. However, it depends on diferent products.
