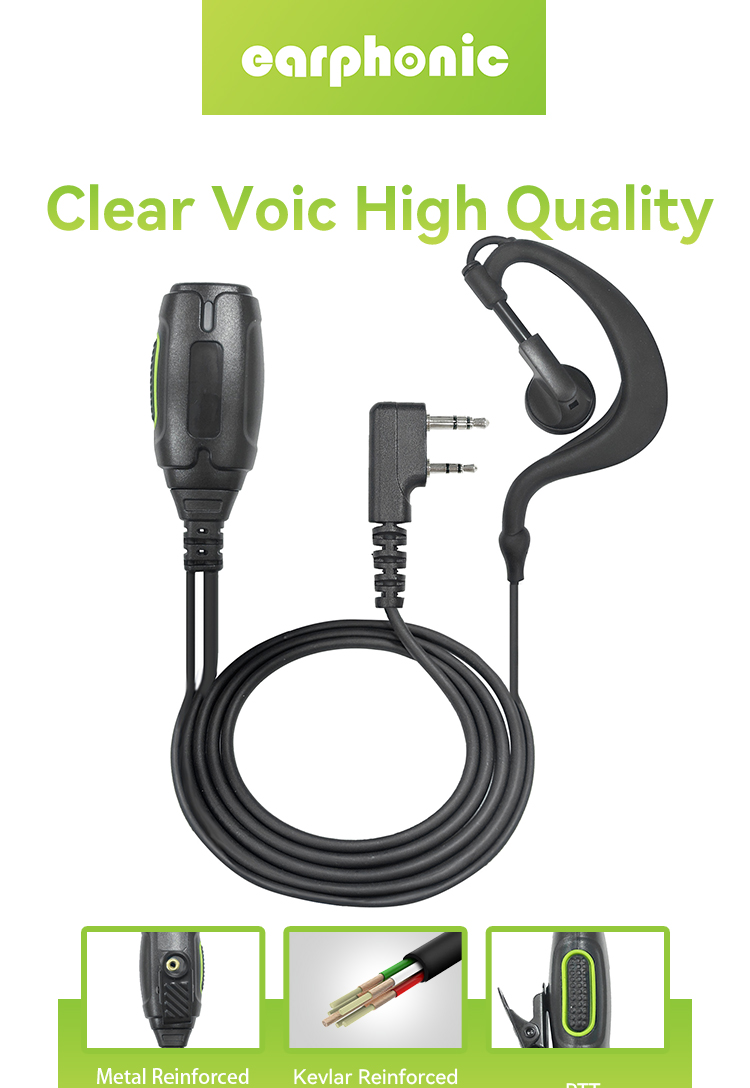

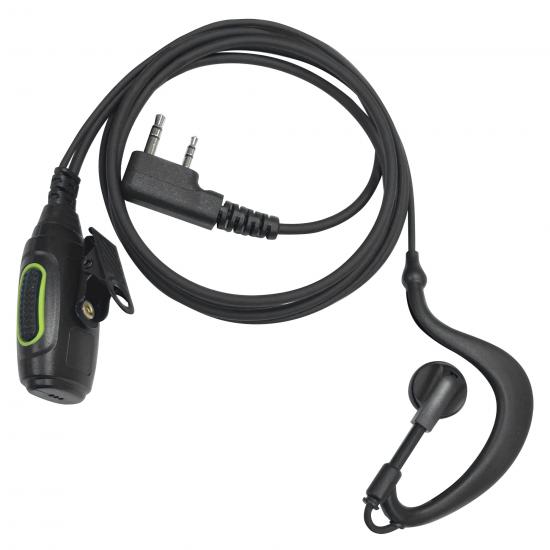

Product Name: EARPHONIC K Plug Headset for Walkie Talkie Earpiece with PTT Two Way Radio Earphone
Brand :EARPHONIC
Warranty: 3-6 months
MOQ: 5PCS
OEM/ODM: Yes
Product Positioning：walkie talkie earphone
Product Features:

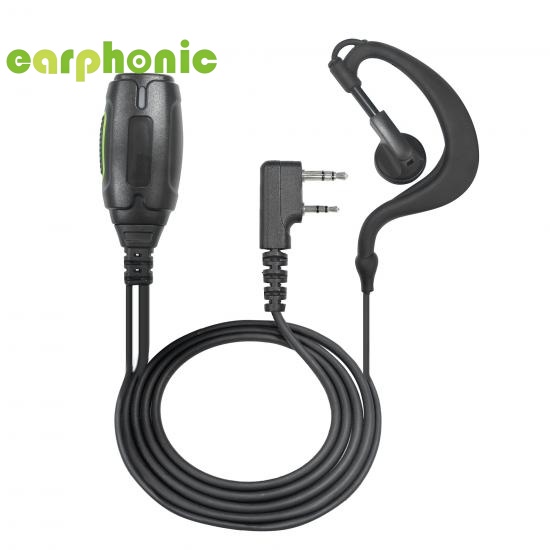

G-Type Earhook PTT Headset for Two-Way Radios

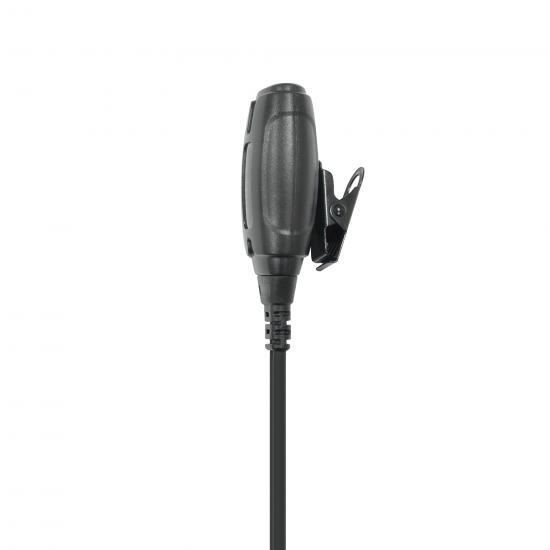

1. Fashion PTT design with metal clamps;
2. Rotating the speaker can reduce the pressure on the wire;

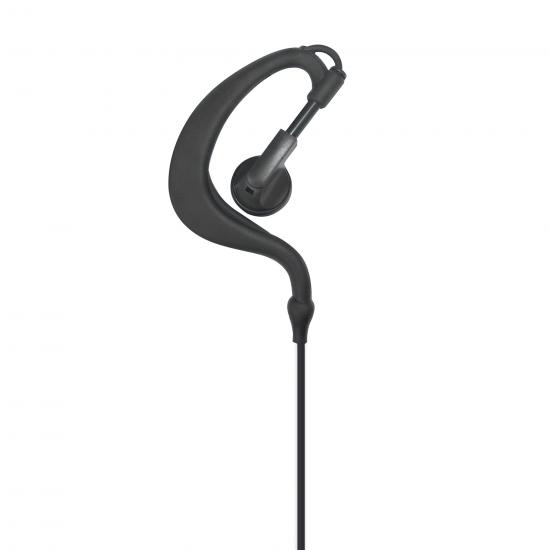

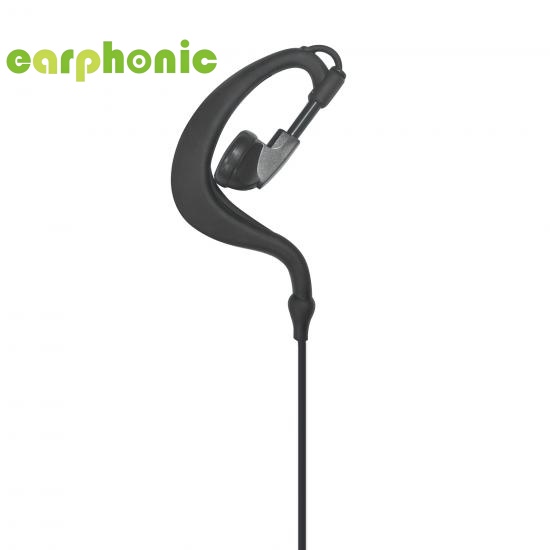

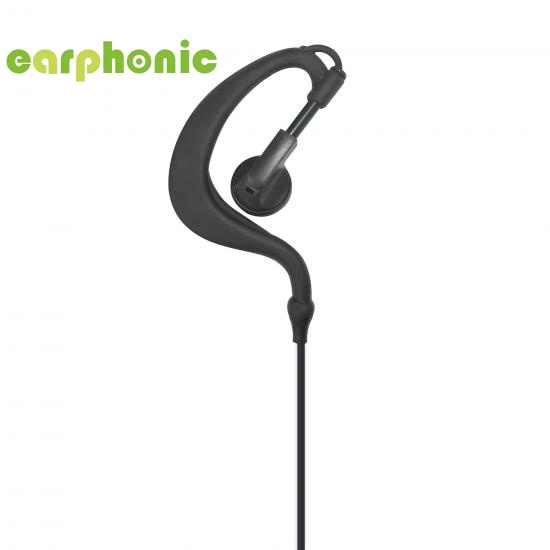

3. Wear comfortable rubber ear hooks;
4. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD.;
5. Cable Length:95/50CM

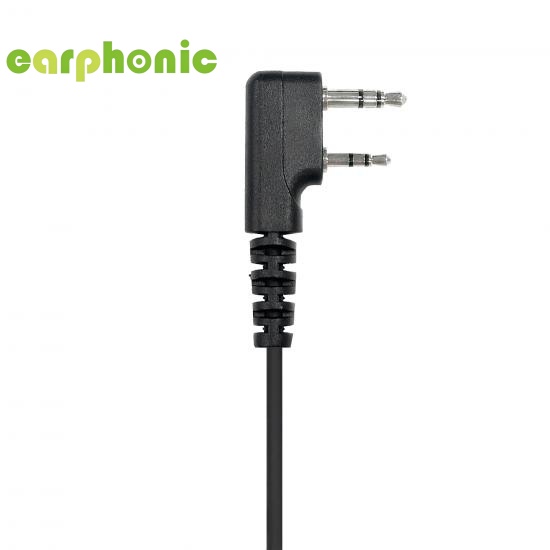

6. Connectors can be customized.
Microphone Parameters:
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10; |
| Maximum input S.P.L | 110dB,At f=1kHz,THD＜1% |
Speaker Parameters:
| Electrical Parameters of Speaker | |
| Impedance | 150Ω±3Ω |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 111±5dB At 1000 Hz At 0.179V; |
| Rated Power | Rated Power Input 2mW, Max Power Input 3mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Speaker Shell Diameter | Φ16mm±0.01mm; |

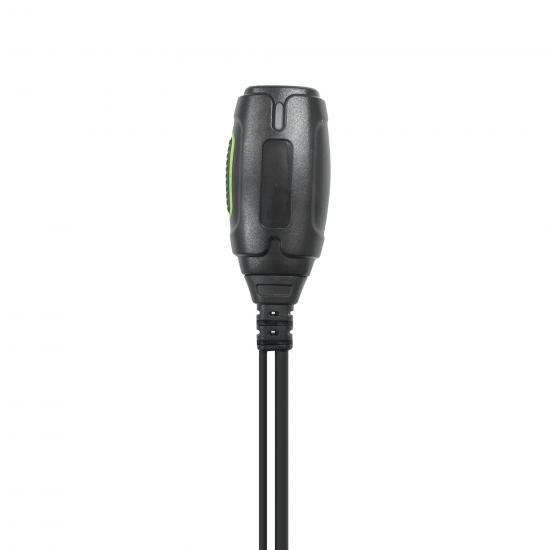

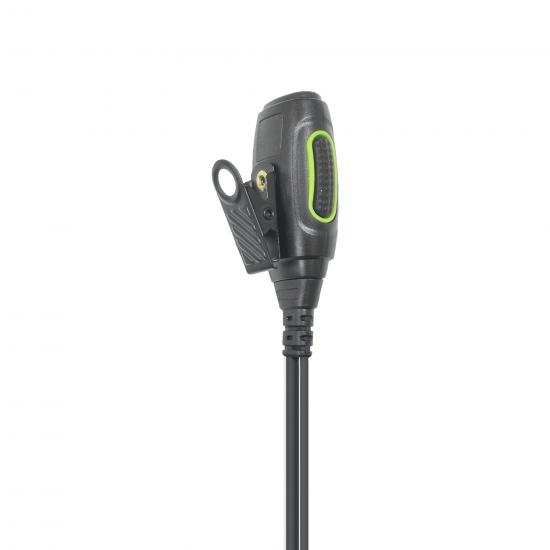

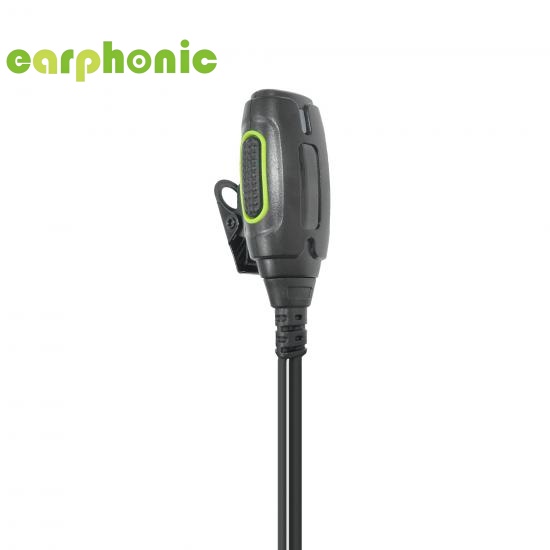

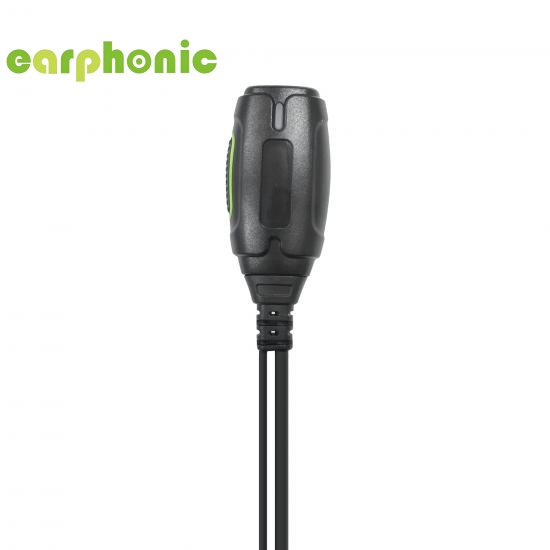

PTT Button:
Trigger Method: Push type (with feedback damping)
Lifespan: ≥ 100,000 presses

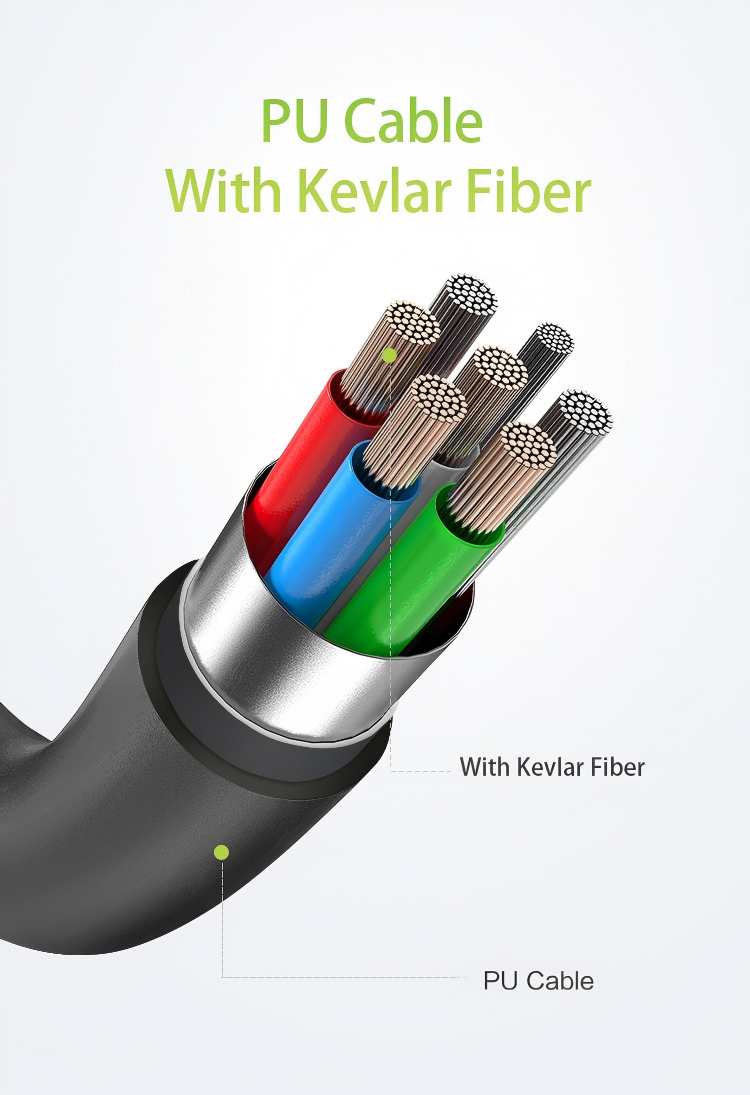

Wire Specifications:
Material: PU wear-resistant line
Length: 1.2m (regular) / 0.8m (compact)
Wearing style:

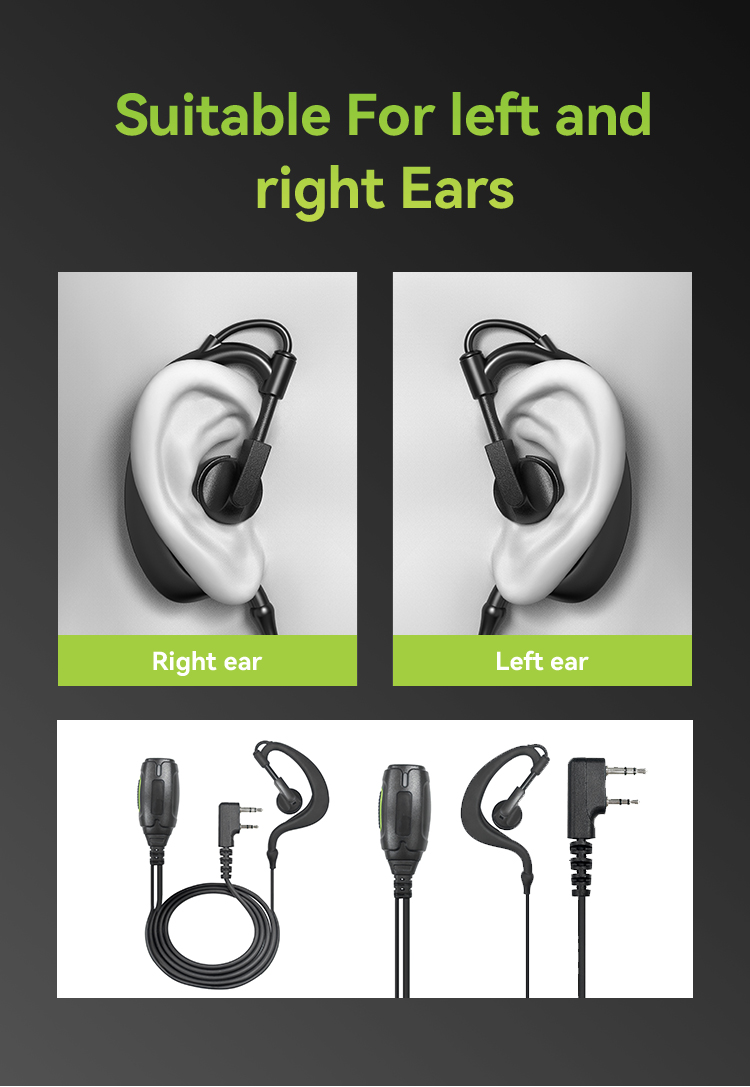

Single earhook (left/right ear adjustable)
Certification Standards:
Passed [CE/RoHS] certification, in line with [EARPHONIC] accessories quality standards.
Usage scenarios:
1.Public Safety & Law Enforcement
2.Business Services & Scheduling
3.Outdoor work and adventure
4.Property Management & Coordination
After-sales and service：
Warranty: 3-6 months.
Technical support: Provide [inspection video / remote after-sales service], 24-hour customer service to respond to interface adaptation problems.

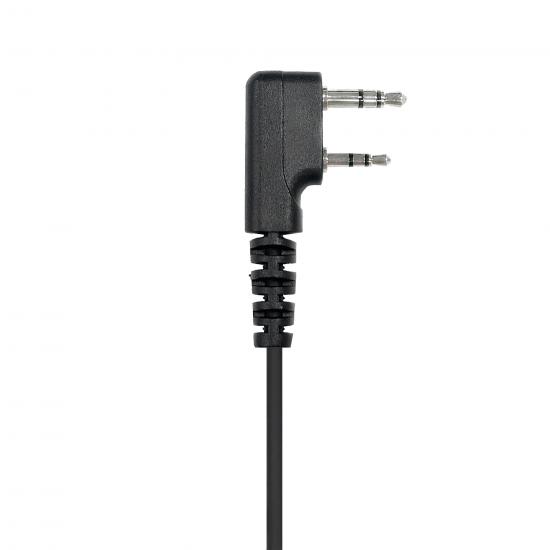

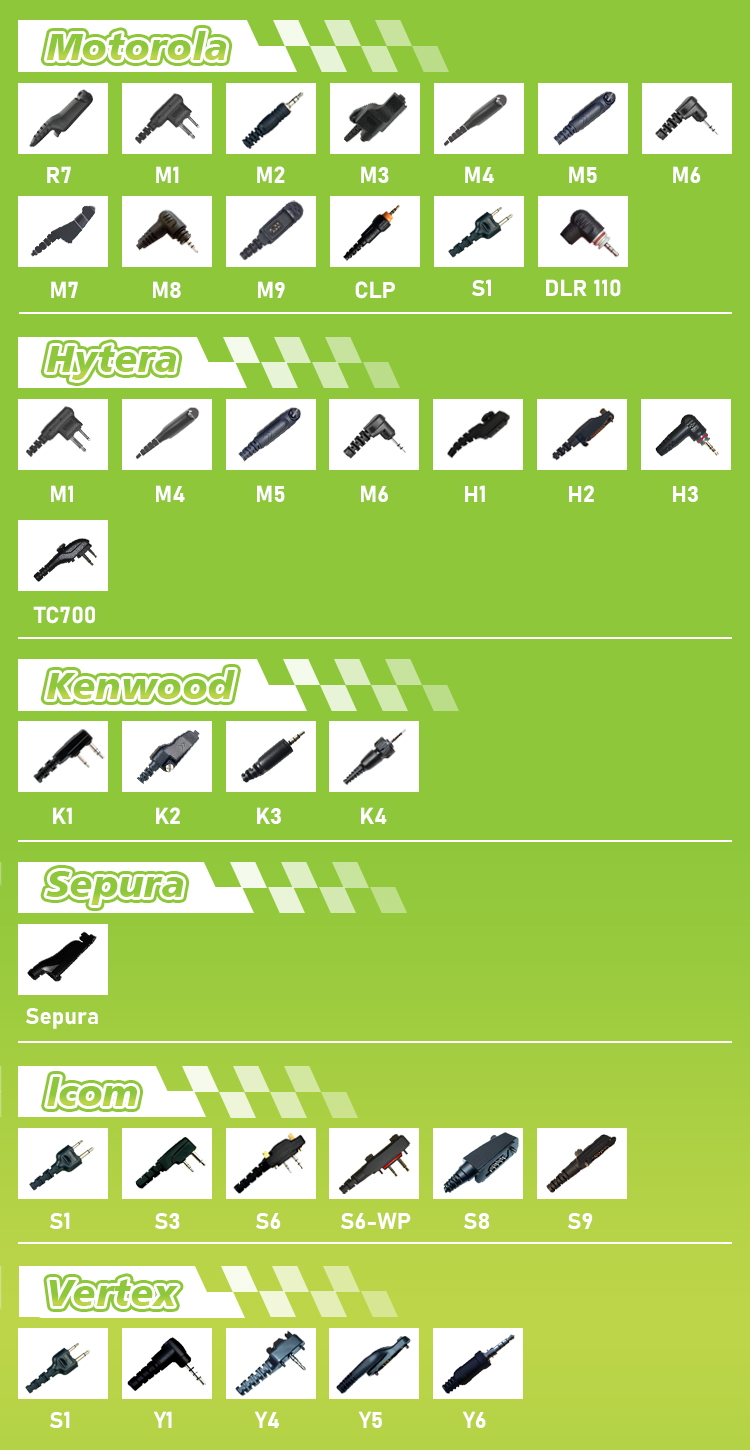

Compatible Model :
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
