Air Acoustic Tube Headset for Motorola R7 Radios Product Profile
OEM/ODM:
We deliver comprehensive OEM & ODM solutions, enabling partners to develop tailor-made products aligned with their distinct demands. Our team oversees every stage from initial product design through customized packaging, helping your brand differentiate itself and stand out amid fierce market competition.
Customization Options:
1. Product specifications: size, style, raw materials
2. Custom colors and surface finishes
3. Logo imprinting and private label service
4. Custom packaging artwork & structure design
5. Custom special features and performance upgrades
6. Additional personalized solutions customized exclusively for your brand
Warranty: 3-6 months
Compatible brand: Motorola, Kenwood, Hytera, Sepura, Icom, Vertex
Product Positioning: walkie talkie earphone
Product Features:
1.13-Pin Locking Connector: Custom-designed for Motorola R7, no loose contact even in harsh conditions.
2. Convenient In-Line PTT: Clip-on push-to-talk unit with easy access mic, attach to your clothing for quick hands-free communication.
3.The balanced armature speaker delivers clear and transparent sound, remaining distinct and intelligible even in noisy environments.
4. Clear & Noise-Canceling Audio: Built-in mic and acoustic tube filter background noise, ideal for construction and noisy workplaces.
5.Covert & Comfortable: Transparent air tube + soft silicone earbud for discreet wear, reduces electromagnetic radiation to the ear.
6.Heavy-Duty & Durable: Reinforced pull-resistant wire withstands daily wear, perfect for security, law enforcement, and industrial use.
Speaker Parameters:
|
Electrical Parameters of Speaker |
|
|
Impedance |
200Ω~450Ω±20% |
|
Resonance Frequency |
350Hz ±20% |
|
Intelligent degree |
116±3dB At 1000 Hz At 0.179V; |
|
Rated Power |
Rated Power Input 10mW, Max Power Input 300mW; |
|
Frequency scope |
200Hz–6kHz |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Air Tube Shell Diameter |
Φ7.1mm±0.01mm |
Microphone Specifications:
| Electrical Parameters of The microphone | |
| Sensitivity | -44dB≦S≦-40dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa |
| Output Impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating Voltage | 1≦V≦10 |
| Maximum Input S.P.L | 110dB,At f=1kHz,THD<1% |

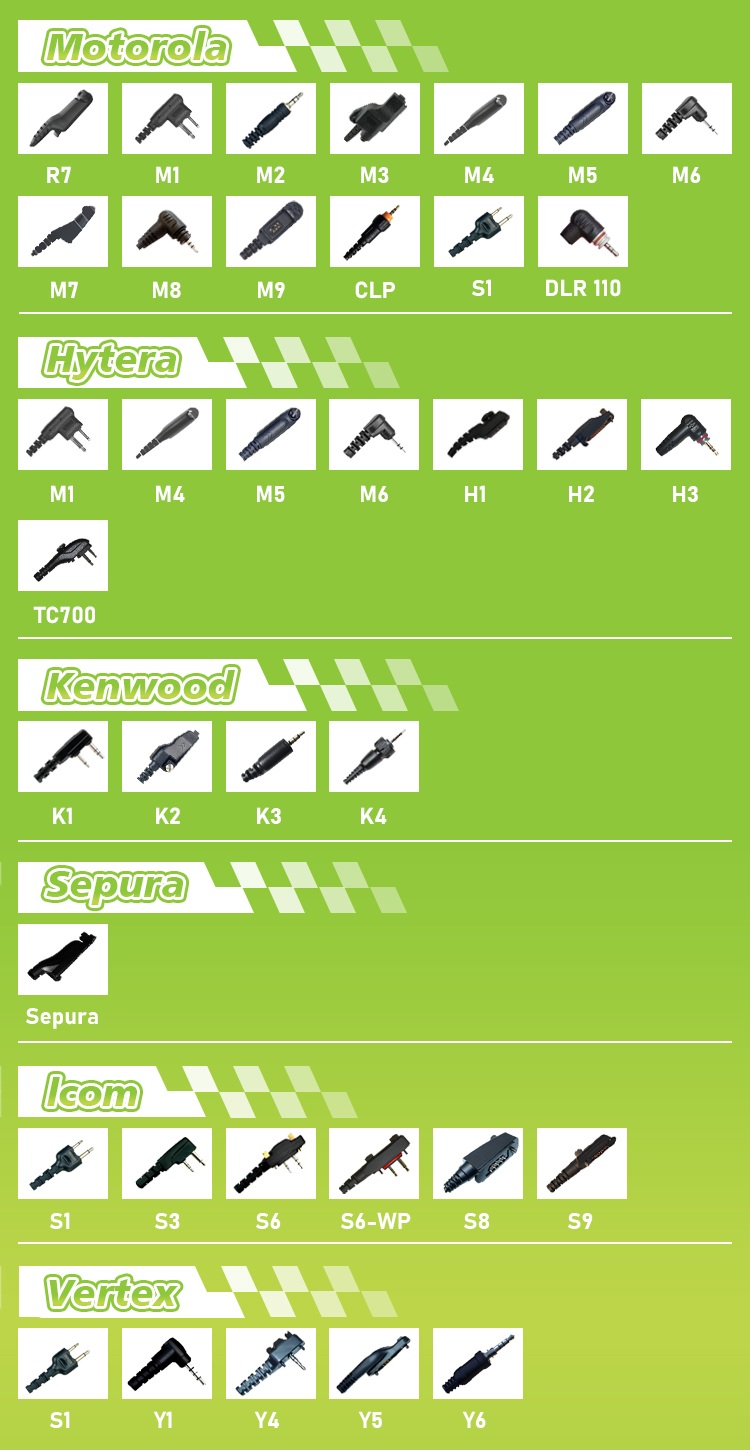

Compatible Model:
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQs
Q1: Are your accessories compatible with all radio brands?
A1: Most of our products are compatible with major brands such as Motorola, Hytera, Kenwood, Icom etc. Please provide the exact radio model for accurate compatibility confirmation.
Q2: Can I get samples?
A2: Yes, samples can be provided freely, but the shipping cost charged on customer.
Q3: What about customized services?
A3: OEM and ODM services are provided, for OEM, we can design your brand the sticker & packaging box according to your requirements.
Q4: What is the mass production time?
A4: Quantity less than 500PCS, it takes 5-7 days; Quantity is 501-2000 pieces, it takes 7-10 days.
Q5: How do you control quality?
A5: All products pass 100% testing before shipment.
Q6: How to handle order problems?
A6: Contact us directly, we will respond and solve within 24 hours.
