Air Tube Earpiece For Kenwood TK 3000 Product Profile
OEM/ODM:
We deliver comprehensive OEM & ODM solutions, enabling partners to develop tailor-made products aligned with their distinct demands. Our team oversees every stage from initial product design through customized packaging, helping your brand differentiate itself and stand out amid fierce market competition.
Customization Options:
1. Product specifications: size, style, raw materials
2. Custom colors and surface finishes
3. Logo imprinting and private label service
4. Custom packaging artwork & structure design
5. Custom special features and performance upgrades
6. Additional personalized solutions customized exclusively for your brand
Warranty: 3 months
Product Features:
Double-wire PTT Air tube walkie-talkie headset for Kenwood TK-3100, TK-3101, TK-3102, TK-Pro-Power, TK-3107, TK-3130 Two-Way Radios
1. Dual-wire PTT design, simple and stylish transparent sound tube, more comfortable to wear and listen to;
2. PU coil cable, it is tensile, durable and not easy to tangle,Good concealment, simple and low-profile appearance;
3. Rotating earphones are suitable for wearing on either ear;
4. The balanced armature speaker delivers clear and transparent sound, remaining distinct and intelligible even in noisy environments;
5. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD;
6. Air tube cable: 35 CM:
7. Main cable length:95/50CM
Speaker Parameters:
Electrical Parameters of Speaker
Impedance
200Ω~450Ω±20%
Resonance Frequency
350Hz ±20%
Intelligent degree
116±3dB At 1000 Hz At 0.179V;
Rated Power
Rated Power Input 10mW, Max Power Input 300mW
Frequency scope
200Hz–6kHz
Pure Sound
1.2Vrms.sine wave.no buzzes and battles
Ruzzes&Rattles
Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion
Less Than 5% at 1500Hz
Air Tube Shell Diameter
7.1mm±0.01mm
Microphone Parameters:
Electrical Parameters of The microphone
Sensitivity
-40dB≦S≦-36dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa
Output impedance
Zout=2.2KΩ,At f=1kHz
Current Consumption
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity
Omni directional
Signal to Noise Ratio
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage
1≦V≦10
Maximum input S.P.L
110dB,At f=1kHz,THD<1%

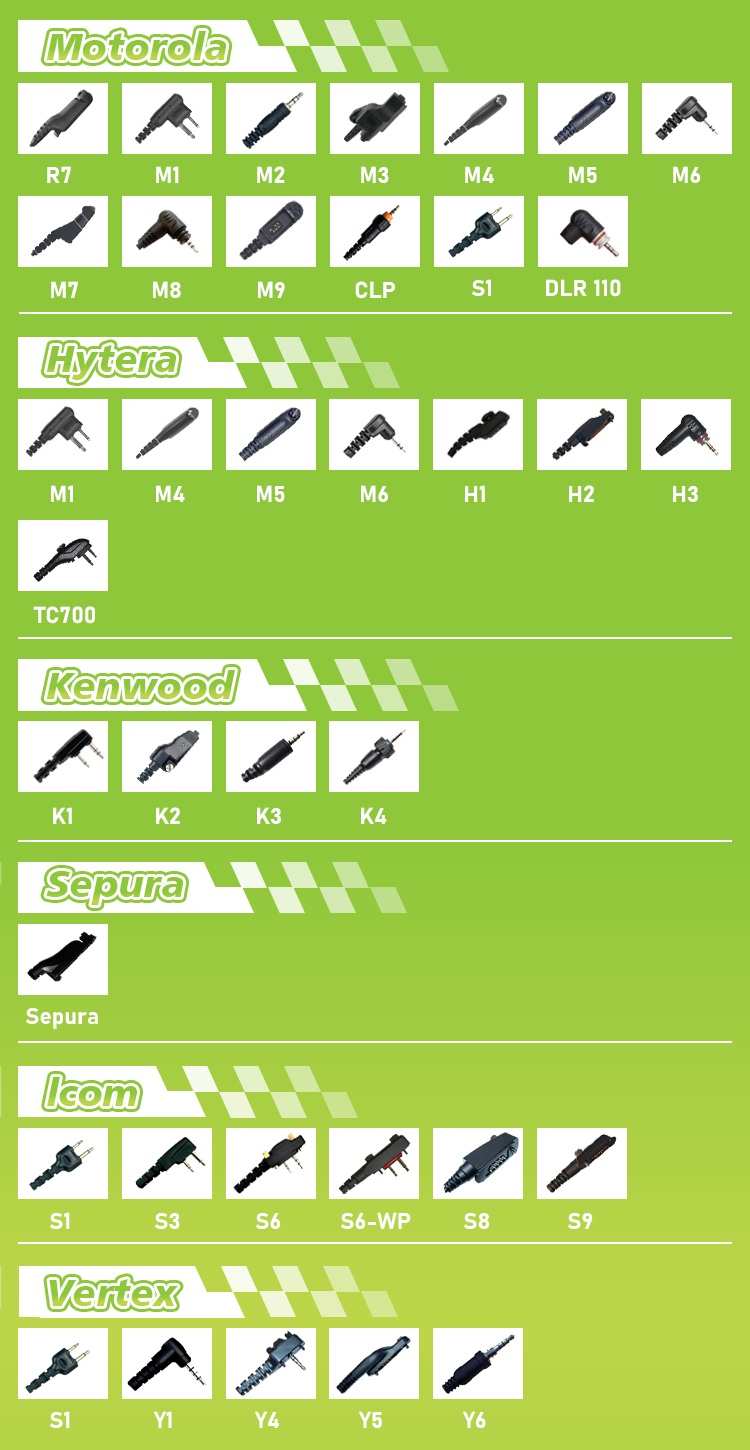

Compatible Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |



FAQ
Q1: Are your accessories compatible with all radio brands?
A1: Most of our products are compatible with major brands such as Motorola, Hytera, Kenwood, Icom etc. Please provide the exact radio model for accurate compatibility confirmation.
Q2: Can I get samples?
A2: Yes, samples can be provided freely, but the shipping cost charged on customer.
Q3: What about customized services?
A3: OEM and ODM services are provided, for OEM, we can design your brand the sticker & packaging box according to your requirements.
Q4: What is the mass production time?
A4: Quantity less than 500PCS, it takes 5-7 days; Quantity is 501-2000 pieces, it takes 7-10 days.
Q5: How do you control quality?
A5: All products pass 100% testing before shipment.
Q6: How to handle order problems?
A6: Contact us directly, we will respond and solve within 24 hours.
