Overhead Two Way Radio Earpiece for Hytera P60 Product Profile

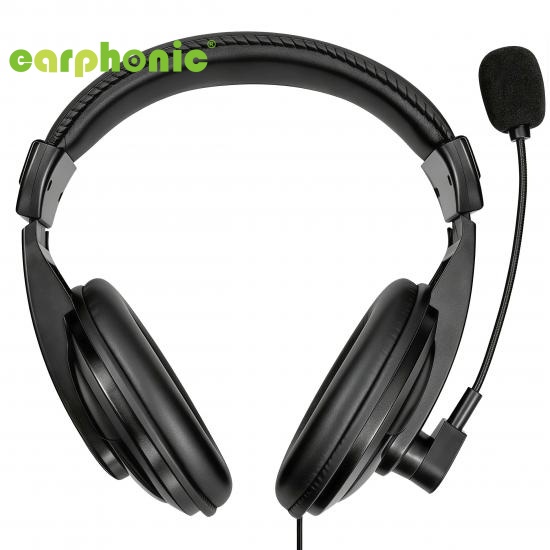

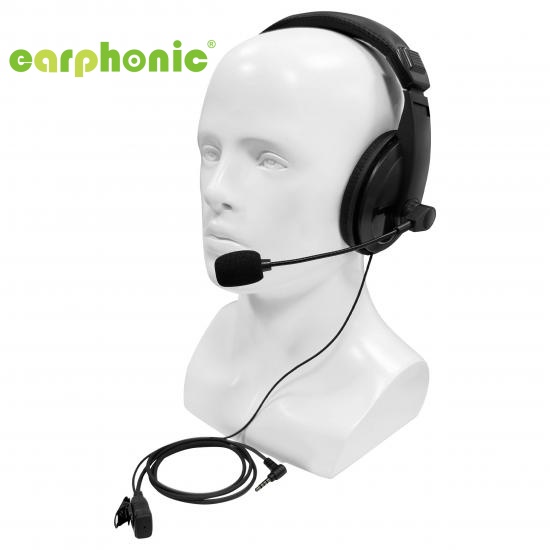

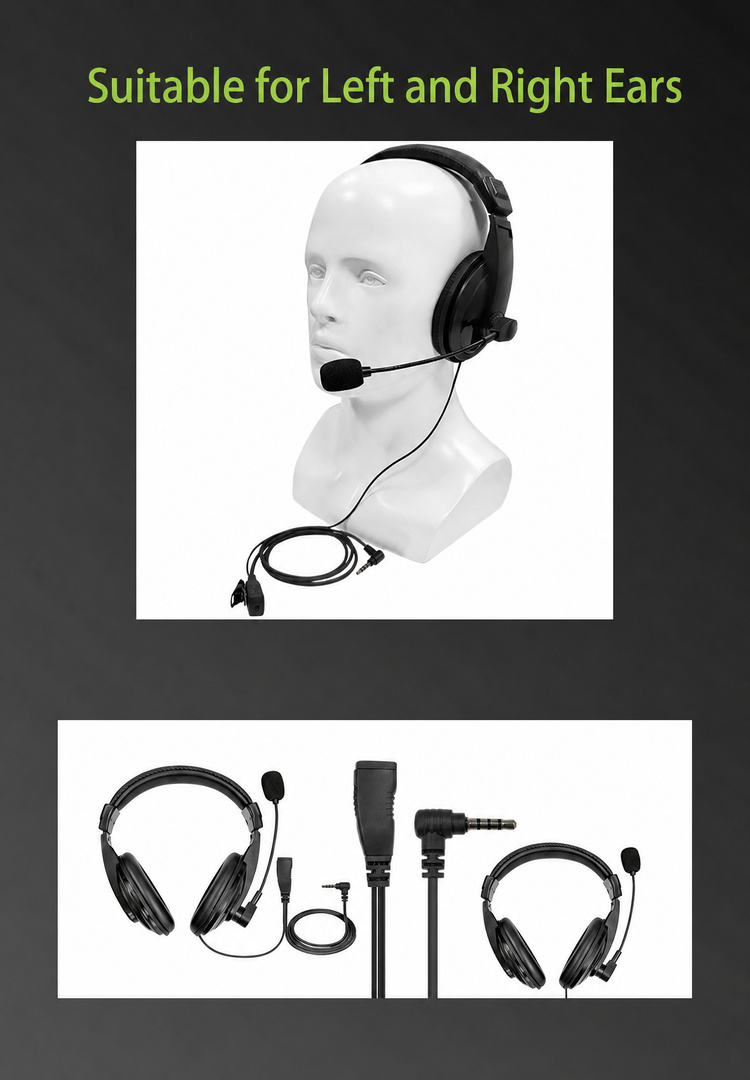

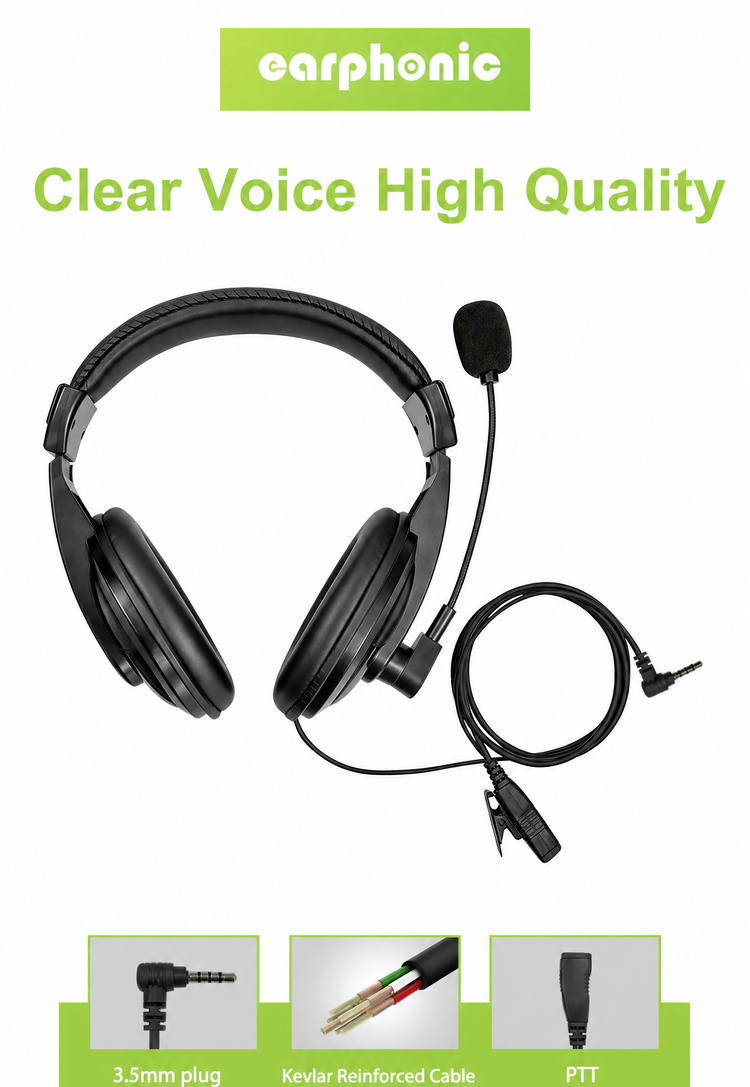

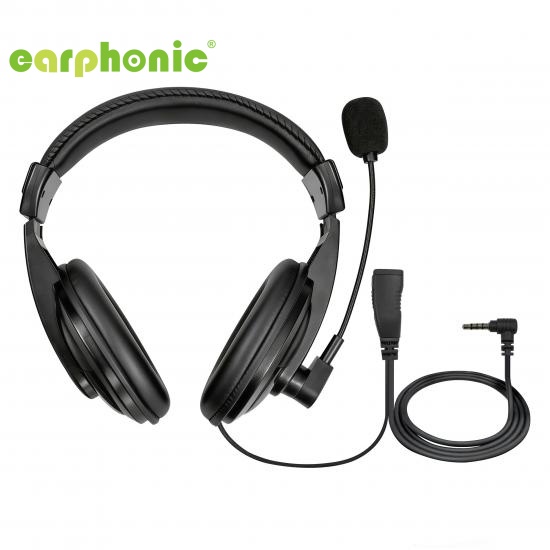

This professional padded dispatch headset with flexible boom microphone is compatible with Hytera PNC380, PNC360, PNC370Se, G32, G36, PNC310, PNC560 and other radios. The thick padded headband and plush over‑ear cushions ease pressure for long continuous shifts. The adjustable boom mic can be positioned close to your mouth to capture crisp audio even within moderately noisy work environments. Reinforced cable and solid joint construction deliver excellent resistance against pulling, twisting and daily wear and tear. This headset is well suited for facility management, building patrol, event staffing and on‑site contractor teams.
OEM/ODM
Our full‑stack OEM & ODM capabilities empower partners to realize bespoke product development responding to differentiated market demands. Covering the complete process spanning concept design to customized packaging, our professional team enables your brand to achieve distinctive positioning amid intense industry competition.
Customization Options
1. Custom‑defined product dimensions, styling and raw material configuration
2. Custom color matching and diverse surface finish options
3. Logo marking and full private‑label implementation
4. Custom packaging graphic artwork and structural development
5. Customized special functional modules and performance iteration
6. One‑of‑a‑kind personalized solutions exclusive to your brand
Product Features
Professional Walkie Talkie Headset with Boom Mic PTT for Hytera P30 Two Way Radio

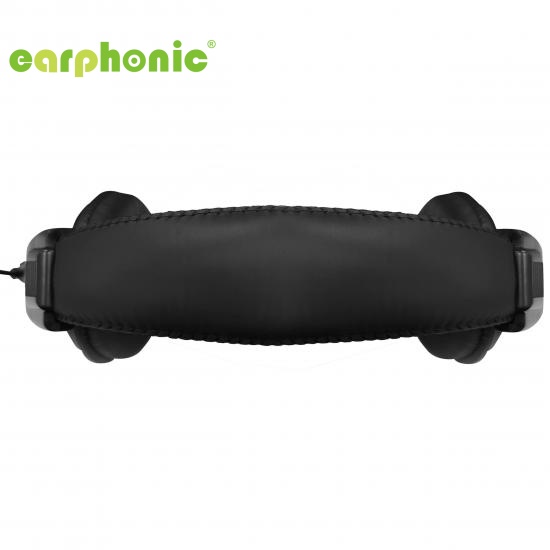

1. Soft padded over-ear cups with adjustable headband for all-day comfort

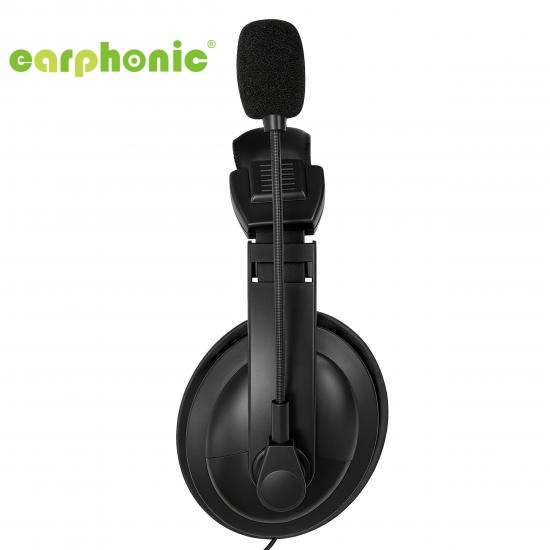

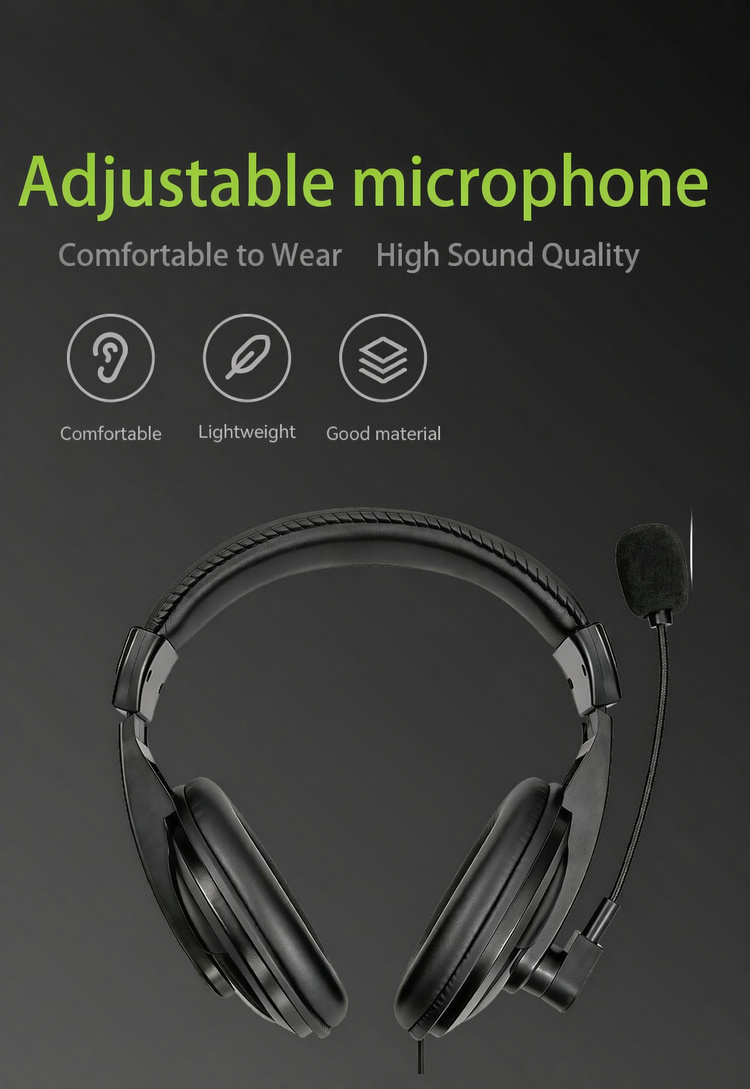

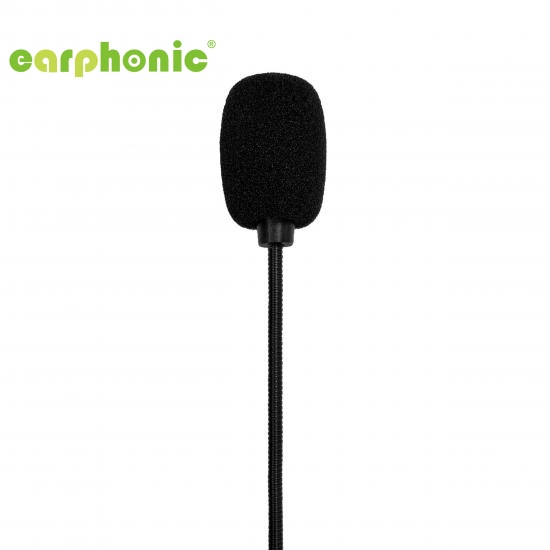

2. Flexible boom noise-cancelling mic delivers crystal clear voice transmission

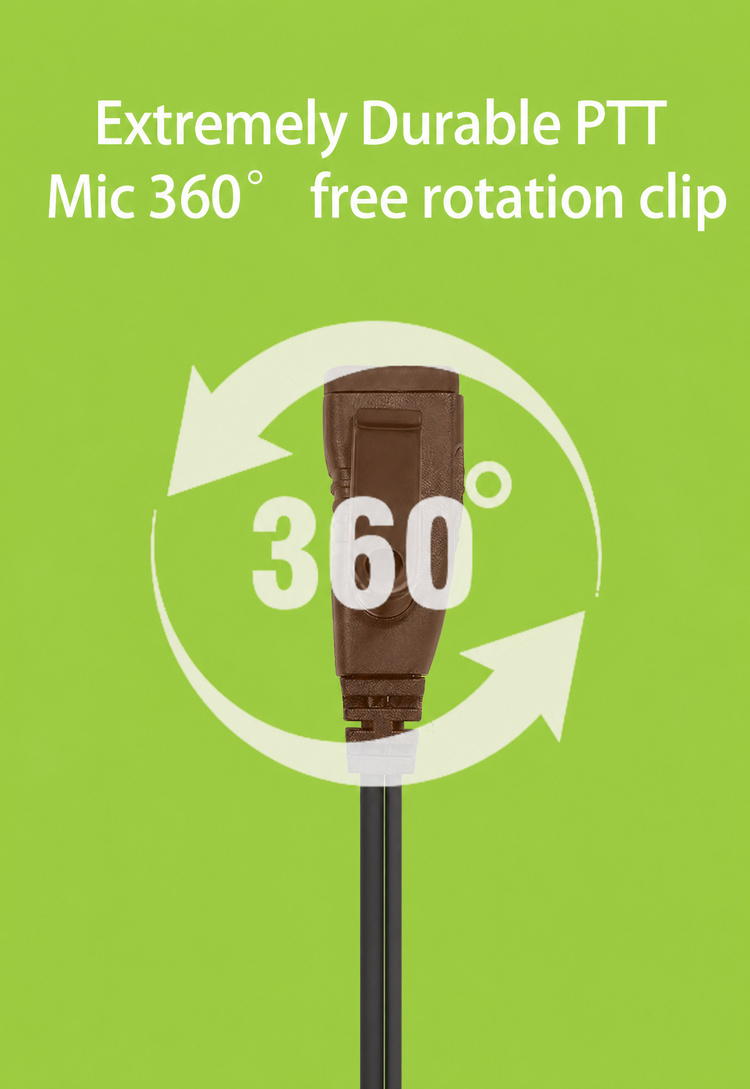

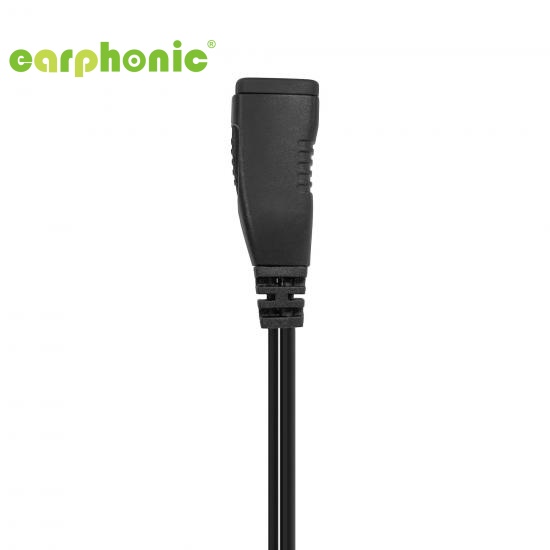

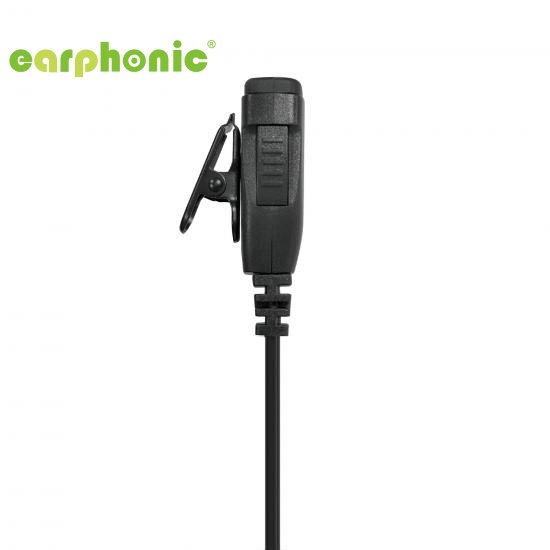

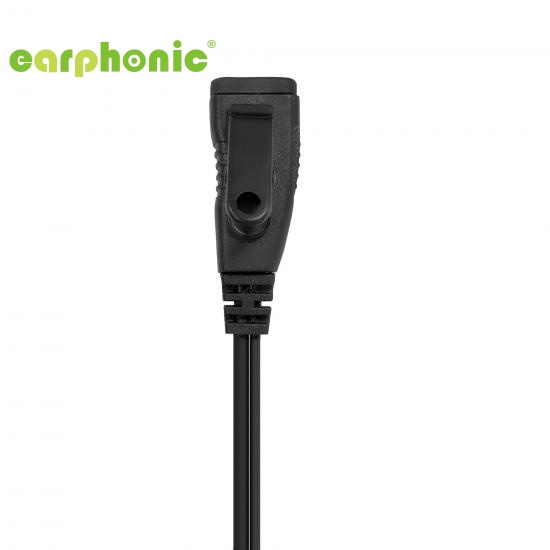

3. Inline PTT button enables quick and convenient hands-free operation
4. Reinforced heavy-duty cable resists bending and long-term daily abrasion
5. Widely compatible with most multi-pin two way walkie talkie models
|
Electrical Parameters of Speaker |
|
|
Impedance |
32Ω |
|
Resonance Frequency |
350Hz ±20% |
|
Intelligent Degree |
110±3dB At 1000 Hz At 0.179V |
|
Rated Power |
Rated Power Input 10mW, Max Power Input 30mW |
|
Frequency Scope |
20HZ—20KHZ At 0.179 V |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Polarity |
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
|
Flux Density |
±15% Guass (Surface) |
|
Air Tube Shell Diameter |
Φ30mm±0.01mm |
Microphone Specification
|
Electrical Parameters of The microphone |
|
|
Sensitivity |
-40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa; |
|
Output Impedance |
Zout=2.2KΩ,At f=1kHz |
|
Current Consumption |
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
|
Directivity |
Omni directional |
|
Signal to Noise Ratio |
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
|
Decreasing Voltage |
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
|
Operating Voltage |
1≦V≦10; |
|
Maximum Input S.P.L |
110dB,At f=1kHz,THD＜1% |
Compatible Radio Model
| Brand | Radio Model |
| Hytera |
PNC380,PNC360,PNC370Se,G32.G36,PNC310,PNC560,HYT-P30,HYT-S35,HYT-S31,HYT-S10 |

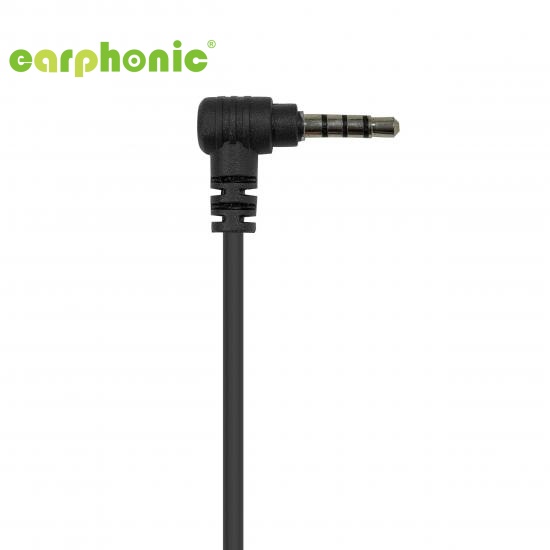

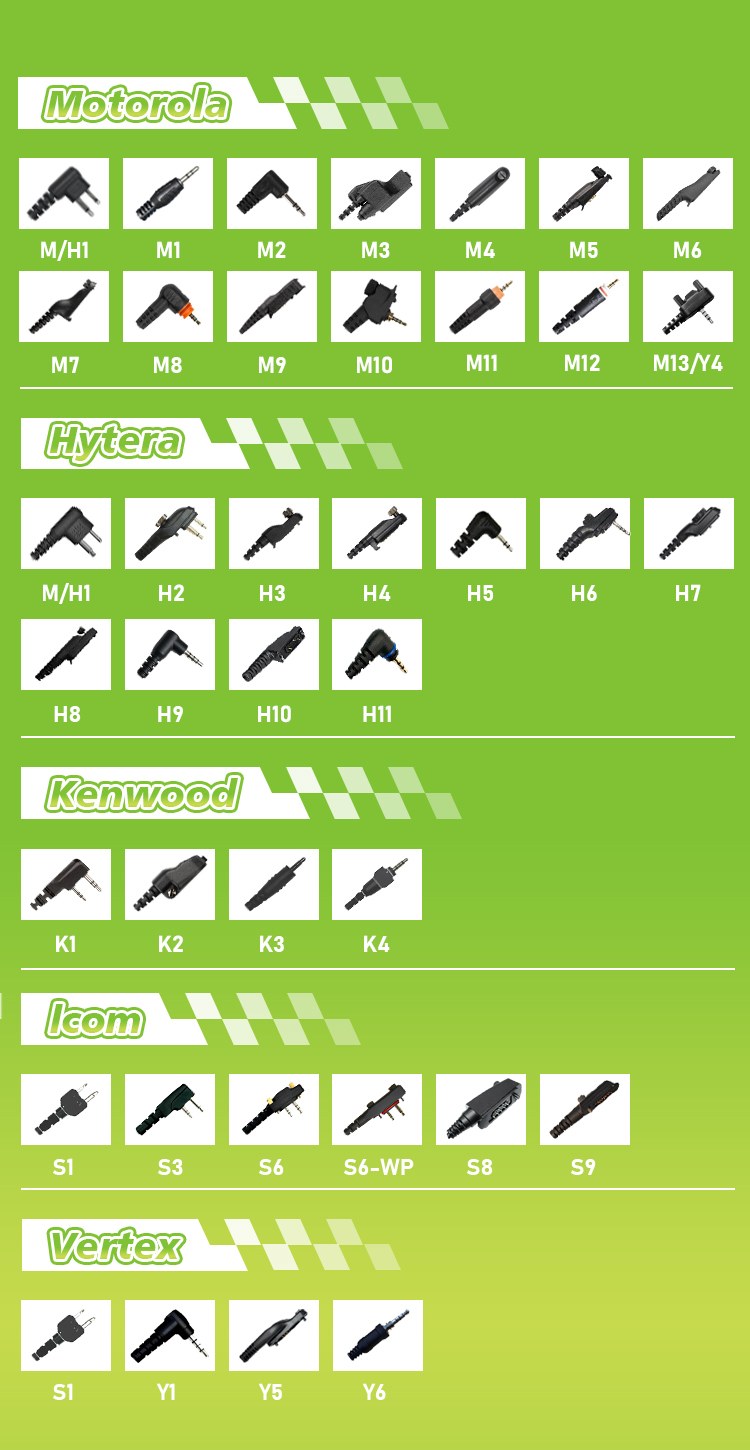

Optional Connector Model
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
