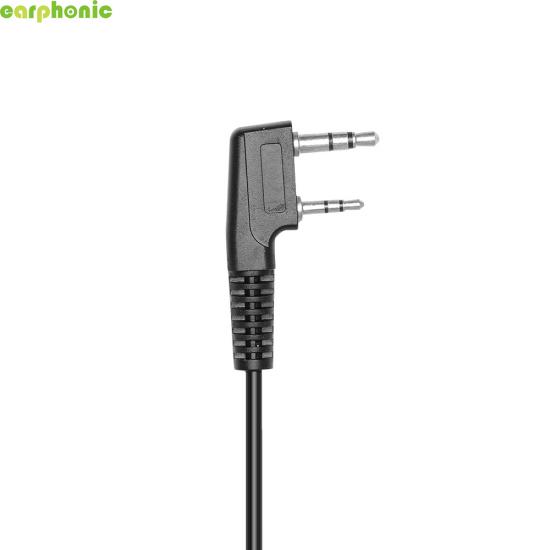

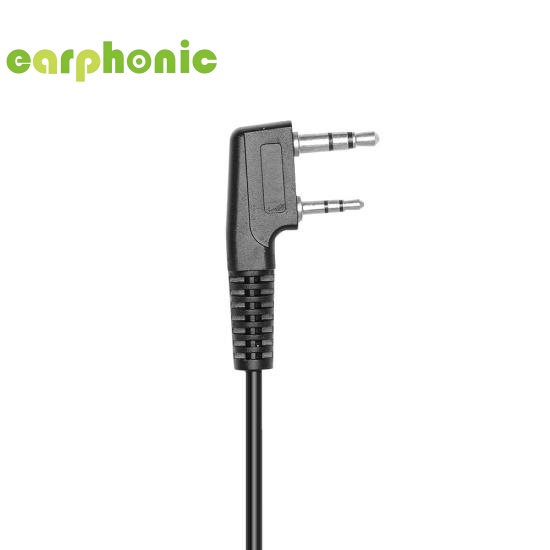

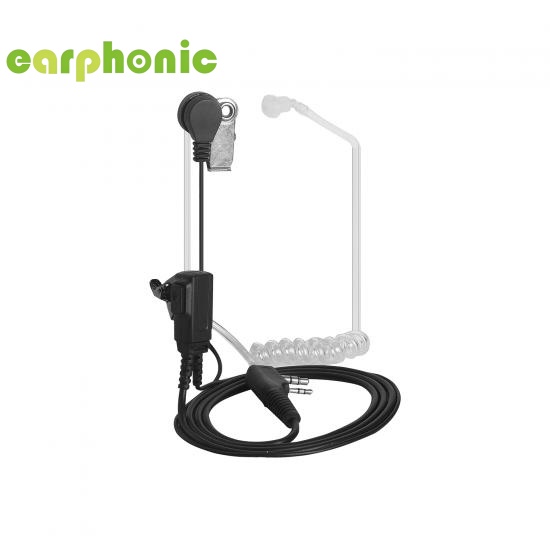

Product name: 2pin Air Acoustic Clear Tube Earpiece with PTT for Communication Security Walkie Talkie Earphone
Brand: Earphonic
MOQ: 5PCS
OEM/ODM: Yes
Warranty: 3-6 months
Product Features:

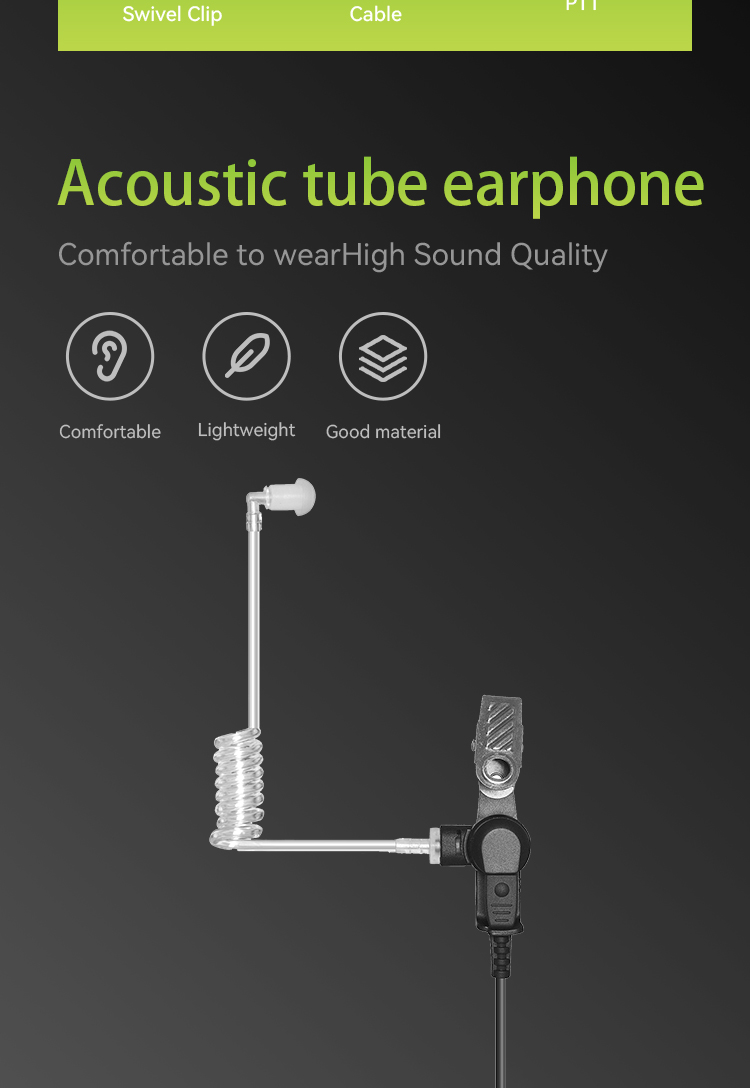

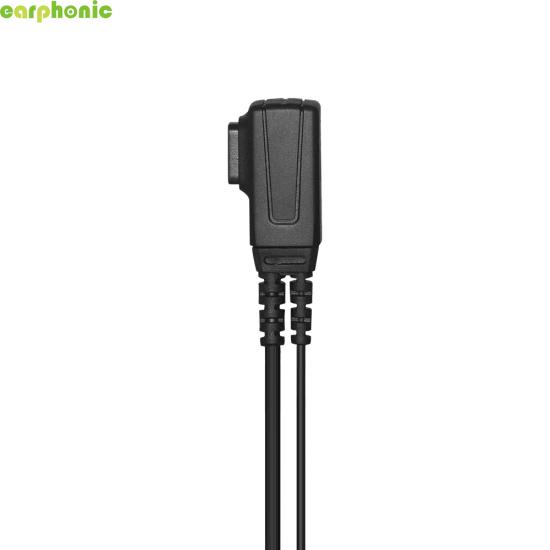

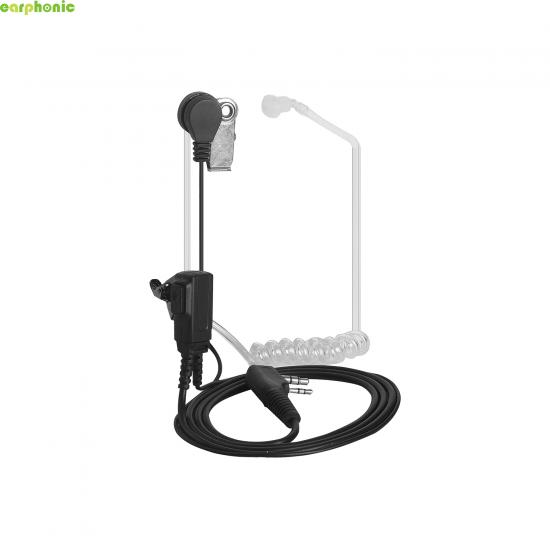

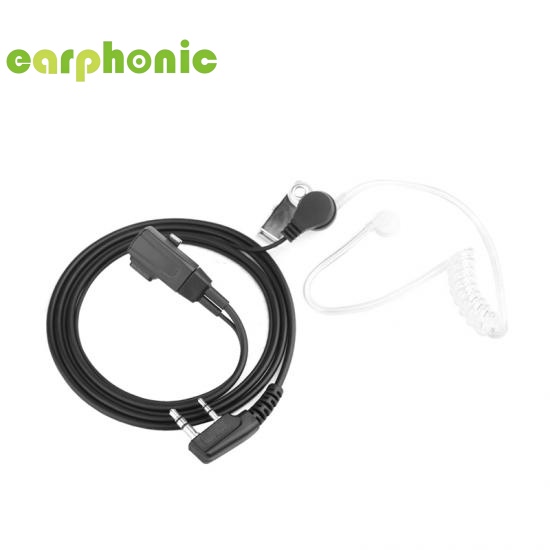

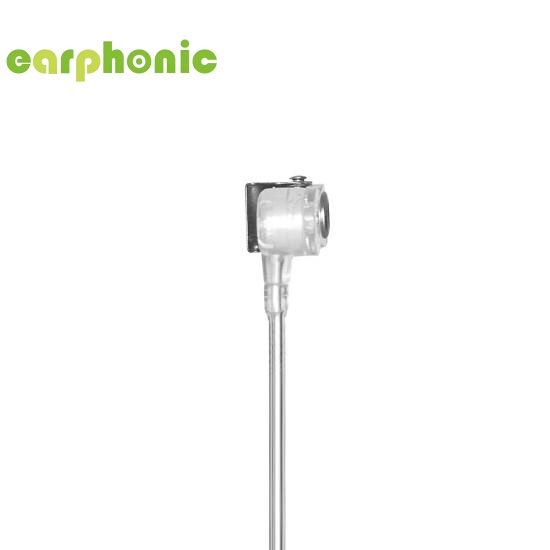

Double-wire PTT Air tube walkie-talkie headset for Two-Way Radios

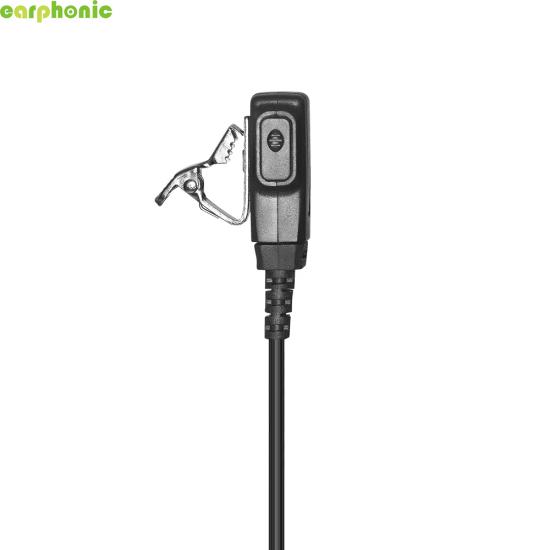

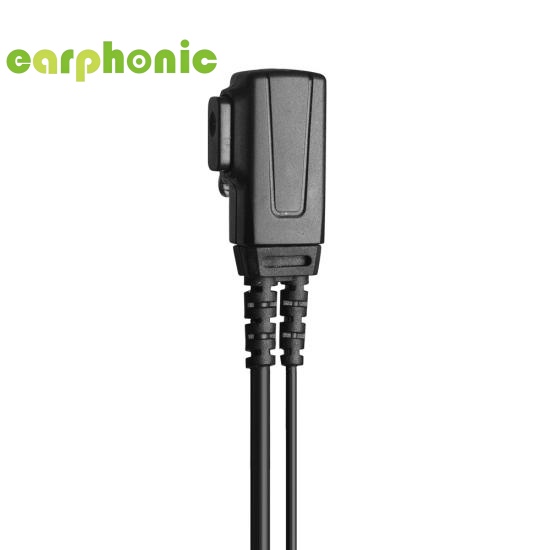

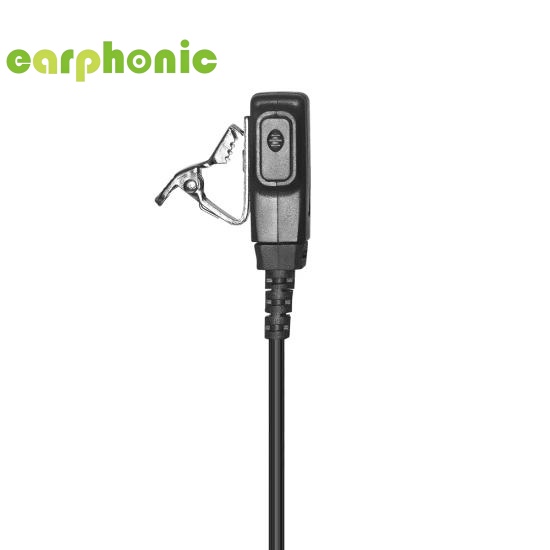

1. Dual-wire PTT design, simple and stylish transparent sound tube, more comfortable to wear and listen to

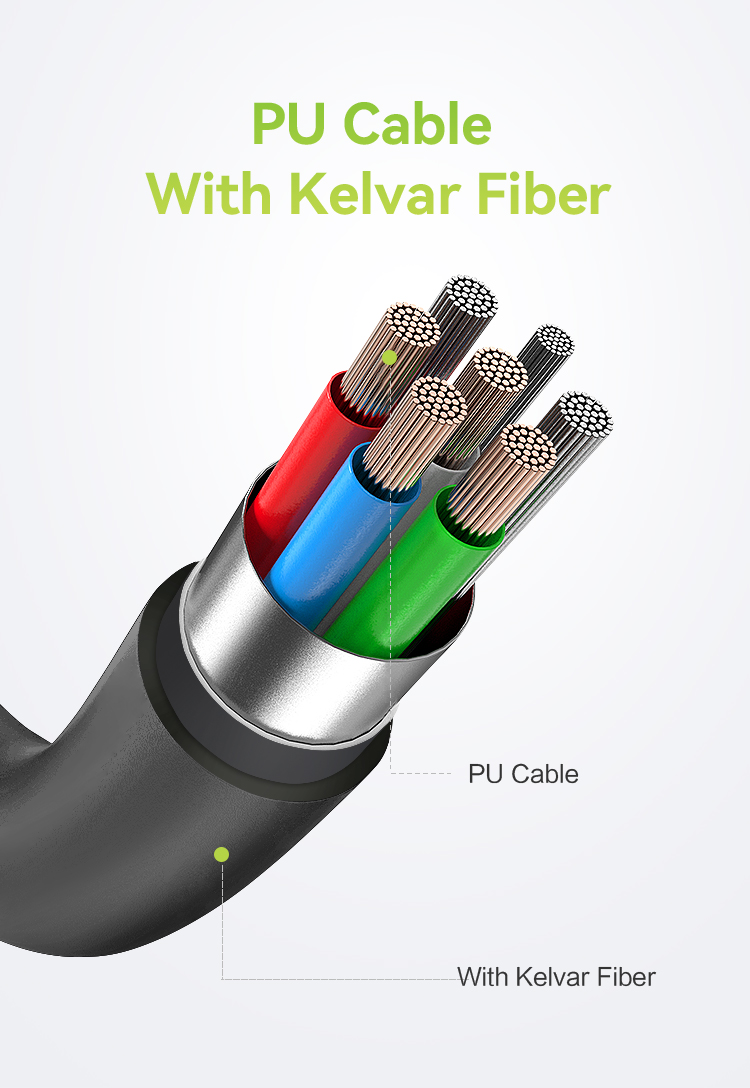

2. PU coil cable, it is tensile, durable and not easy to tangle，good concealment, simple and low-profile appearance;
3. Rotating earphones are suitable for wearing on either ear;

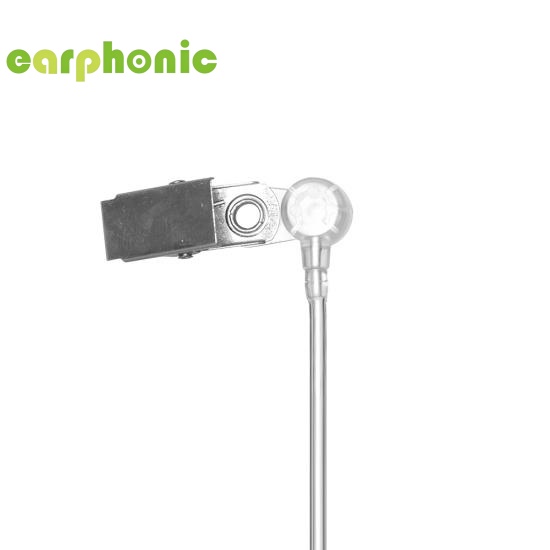

4. Transmits sound via air tube, sound insulation and noise reduction, clear call; 5. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD;

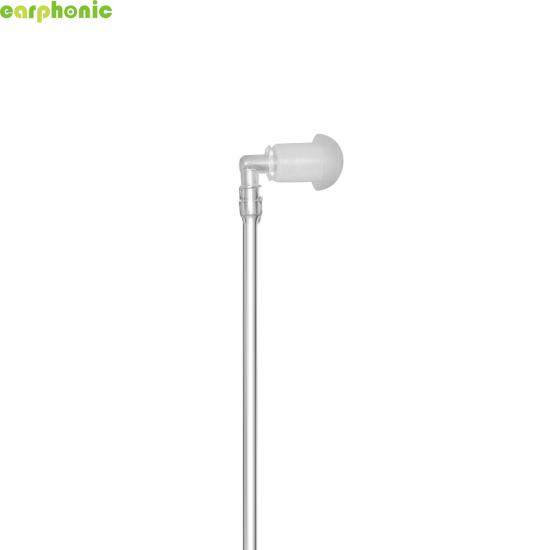

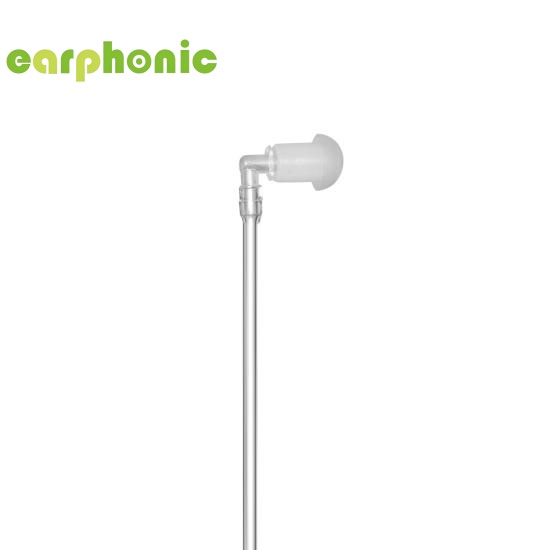

6. Air tube cable: 35 CM
7. Main cable length:95/50CM

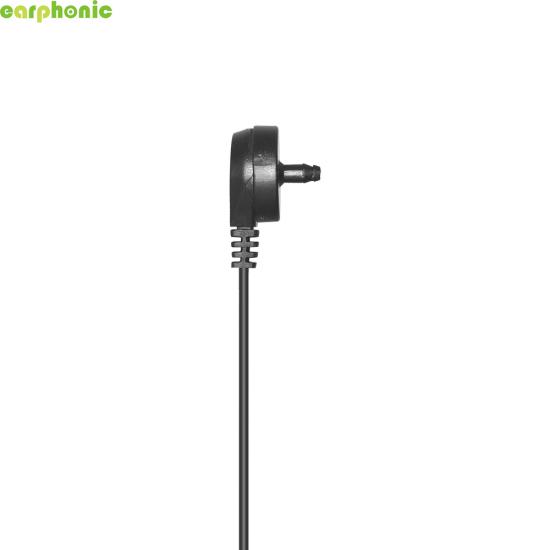

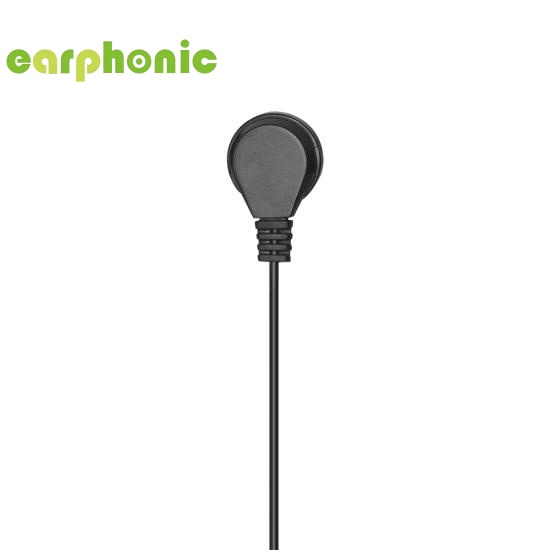

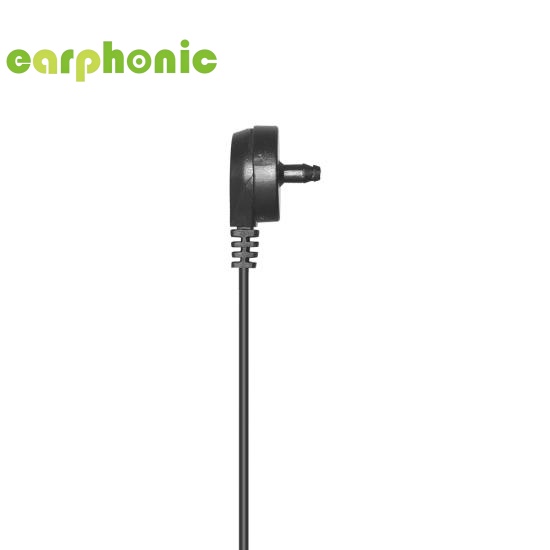

Speaker Parameters:
Electrical Parameters of Speaker
Impedance
8Ω±10%
Resonance Frequency
350Hz ±20%
Intelligent degree
110±3dB At 1000 Hz At 0.179V;
Rated Power
Rated Power Input 10mW, Max Power Input 30mW
Frequency scope
20HZ—20KHZ At 0.179 V
Ruzzes&Rattles
Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion
Less Than 5% at 1500Hz
Polarity
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density
±15% Guass (Surface)
Air Tube Shell Diameter
Φ7.1mm±0.01mm

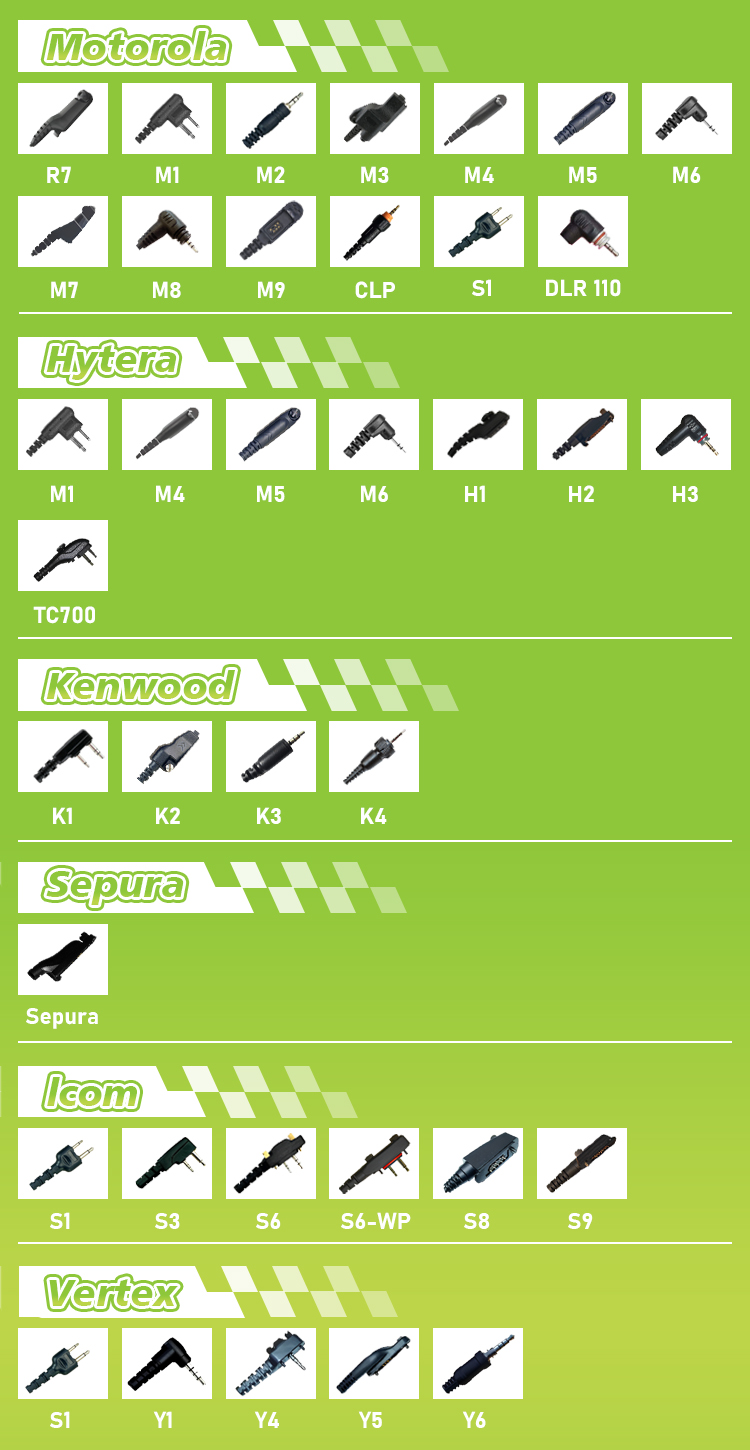

Compatible Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
