Product Name: Air Acoustic Clear Tube Earpiece Secure Communication Walkie Talkie Earphone
Brand: Earphonic
MOQ: 5 PCS
OEM/ODM: Yes
Warranty: 3-6 months
Product Features:

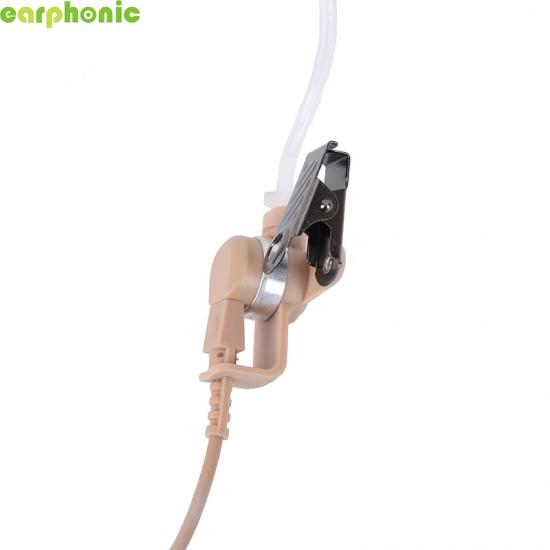

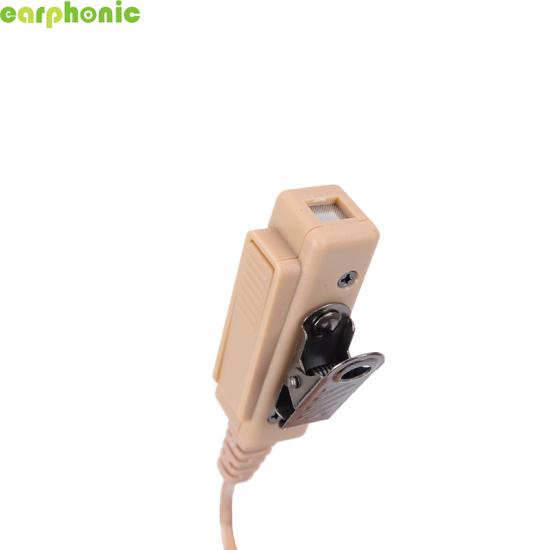

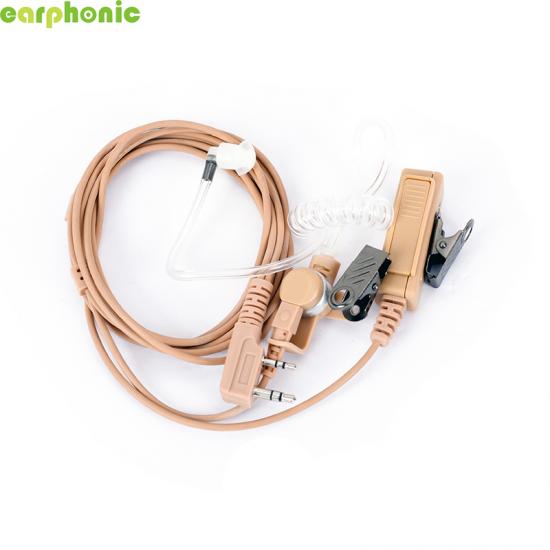

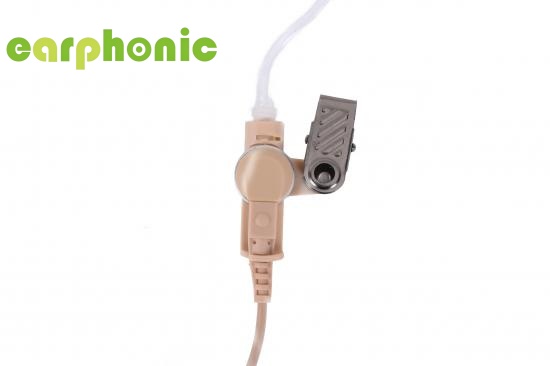

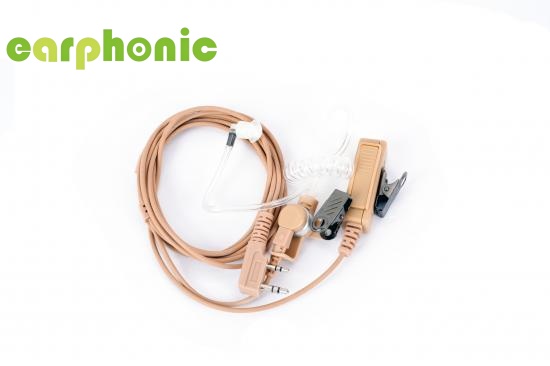

Double-wire PTT Air tube walkie-talkie headset for Two-Way Radios

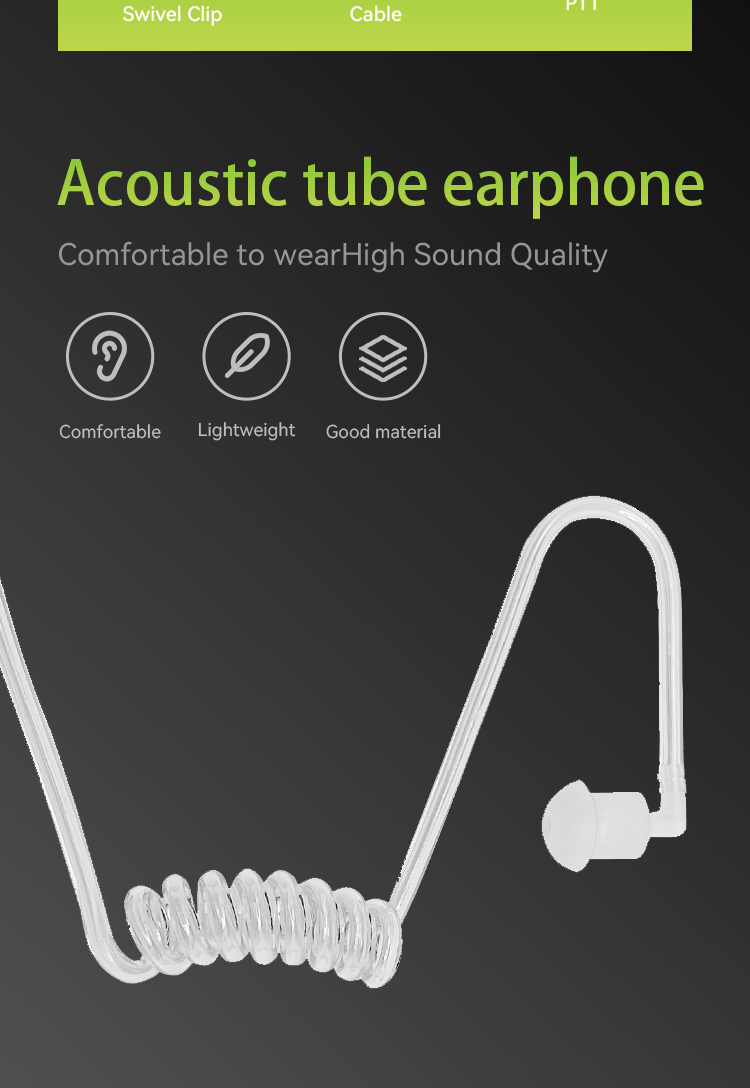

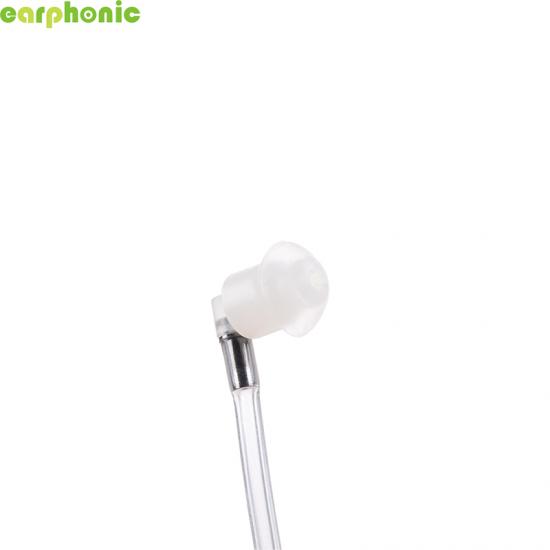

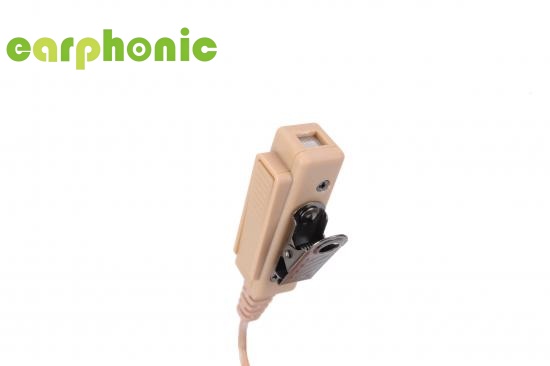

1. Dual yellow wire PTT design, transparent sound tube with simple and stylish look, more comfortable for wearing and listening.;

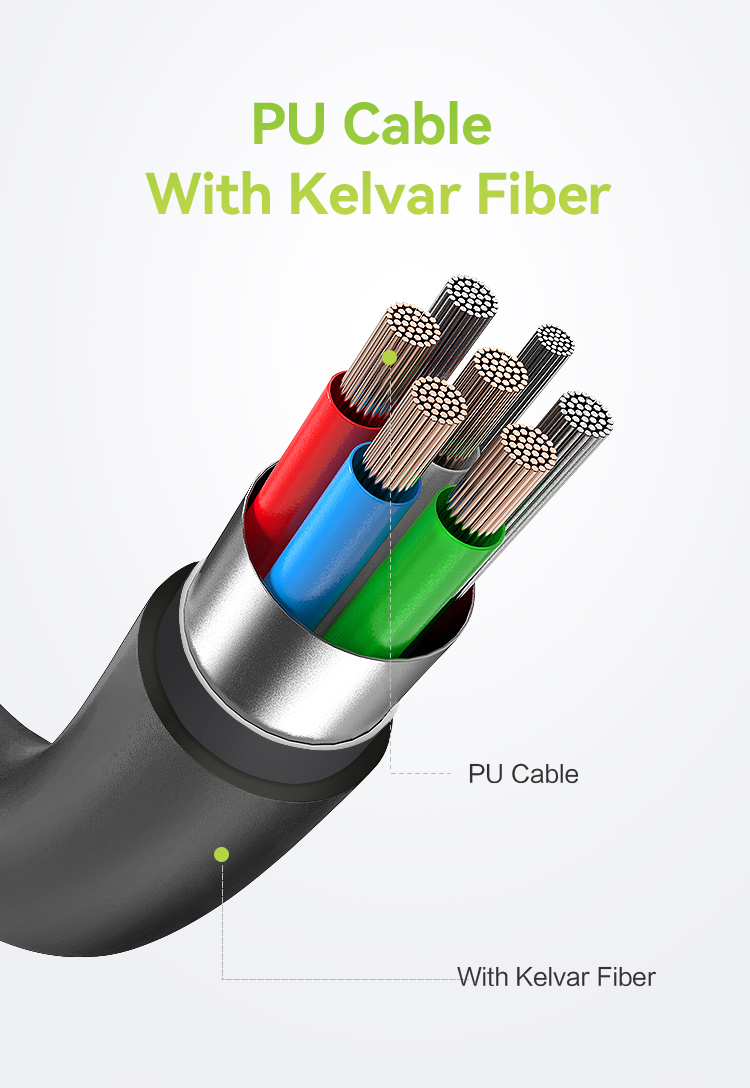

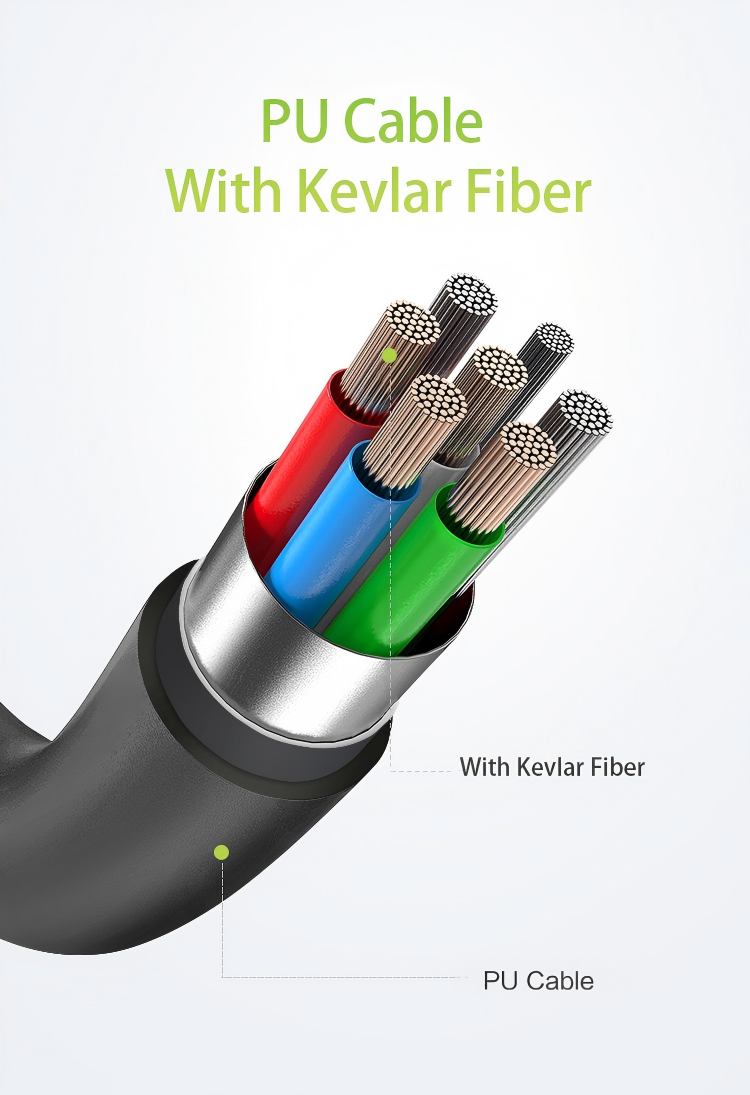

2. PU coil cable, it is tensile, durable and not easy to tangle，Good concealment, simple and low-profile appearance;

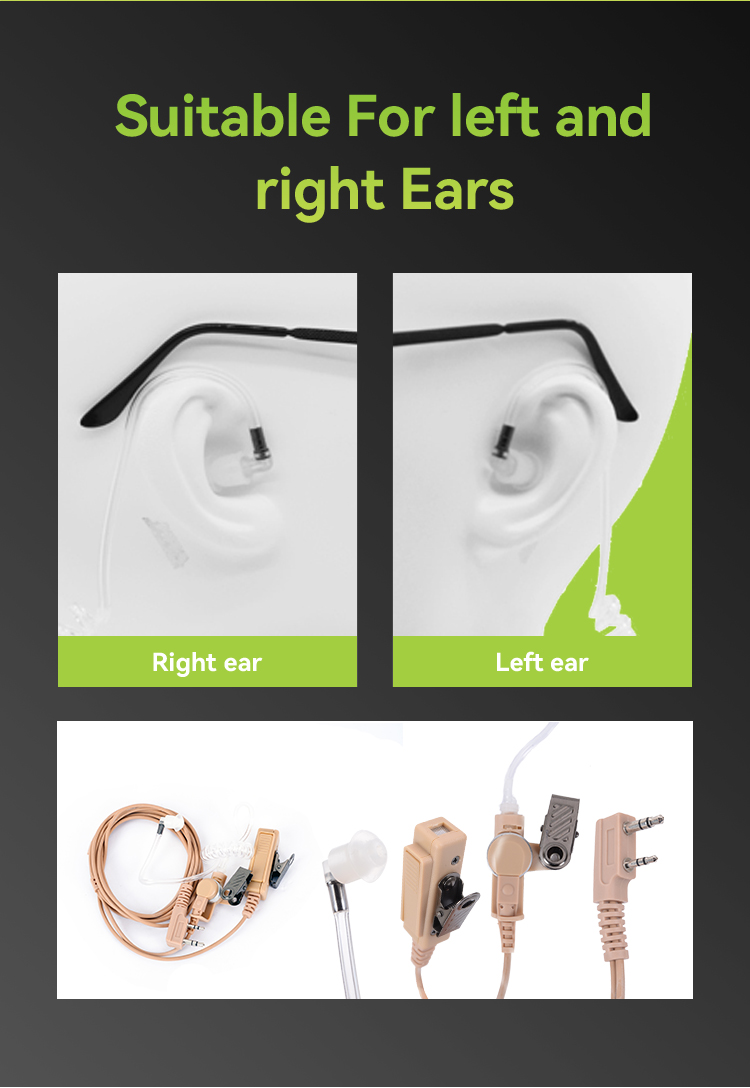

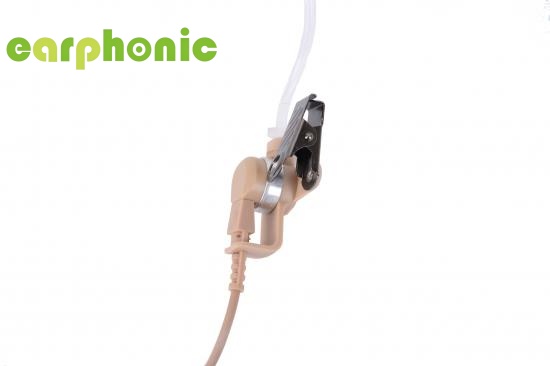

3. Rotating earphones are suitable for wearing on either ear;
4. The balanced armature speaker delivers clear and transparent sound, remaining distinct and intelligible even in noisy environments;

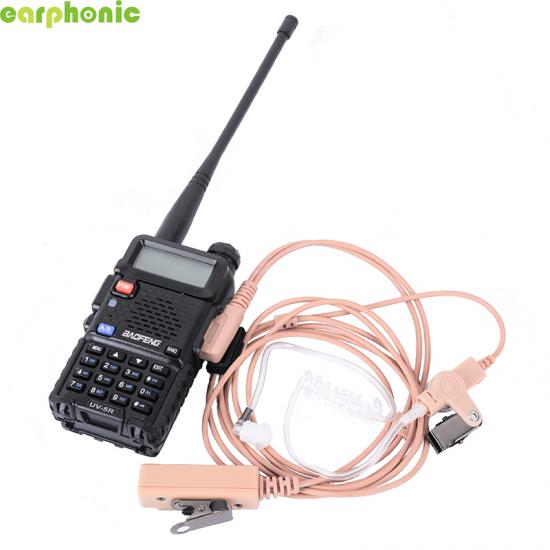

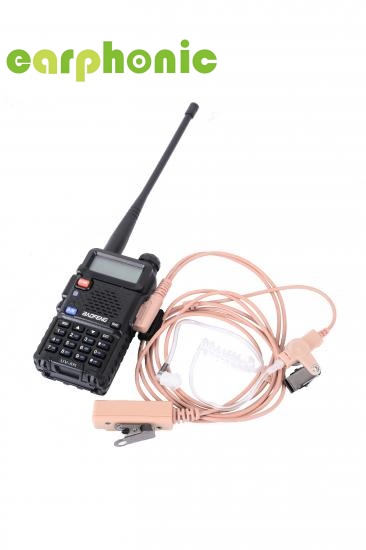

5. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD;

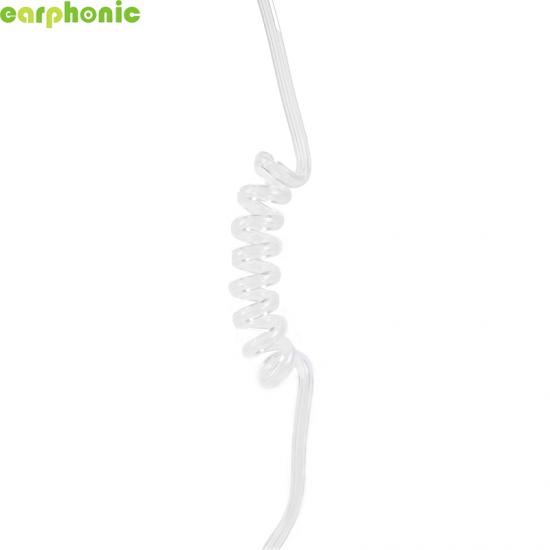

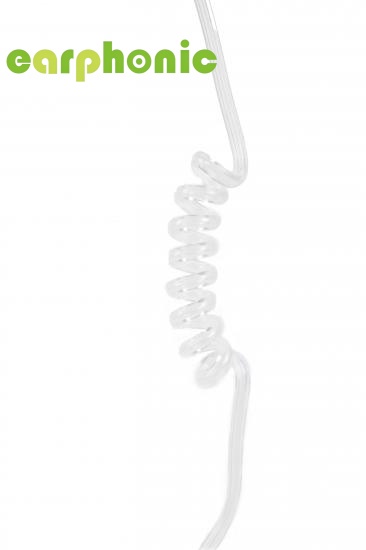

6. Air tube cable: 35 CM：
7. Main cable length:95/50CM
Speaker Parameters:
Electrical Parameters of Speaker
Impedance
200Ω~450Ω±20%
Resonance Frequency
350Hz ±20%
Intelligent degree
116±3dB At 1000 Hz At 0.179V
Rated Power
Rated Power Input 10mW, Max Power Input 300mW
Frequency scope
200Hz–6kHz
Pure Sound
1.2Vrms.sine wave.no buzzes and battles
Ruzzes&Rattles
Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion
Less Than 5% at 1500Hz
Air Tube Shell Diameter
Φ7.1mm±0.01mm
Microphone Parameters:
Electrical Parameters of The microphone
Sensitivity
-40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa
Output impedance
Zout=2.2KΩ,At f=1kHz
Current Consumption
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity
Omni directional
Signal to Noise Ratio
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage
1≦V≦10
Maximum input S.P.L
110dB,At f=1kHz,THD＜1%

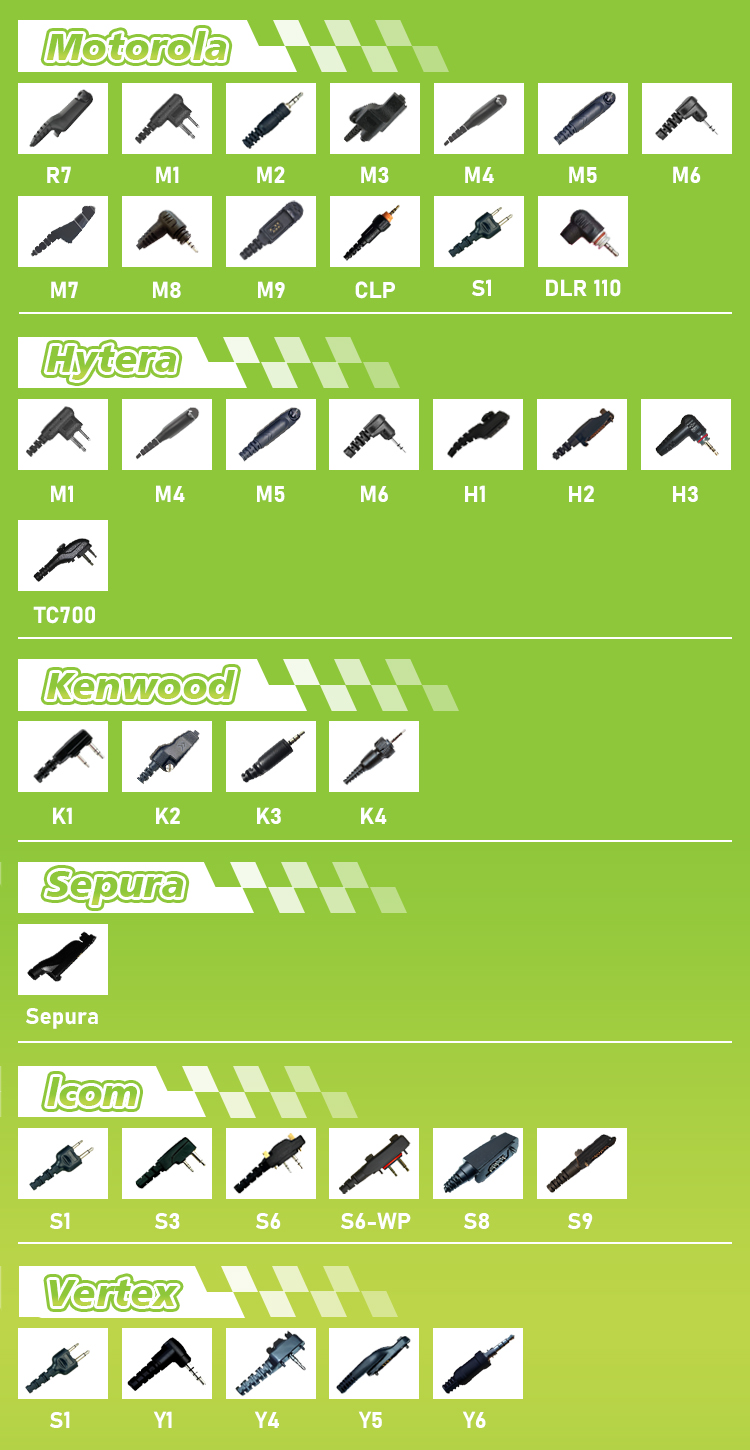

Compatible Model :

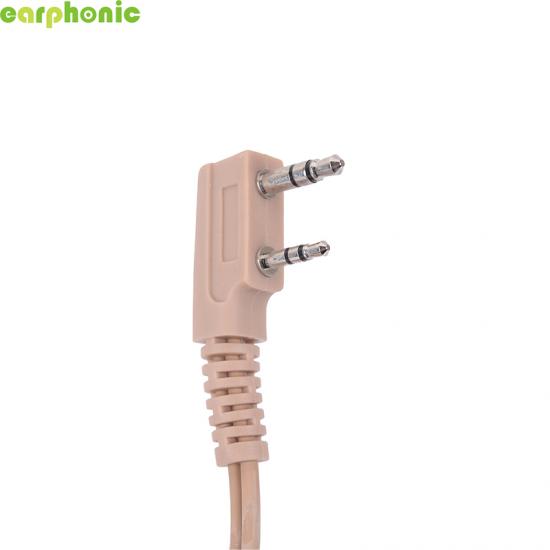

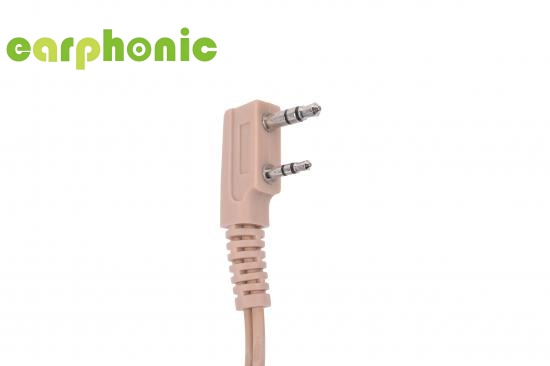

Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
