Motorola SL Two Way Radio Earphone Product Profile

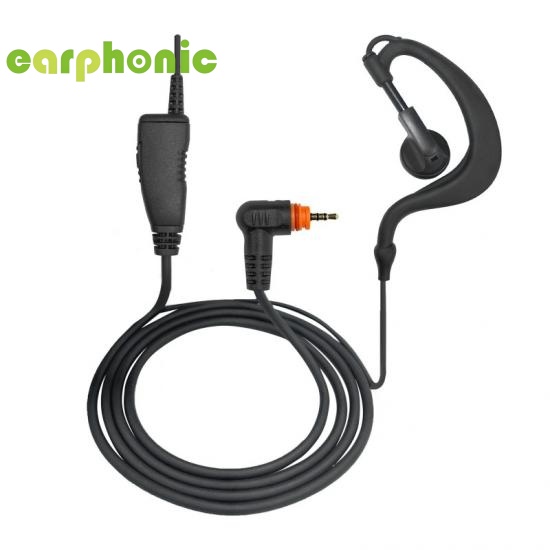

This large‑frame G‑hook earhook headset features an orange‑tip 2‑pin connector for secure plug‑in connection with matched two‑way radios, integrated with inline PTT and microphone for instant hands‑free communication. The ergonomic curved ear hook maintains a steady comfortable fit during active work, and the durable reinforced cable resists twisting and daily wear, delivering crisp sound performance well suited for security patrol, event management and long‑hour field operations.
OEM/ODM:
Tired of generic identical products flooding the market? Our OEM & ODM services help you create differentiated items for your brand. We work closely with you throughout the whole project: from requirement confirmation, product modification to custom packaging solutions. Avoid homogeneous competition and make your product easily recognized by end‑users.

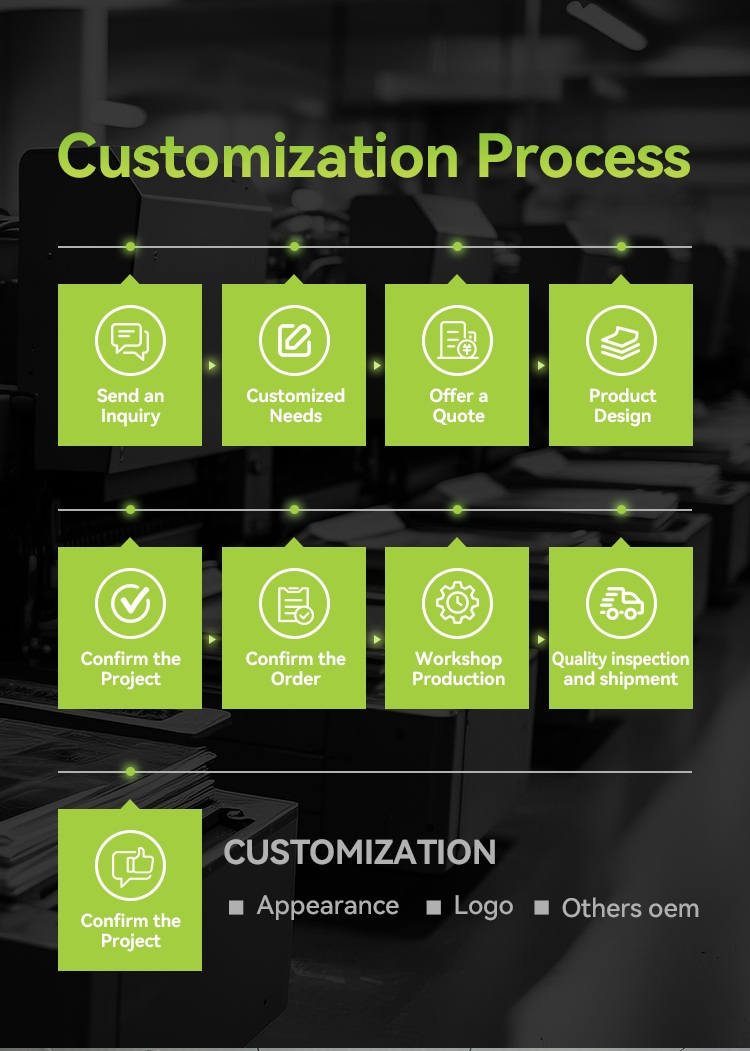

Customization Options
1. Custom‑adjust product size, outlook and raw material selection
2. Bespoke colors and different surface finish effects
3. Custom logo marking and private label branding
4. Custom packaging artwork & box structure development
5. Custom built‑in features and performance optimization
6. Exclusive custom solutions according to your brand positioning
Warranty: 3 months
Product Features:
Walkie Talkie Earphone G Hook Earpiece with PTT Microphone for Motorola TLK100 SL3000

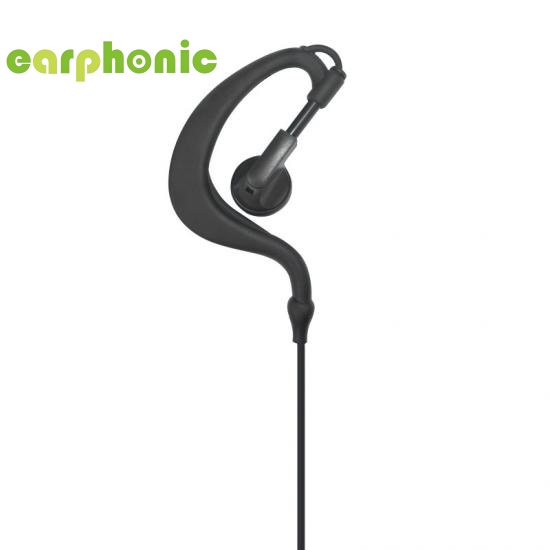

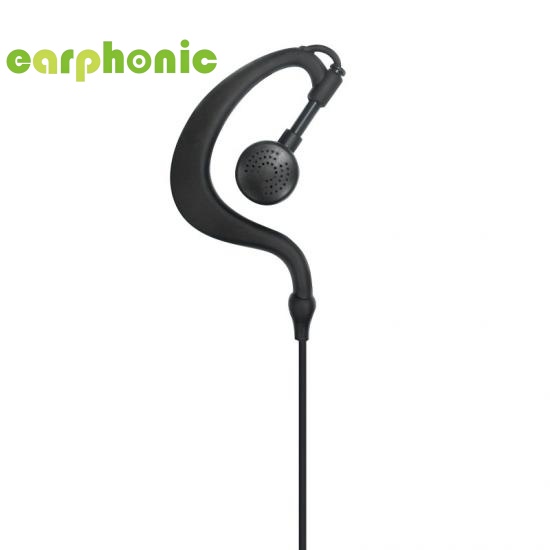

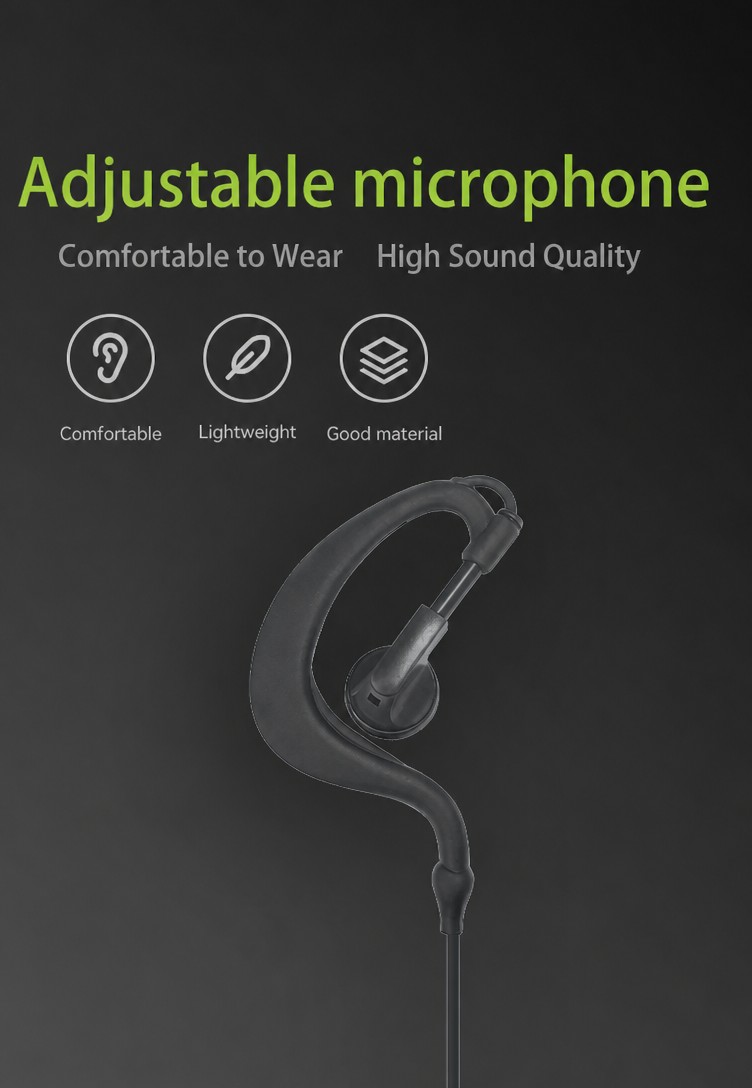

1. Ergonomic G-Shape Earhook Design

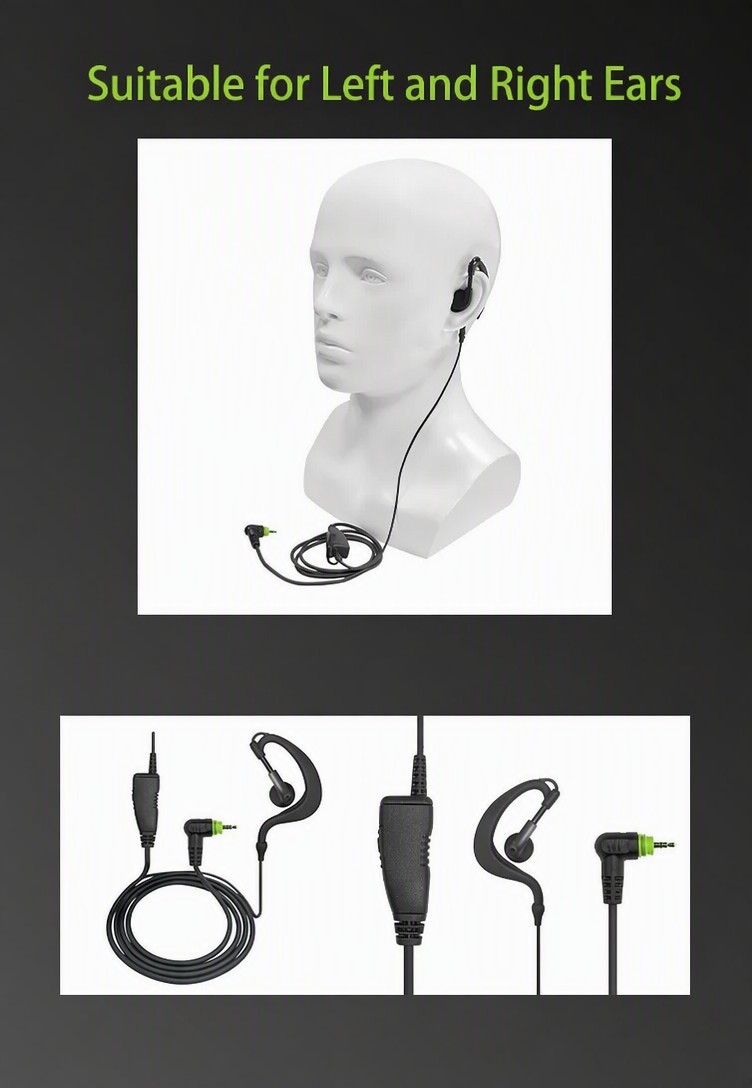

Flexible G-shaped ear hook fits snugly over either ear, providing secure all-day comfort without falling off. Ideal for retail, hospitality, security and event staff using walkie talkie headsets during long shifts.

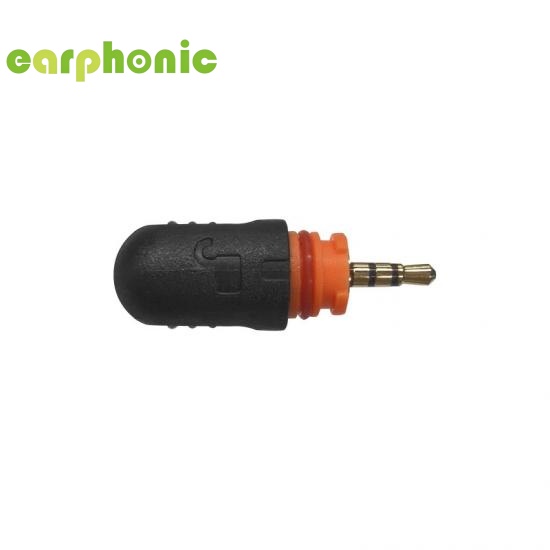

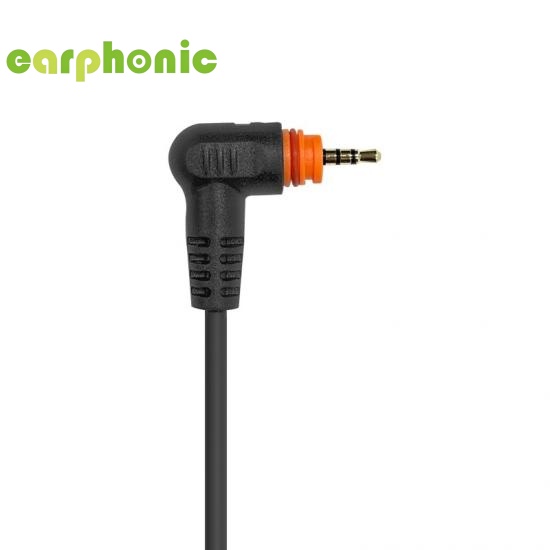

2. Precision 2.5mm Single Pin
Custom-molded plug with orange locking ring ensures secure, stable fit with Motorola TLK100 and SL Series two way radios. Plug and play, no adapters required.

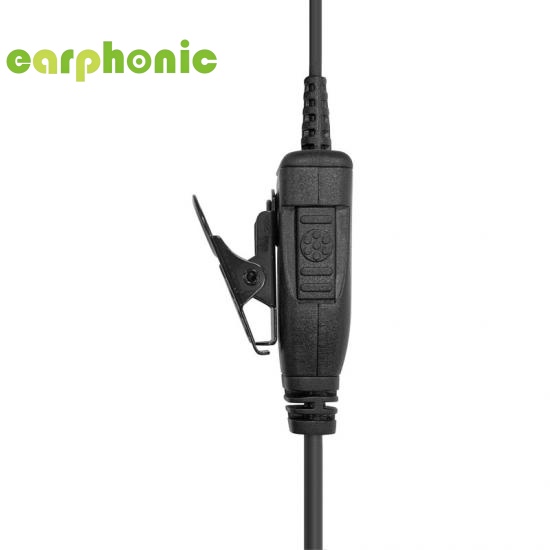

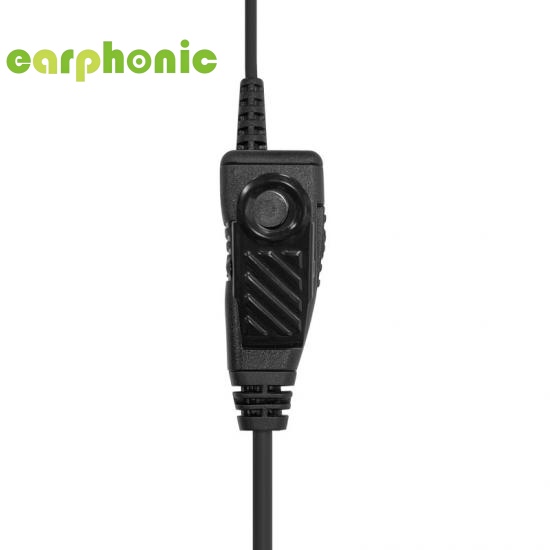

3. Non-slip PTT Push Button with High-Sensitivity Microphone
Textured anti-slip push-to-talk switch ensures reliable press even with gloves on. Built-in inline mic delivers clear voice transmission for walkie talkie and two way radio users.

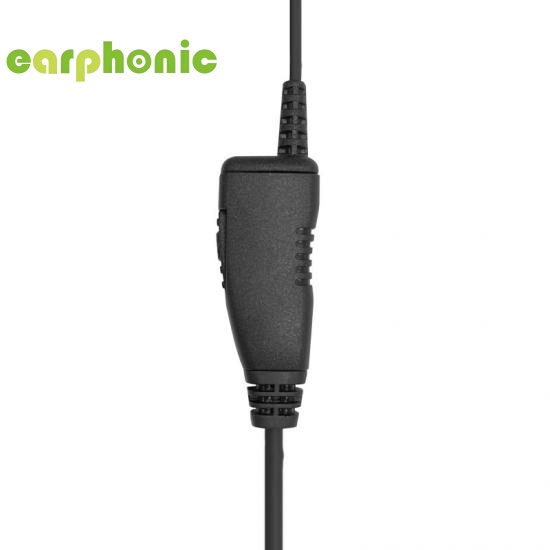

4. Single Wire 1-Wire Design
Lightweight single-wire configuration keeps wiring clean and tangle-free, combining earpiece and PTT/mic in one streamlined cable. Perfect for discreet, professional use in retail, restaurants and office environments.
5. Commercial Grade Quality & Cost-Effective

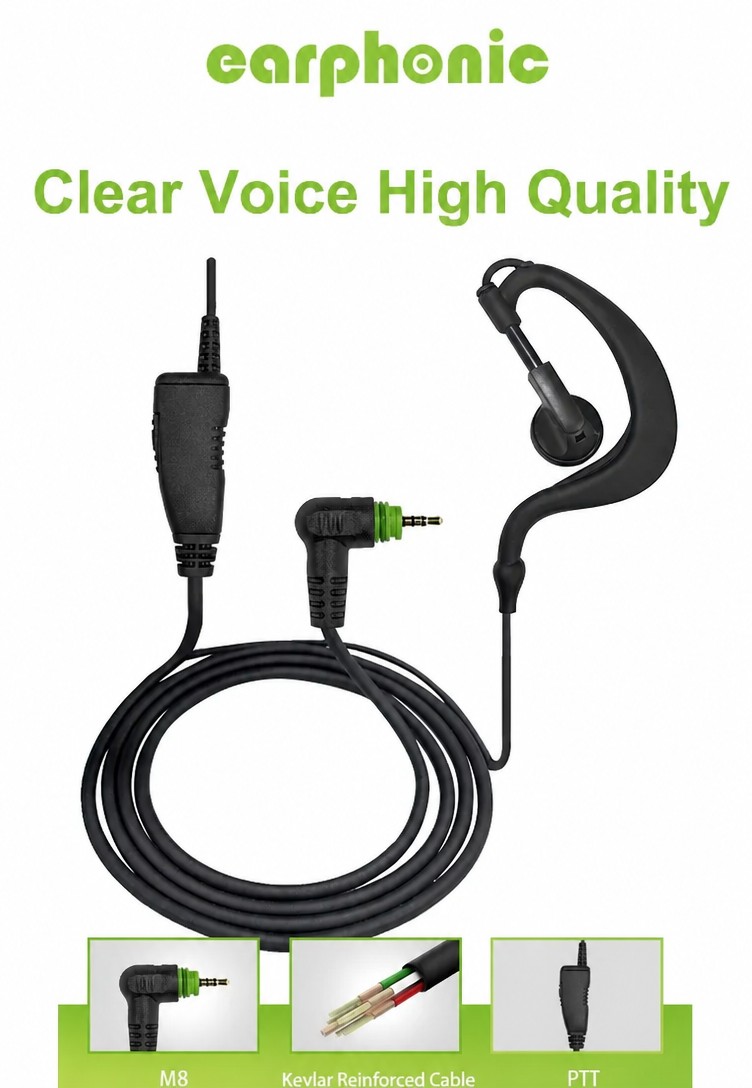

Reinforced cable, sturdy non-slip PTT switch and durable G-hook earpiece deliver reliable daily performance. Compatible with Motorola business two way radios at a fraction of the original accessory cost.
Speaker Specifications:
Electrical Parameters of Speaker
Impedance
150Ω±3Ω
Resonance Frequency
350Hz ±20%
Intelligent degree
111±5dB At 1000 Hz At 0.179V
Rated Power
Rated Power Input 2mW, Max Power Input 3mW
Frequency scope
20HZ—20KHZ At 0.179 V
Buzzes & Rattles
Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion
Less Than 5% at 1500Hz
Polarity
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density
±15% Guass (Surface)
Speaker Shell Diameter
Φ16mm±0.01mm
Microphone Specifications:
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating Voltage | 1≦V≦10 |
| Maximum Input S.P.L | 110dB,At f=1kHz,THD<1% |
Compatible Models:
|
Motorola |
TLK100 Series,SL300,SL7550,SL4000,SL4010,SL500 |

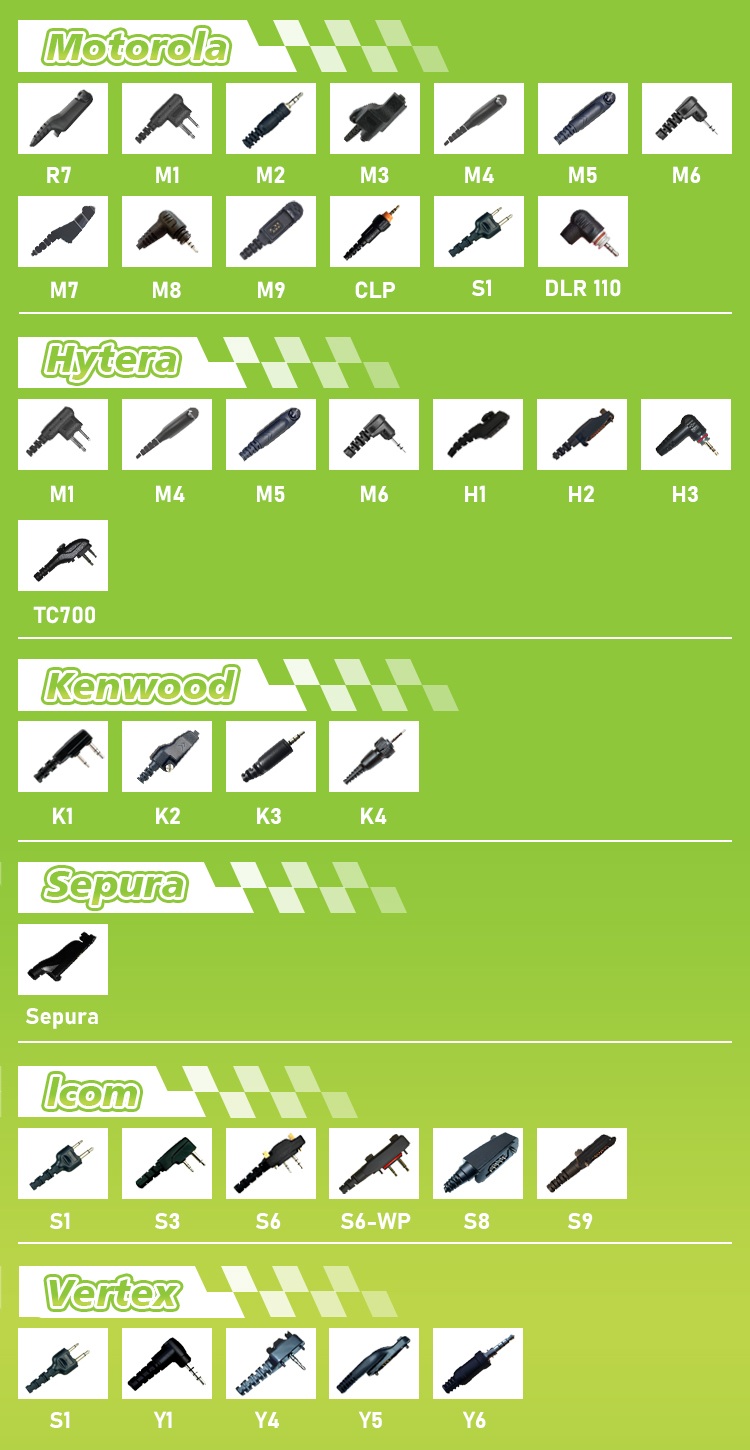

Optional Connectors:
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQs
Yes, we offer tiered pricing. The unit price will be lower for larger quantities.
We usually quote EXW or FOB China. CIF / CFR can be provided upon request.
