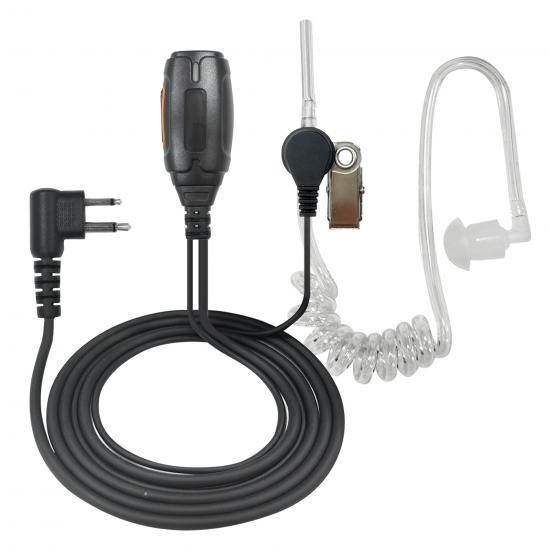

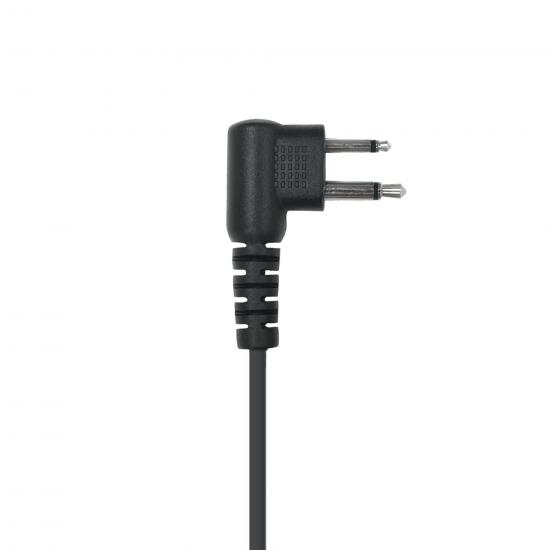

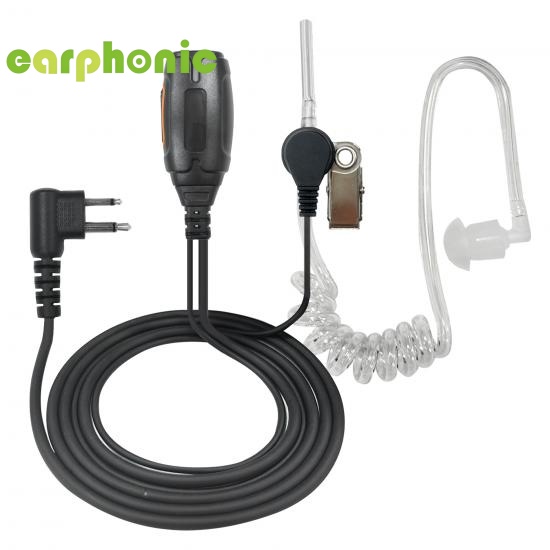

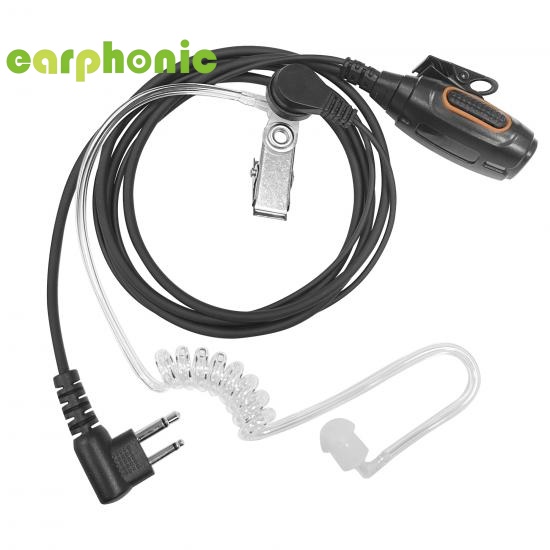

Product name: M Plug Acoustic Tube Walkie Talkie Earphone for Two Way Radio
Brand: Earphonic
MOQ: 5 PCS
OEM/ODM: Yes
Warranty: 3-6 months
Product Features:

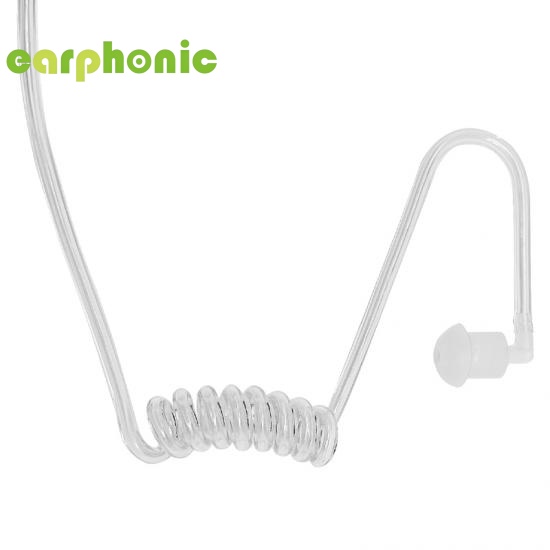

Double-wire PTT Air tube walkie-talkie headset for Two-Way Radios

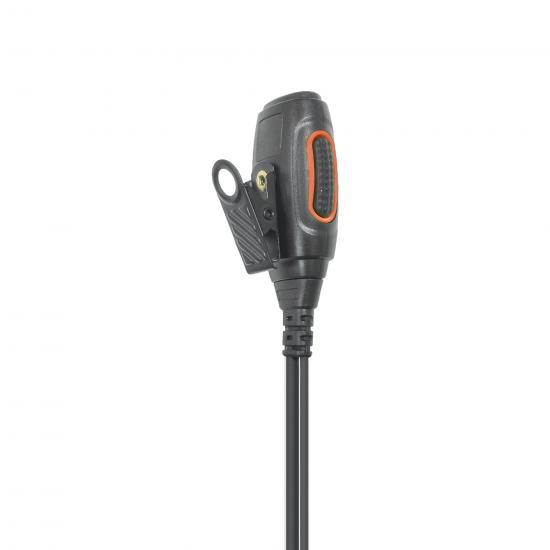

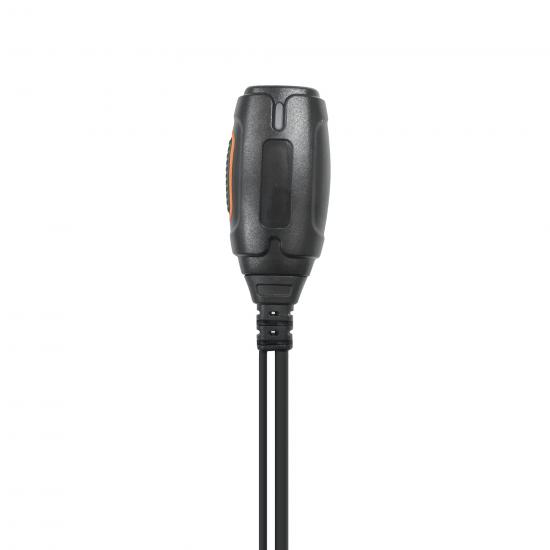

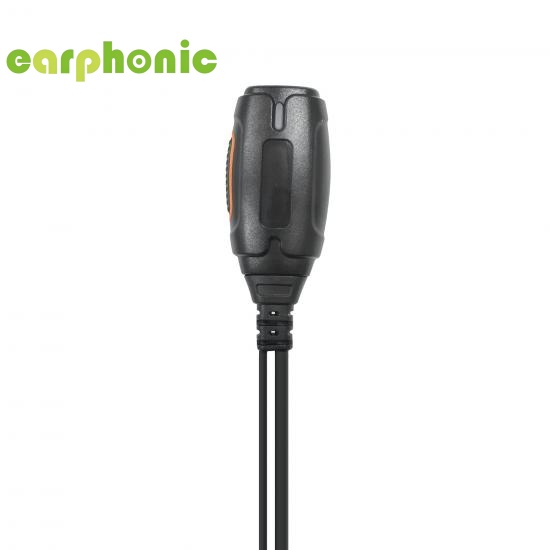

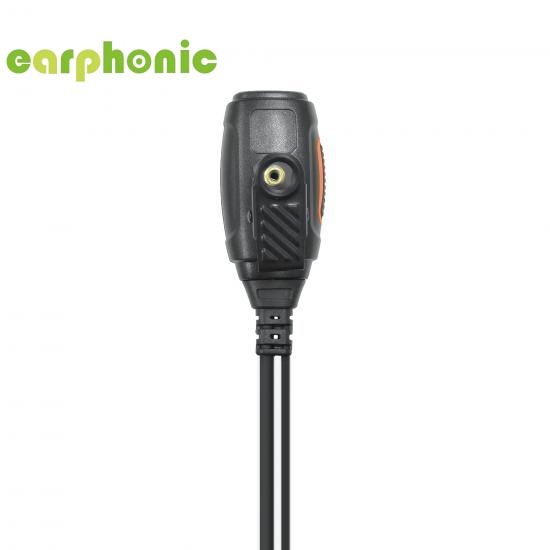

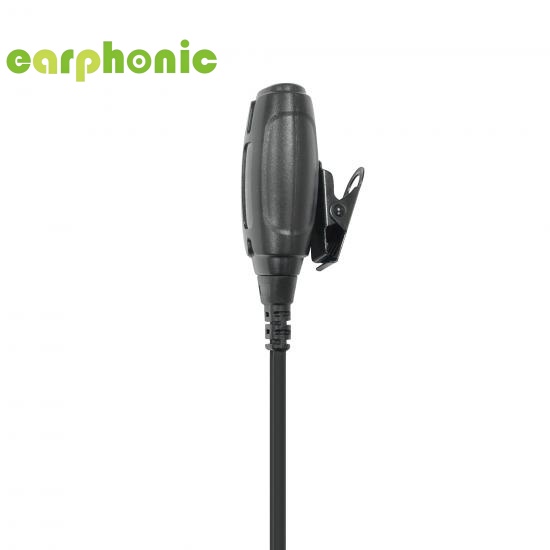

1. Dual-wire PTT design, simple and stylish transparent sound tube, more comfortable to wear and listen to

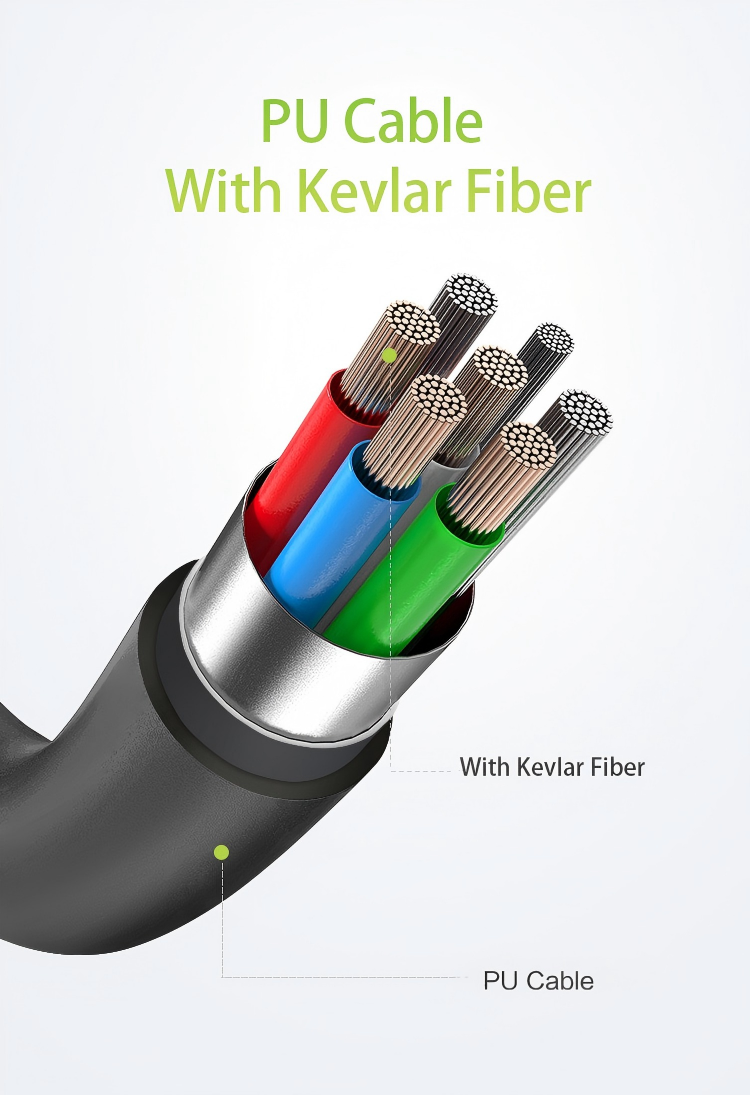

2. PU coil cable, it is tensile, durable and not easy to tangle，Good concealment, simple and low-profile appearance;

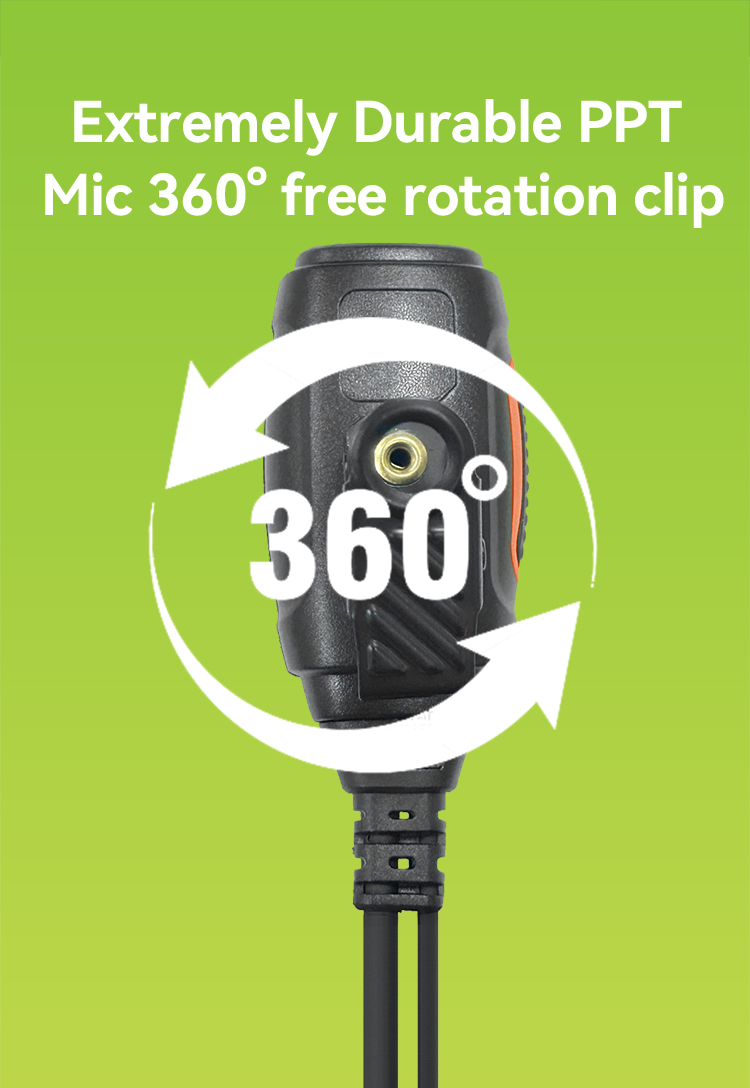

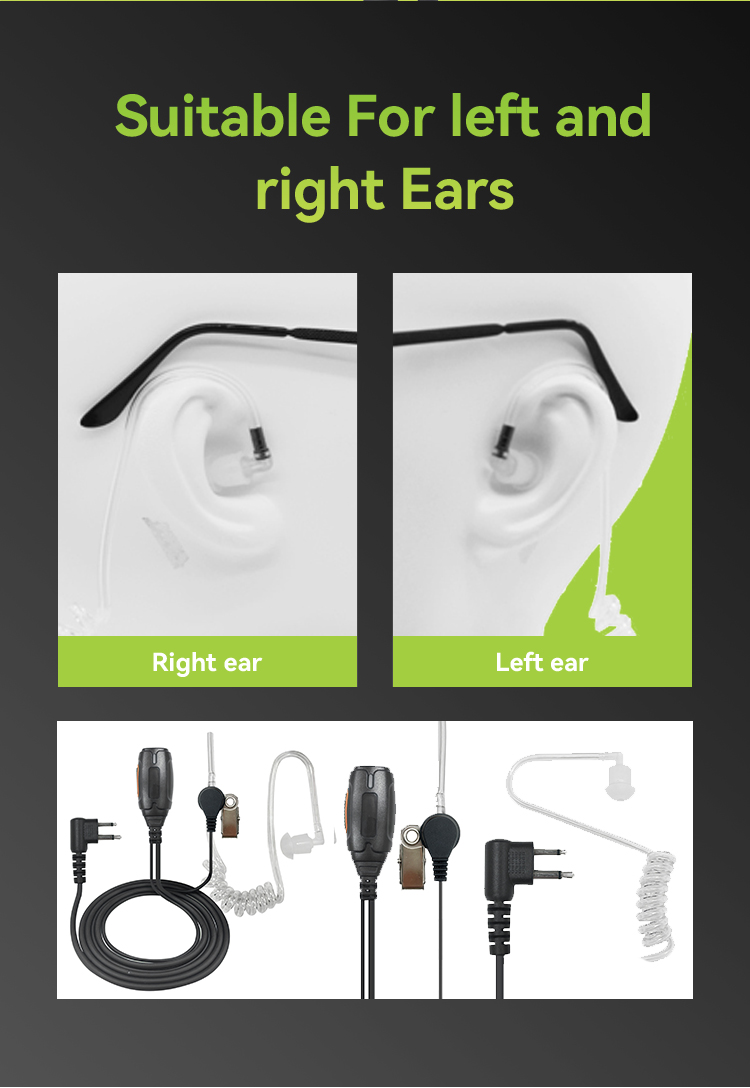

3. Rotating earphones are suitable for wearing on either ear;

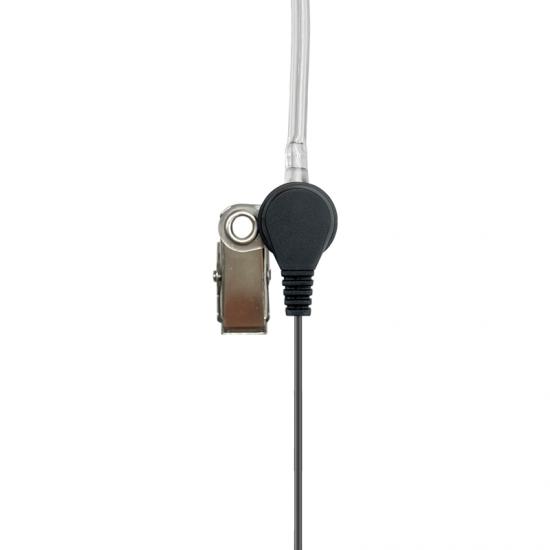

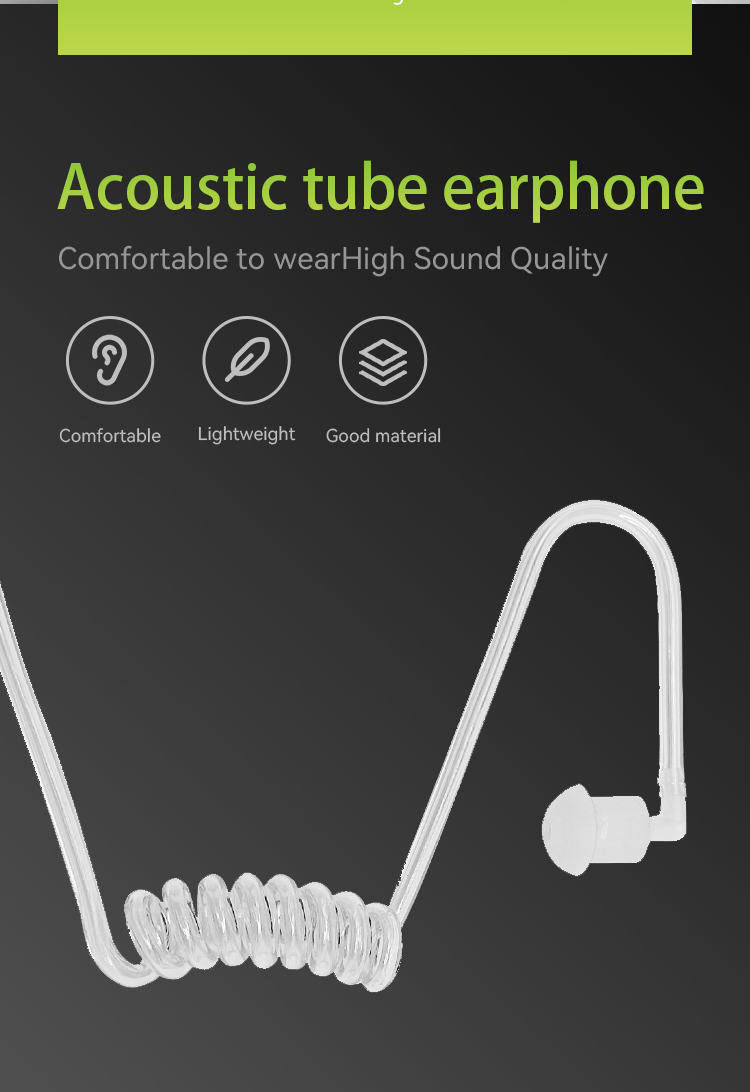

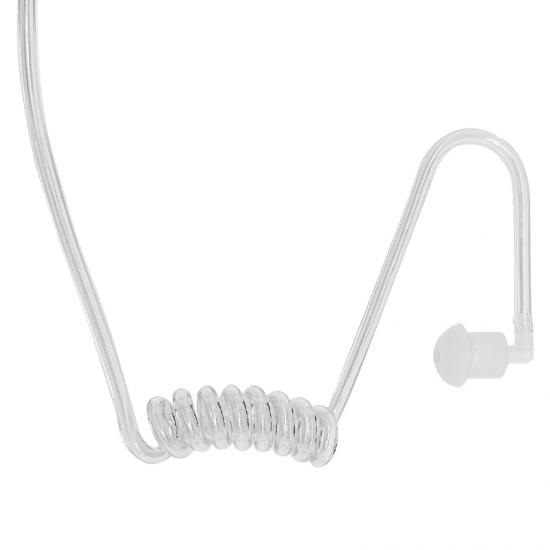

4. Transmits sound via air tube, sound insulation and noise reduction, clear call; 5. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD;
6. Air tube cable: 35 CM
7. Main cable length:95CM
Speaker Parameters:
| Electrical Parameters of Speaker | |
| Impedance | 8Ω±10% |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 110±3dB At 1000 Hz At 0.179V |
| Rated Power | Rated Power Input 10mW, Max Power Input 30mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Air Tube Shell Diameter | Φ7.1mm±0.01mm |
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10 |
| Maximum input S.P.L | 110dB,At f=1kHz,THD＜1% |

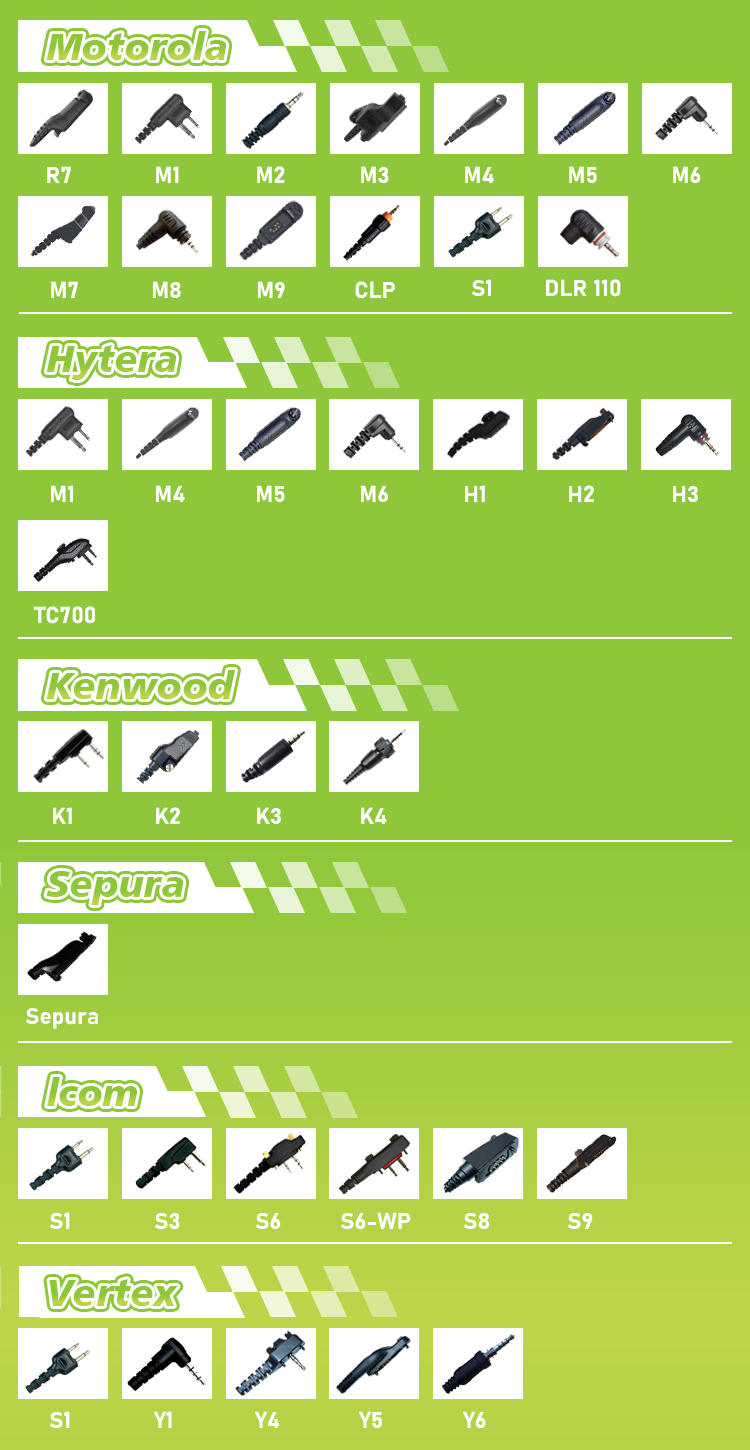

Compatible Model :

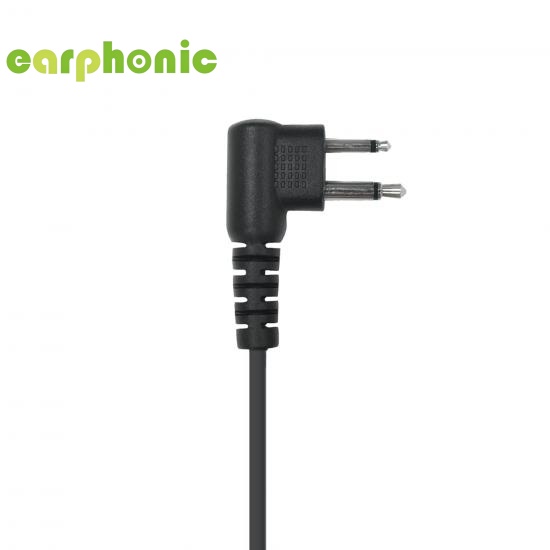

Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
