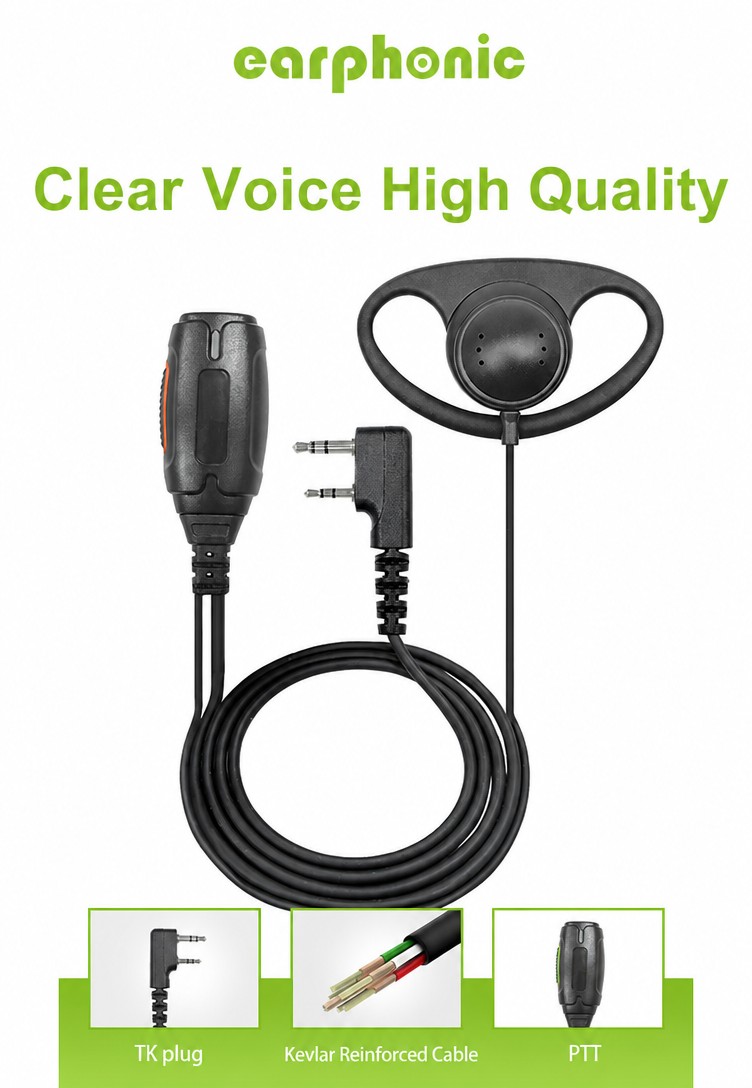

D‑Shape Two Way Radio Earpiece Product Profile

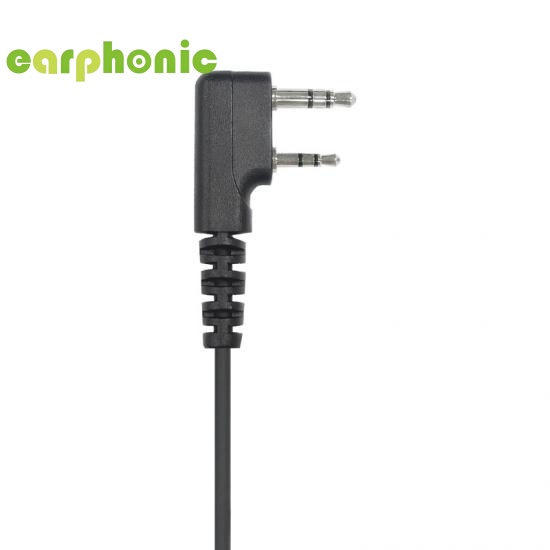

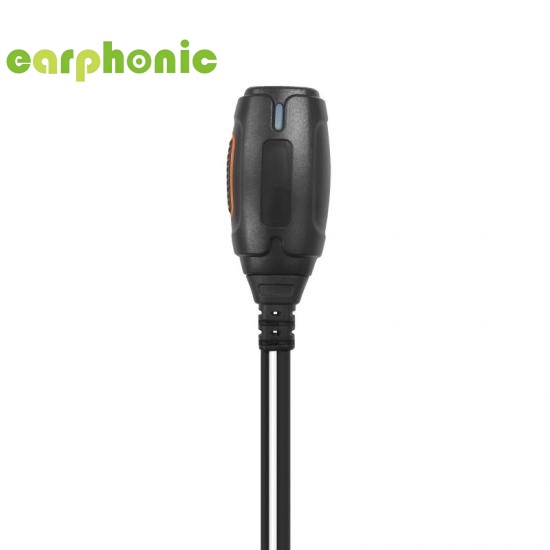

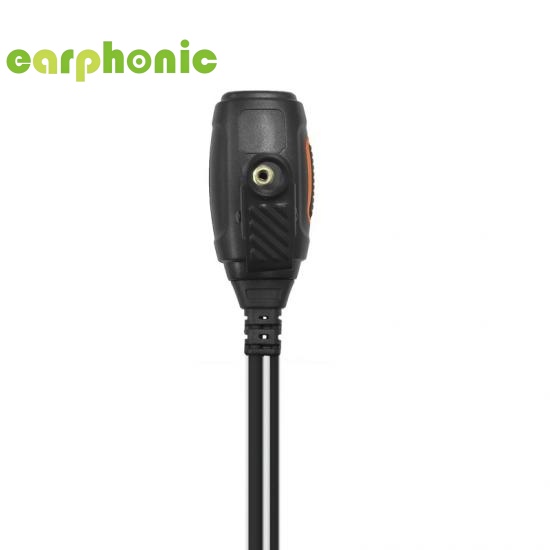

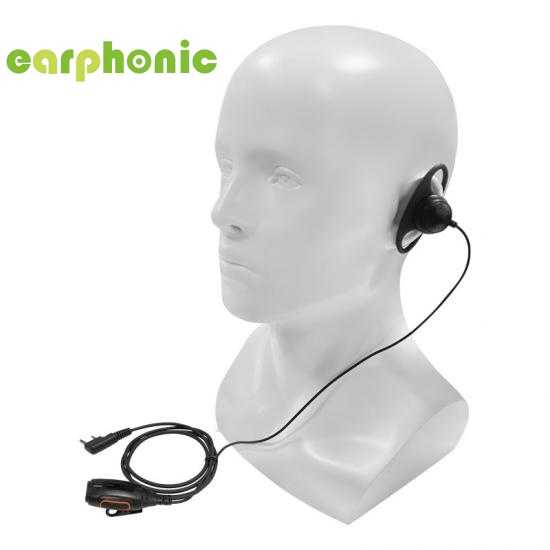

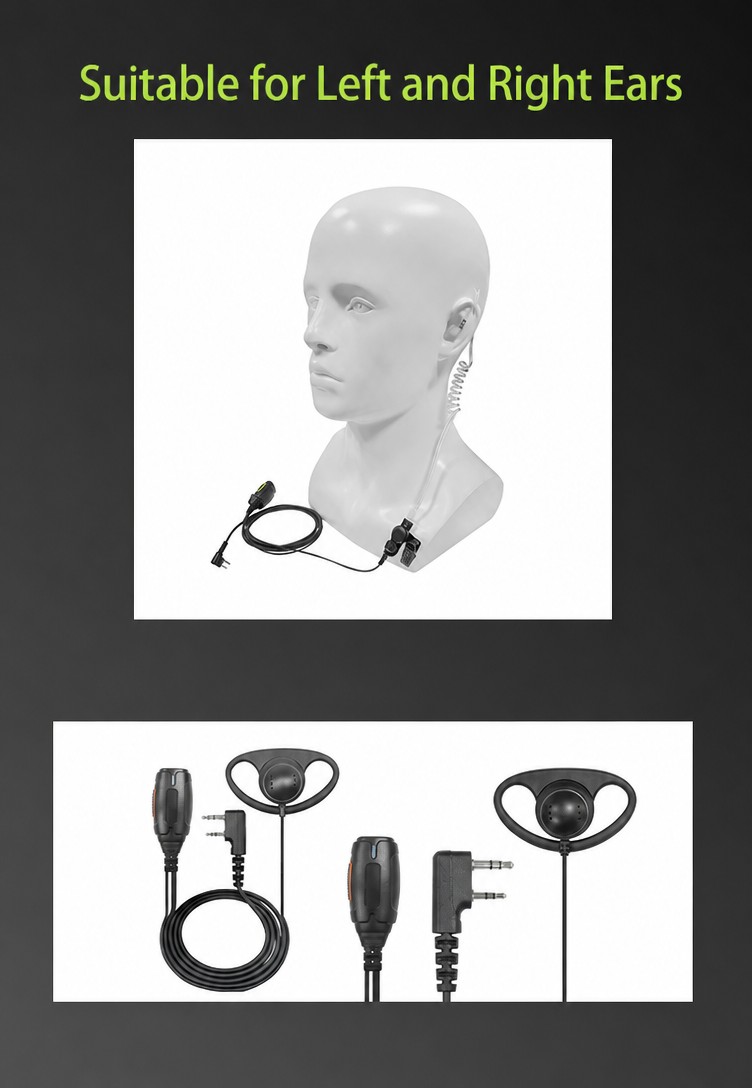

This durable D shaped ear hook headset is compatible with standard K‑connector two‑way radios. The inline PTT unit integrates microphone for clear transmit audio. Open‑ear D‑shape earpiece sits comfortably on ear, without fully blocking surrounding noise, which greatly improves safety for security guards, warehouse staff and event personnel. Flexible strain‑relief cable resists daily tugging and bending for heavy‑duty daily use. Easy plug‑and‑play, no extra setup required. Ideal for team‑based field communication scenarios.
OEM/ODM:

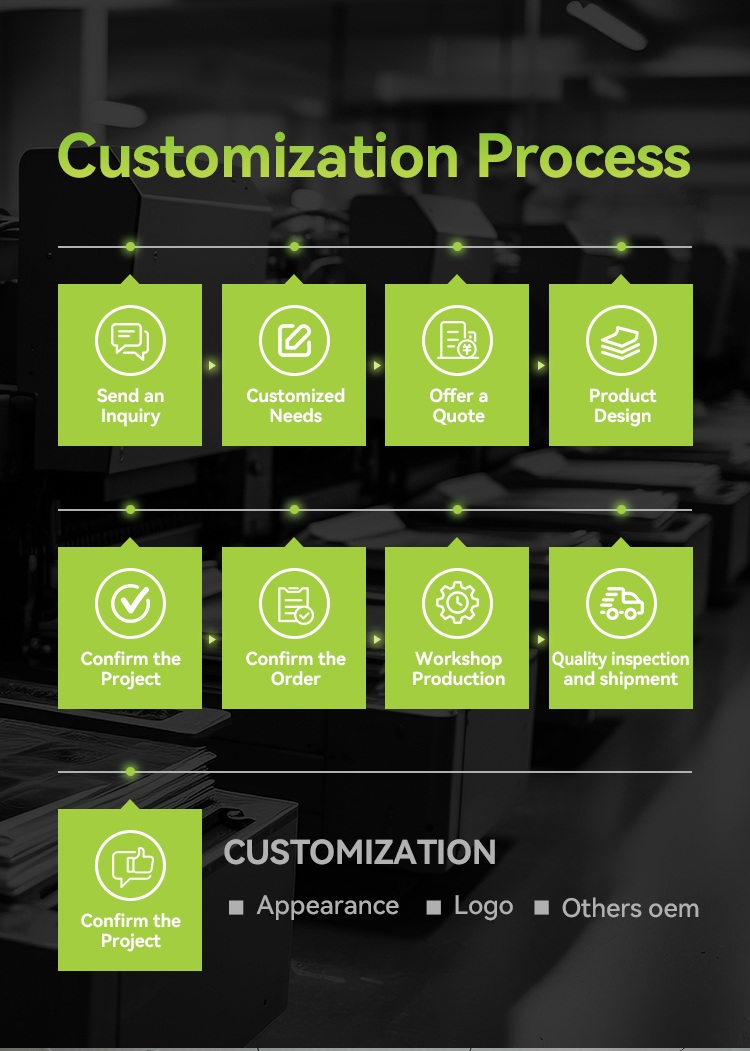

We provide full‑range OEM and ODM services to help you develop custom‑built products matching your unique business requirements. Our team manages the entire workflow, from early‑stage product design to custom packaging development, to help your brand build competitive advantages and stand out in crowded global markets.
Customization Available:
1. Product specifications: dimensions, styles and raw‑material selections6. Brand‑exclusive personalized solutions
Product Features:

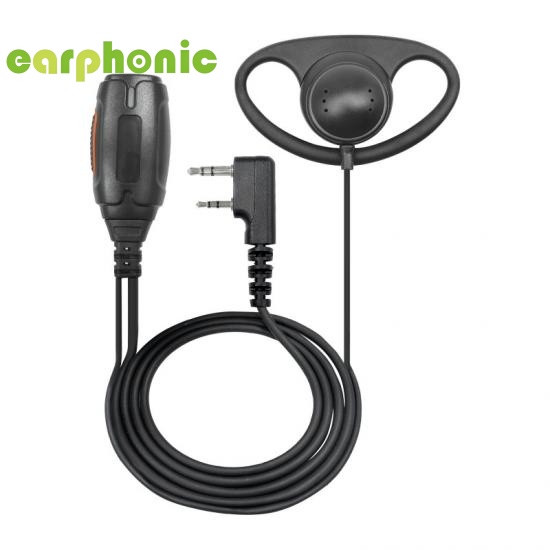

D-Type Earhook PTT Headset for Two-Way Radios

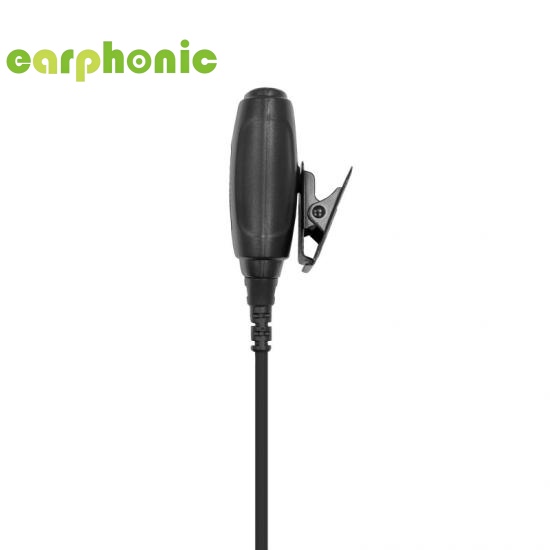

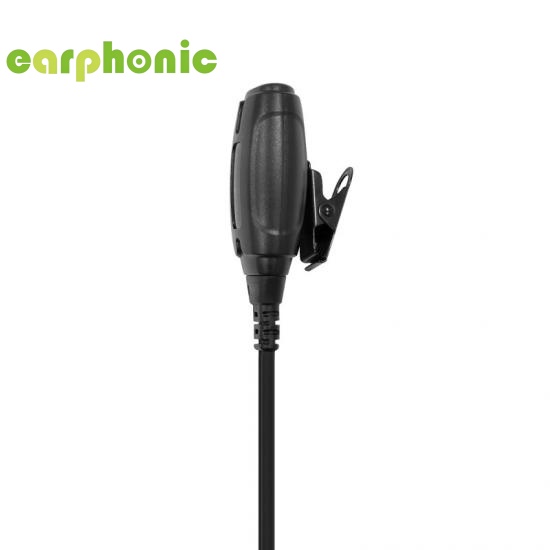

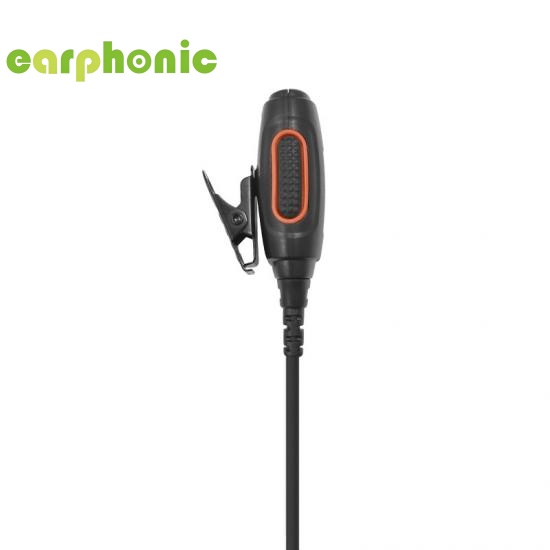

1. Fashion PTT design with metal clamps;

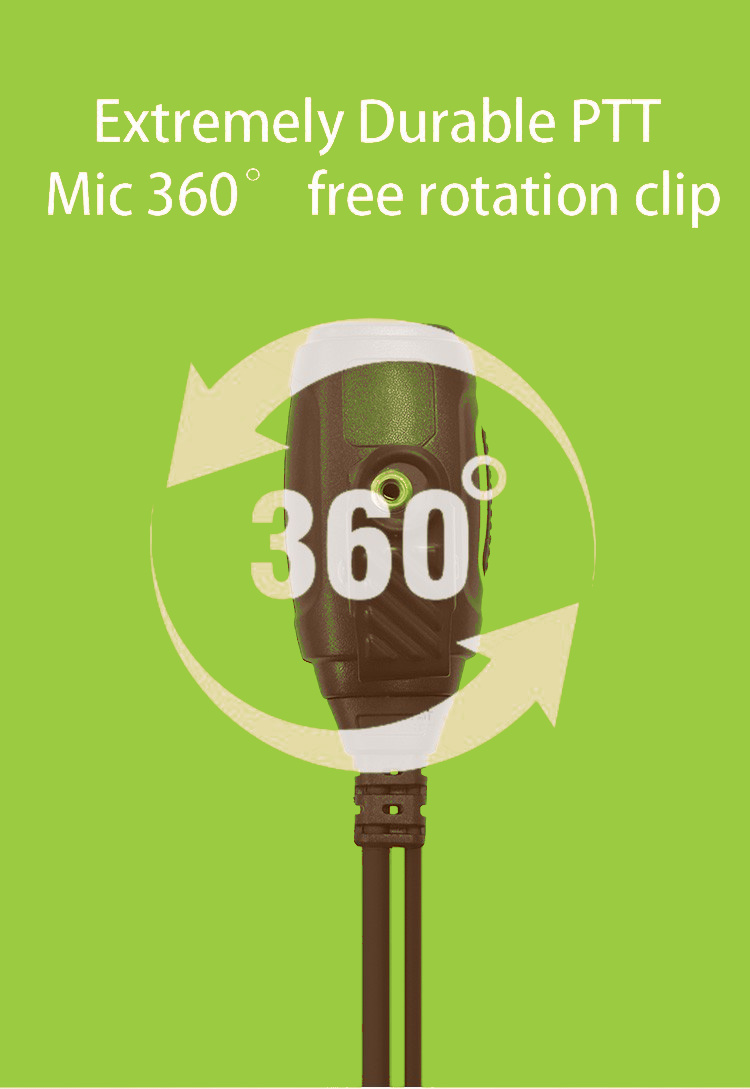

2. Rotating the speaker can reduce the pressure on the wire;

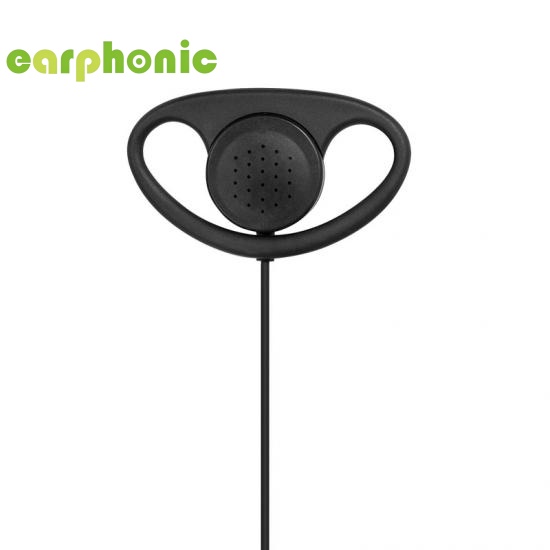

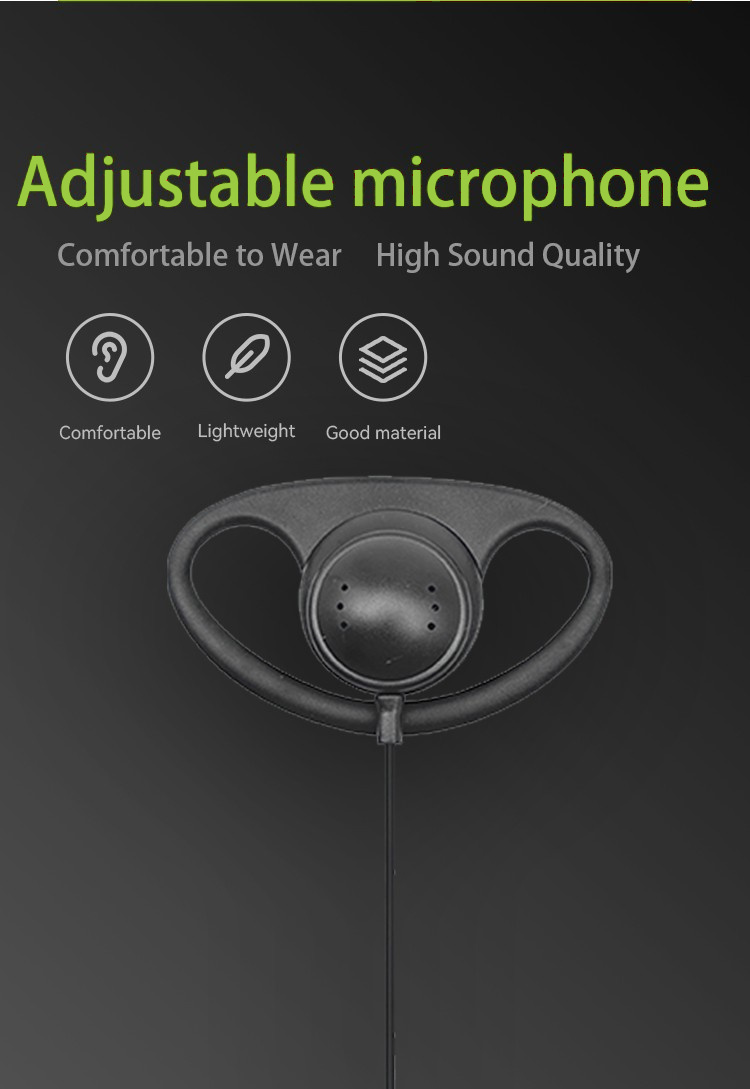

3. Wear comfortable rubber ear hooks;
4. Suitable for various brands of walkie talkies and transceivers, such as ICOM, Standard, YAESU, KENWOOD.;
5. Cable Length:95/50CM
Speaker Parameters:
|
Electrical Parameters of Speaker |
|
|
Impedance |
8Ω±1Ω |
|
Resonance Frequency |
350Hz±20% |
|
Intelligent Degree |
111±5dB At 1000 Hz At 0.179V |
|
Rated Power |
Rated Power Input 100mW, Max Power Input 250mW |
|
Frequency Scope |
20HZ—20KHZ At 0.179 V |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Polarity |
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
|
Flux Density |
±15% Guass (Surface) |
|
Speaker Shell Diameter |
Φ29mm±0.25mm |
Microphone Parameters:
|
Electrical Parameters of The microphone |
|
|
Sensitivity |
-40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa |
|
Output Impedance |
Zout=2.2KΩ,At f=1kHz |
|
Current Consumption |
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
|
Directivity |
Omni directional |
|
Signal to Noise Ratio |
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
|
Decreasing Voltage |
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
|
Operating Voltage |
1≦V≦10 |
|
Maximum Input S.P.L |
110dB,At f=1kHz,THD＜1% |

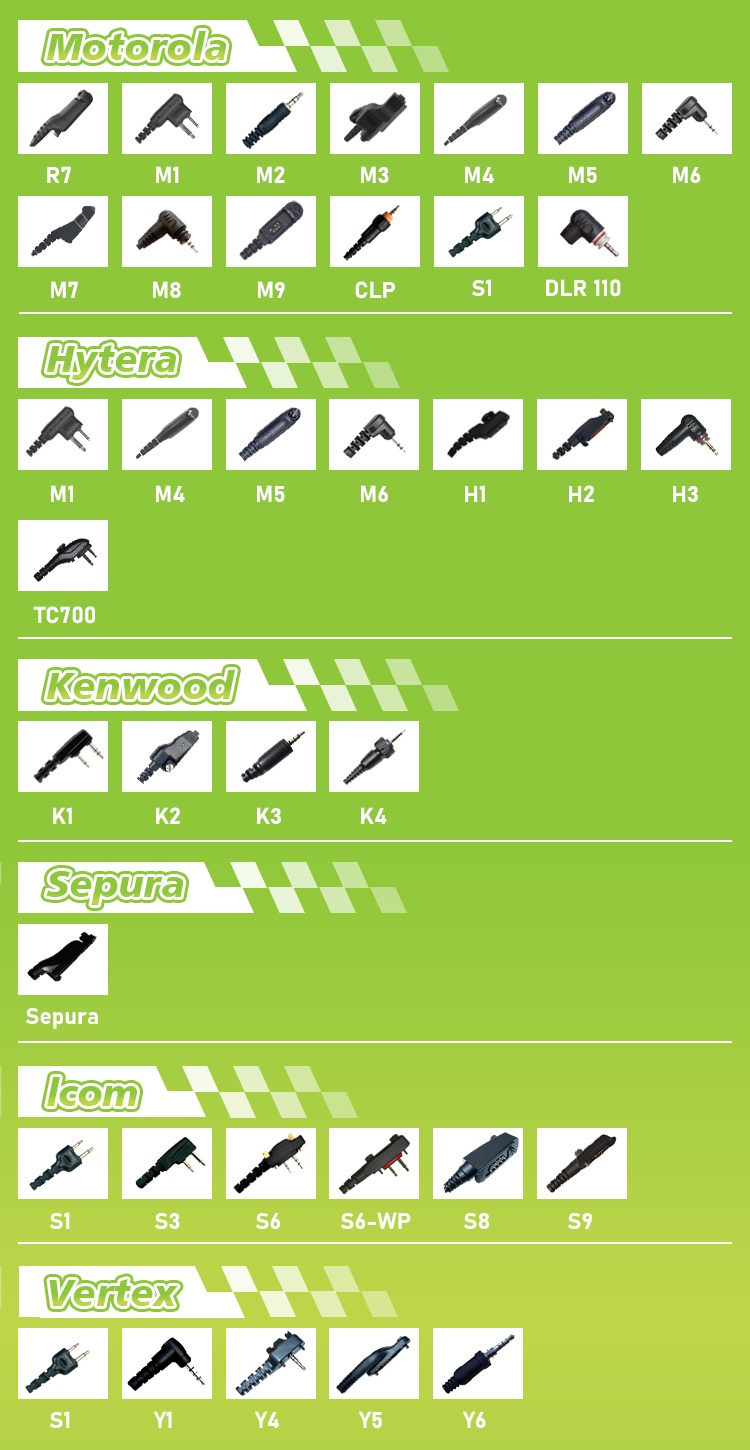

Optional Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQs
Yes, we offer tiered pricing. The unit price will be lower for larger quantities.
We usually quote EXW or FOB China. CIF / CFR can be provided upon request.
