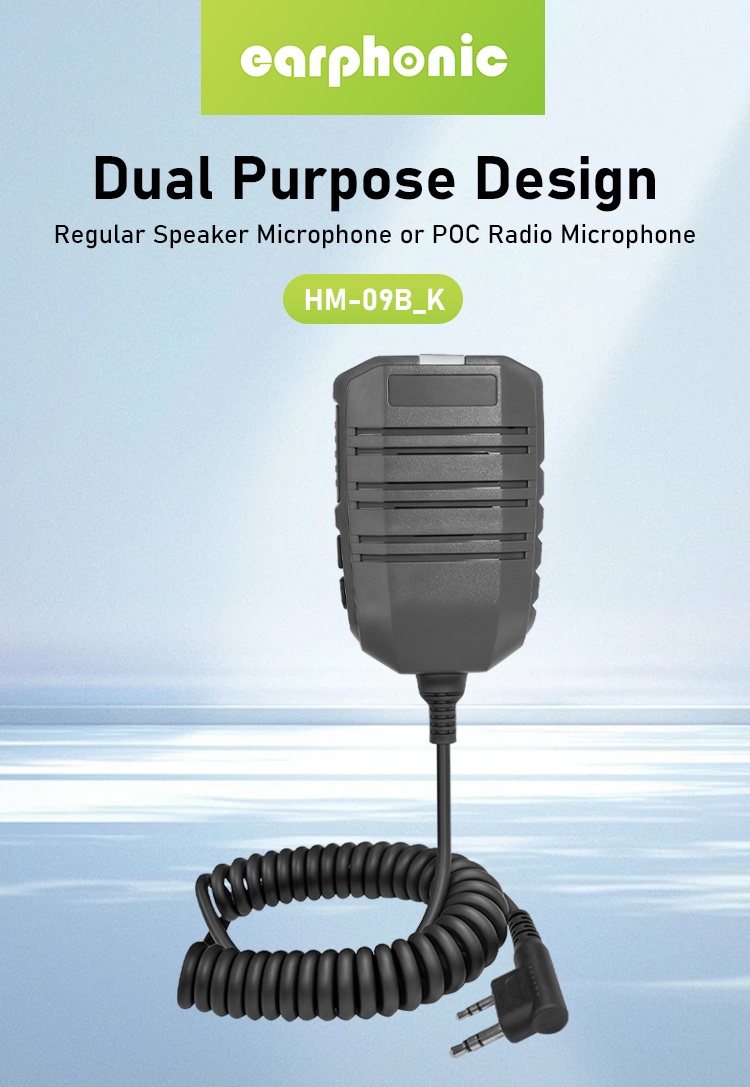

IP67 Heavy Duty Walkie Talkie Speaker Mic Product Profile
OEM/ODM:
We deliver comprehensive OEM & ODM solutions, enabling partners to develop tailor-made products aligned with their distinct demands. Our team oversees every stage from initial product design through customized packaging, helping your brand differentiate itself and stand out amid fierce market competition.
Customization Options:
1. Product specifications: size, style, raw materials
2. Custom colors and surface finishes
3. Logo imprinting and private label service
4. Custom packaging artwork & structure design
5. Custom special features and performance upgrades
6. Additional personalized solutions customized exclusively for your brand
Warranty: 6 months
Product Features:
1.Model Number: HM-09B_K

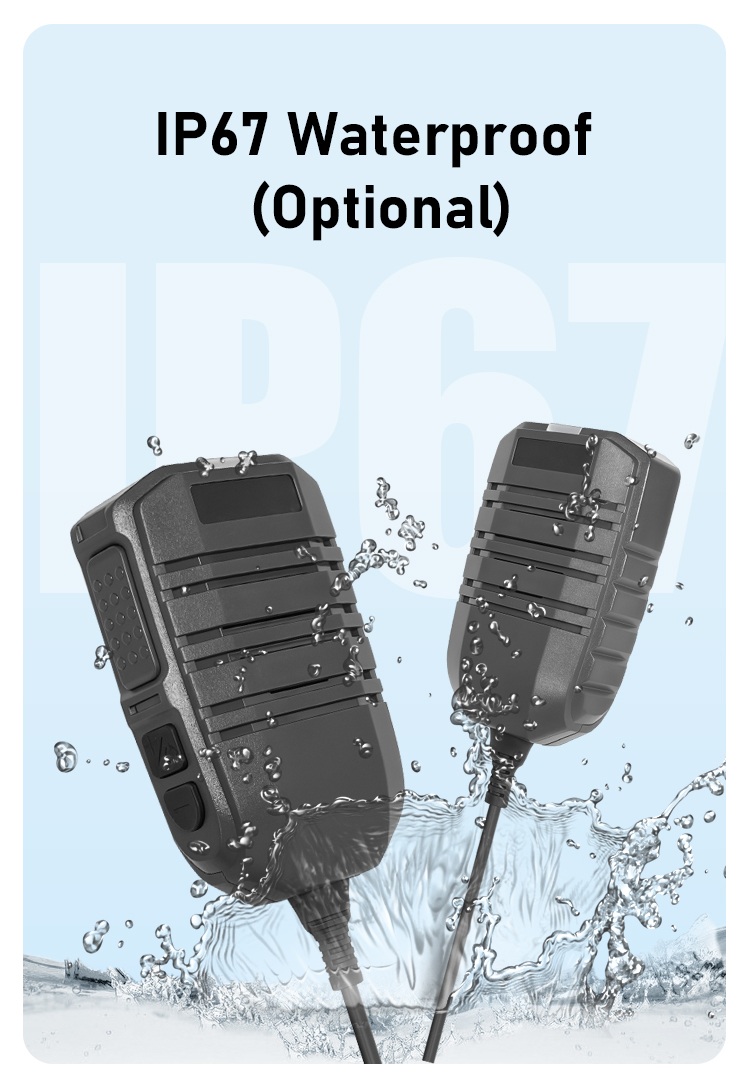

2.IP Rating: IP67 (Optional)
3.Material: ABS, Plastic
4.private mold: No
5.Material：PU
Speaker Parameters:
| Electrical Parameters of Speaker | |
| Impedance | 8Ω + 15% |
| Resonance Frequency | 550Hz+ 20% |
| Intelligent Degree | 95±3 dB SPL /2 .0V/0 .1m at 1KHz AVG |
| Rated Power | Rated Power Input 1W, Max Power Input 1.5W |
| Frequency Scope | 20HZ—20KHZ At 0.126V |
| Buzzes & Rattles | Clear sound, no noise At (300 Hz～3400 Hz,input 2.83Vrms) |
| Distortion | Less than 10 %at 1KHz 0.1W /10cm |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| IP Rating | IP67(Optional) |
| Flux Density | ±10% Guass (Surface) |
| Speaker Shell Diameter | Φ39.8mm±0.2mm |
Microphone Parameters:
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa |
| Output Impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating Voltage | 1≦V≦10 |
| Maximum Input S.P.L | 110dB,At f=1kHz,THD＜1% |
FAQs
Q1: Are your accessories compatible with all radio brands?
A1: Most of our products are compatible with major brands such as Motorola, Hytera, Kenwood, Icom etc. Please provide the exact radio model for accurate compatibility confirmation.
Q2: Can I get samples?
A2: Yes, samples can be provided freely, but the shipping cost charged on customer.
Q3: What about customized services?
A3: OEM and ODM services are provided, for OEM, we can design your brand the sticker & packaging box according to your requirements.
Q4: What is the mass production time?
A4: Quantity less than 500PCS, it takes 5-7 days; Quantity is 501-2000 pieces, it takes 7-10 days.
Q5: How do you control quality?
A5: All products pass 100% testing before shipment.
Q6: How to handle order problems?
A6: Contact us directly, we will respond and solve within 24 hours.
