G-Type Earhook Walkie Talkie Headset for Motorola R7 Product Profile
OEM/ODM:
We deliver comprehensive OEM & ODM solutions, enabling partners to develop tailor-made products aligned with their distinct demands. Our team oversees every stage from initial product design through customized packaging, helping your brand differentiate itself and stand out amid fierce market competition.
Customization Options:
1. Product specifications: size, style, raw materials
2. Custom colors and surface finishes
3. Logo imprinting and private label service
4. Custom packaging artwork & structure design
5. Custom special features and performance upgrades
6. Additional personalized solutions customized exclusively for your brand
Warranty: 3-6 months
Compatible brand: Motorola, Kenwood, Hytera, Sepura, Icom, Vertex
Product Positioning: walkie talkie earphone
Product Features:
1. Plug Type: Motorola R7;
2. Fashion PTT design with metal clamps;
3. Rotating the speaker can reduce the pressure on the wire;
4. Wear comfortable rubber ear hooks;
5. The R7 interface headphone cable is only compatible with Motorola walkie-talkies. Adopting a lockable structure, it ensures stable connection without poor contact. The 13-pin interface provides clear sound quality and excellent noise reduction, offering high durability for industrial and security applications.
Speaker Parameters:
|
Electrical Parameters of Speaker |
|
|
Impedance |
150Ω±3Ω |
|
Resonance Frequency |
350Hz ±20% |
|
Intelligent degree |
111±5dB At 1000 Hz At 0.179V; |
|
Rated Power |
Rated Power Input 2mW, Max Power Input 3mW |
|
Frequency scope |
20HZ—20KHZ At 0.179 V |
|
Buzzes & Rattles |
Clear sound, no noise At 0.25V(50HZ-3KHZ) |
|
Distortion |
Less Than 5% at 1500Hz |
|
Polarity |
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
|
Flux Density |
±15% Guass (Surface) |
|
Air Tube Shell Diameter |
Φ16mm±0.01mm |
Microphone Specifications:
| Electrical Parameters of The microphone | |
| Sensitivity | -44dB≦S≦-40dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa |
| Output Impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating Voltage | 1≦V≦10 |
| Maximum Input S.P.L | 110dB,At f=1kHz,THD＜1% |

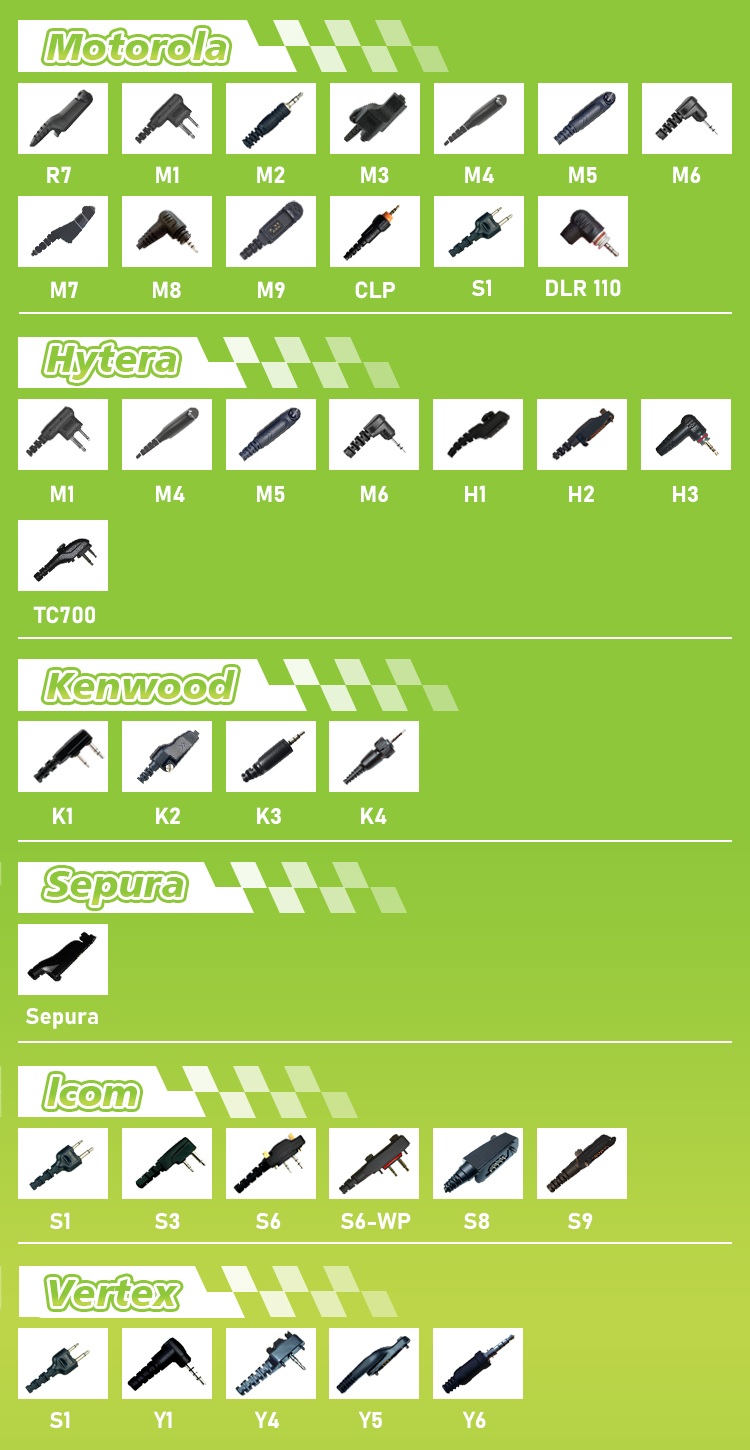

Compatible Model :
Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
FAQs
Q1: Are your accessories compatible with all radio brands?
A1: Most of our products are compatible with major brands such as Motorola, Hytera, Kenwood, Icom etc. Please provide the exact radio model for accurate compatibility confirmation.
Q2: Can I get samples?
A2: Yes, samples can be provided freely, but the shipping cost charged on customer.
Q3: What about customized services?
A3: OEM and ODM services are provided, for OEM, we can design your brand the sticker & packaging box according to your requirements.
Q4: What is the mass production time?
A4: Quantity less than 500PCS, it takes 5-7 days; Quantity is 501-2000 pieces, it takes 7-10 days.
Q5: How do you control quality?
A5: All products pass 100% testing before shipment.
Q6: How to handle order problems?
A6: Contact us directly, we will respond and solve within 24 hours.
