Product Name: EARPHONIC ICOM Plug Two Way Radio Earphone Walkie Talkie Accessories Headset
Brand: Earphonic
MOQ: 5 PCS
OEM/ODM: Yes
Warranty: 3-6 months
Product Features:

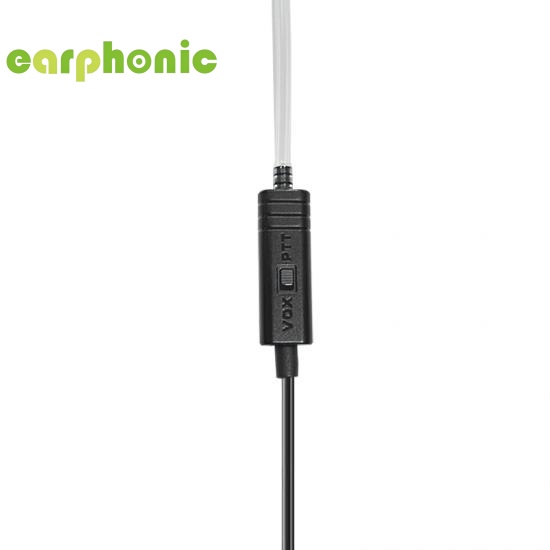

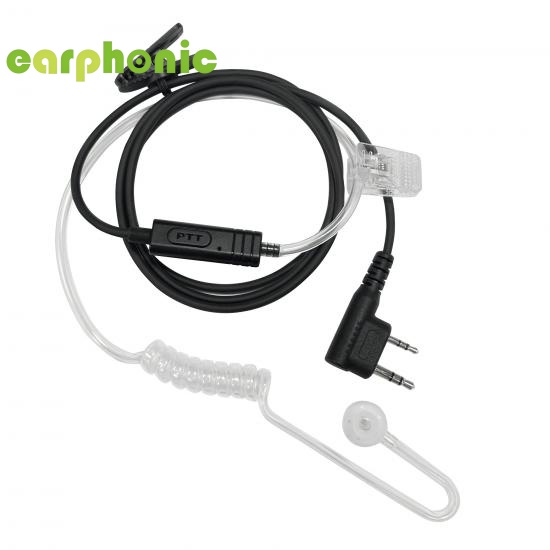

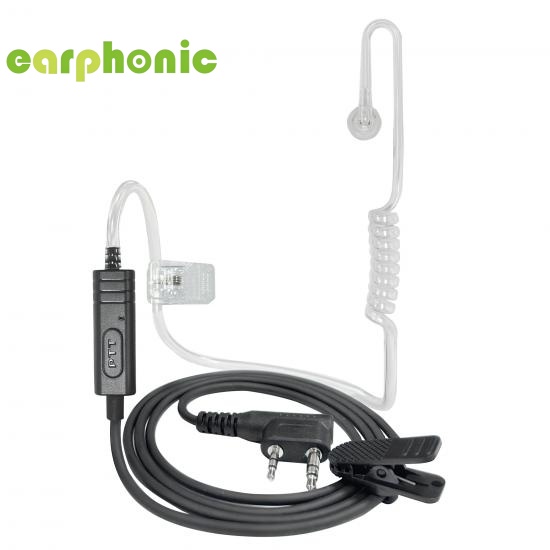

Single-wire PTT Air tube walkie-talkie headset for Two-Way Radios

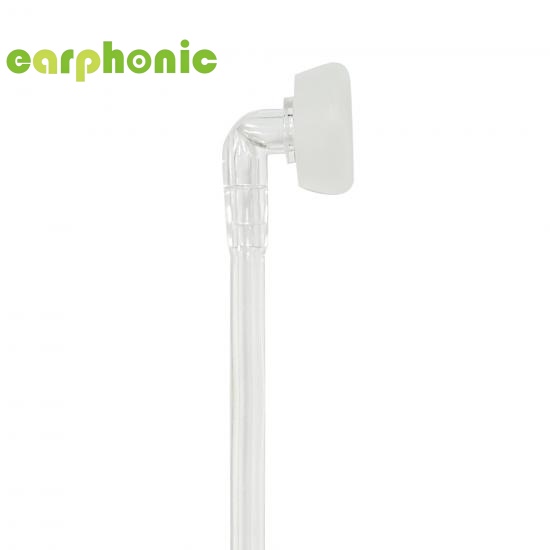

1. Transparent tube earphone microphone for interphone;
2. You can listen and speak clearly without holding a walkie-talkie.
3. Transparent tube SPK, good concealment effect, is conducive to the confidentiality of communication;
4. Suitable for different brands of walkie-talkies such as ICOM, Standard, YAESU, Kenwood, Transceivers.
5. cable length:
1).Air tube cable: 35CM

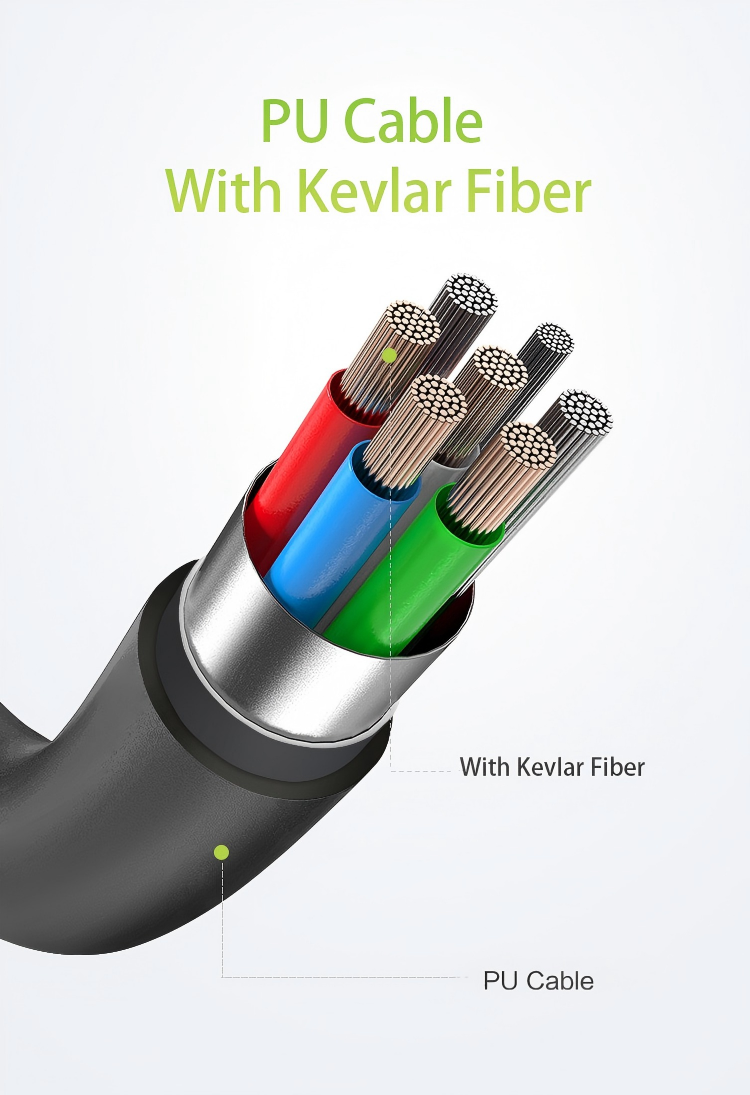

2).Main cable length: 95CM
Speaker Parameters:
Electrical Parameters of Speaker
Impedance
32Ω±5Ω
Resonance Frequency
350Hz ±20%
Intelligent degree
115±3dB At 1000 Hz At 0.179V
Rated Power
Rated Power Input 10mW, Max Power Input 15mW
Frequency scope
200HZ—20KHZ At 0.179 V
Ruzzes&Rattles
Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion
Less Than 5% at 1500Hz
Polarity
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density
±15% Guass (Surface)
Air Tube Shell Diameter
Φ7.1mm±0.01mm
Microphone Paramters:
Electrical Parameters of The microphone
Sensitivity
-36dB≦S≦-32dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa;
Output impedance
Zout=2.2KΩ,At f=1kHz
Current Consumption
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity
Omni directional
Signal to Noise Ratio
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage
1≦V≦10;
Maximum input S.P.L
110dB,At f=1kHz,THD<1%

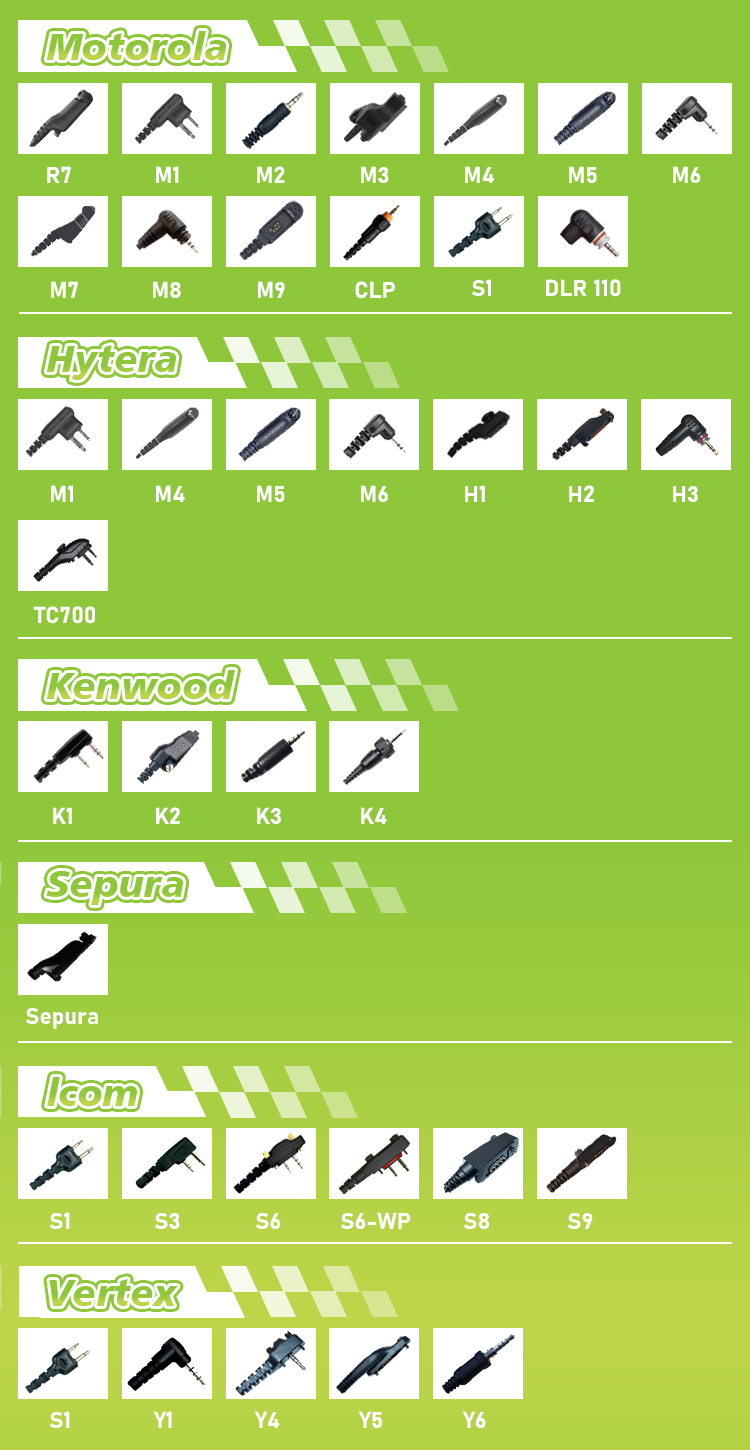

Compatible Model :

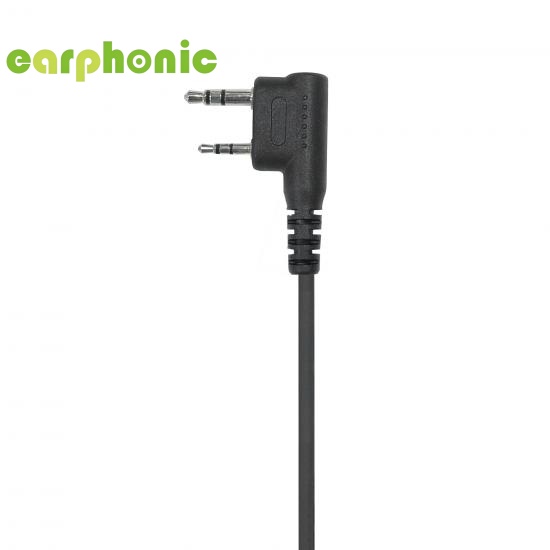

Connectors can be customized.
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
