TK Plug Walkie Talkie Earphone with D-type Ear-mounted Microphone Two Way Radio Headset

This PTT control is convenient for one-handed operation. The product provides OEM/ODM services and connectors can be customized.

  • Brand:

    earphonic

  • Item NO.:

    ER03DP03SB15_K

  • Order(MOQ):

    5

  • Payment:

    L/C,T/T,Western Union,MoneyGram

  • Product Origin:

    CHINA

  • Color:

    BLACK

  • Shipping Port:

    XIAMEN

  • Lead Time：

    15 days

  • Weight：

    100g

  • Connector:

    Kenwood K1
Inquire Now

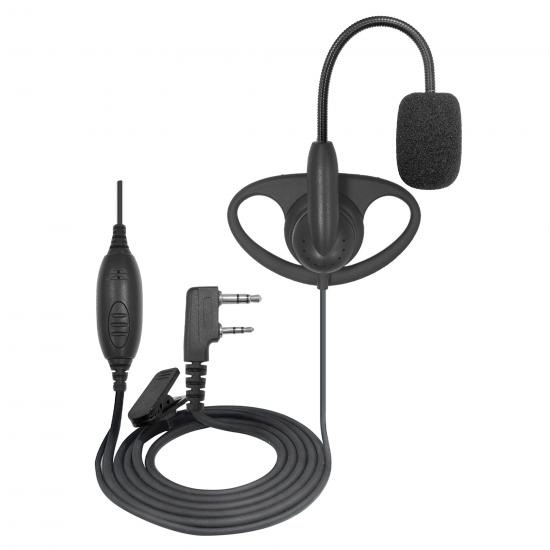

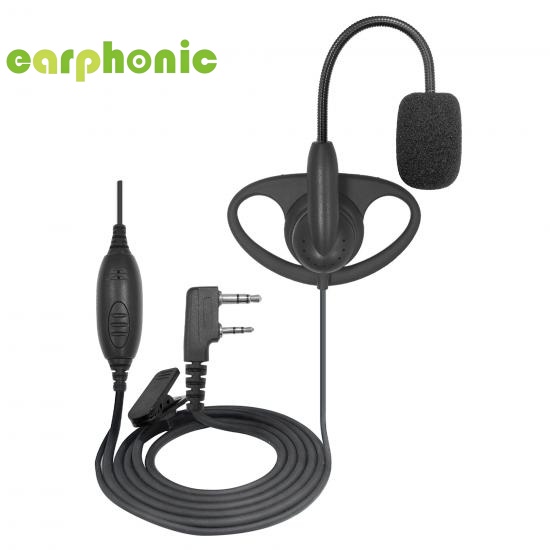

Product Name: TK Plug Walkie Talkie Earphone with D-type Ear-mounted Microphone Two Way Radio Headset

Brand: EARPHONIC

Product Positioning: walkie talkie earphone


Product Features:

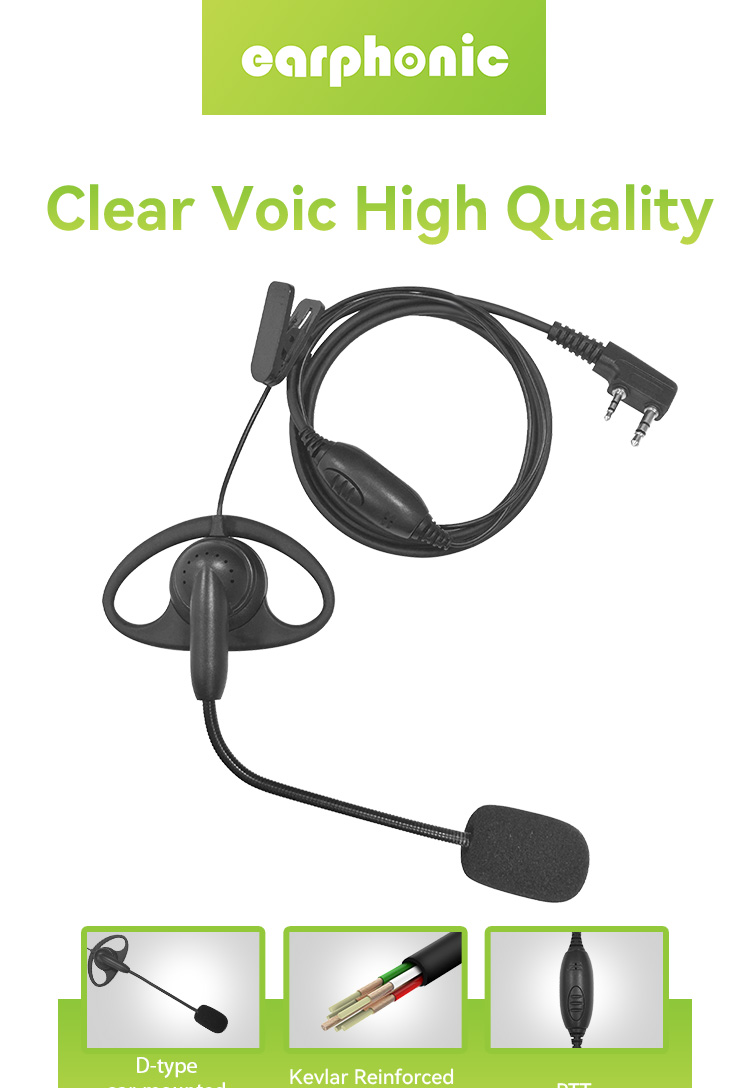

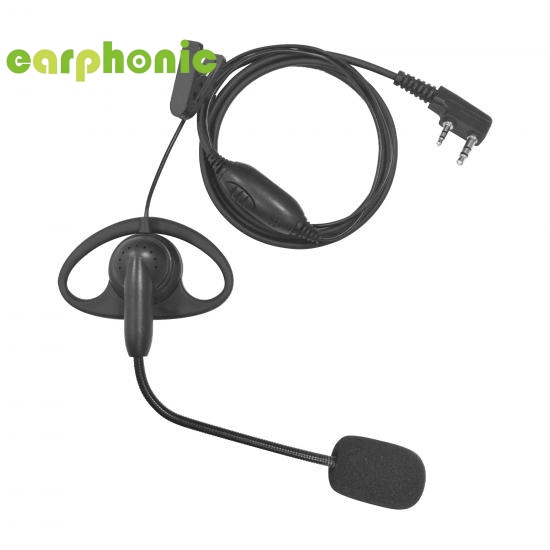

Single-wire D-Type Earhook PTT Headset for Two-Way Radios

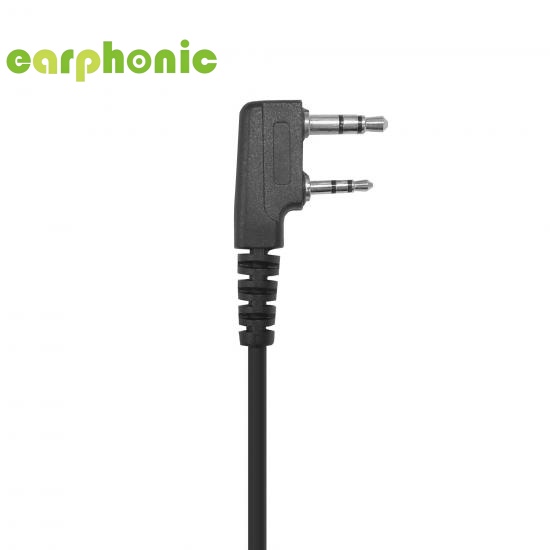

1. Plug Type: TK;

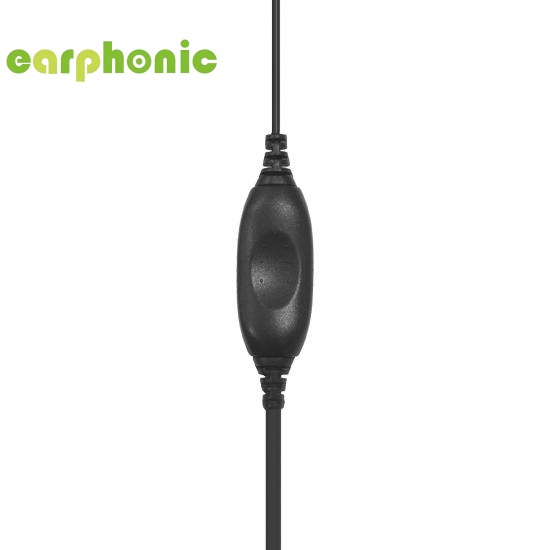

2. Inline PTT control is convenient for one-handed operation ;

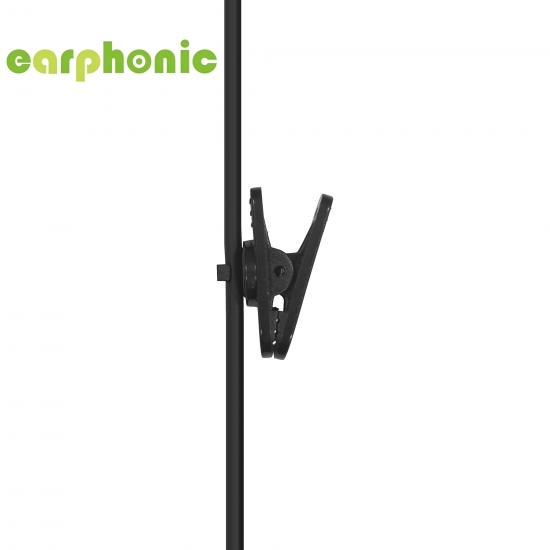

3. Stylish PTT design with metal clamps;

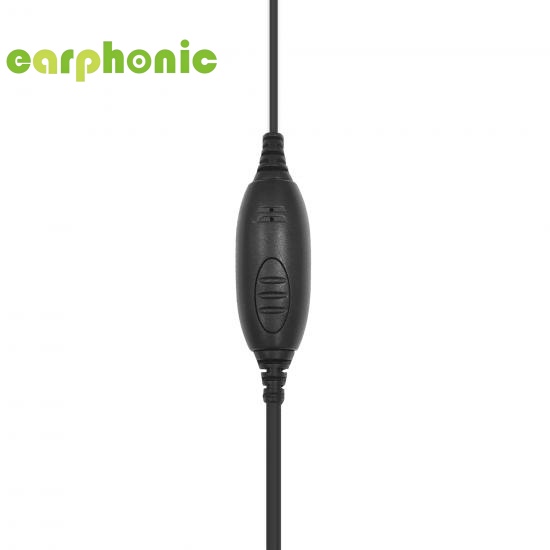

4. The oval PTT housing have a comfortable, ergonomic grip

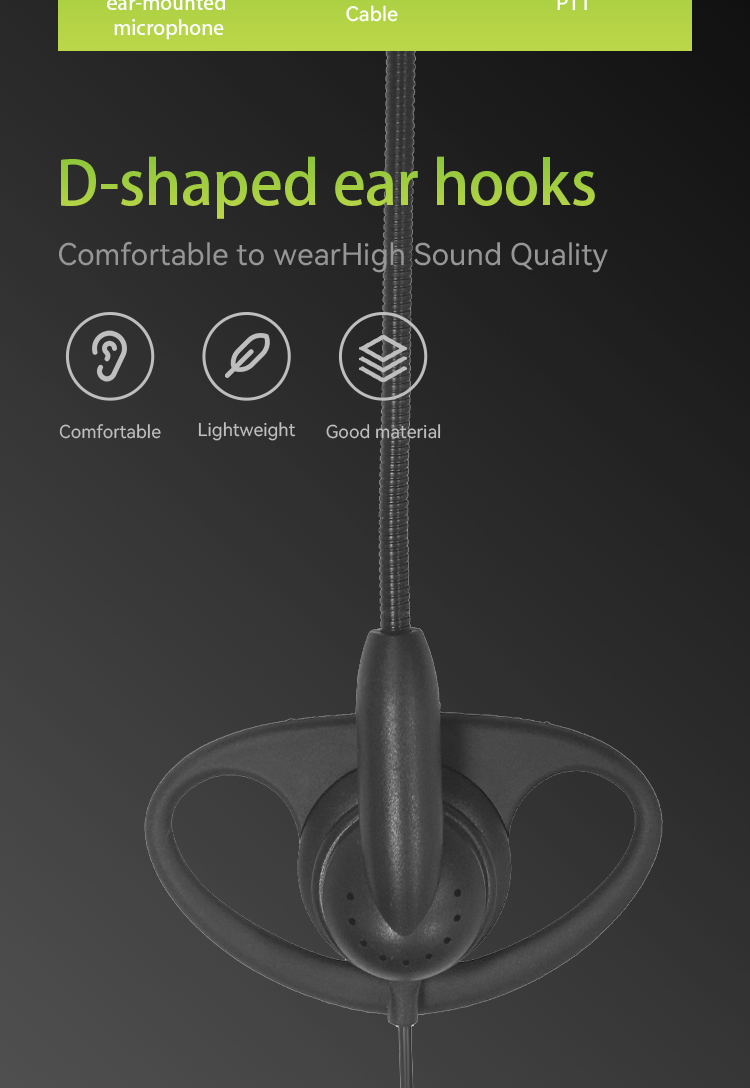

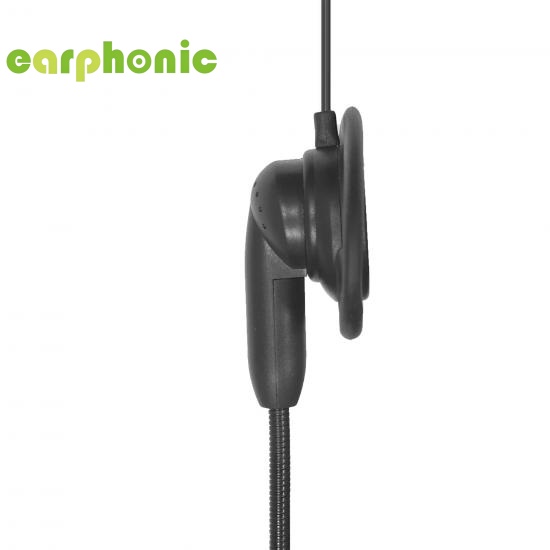

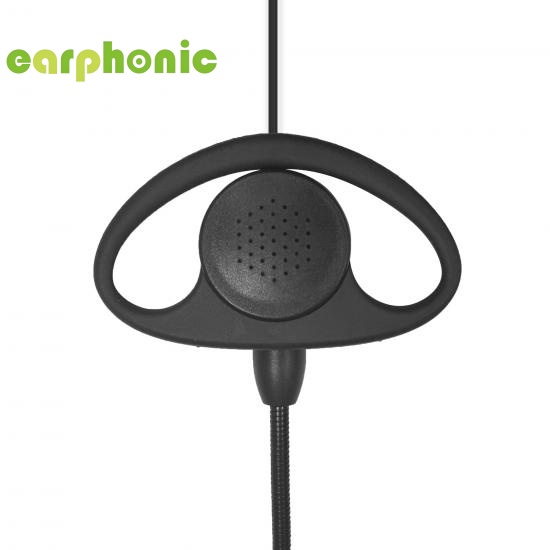

5. Wear lightweight and comfortable soft rubber ear hooks;
6. Fast to wear,preserves ambient sound, suitable for indoor/light-duty work;

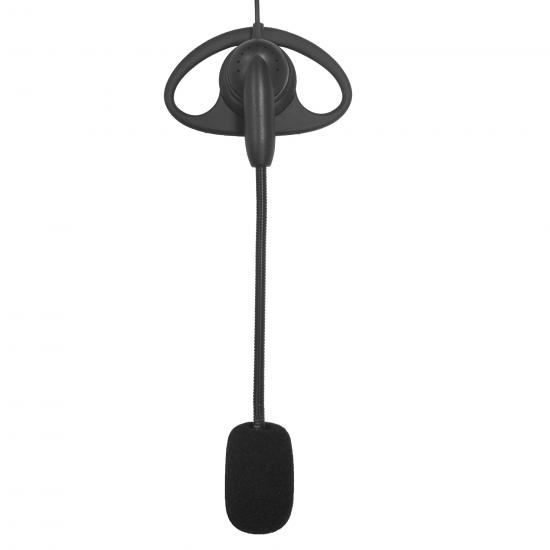

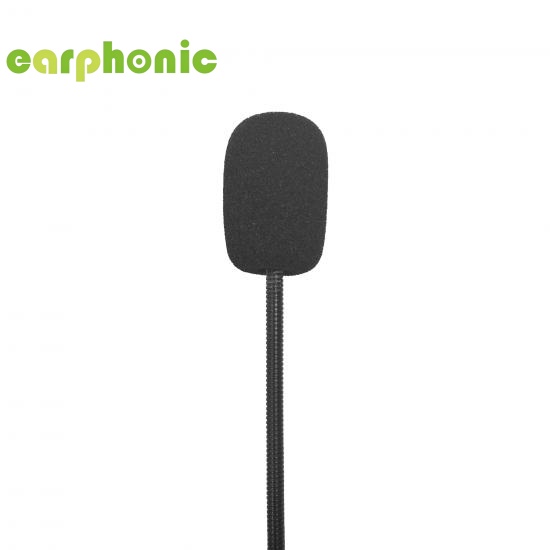

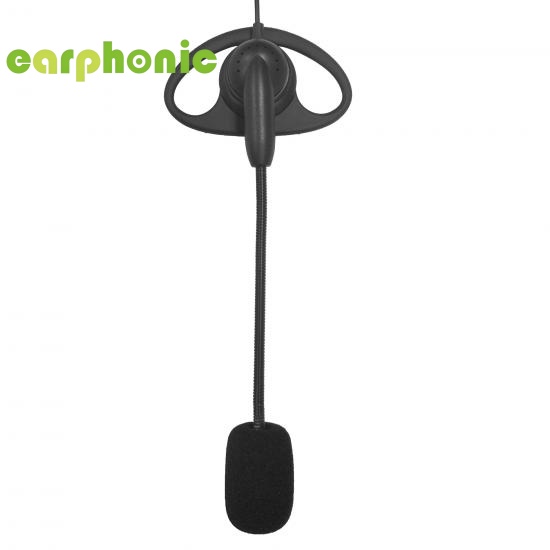

7. The boom microphone effectively reduces background noise and improves call quality in noisy environments;
9. Mic Cable Length: 95CM
10. Earphone Cable Length: 35CM

Microphone Parameters:
Electrical Parameters of The microphone
Sensitivity  -40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa;
Output impedance Zout=2.2KΩ,At f=1kHz
Current Consumption  IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity Omni directional
Signal to Noise Ratio  S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage  (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage  1≦V≦10
Maximum input S.P.L  110dB,At f=1kHz,THD＜1%



Speaker Parameters:
Electrical Parameters of Speaker
Impedance 8Ω±1Ω
Resonance Frequency 350Hz ±20%
Intelligent degree  111±5dB  At 1000 Hz At 0.179V
Rated Power Rated Power Input 100mW, Max Power Input 250mW
Frequency scope 20HZ—20KHZ At 0.179 V
Ruzzes&Rattles Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion Less Than 5% at 1500Hz
Polarity Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density ±15% Guass (Surface)
Speaker Shell Diameter Φ29mm±0.25mm

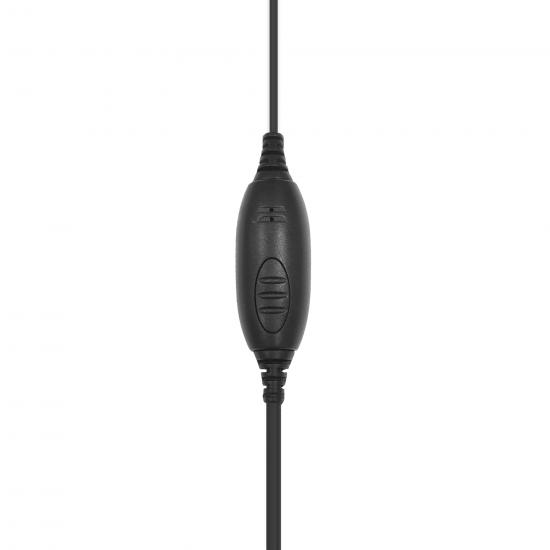

PTT Button:
Trigger Method: Push type (with feedback damping)
Lifespan: ≥ 100,000 presses


Wire Specifications:

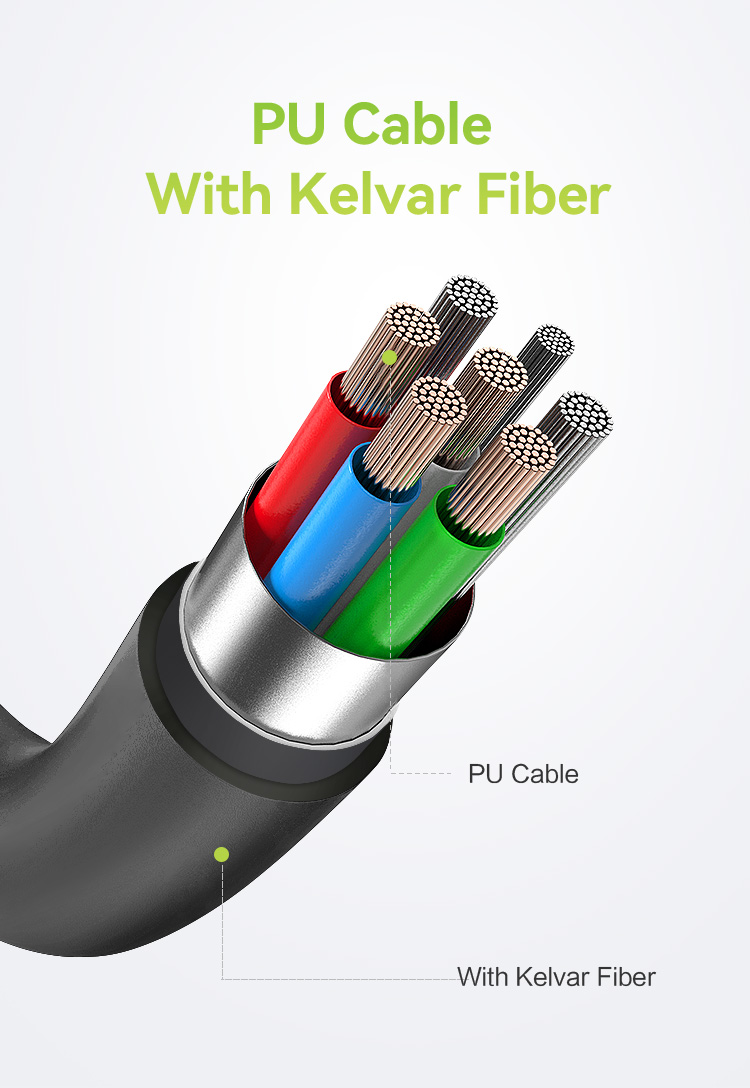

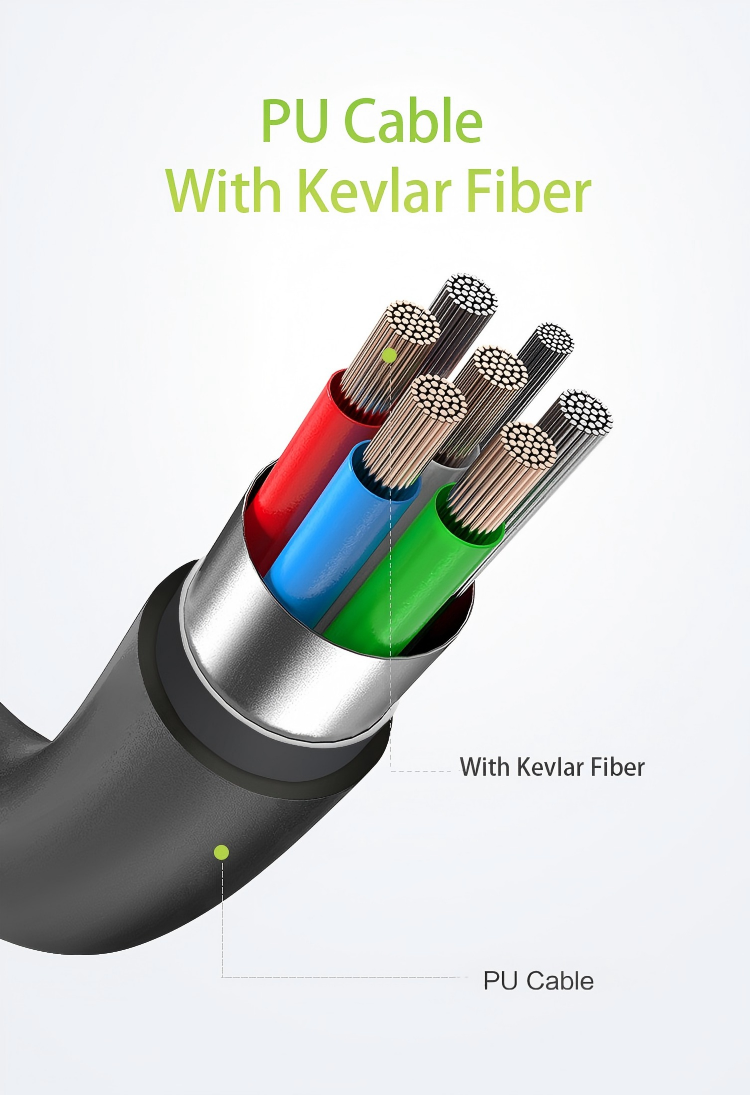

Material:PU wear-resistant line
Length: 1.2m (regular) / 0.8m (compact)
Wearing style:Single earhook (left/right ear adjustable)
Certification Standards: Passed [CE/RoHS] certification, in line with [EARPHONIC] accessories quality standards.


Usage scenarios:
1.Public Safety & Law Enforcement
2.Business Services & Scheduling
3.Outdoor work and adventure
4.Property Management & Coordination

After-sales and service：
Warranty: 2-6 months

Technical support: Provide [inspection video / remote after-sales service], 24-hour customer service to respond to interface adaptation problems.

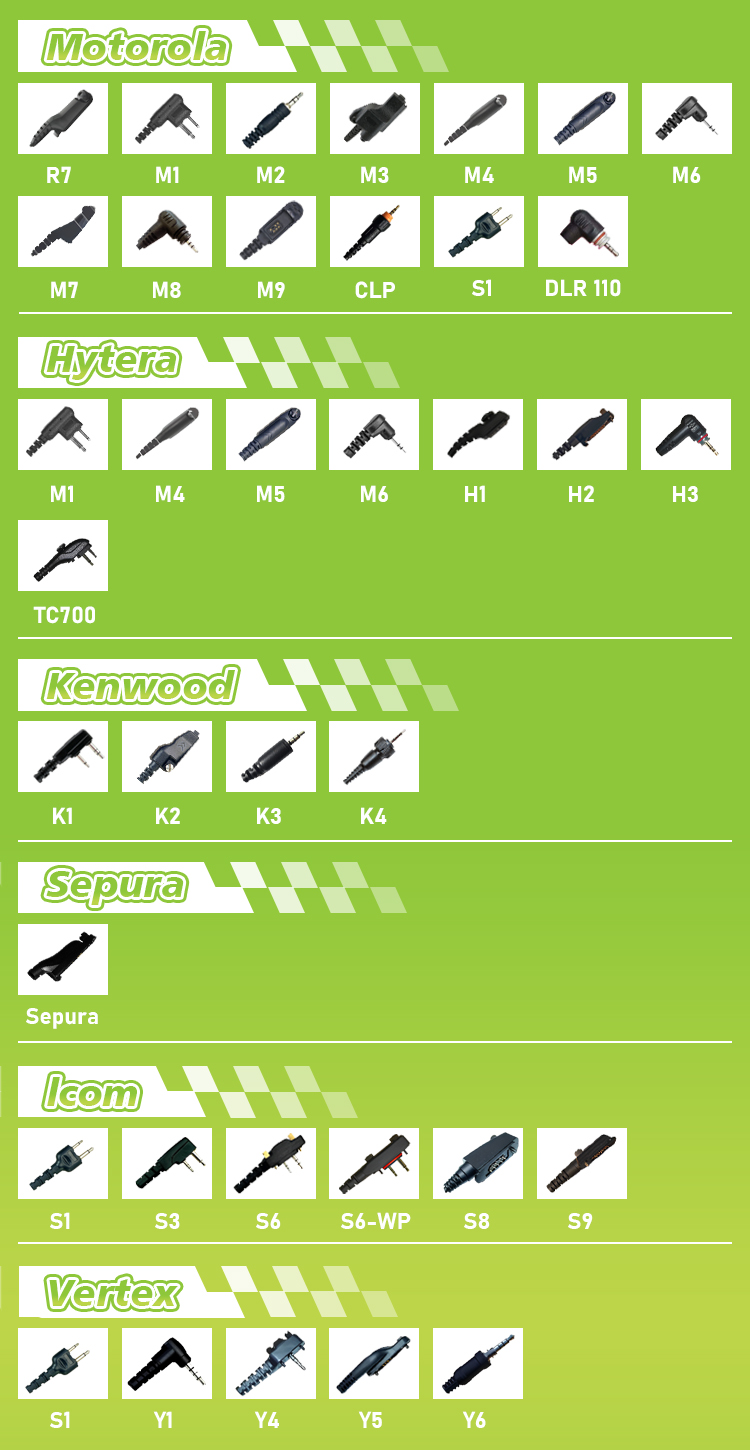

Compatible Model :

Connectors can be customized.

Brand

Connectors

Motorola

R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110

Hytera

M1, M4, M5, M6, H1, H2, H3, TC700

Kenwood

K1, K2, K3, K4

Speura

Speura

Icom

S1, S3, S6, S6-WP, S8, S9

Vertex

S1, Y1, Y4, Y5, Y6
