Product Name: Optimal Two-Way Radio for Clear Communication for Radio Headset with TK Plug 2 Pin Earphone Microphone for Walkie Talkie
Brand :EARPHONIC
MOQ: 5 PCS
OEM/ODM: Yes
Warranty: 3-6 months
Compatible model: Motorola, kenwood, Hytera, Icom, Sepura, Vertex.
Product Positioning:walkie talkie earphone
Product Features:

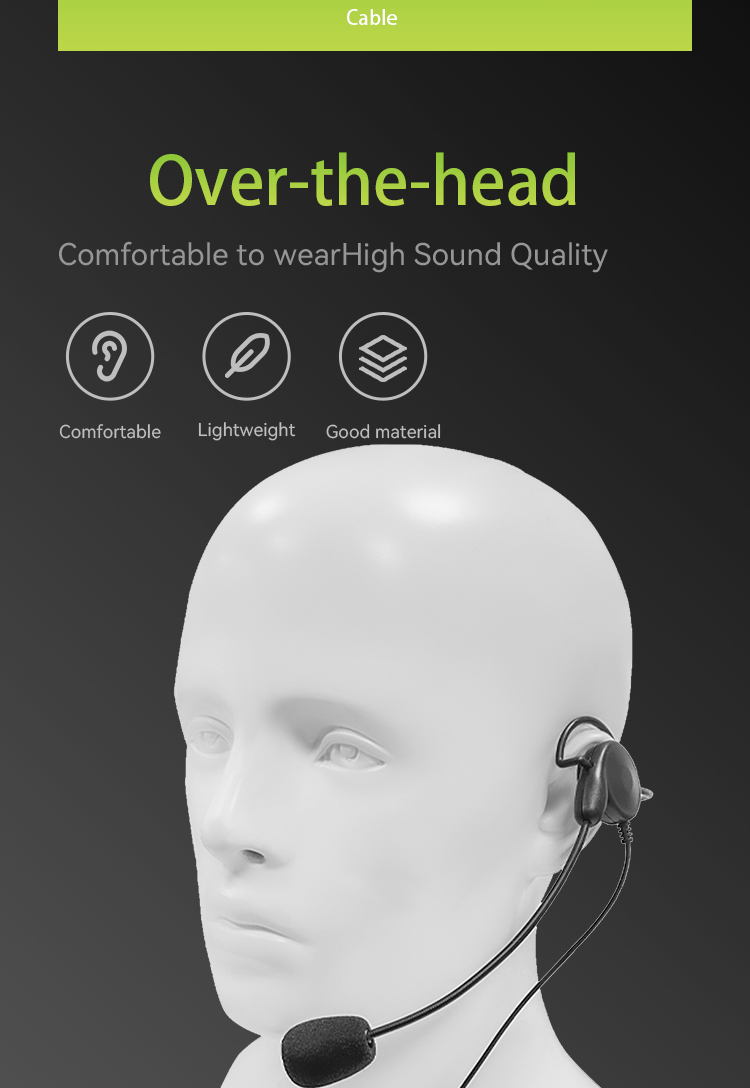

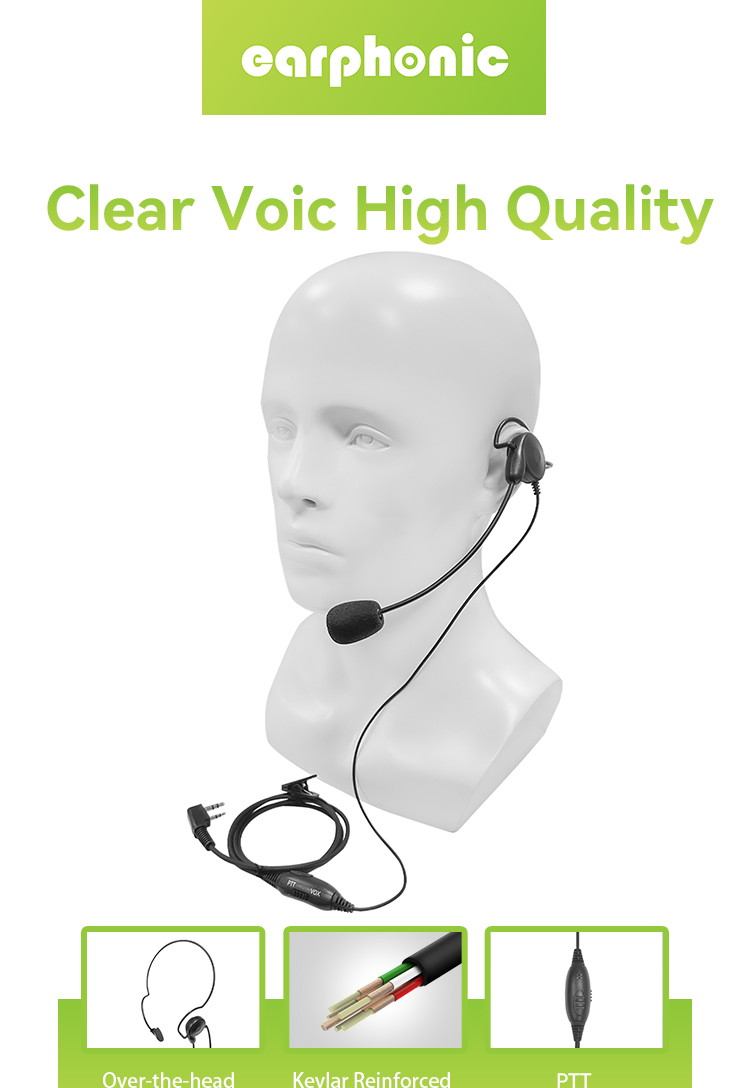

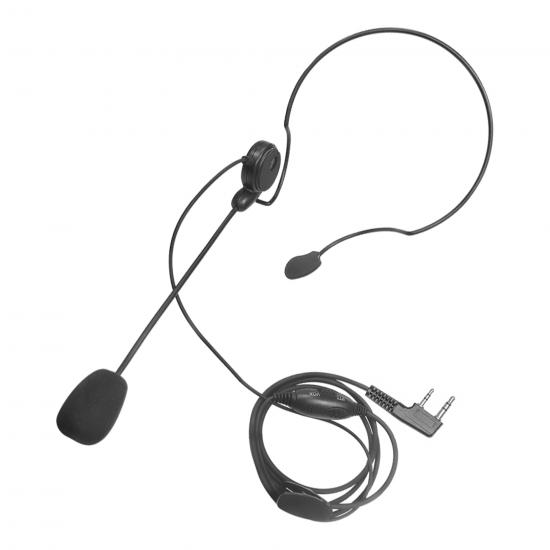

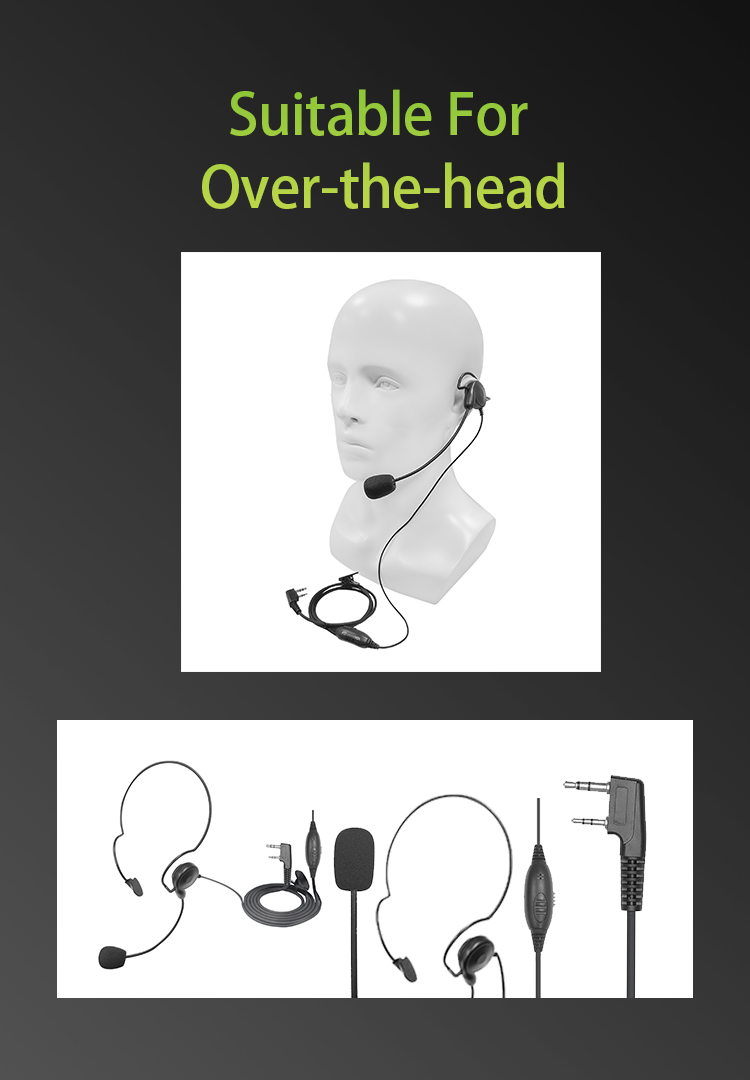

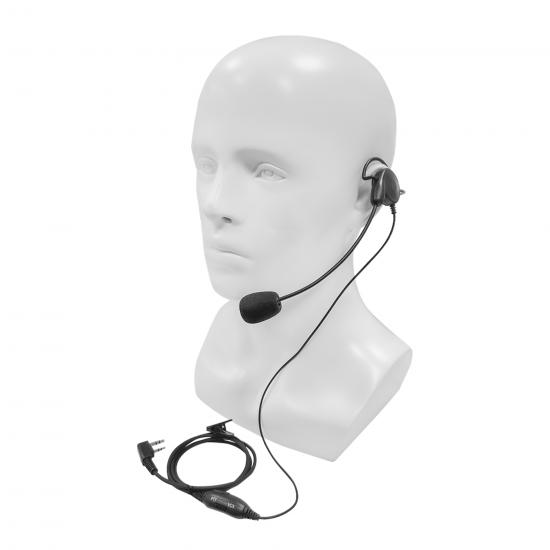

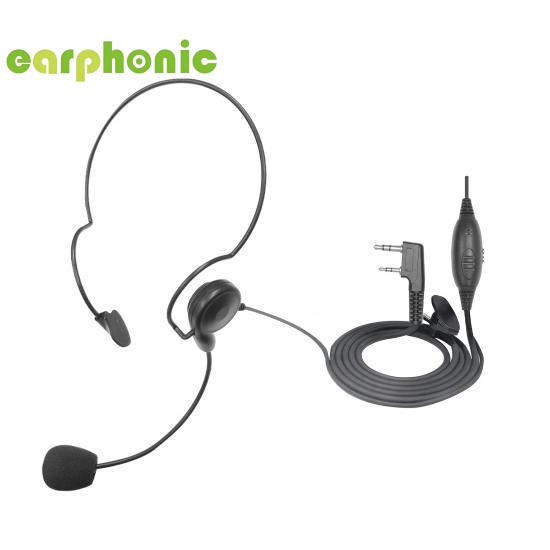

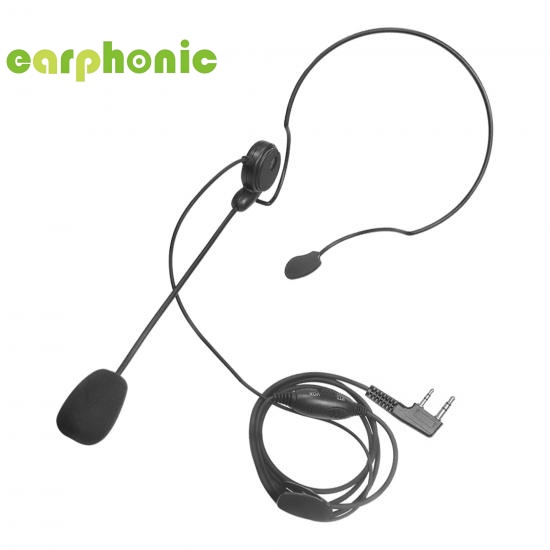

Single Ear-Hook Headset for Two-Way Radios
1. Headline:Lightweight & Durable Communication Headset

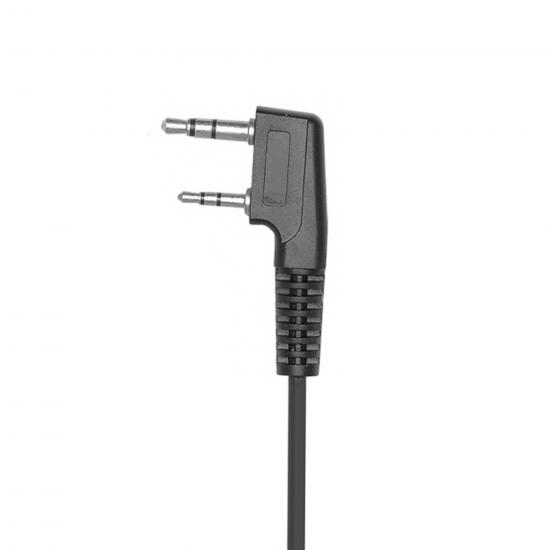

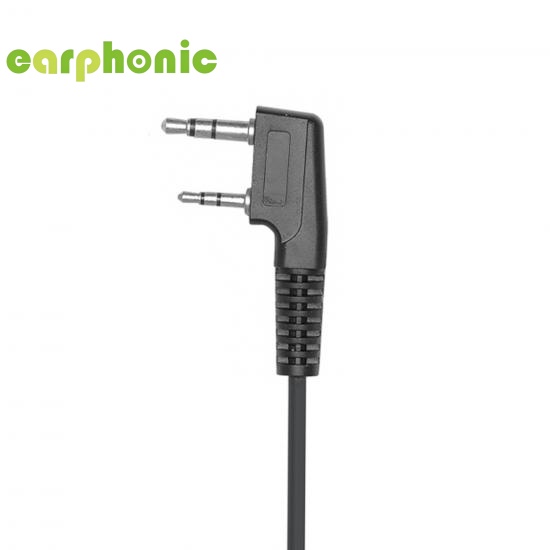

2. Teams Universal Compatibility: Standard 2-pin K-type (Kenwood) connector, works seamlessly with most two-way radios including Baofeng, Kenwood, Quansheng, Beifeng, and Linton models.

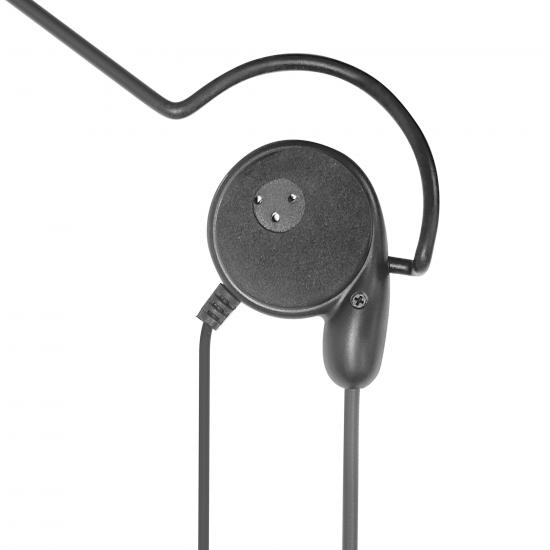

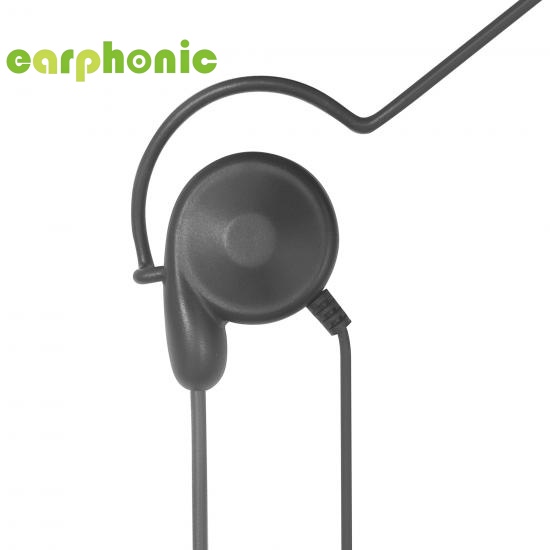

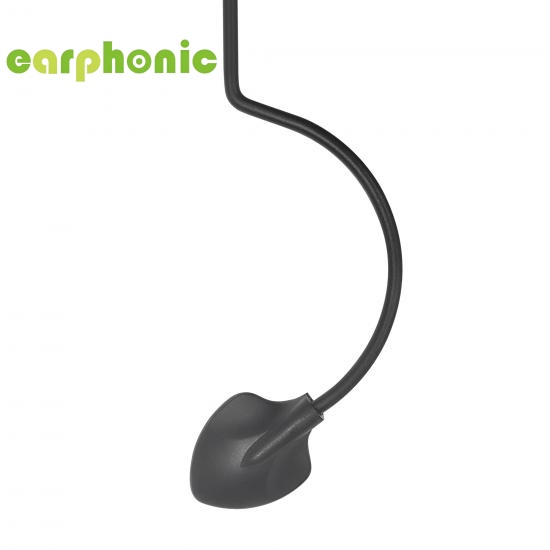

3. Ergonomic Single Ear-Hook Design: Soft, flexible PU ear hook ensures a secure, pressure-free fit for all-day wear; ideal for users wearing helmets or safety gear.

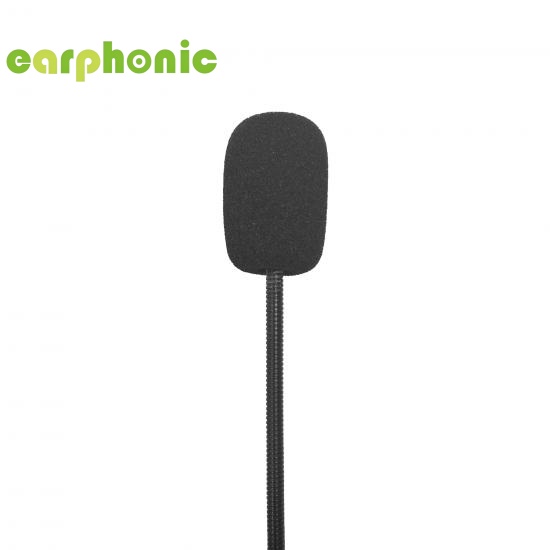

4. Crystal-Clear Audio: High-sensitivity speaker paired with a noise-canceling foam mic, delivering crisp voice transmission even in noisy environments (construction, logistics, security, etc.).

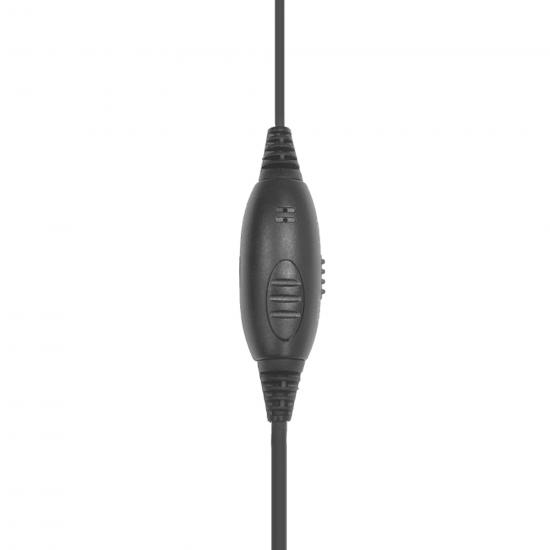

5. Convenient PTT Control: In-line Push-To-Talk button for easy, one-hand operation, enabling hands-free communication without reaching for the radio.
6. Heavy-Duty Build: Tensile-resistant PU cable and robust components, engineered to withstand daily wear and tear in demanding work scenarios.
7. Safe & Unobtrusive: Single-ear design preserves ambient sound awareness, critical for safety in industrial and outdoor settings.
8. Ideal for: Security teams, property management, warehouse logistics, construction sites, event coordination, hospitality staff
9. Key benefits: Noise cancellation, all-day comfort, durable build, universal radio compatibility, hands-free operation.
Microphone Parameters:
Electrical Parameters of The microphone
Sensitivity
-40dB≦S≦-36dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa;
Output impedance
Zout=2.2KΩ,At f=1kHz
Current Consumption
IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity
Omni directional
Signal to Noise Ratio
S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage
(ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage
1≦V≦10;
Maximum input S.P.L
110dB,At f=1kHz,THD<1%
Speaker Parameters:
Electrical Parameters of Speaker
Impedance
16Ω~32Ω
Resonance Frequency
350Hz ±20%
Intelligent degree
110±3dB At 1000 Hz At 0.179V;
Rated Power
Rated Power Input 10mW, Max Power Input 30mW;
Frequency scope
20HZ—20KHZ At 0.179 V
Ruzzes & Rattles
Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion
Less Than 5% at 1500Hz
Polarity
Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density
±15% Guass (Surface)
Air Tube Shell Diameter
Φ7.1mm±0.01mm;

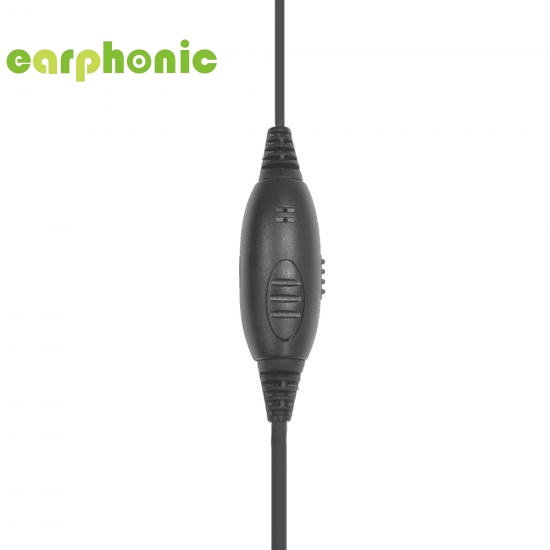

PTT Button:
Trigger Method: Push type (with feedback damping)
Lifespan: ≥ 100,000 presses

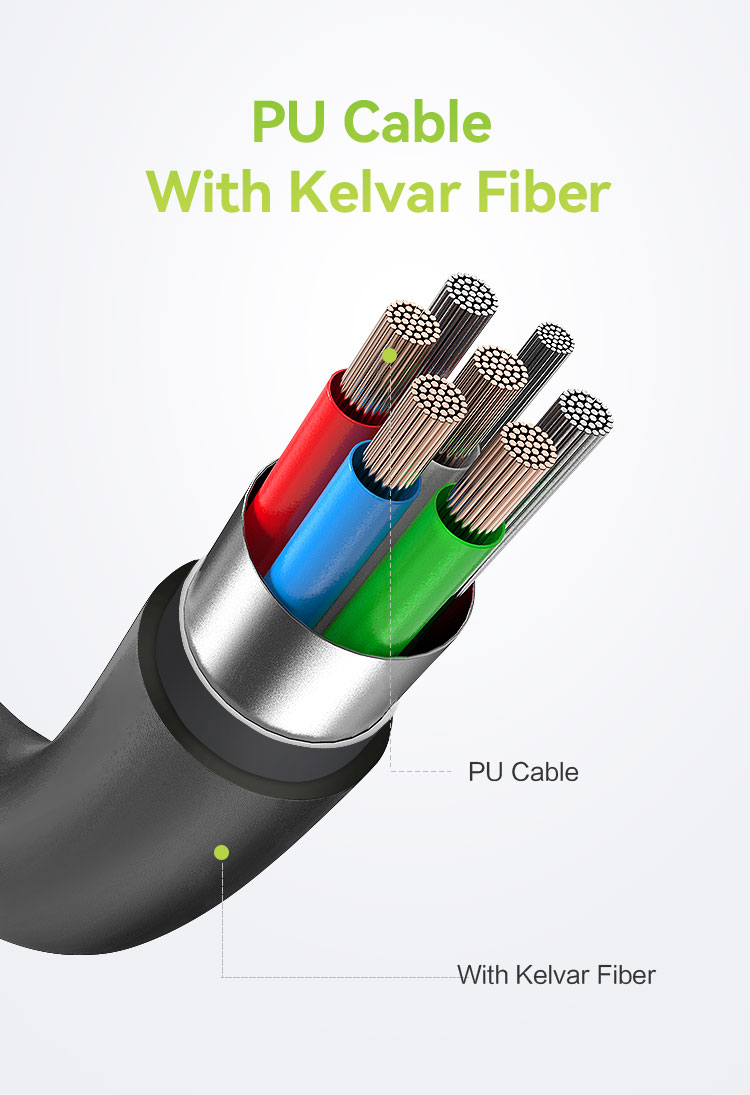

Wire Specifications:
Material: PU wear-resistant line
Length: 1.2m (regular) / 0.8m (compact)
Wearing style: Single earhook (left/right ear adjustable)
Certification Standards: Passed [CE/RoHS] certification, in line with [EARPHONIC] accessories quality standards.
Usage scenarios:
1.Public Safety & Law Enforcement
2.Business Services & Scheduling
3.Outdoor work and adventure
4.Property Management & Coordination
Hot tags: Two Way Radio Earphone,Walkie Talkie Accessories,Professional Walkie Talkie Accessories Manufacturer, EarHook Walkie Talkie Earphone, PTT Push-to-Talk, Durable Walkie-Talkie Headsets, Security Earphones
After-sales and service:
Warranty: 3-6 months
Technical support: Provide [inspection video / remote after-sales service], 24-hour customer service to respond to interface adaptation problems.

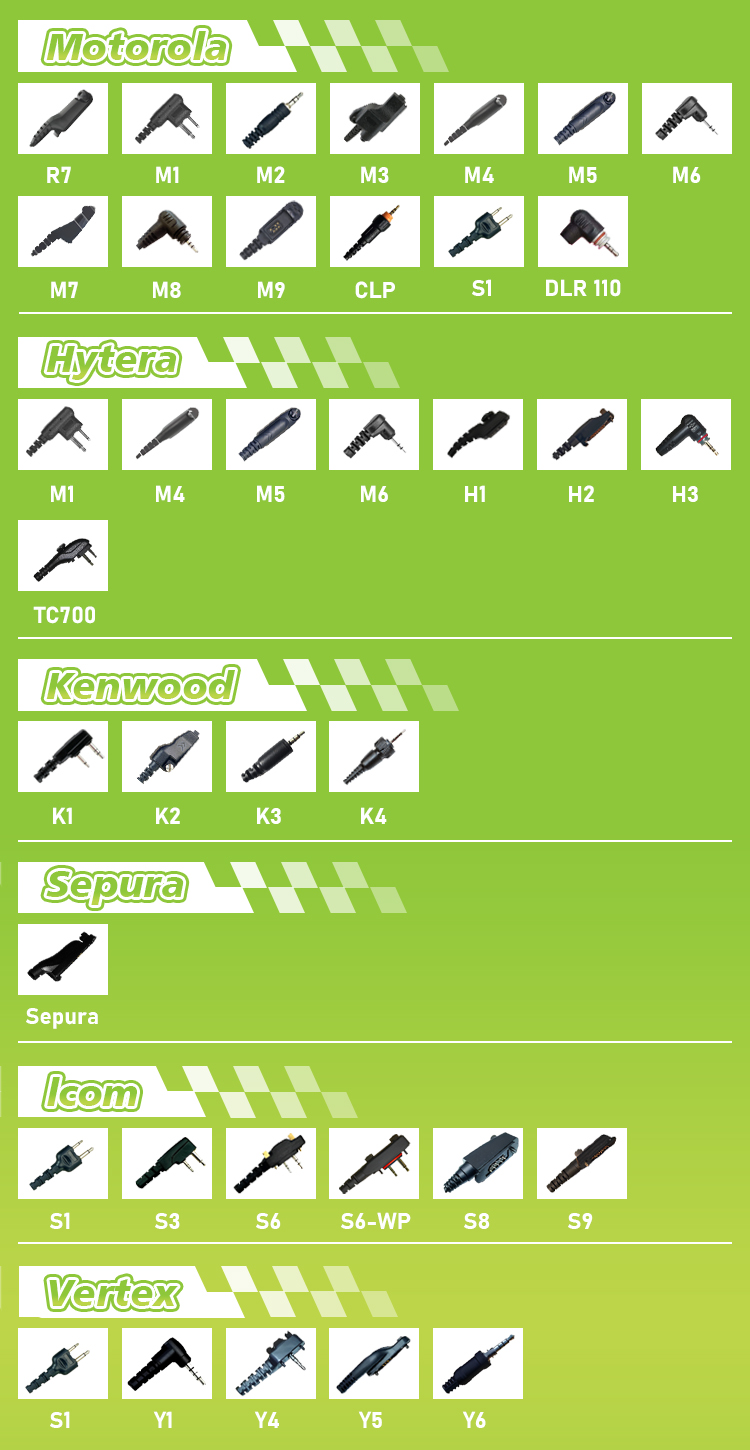

Compatible Model :
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
