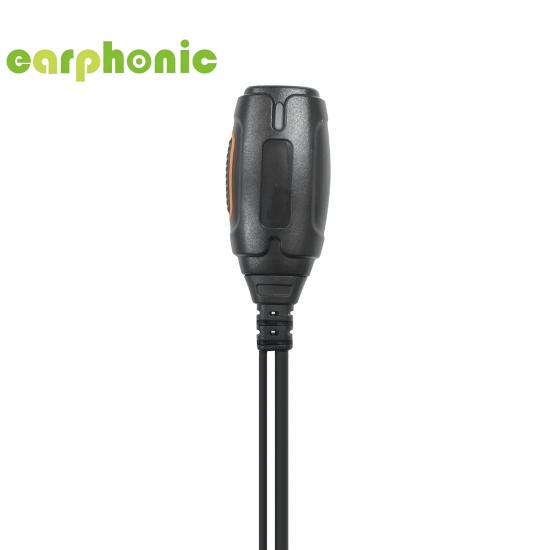

Product Name: EARPHONIC M Plug Earphone for Walkie Talkie Headset with PTT Two Way Radio Earpiece
Brand: Earphonic
Warranty: 3-6 months
OEM/ODM: Yes
MOQ: 5 PCS
Product Features:

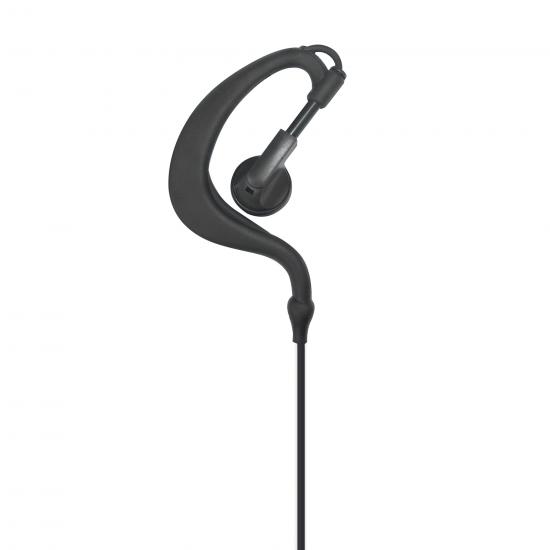

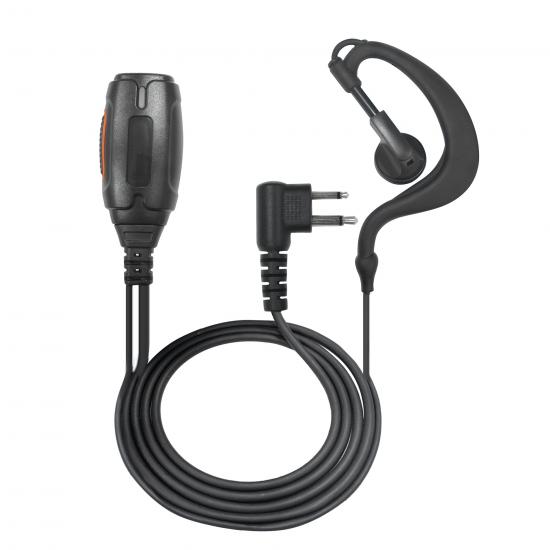

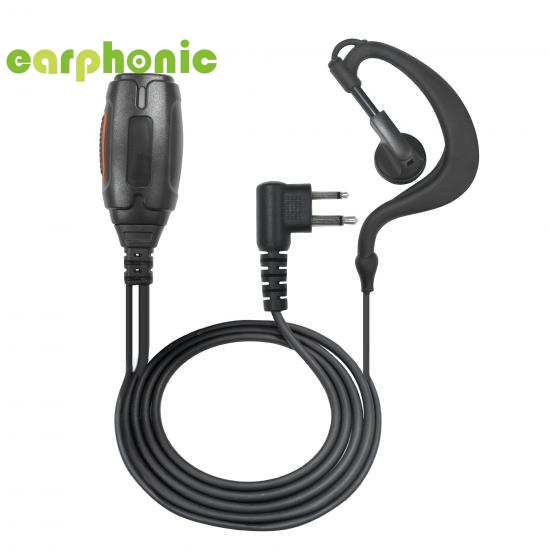

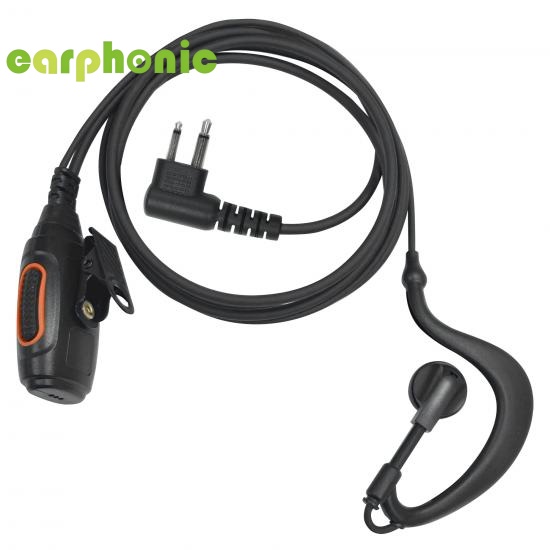

G-Type Earhook PTT Headset for Two-Way Radios

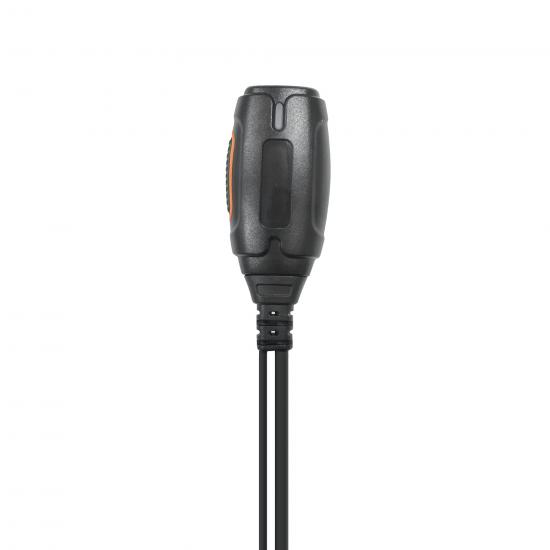

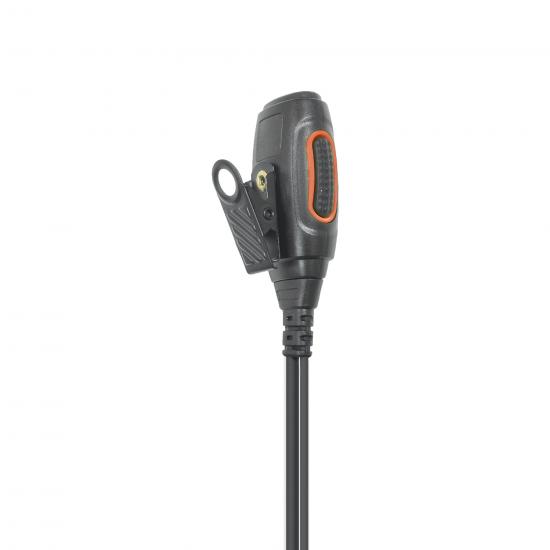

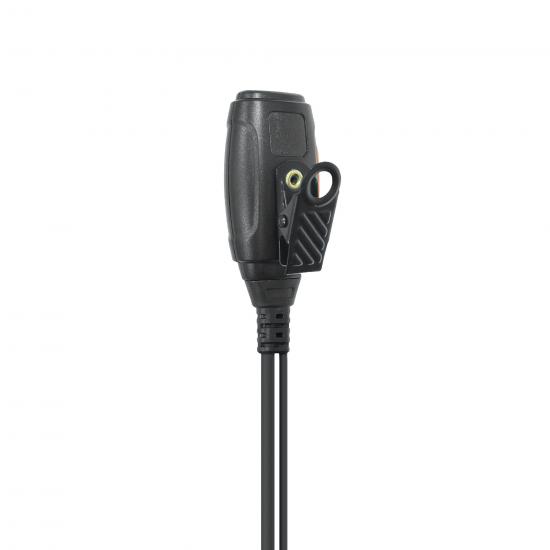

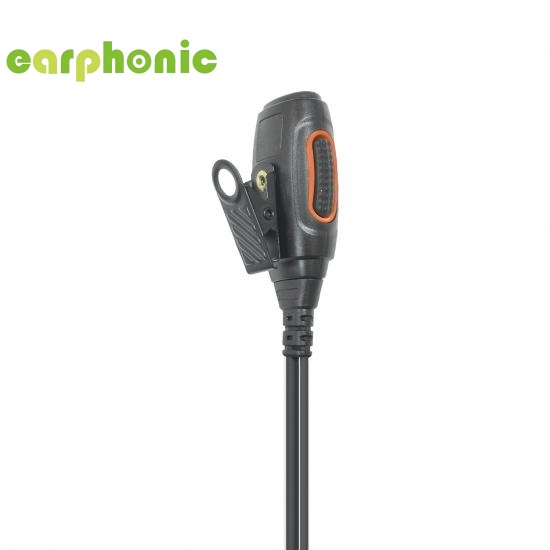

1. Fashion PTT design with metal clamps;
2. Rotating the speaker can reduce the pressure on the wire;

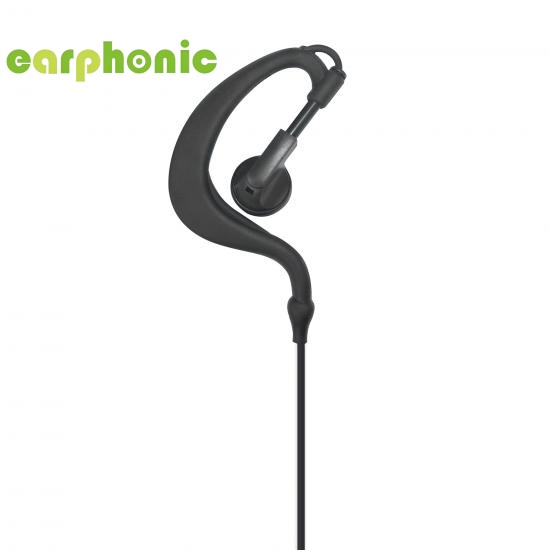

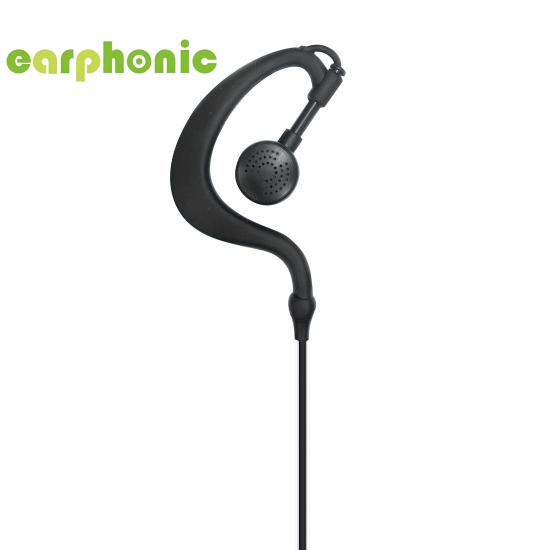

3. Wear comfortable rubber ear hooks;

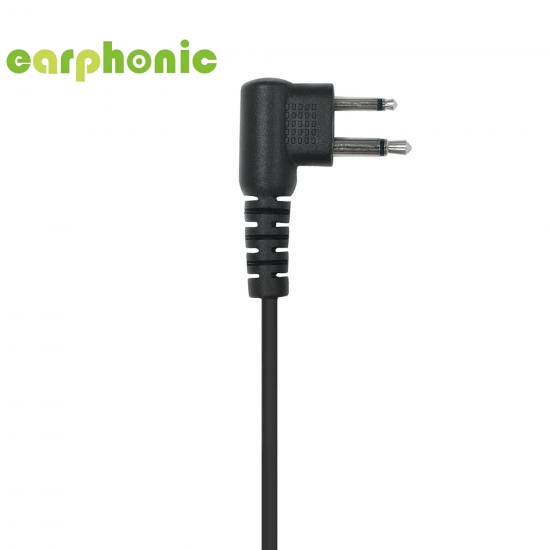

4. Suitable for various brands of two‑way radios and transceivers, such as ICOM, Standard, YAESU, KENWOOD.;

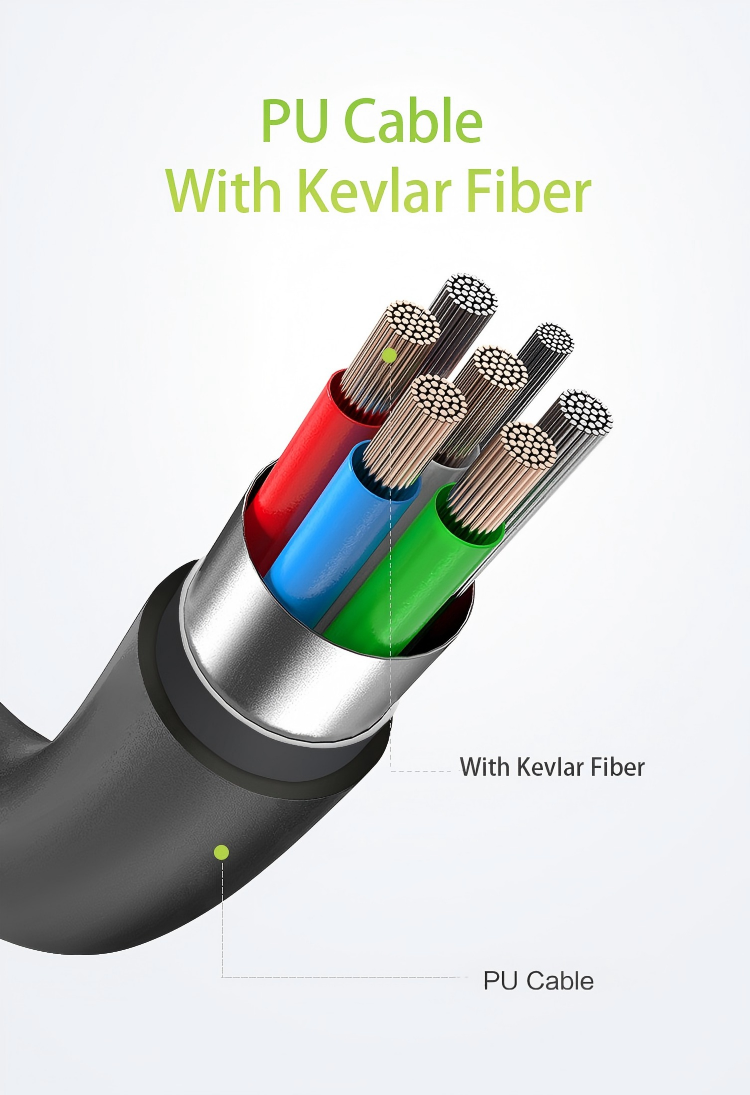

5. Cable Length:95/50CM.
Speaker Parameters:
| Electrical Parameters of Speaker | |
| Impedance | 150Ω±3Ω |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 111±5dB At 1000 Hz At 0.179V; |
| Rated Power | Rated Power Input 2mW, Max Power Input 3mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Speaker Shell Diameter | Φ16mm±0.01mm |
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10; |
| Maximum input S.P.L | 110dB,At f=1kHz,THD＜1% |

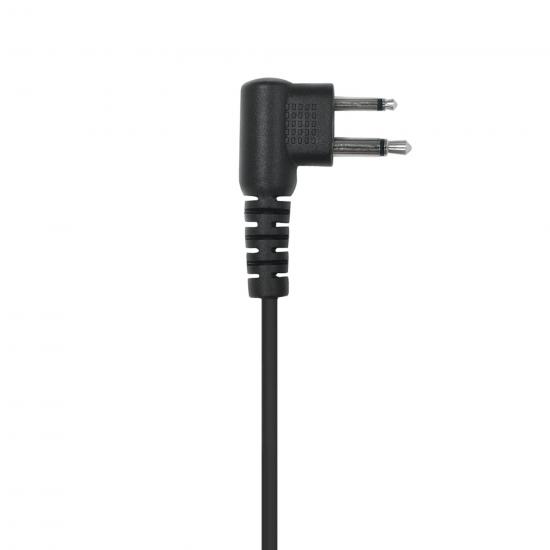

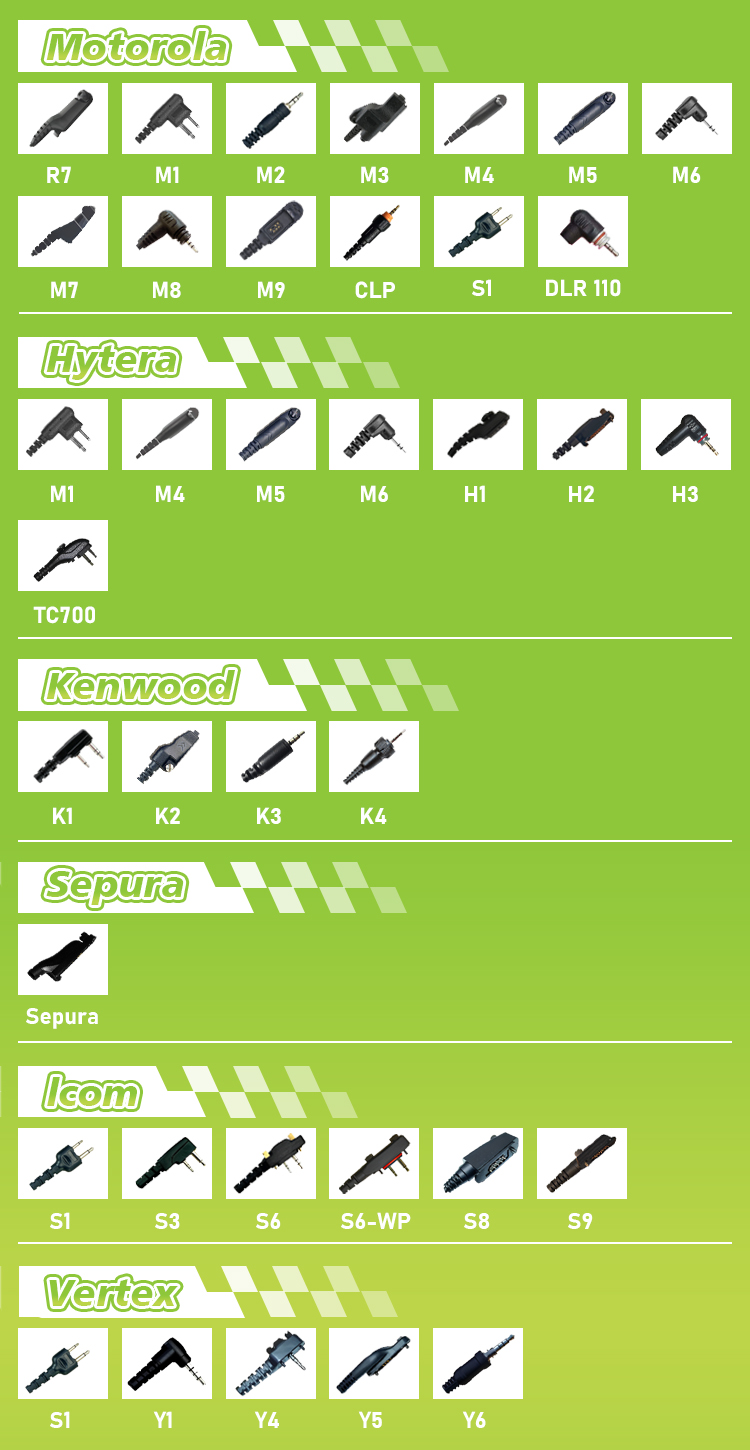

Compatible Model :
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
