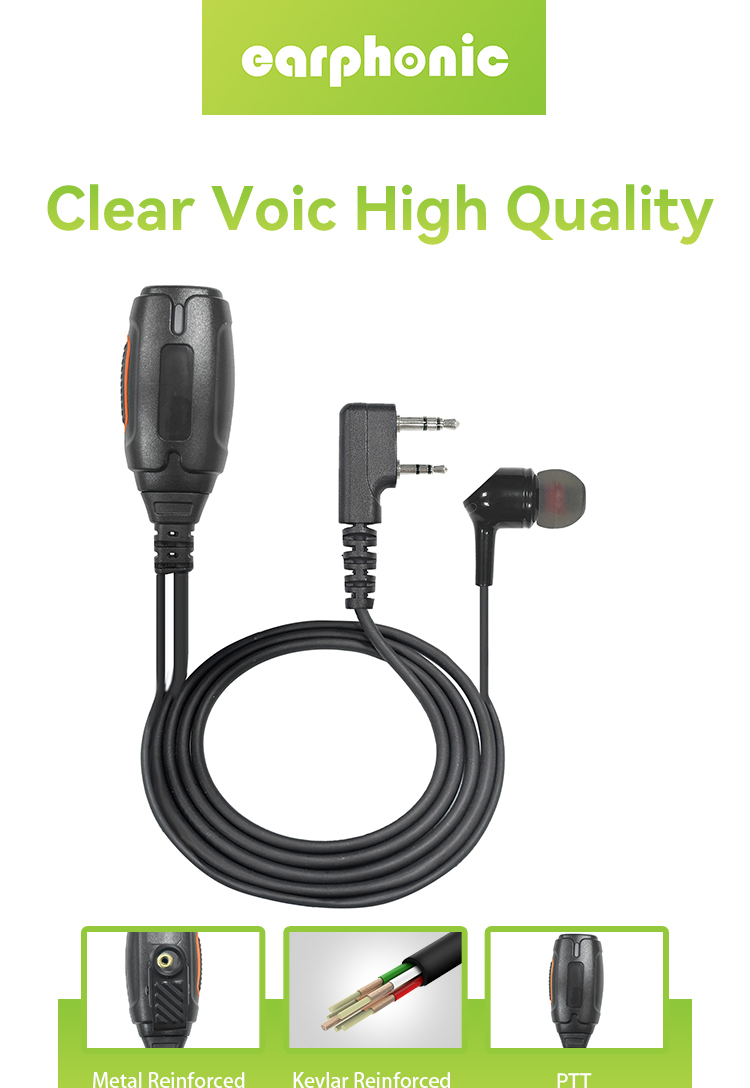

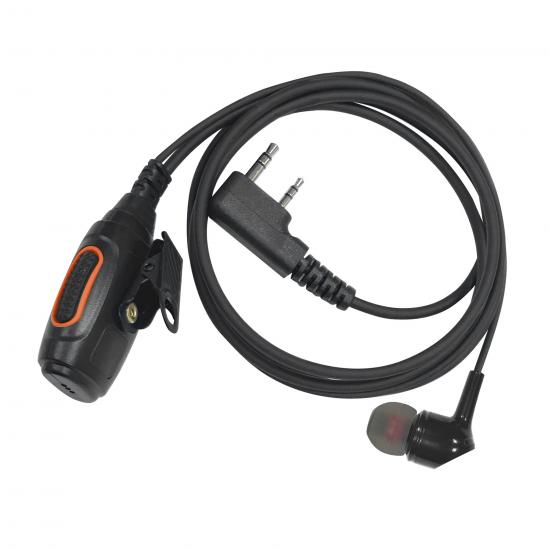

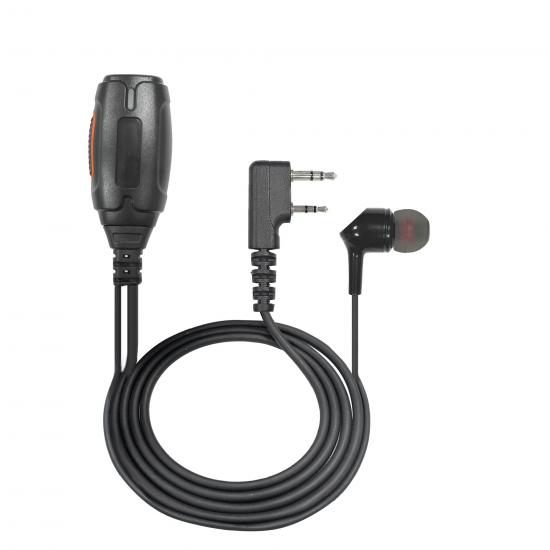

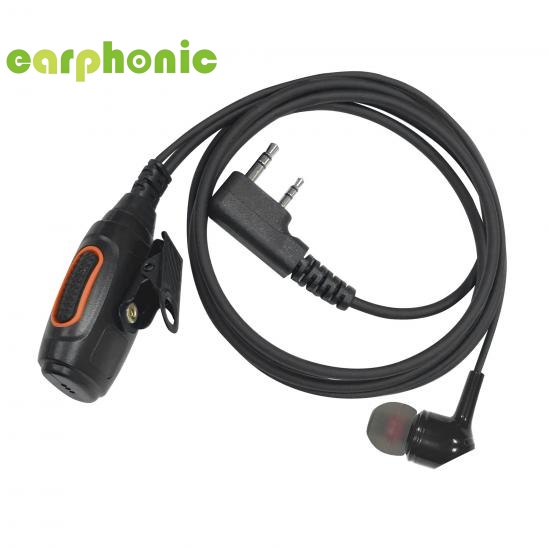

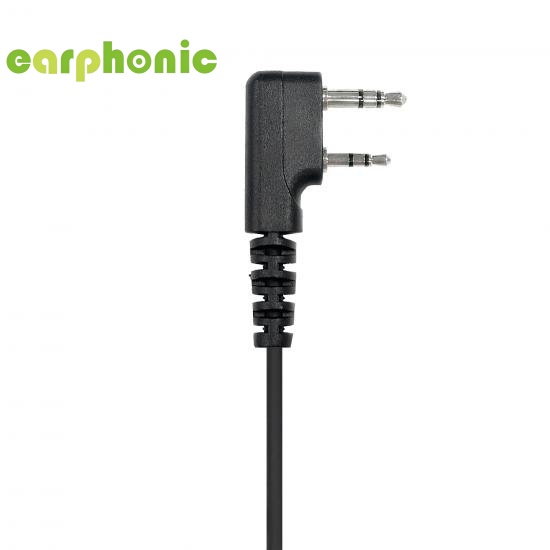

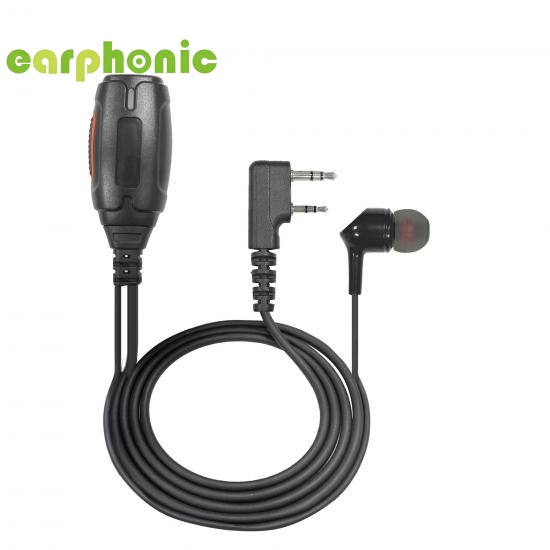

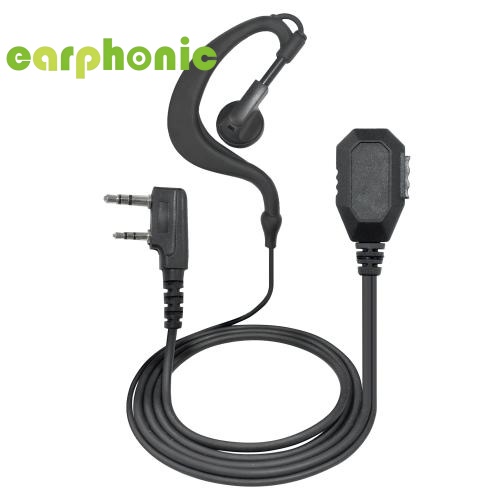

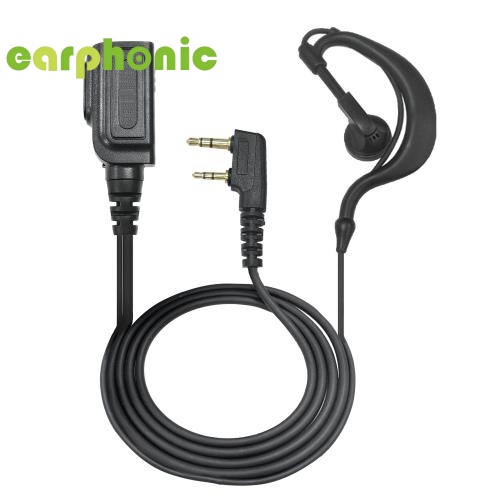

Product Name: EARPHONIC K Plug Headset for Walkie Talkie Earpiece with PTT Two Way Radio Earphone
Brand: EARPHONIC
MOQ: 5PCS
OEM/ODM: Yes
Warranty: 3-6 months
Compatible brand: Motorola, Kenwood, Hytera, Sepura, Icom, Vertex
Product Positioning：walkie talkie earphone
Product Features:

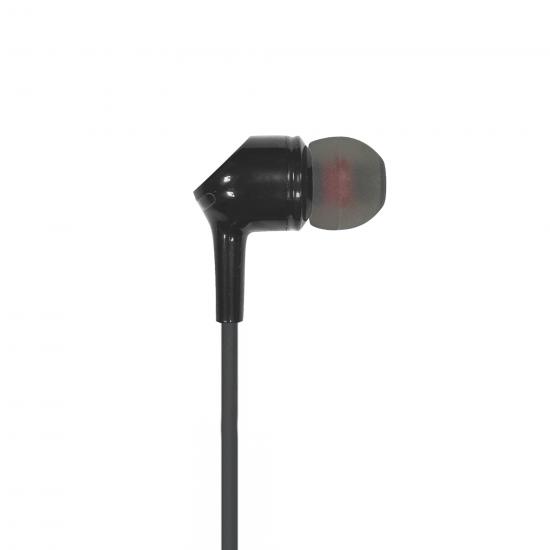

1. Ergonomic design for comfortable wear:The earbuds weigh only 40g and are equipped with G-shaped earhook that fit the curve of the auricle and can be worn for a long time without feeling pressure.

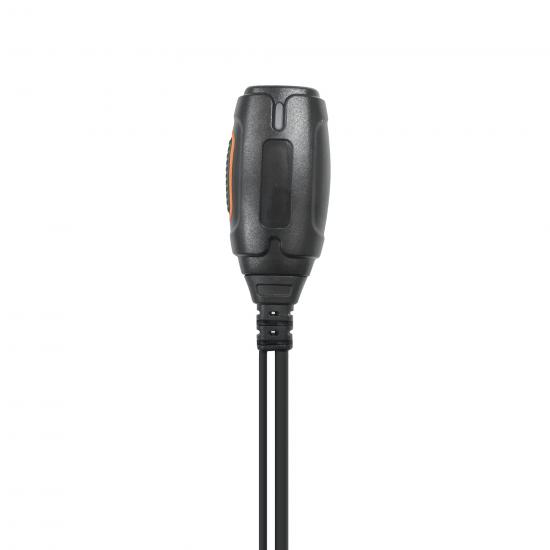

2. Professional audio performance, clear communication:The microphone cable has an integrated push-to-press PTT button for one-handed operation and quick response to calls (no need to operate the radio unit).
3. Durability and environmental adaptation:The working temperature [-20°C~ 60°C] is resistant to severe cold and heat, and meets extreme scenarios such as outdoor inspection and low-temperature operation.
4. Original factory certification, quality assurance:Passed the [EARPHONIC] original factory compatibility test, the signal transmission is stable, and there is no noise and disconnection problems.
Microphone Parameters:
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10; |
| Maximum input S.P.L | 110dB,At f=1kHz,THD＜1% |

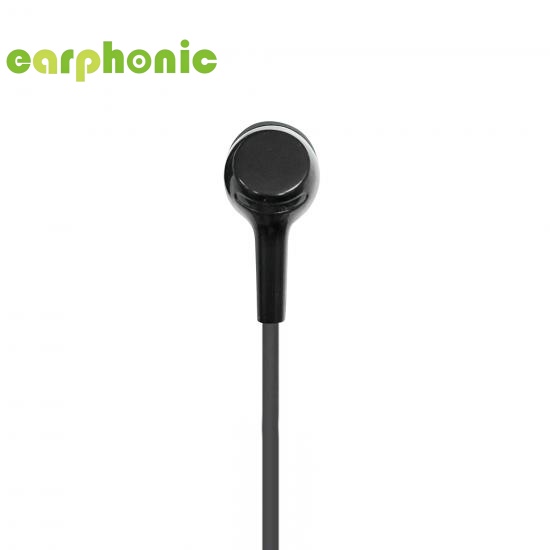

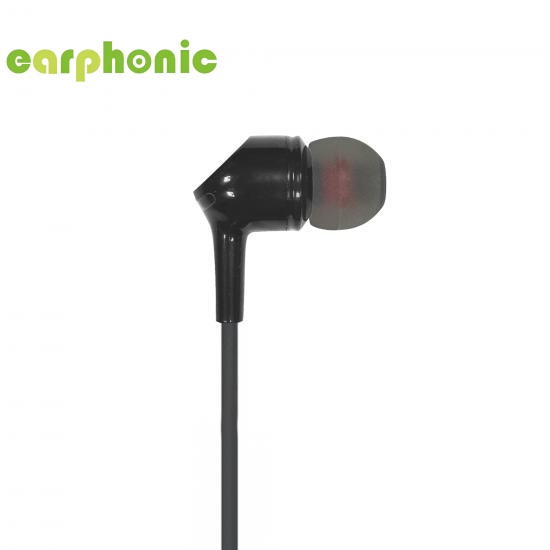

| Electrical Parameters of Speaker | |
| Impedance | 150Ω±3Ω |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 111±5dB At 1000 Hz At 0.179V; |
| Rated Power | Rated Power Input 2mW, Max Power Input 3mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Speaker Shell Diameter | Φ12mm±0.01mm; |

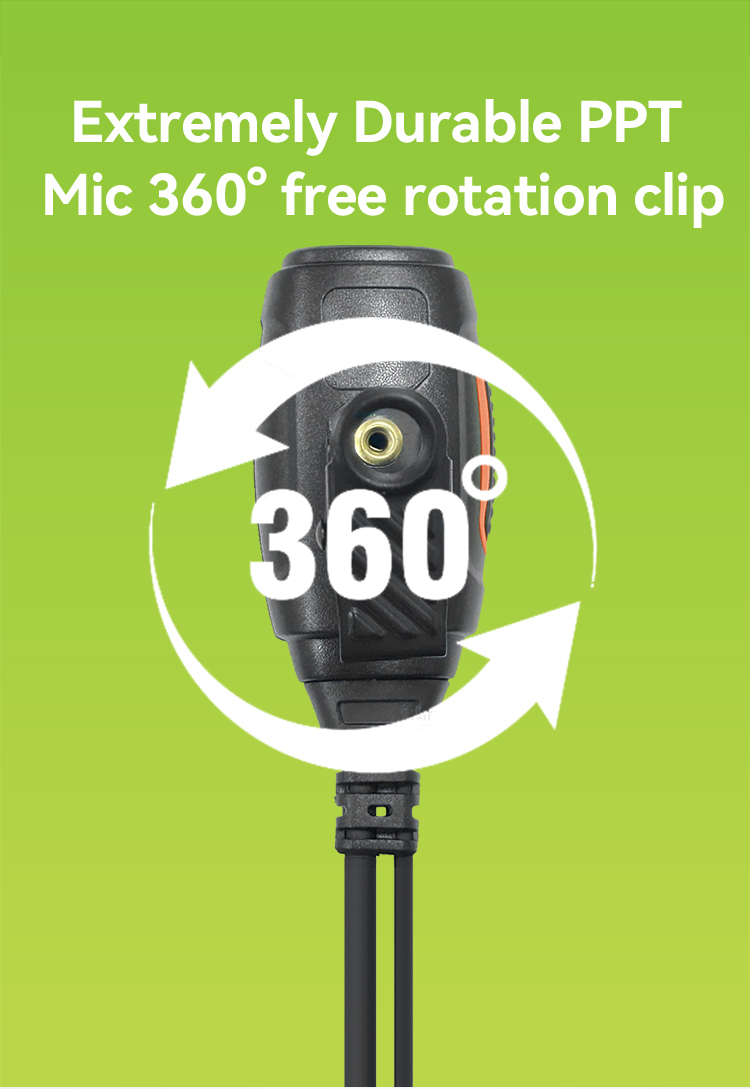

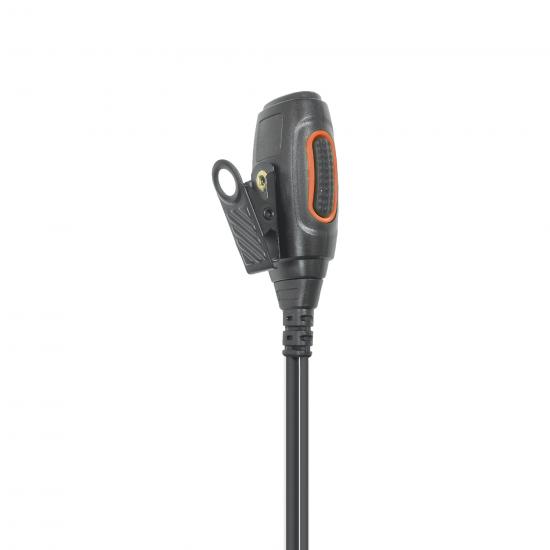

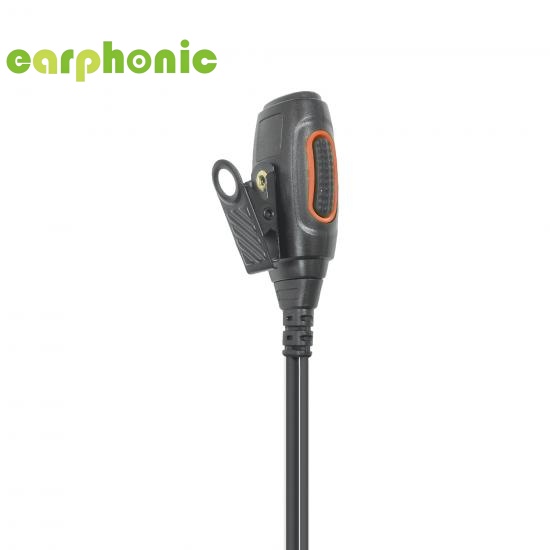

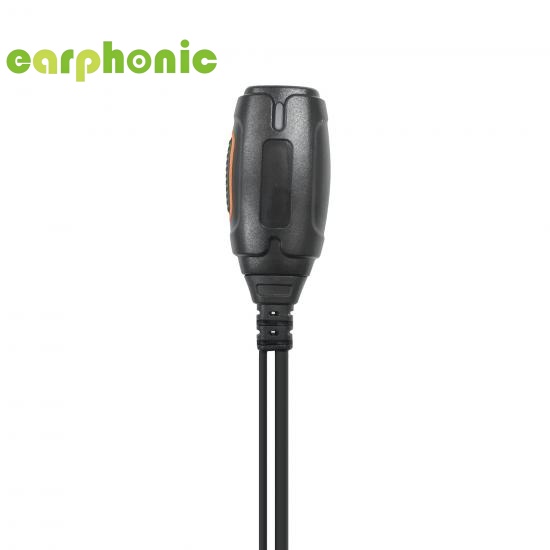

PTT Button:
Trigger Method: Push type (with feedback damping)
Lifespan: ≥ 100,000 presses
Wire Specifications:

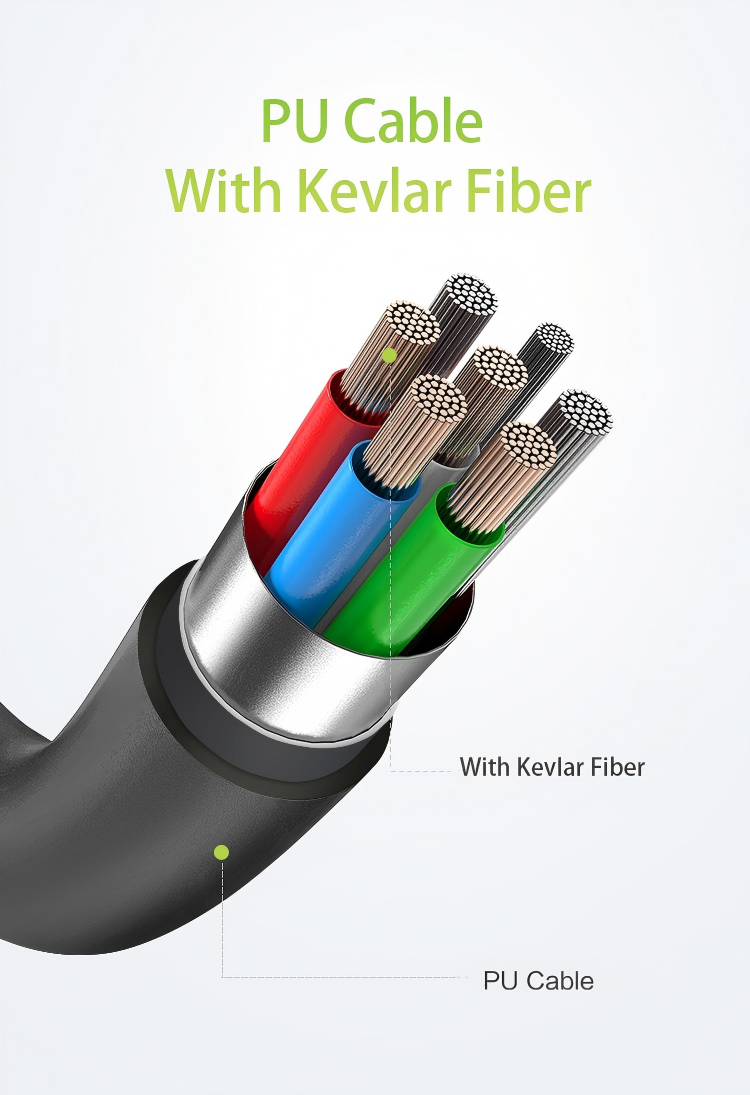

Material: PU wear-resistant line
Length: 1.2m (regular) / 0.8m (compact)

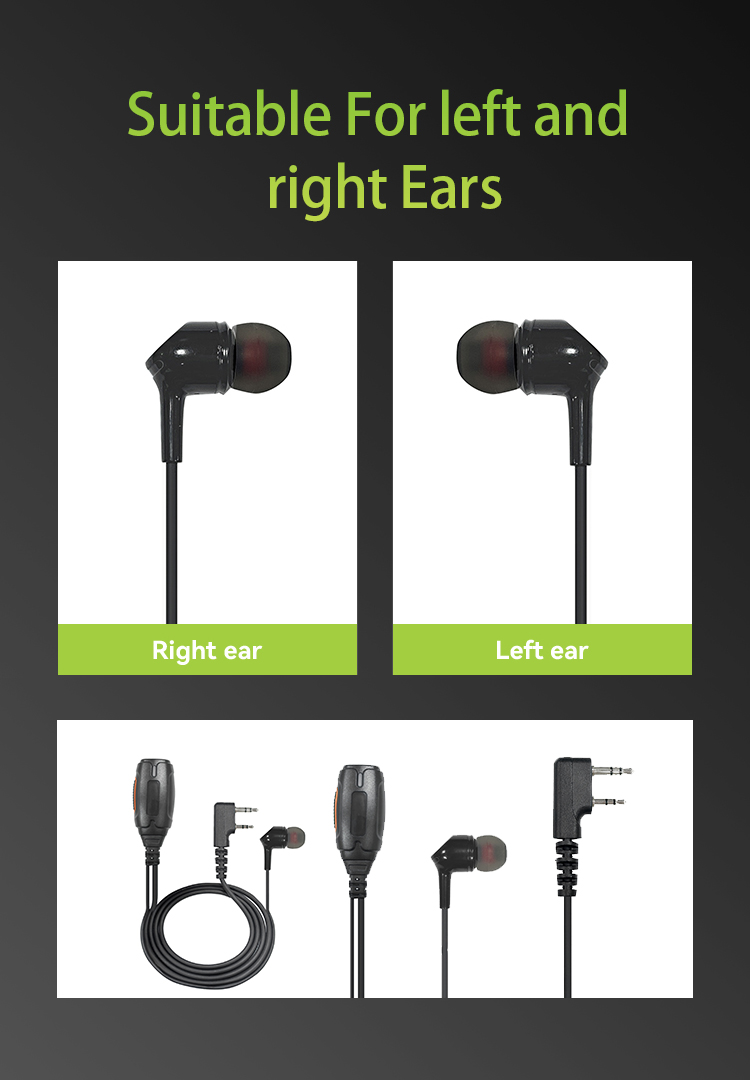

Wearing style: Single earhook (left/right ear adjustable)
Certification Standards: Passed [CE/RoHS] certification, in line with [EARPHONIC] accessories quality standards.
Usage scenarios:
1.Public Safety & Law Enforcement
2.Business Services & Scheduling
3.Outdoor work and adventure
4.Property Management & Coordination
Hot tags: Two Way Radio Headset,Walkie Talkie Accessories,Professional Walkie Talkie Accessories Manufacturer, Noise-cancelling Headsets, PTT Push-to-Talk, Durable Walkie-Talkie Headsets, Security Earphones
After-sales and service：
Warranty: 3-6 months
Technical support: Provide [inspection video / remote after-sales service], 24-hour customer service to respond to interface adaptation problems.

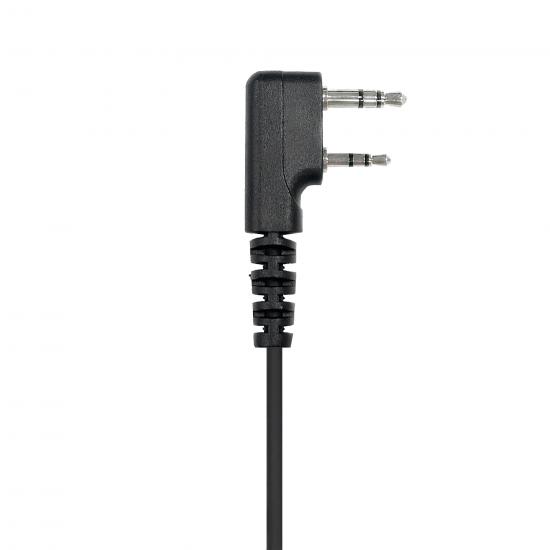

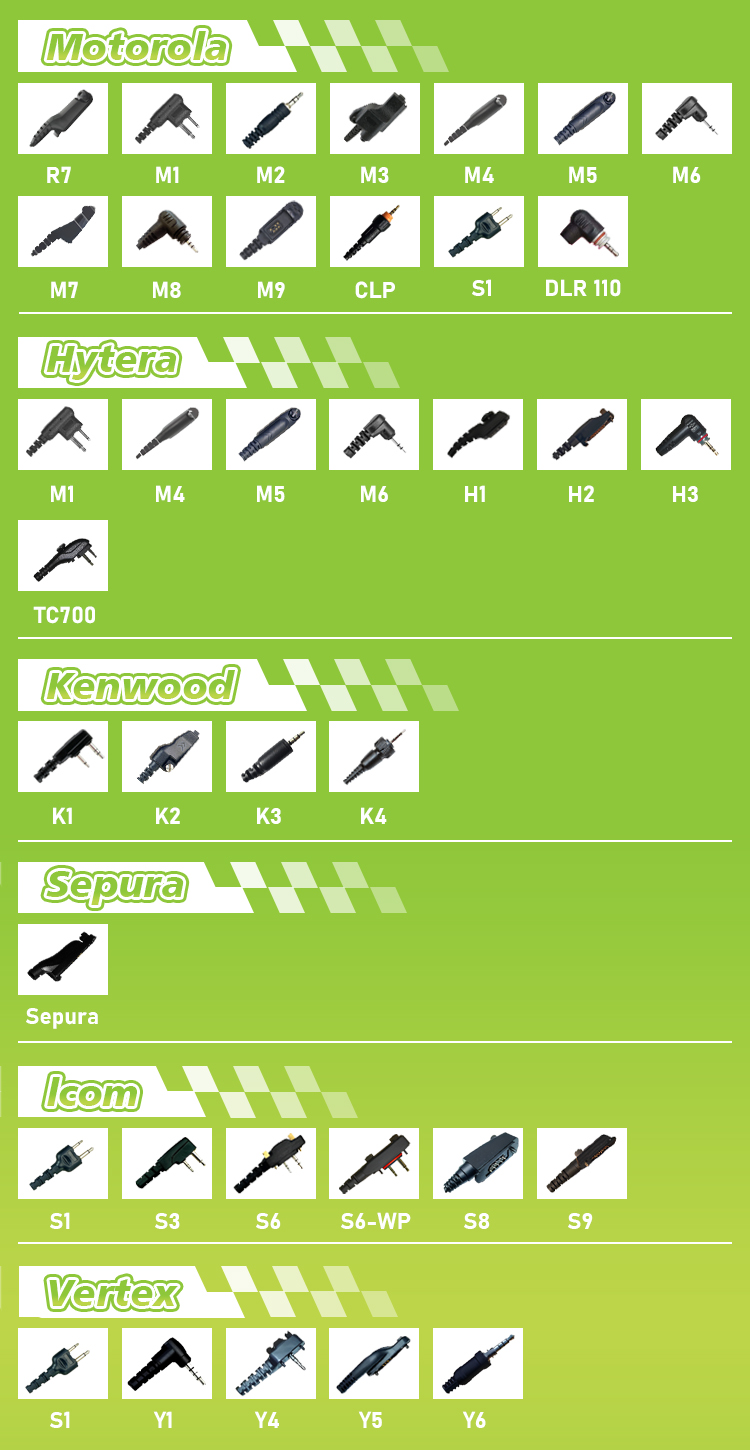

Compatible Model :
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
