EARPHONIC ICOM Plug Walkie Talkie Earphone Customizable Two Way Radio Headphone

walkie talkie headset
walkie talkie headset
walkie talkie headset
walkie talkie headset
walkie talkie headset
walkie talkie headset
walkie talkie headset

EARPHONIC ICOM Plug Walkie Talkie Earphone Customizable Two Way Radio Headphone

This earpiece delivers clear voice communication, features a fashionable PTT microphone, offers better stamina for extended use, adopts an ergonomic earplug design, and supports customizd plugs to meet customer-specific requirements.

  • Brand:

    earphonic

  • Item NO.:

    ER03DP24SB1_K

  • Order(MOQ):

    5

  • Payment:

    L/C,T/T,Western Union,MoneyGram

  • Product Origin:

    CHINA

  • Color:

    BLACK

  • Shipping Port:

    XIAMEN

  • Lead Time：

    15 days

  • Weight：

    100g

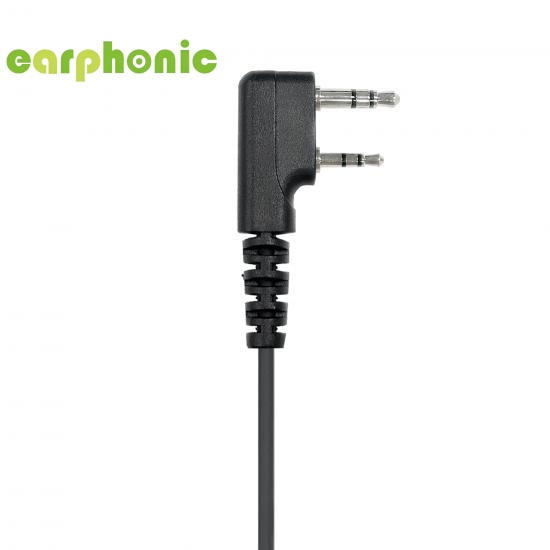

  • Connector:

    Kenwood K1
Inquire Now

Product Name: EARPHONIC ICOM Plug Walkie Talkie Earphone Customizable Two Way Radio Headphone

Brand: Earphonic

MOQ: 5 PCS

Warranty: 3-6 months

OEM/ODM: Yes


Product Feature:

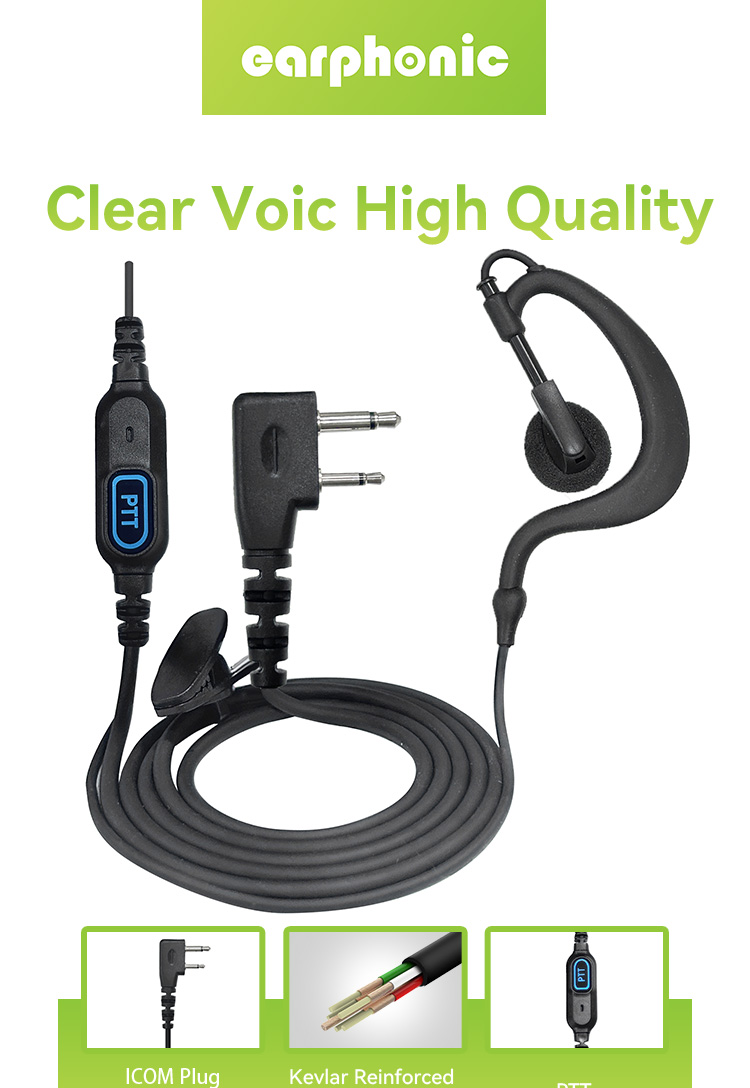

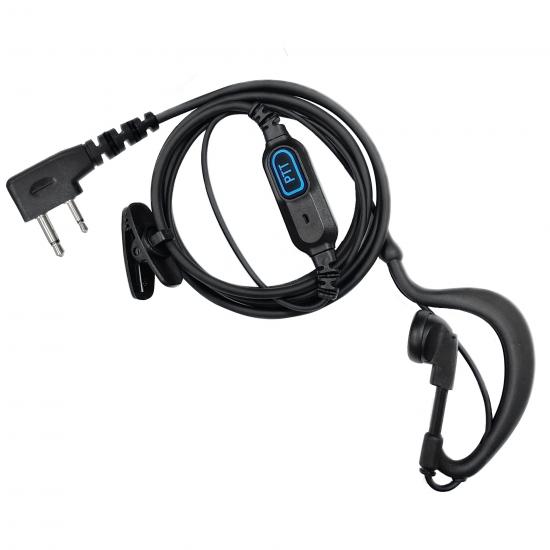

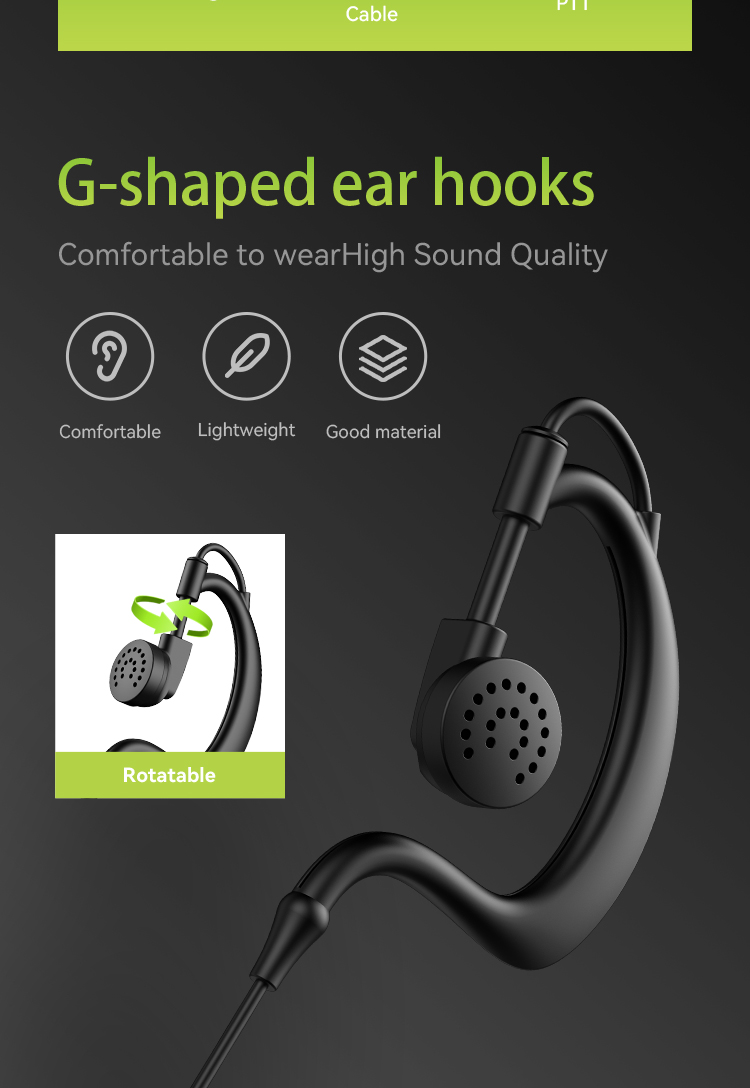

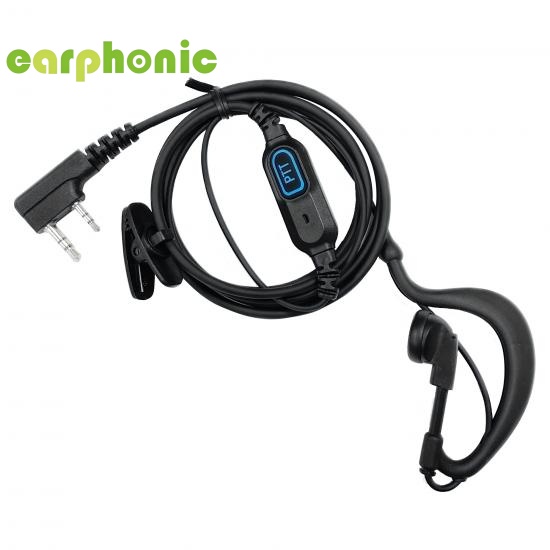

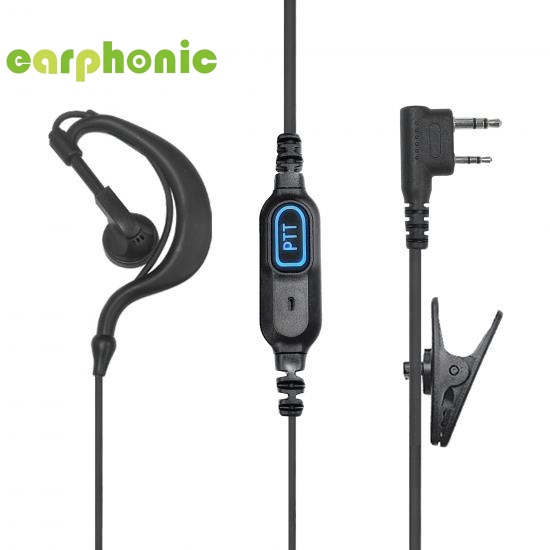

Single-wire G-Type Earhook PTT Headset for Two-Way Radios

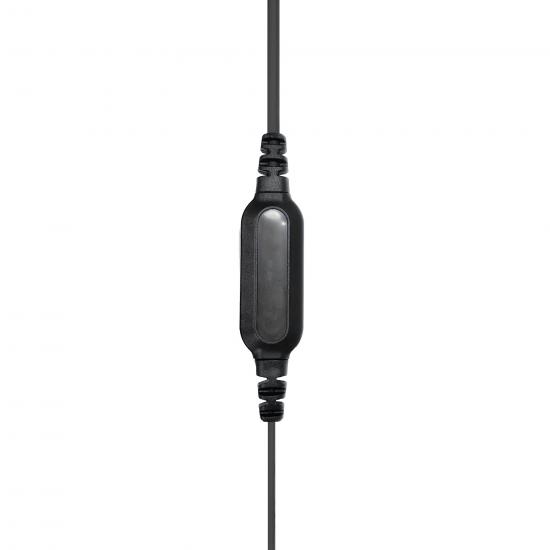

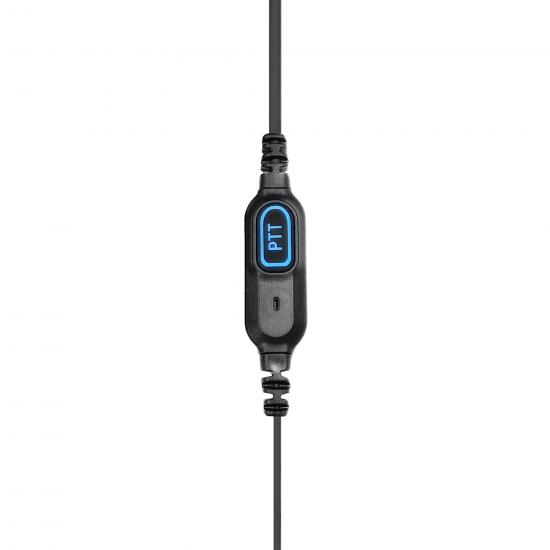

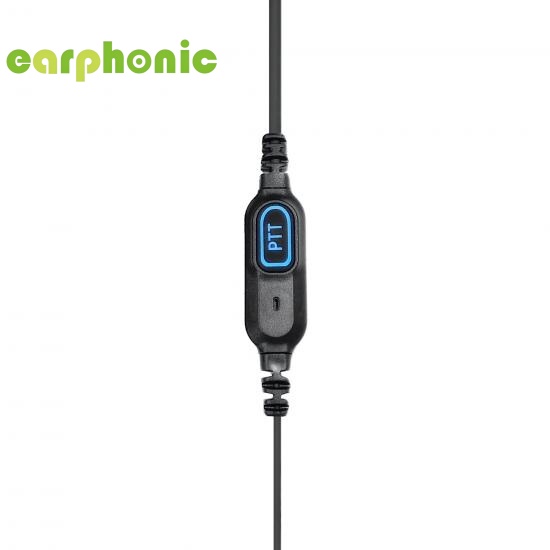

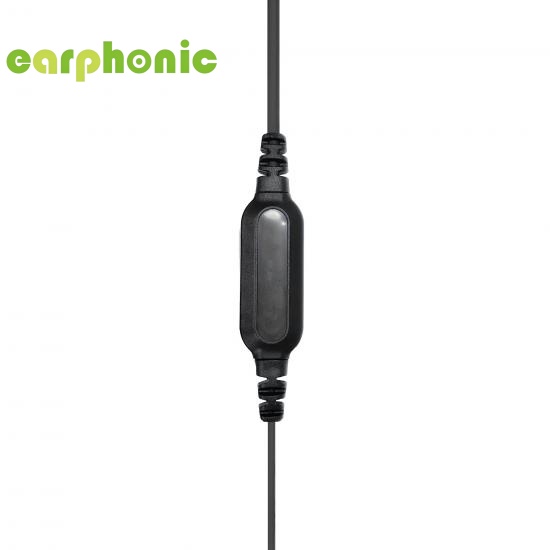

1. Inline PTT control is convenient for one-handed operation ;

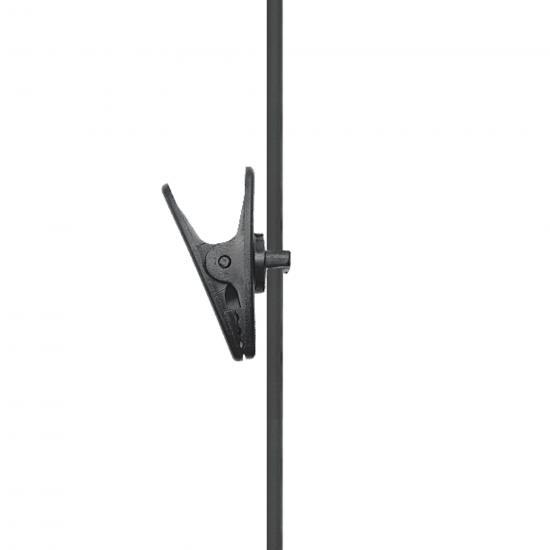

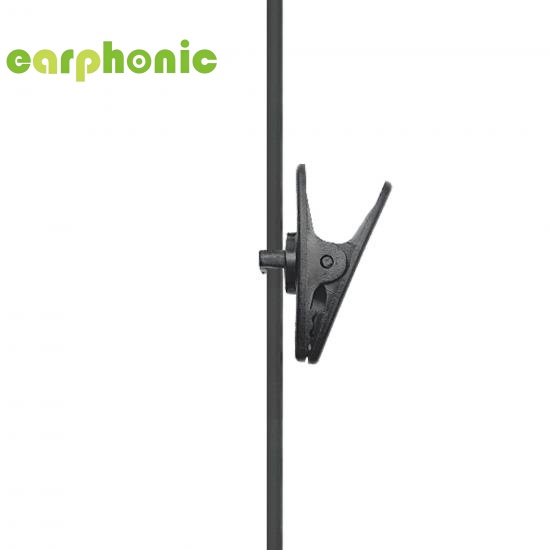

2. Stylish PTT design with metal clamps;
3. The blue PTT button is highly visible;

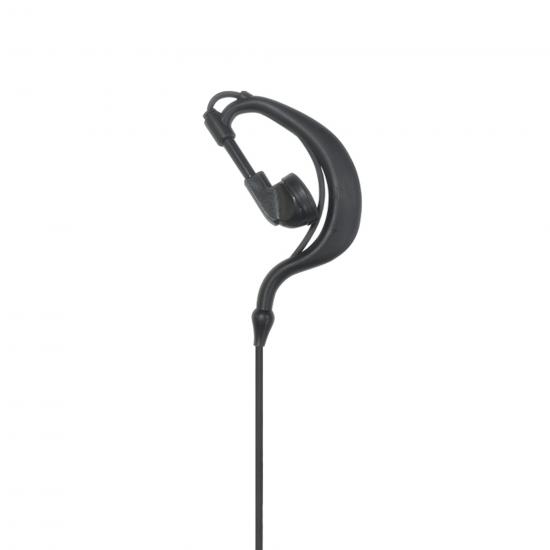

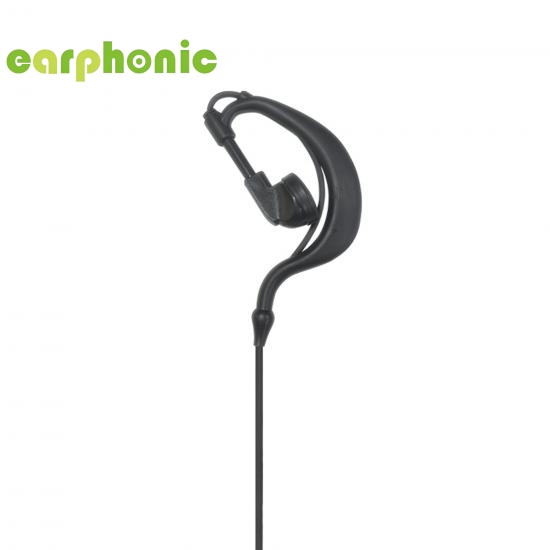

4. The earhook design offers excellent concealment and ensures clear voice transmission;

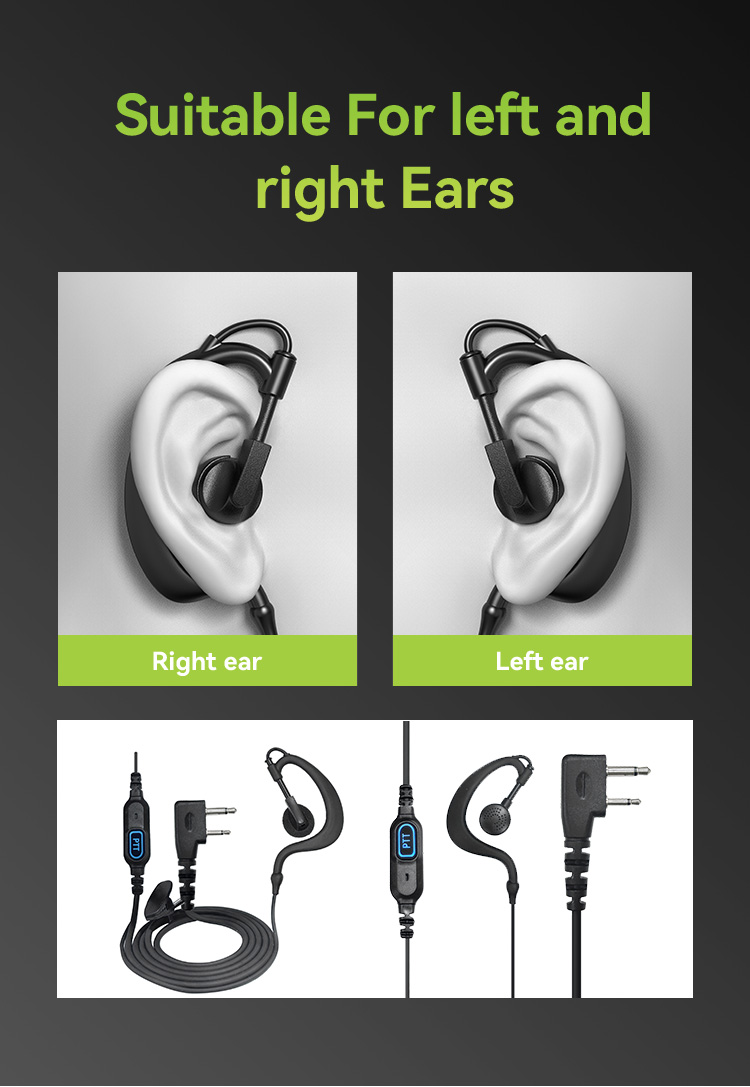

5. Rotatable earpiece design, compatible with both left and right ears;

6. Small pickup microphone ensures clear voice transmission;

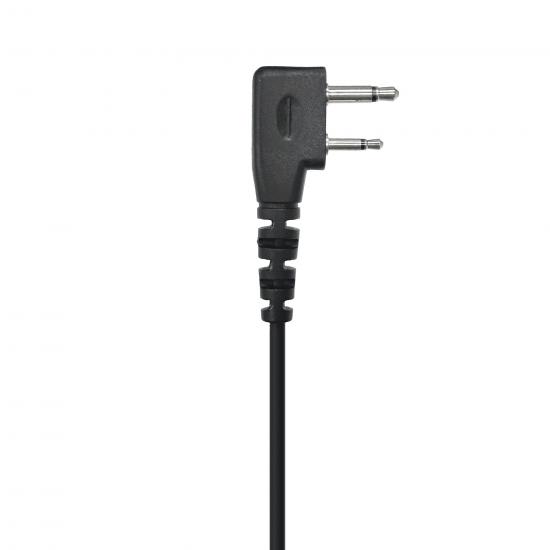

7. Plug can be customized according to customer requirements;

8. Mic Cable Length：95CM;
9. Earphone Cable Length：35CM;

10. Connectors can be customized.


Speaker Parameters

Electrical Parameters of Speaker
Impedance 150Ω±3Ω
Resonance Frequency 350Hz ±20%
Intelligent degree  111±5dB  At 1000 Hz At 0.179V;
Rated Power Rated Power Input 2mW, Max Power Input 3mW
Frequency scope 20HZ—20KHZ At 0.179 V
Ruzzes&Rattles Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion Less Than 5% at 1500Hz
Polarity Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density ±15% Guass (Surface)
Speaker Shell Diameter Φ16mm±0.01mm;

Microphone Parameters

Electrical Parameters of The microphone
Sensitivity  -36dB≦S≦-32dB, At f=1kHz，S.P.L=1Pa，0dB=1V/Pa;
Output impedance Zout=2.2KΩ,At f=1kHz
Current Consumption  IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity Omni directional
Signal to Noise Ratio  S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage  (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage  1≦V≦10;
Maximum input S.P.L  110dB,At f=1kHz,THD＜1%

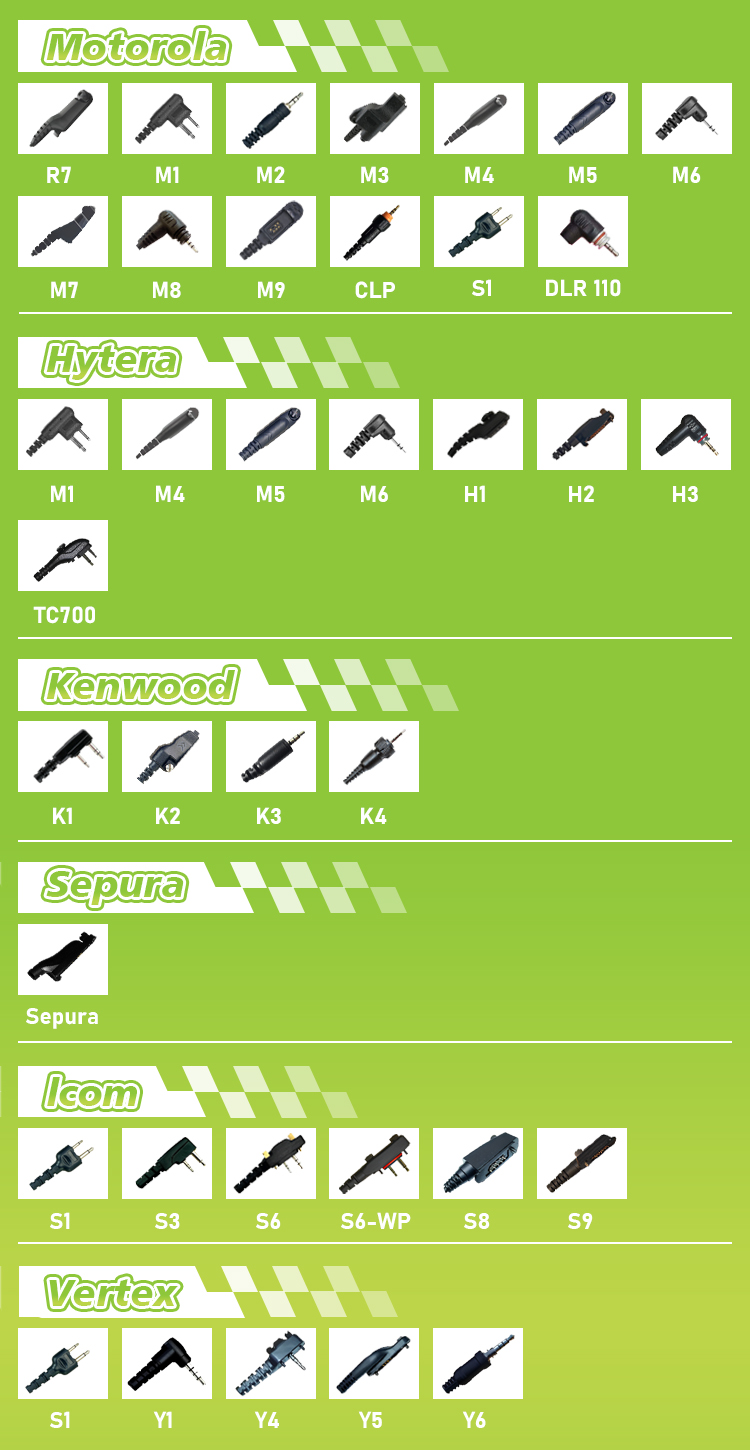

Compatible Model :

Connectors can be customized.

Brand

Connectors

Motorola

R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110

Hytera

M1, M4, M5, M6, H1, H2, H3, TC700

Kenwood

K1, K2, K3, K4

Speura

Speura

Icom

S1, S3, S6, S6-WP, S8, S9

Vertex

S1, Y1, Y4, Y5, Y6
