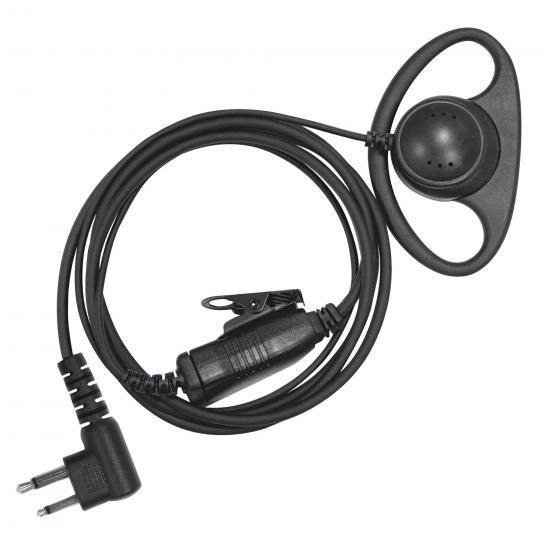

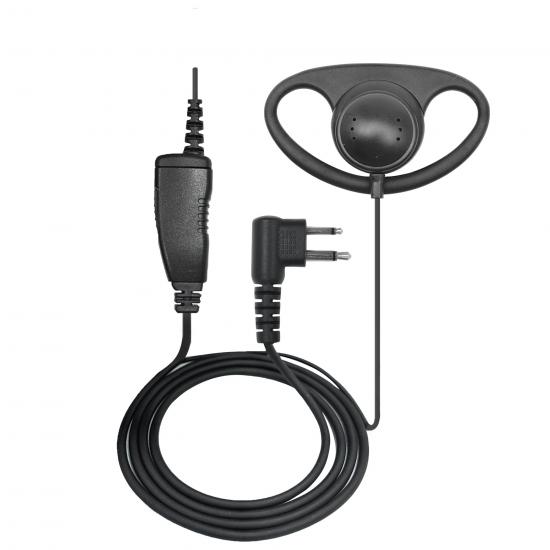

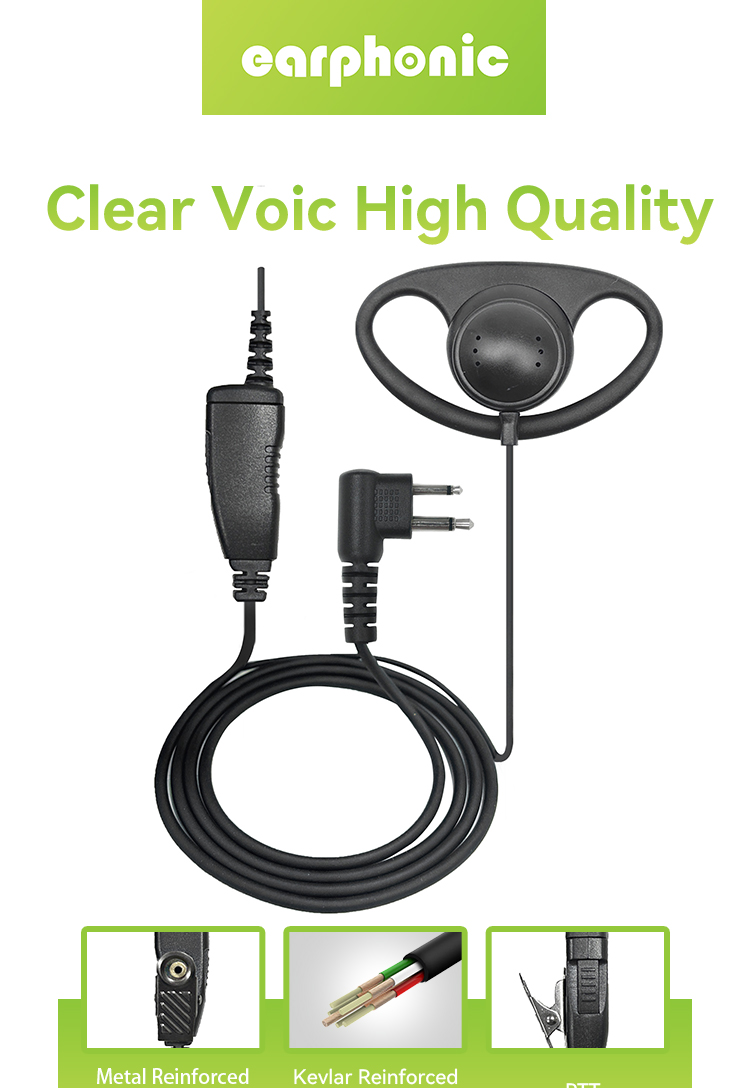

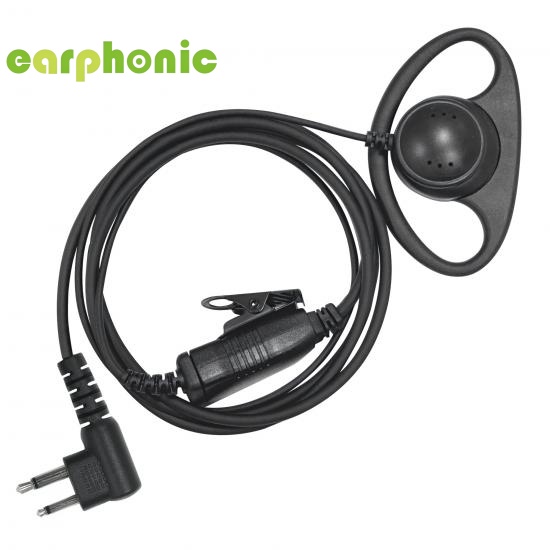

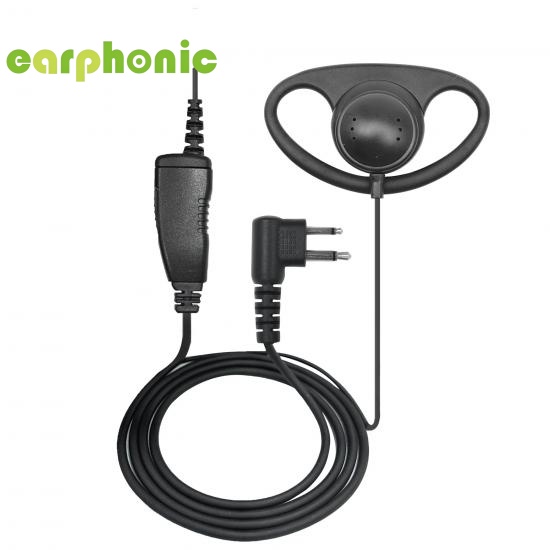

Product name: EARPHONIC D Shape Ear Hook Headset for Two Way Radio M Plug Walkie Talkie Earphone with Mic
Brand: Earphonic
Warranty: 3-6 months
MOQ: 5PCS
OEM/ODM: Yes
Product Features:
Single-wire D-Type Earhook PTT Headset for Two-Way Radios

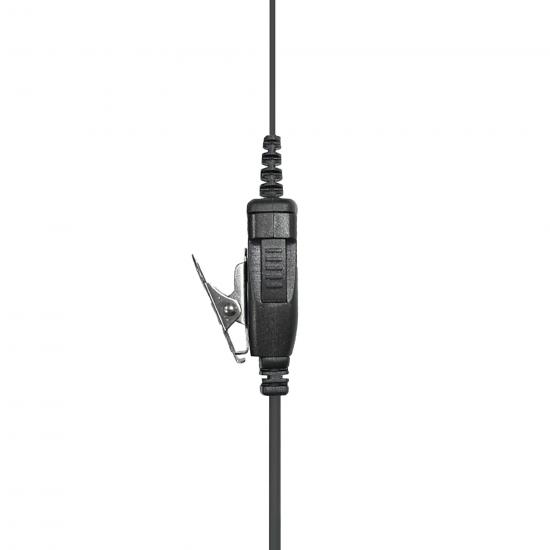

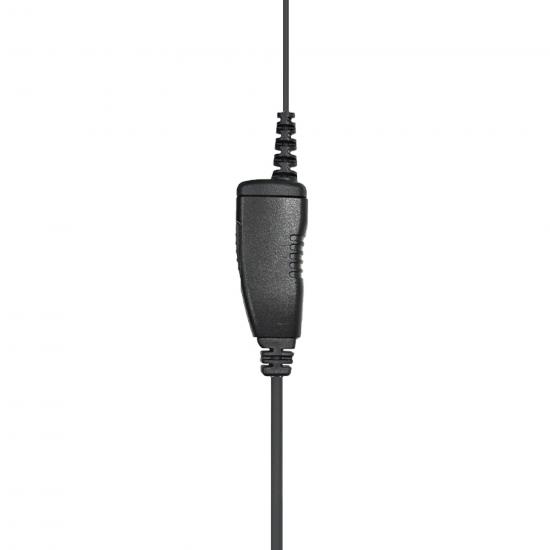

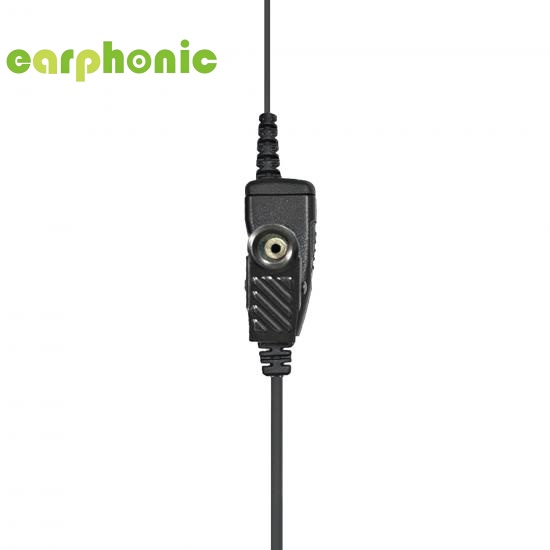

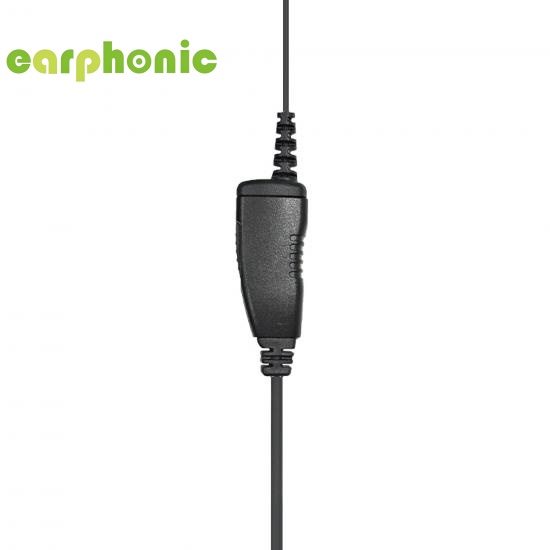

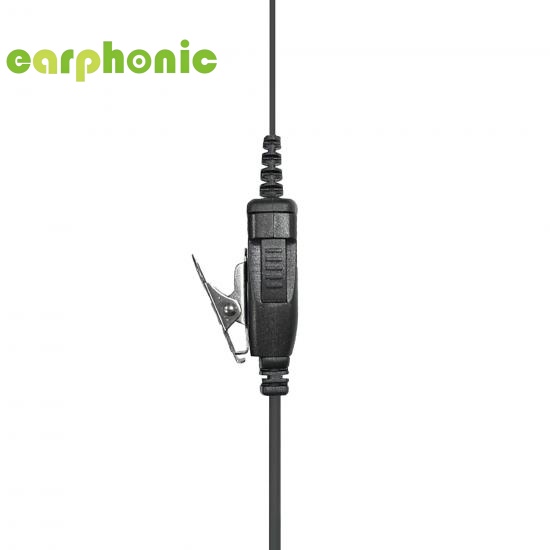

1. Inline PTT control is convenient for one-handed operation ;

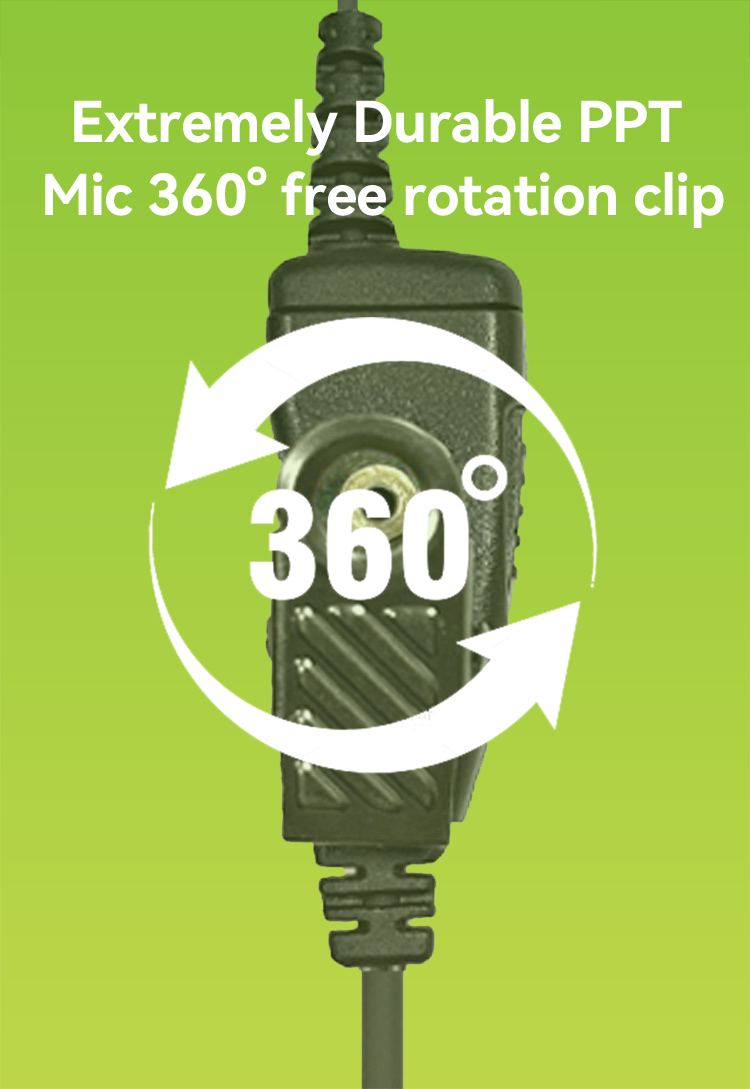

2. Stylish PTT design with metal clamps;
3. The PTT housing have a comfortable, ergonomic grip

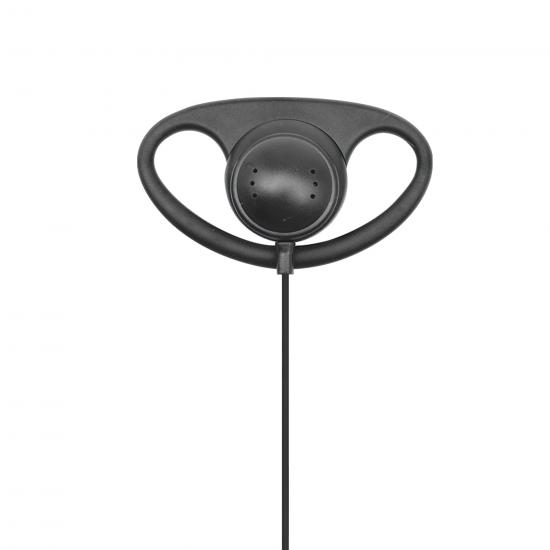

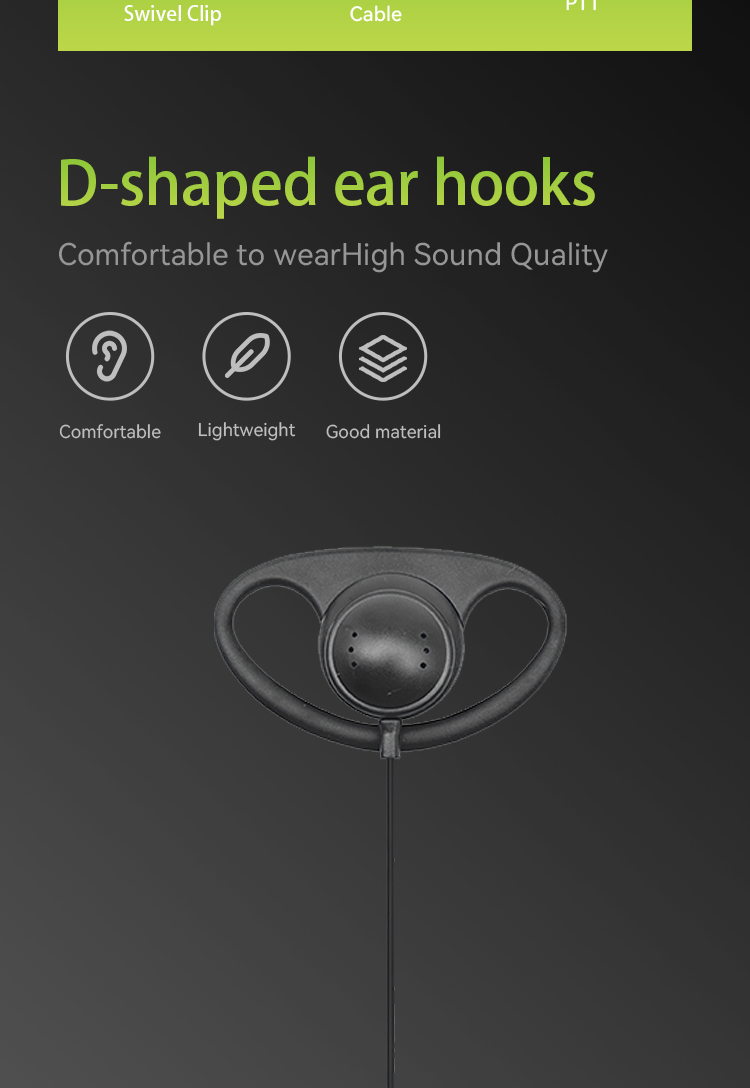

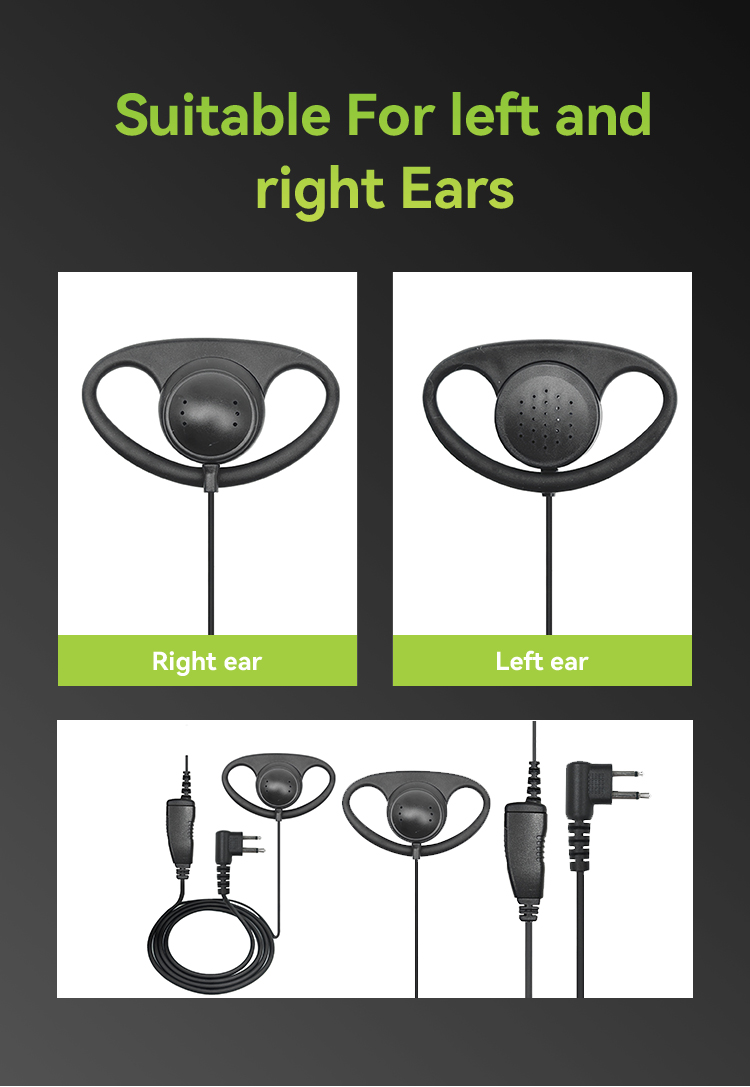

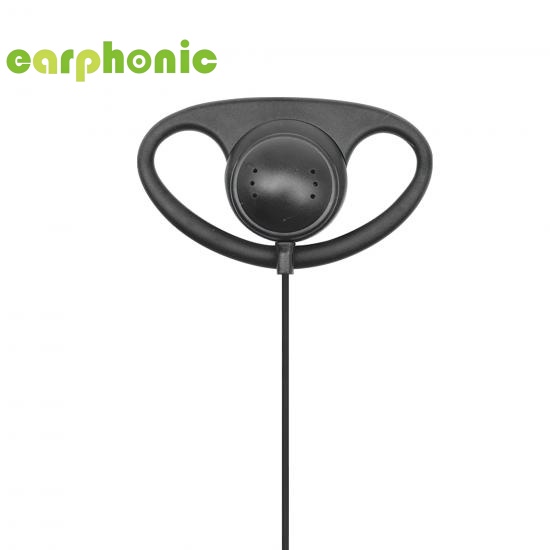

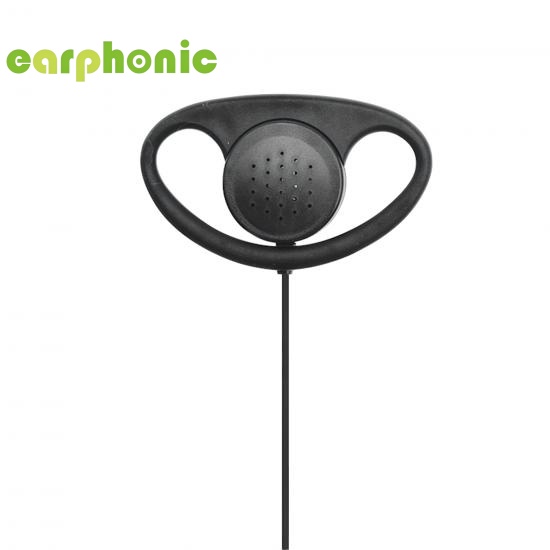

4. The earhook design offers excellent concealment and ensures clear voice transmission;
5. Fast to wear, preserves ambient sound, suitable for indoor / light-duty work;
6. Small pickup microphone ensures clear voice transmission.

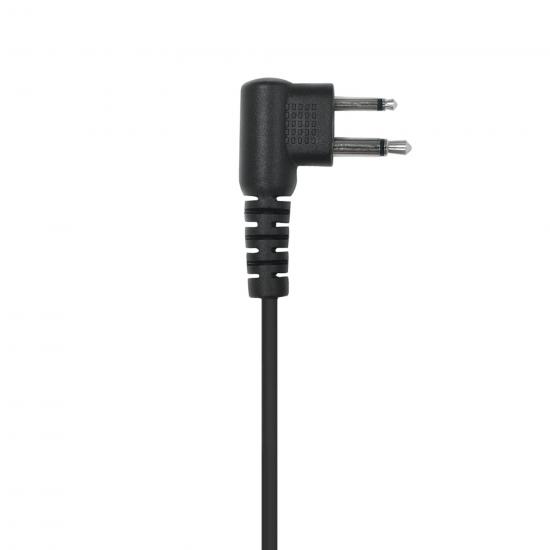

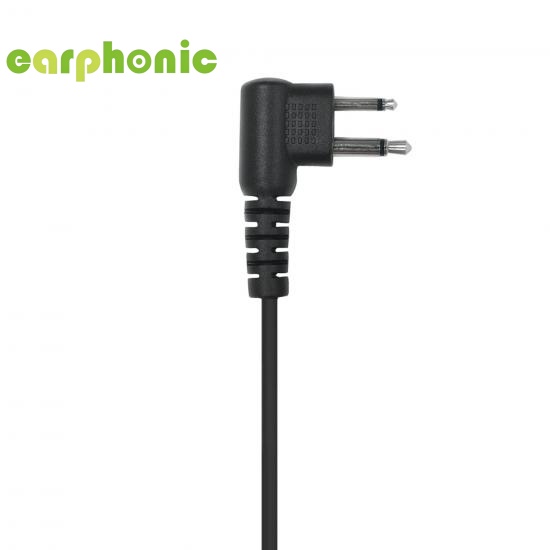

7. Plug can be customized according to customer requirements.
8. Mic Cable Length:95CM;
9. Earphone Cable Length:40CM.
Microphone's Parameters:
| Electrical Parameters of The microphone | |
| Sensitivity | -40dB≦S≦-36dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa; |
| Output impedance | Zout=2.2KΩ,At f=1kHz |
| Current Consumption | IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ |
| Directivity | Omni directional |
| Signal to Noise Ratio | S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve) |
| Decreasing Voltage | (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0 |
| Operating voltage | 1≦V≦10; |
| Maximum input S.P.L | 110dB,At f=1kHz,THD<1% |
Speaker's Parameters:
| Electrical Parameters of Speaker | |
| Impedance | 8Ω±1Ω |
| Resonance Frequency | 350Hz ±20% |
| Intelligent degree | 111±5dB At 1000 Hz At 0.179V; |
| Rated Power | Rated Power Input 100mW, Max Power Input 250mW |
| Frequency scope | 20HZ—20KHZ At 0.179 V |
| Ruzzes&Rattles | Clear sound, no noise At 0.25V(50HZ-3KHZ) |
| Distortion | Less Than 5% at 1500Hz |
| Polarity | Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole |
| Flux Density | ±15% Guass (Surface) |
| Speaker Shell Diameter | Φ29mm±0.25mm; |

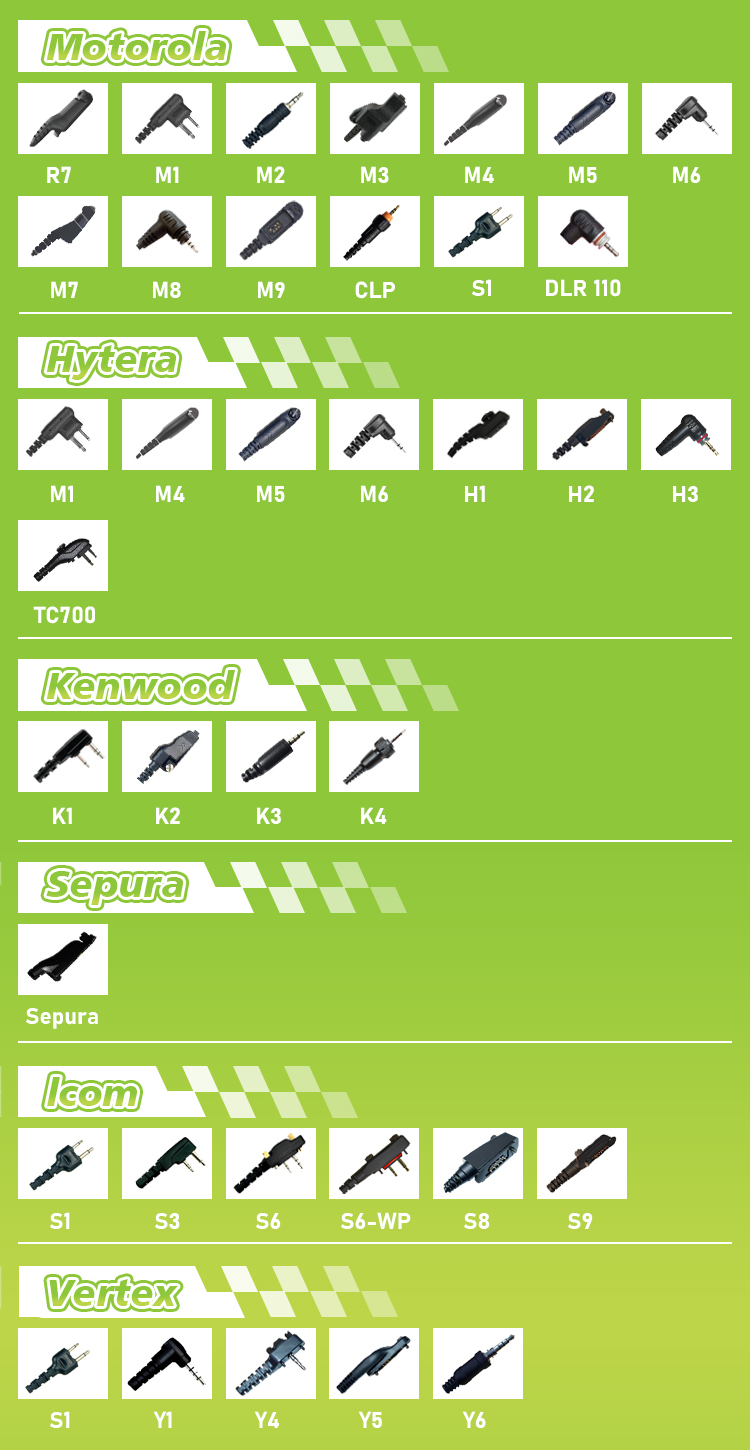

Compatible Model :
|
Brand |
Connectors |
|
Motorola |
R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110 |
|
Hytera |
M1, M4, M5, M6, H1, H2, H3, TC700 |
|
Kenwood |
K1, K2, K3, K4 |
|
Speura |
Speura |
|
Icom |
S1, S3, S6, S6-WP, S8, S9 |
|
Vertex |
S1, Y1, Y4, Y5, Y6 |
