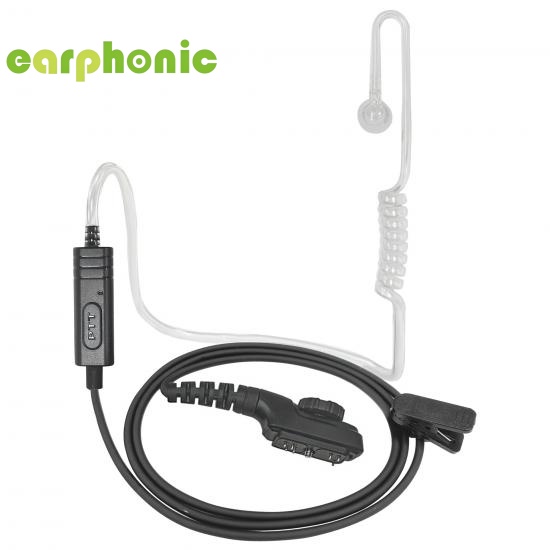

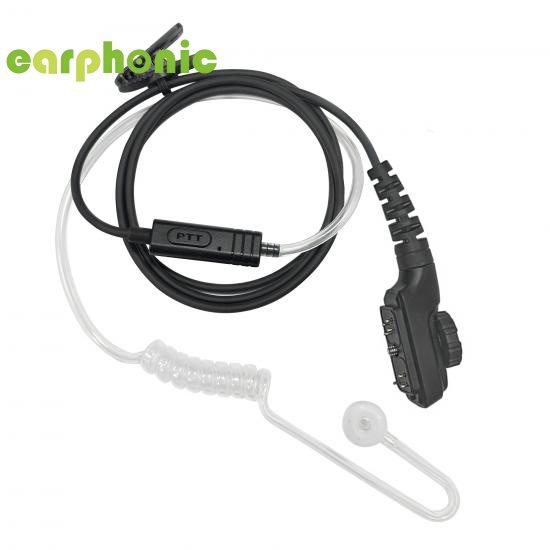

EARPHONIC Custom Logo Two-Way for Radio Headset Walkie Talkie Earphone with Microphone for Park Management Acoustic Tube

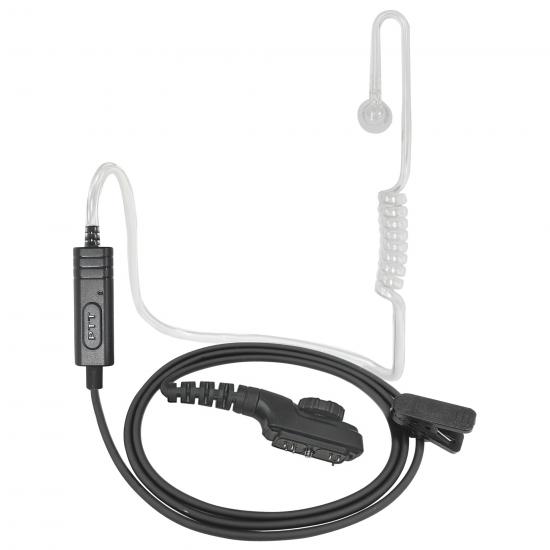

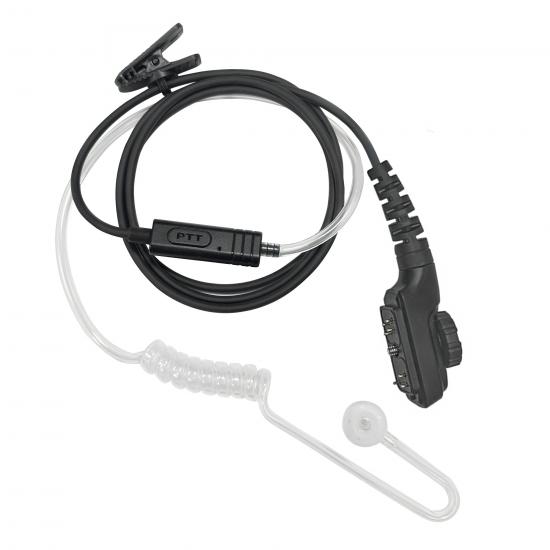

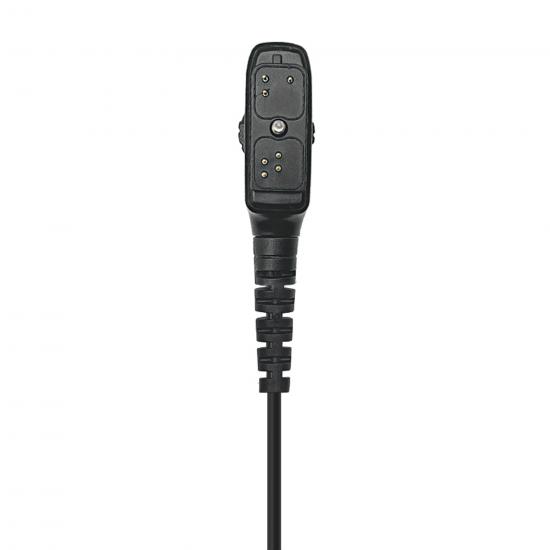

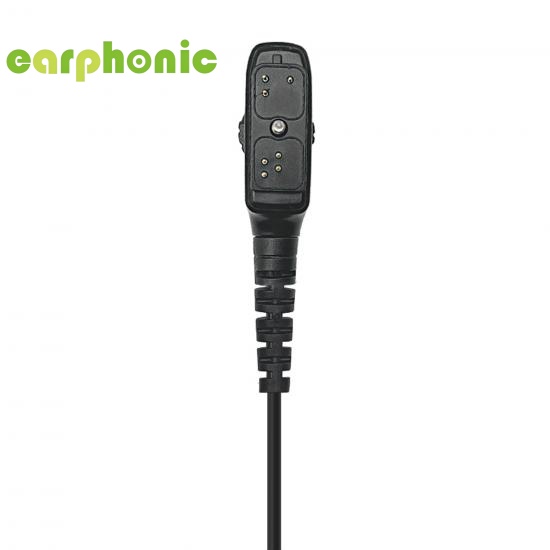

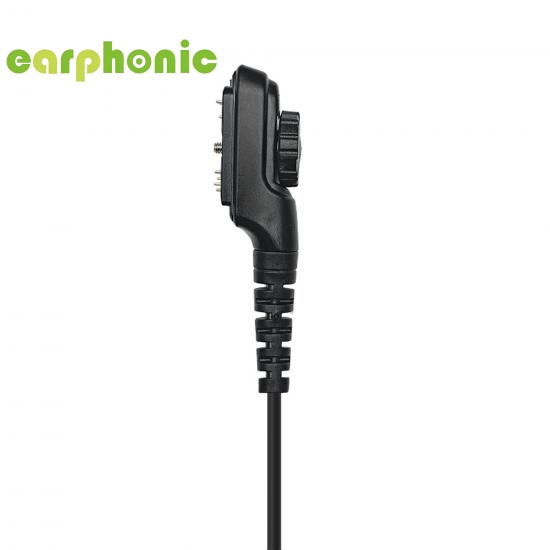

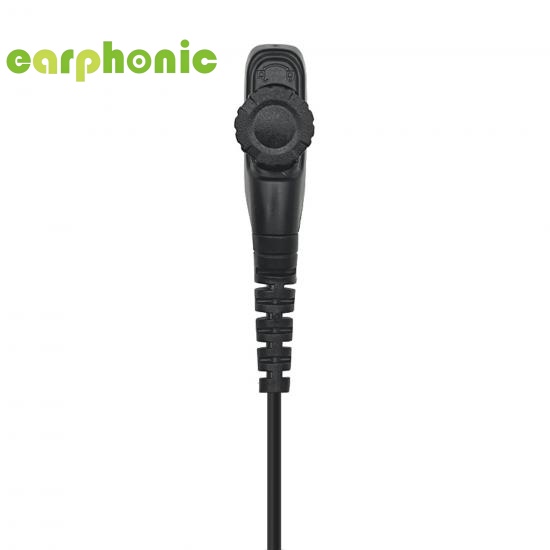

The connector of this earpiece is Hytera's H1, as known as PD780. This headset has air acoustic tube so that the voice is clear and quality is high. What's more, connectors can be customized.


  • Brand:

    earphonic
  • Item NO.:

    ER02DP18SB6_PD780
  • Order(MOQ):

    5
  • Payment:

    L/C,T/T,Western Union,MoneyGram
  • Product Origin:

    CHINA
  • Color:

    BLACK
  • Shipping Port:

    XIAMEN
  • Lead Time:

    15 days
  • Weight:

    100g
  • Connector:

    Hytera H1
New Products


Product name: EARPHONIC Custom Logo Two-Way for Radio Headset Walkie Talkie Earphone with Microphone for Park Management Acoustic Tube

Brand: Earphonic

MOQ: 5PCS

OEM/ODM: Yes

Compatible model: Motorola, Kenwood, Hytera, Icom, Sepura, Vertex and so on.

Product position: Two-way radio headset




Product Features:

1. Ergonomic design for comfortable wear:The headphones weigh only 45g and are equipped with an acoustic transparent tube that fits the curve of the earlobe. There is no pressure when worn for a long time (suitable for work for more than 8 hours).

2. Noise reduction and sound pickup:It is equipped with a built-in noise-cancelling microphone to filter out environmental noise (such as engine sounds and pedestrian noise), making calls clear and distinguishable in noisy scenes (construction sites, exhibitions, airports).

3. Durability and environmental adaptation:The working temperature [-20°C~ 60°C] is resistant to severe cold and heat, and meets extreme scenarios such as outdoor inspection and low-temperature operation.

4. Original factory certification, quality assurance:Passed the [EARPHONIC] original factory compatibility test, the signal transmission is stable, and there is no noise and disconnection problems.


Microphone Parameters:

Electrical Parameters of The microphone
Sensitivity:   -36dB≦S≦-32dB, At f=1kHz,S.P.L=1Pa,0dB=1V/Pa;
Output impedance:  Zout=2.2KΩ,At f=1kHz
Current Consumption:  IDss(Max)=500µA, At Vs=2.0V,RL=2.2KΩ
Directivity:  Omni directional
Signal to Noise Ratio:  S/N(Min)=55dB,At S:(f=1KHz.S.P.L=1Pa),N:(A-Weighted curve)
Decreasing Voltage:  (ΔS-VS)Max=-3dB,At Vs Reduces from 2.0 to 1.0
Operating voltage:  1≦V≦10;
Maximum input S.P.L:  110dB,At f=1kHz,THD<1%



Speaker Parameters:

Electrical Parameters of Speaker
Impedance:  32Ω±5Ω;
Resonance Frequency:  350Hz ±20%
Intelligent degree:  115±3dB  At 1000 Hz At 0.179V
Rated Power: Rated Power Input 10mW, Max Power Input 15mW
Frequency scope:  200HZ—20KHZ At 0.179 V
Ruzzes&Rattles: Clear sound, no noise At 0.25V(50HZ-3KHZ)
Distortion: Less Than 5% at 1500Hz
Polarity: Positive Electrode,When an instantaneous DC voltage of 0.2V is applied to the positive electrode, causing the voice coil to move forward, the input terminal connected to the positive electrode is the "+" pole
Flux Density:  ±15% Guass (Surface)

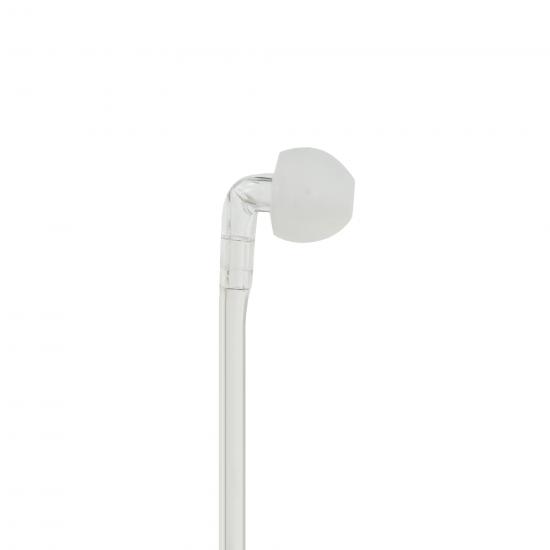

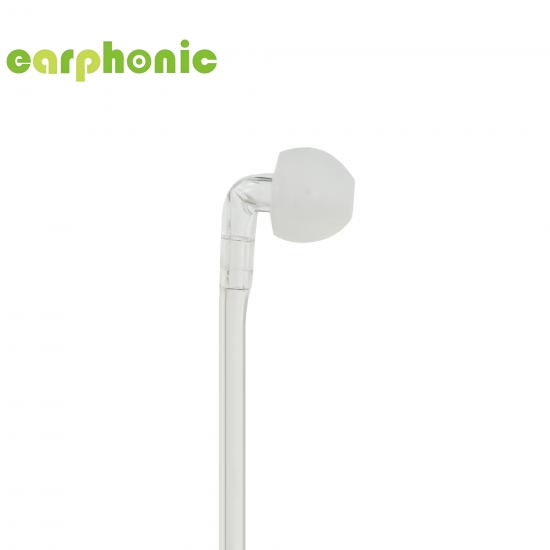

Air Tube Shell Diameter: Φ7.1mm±0.01mm;

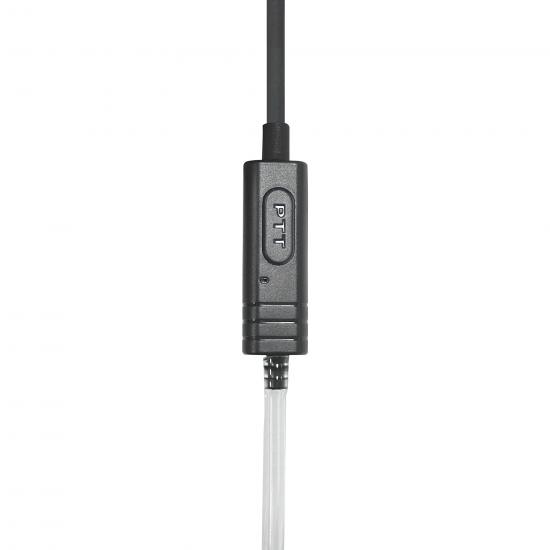

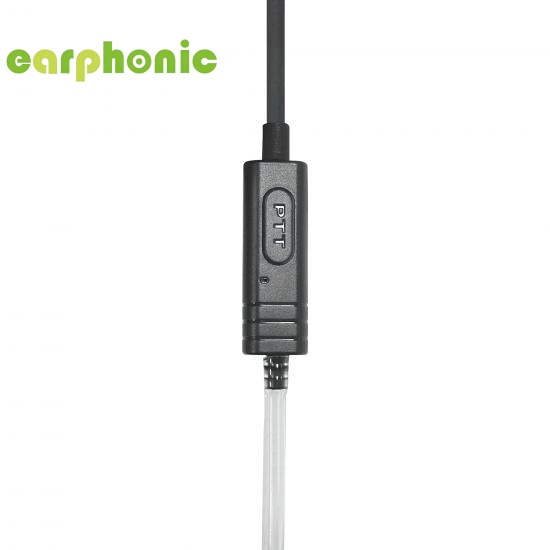

PTT Button:

Trigger Method: Push type (with feedback damping)

Lifespan: ≥ 100,000 presses



Wire Specifications:

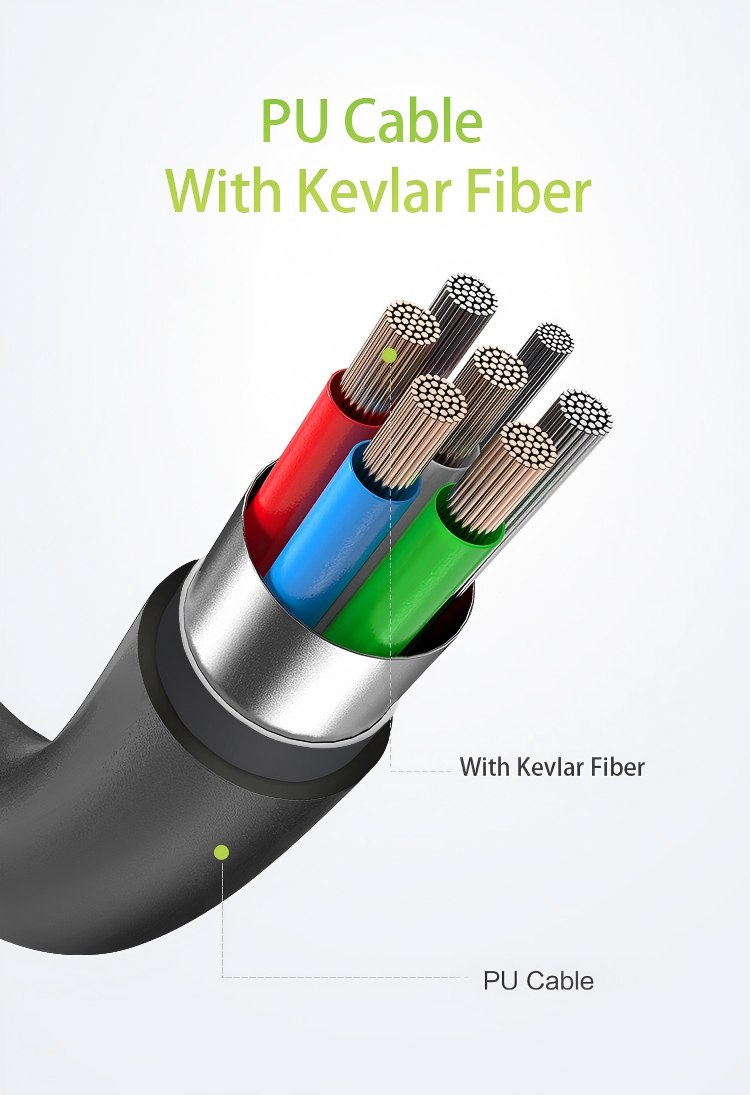

Material: PU wear-resistant line

Length: 1.2m (regular) / 0.8m (compact)



Wearing style: Single earhook (left/right ear adjustable)



Certification Standards: Passed [CE/RoHS] certification, in line with [EARPHONIC] accessories quality standards.



Usage scenarios:

1.Public Safety & Law Enforcement

2.Business Services & Scheduling

3.Outdoor work and adventure

4.Property Management & Coordination



After-sales and service

Warranty: 3-6 months
Technical support: Provide [inspection video / remote after-sales service], 24-hour customer service to respond to interface adaptation problems.


Compatible Model :

Hytera PD782,PD702

Brand

Connectors

Motorola

R7, M1, M2, M3, M4, M5, M6, M7, M8, M9, CLP, S1, DLR110

Hytera

M1, M4, M5, M6, H1, H2, H3, TC700

Kenwood

K1, K2, K3, K4

Speura

Speura

Icom

S1, S3, S6, S6-WP, S8, S9

Vertex

S1, Y1, Y4, Y5, Y6
